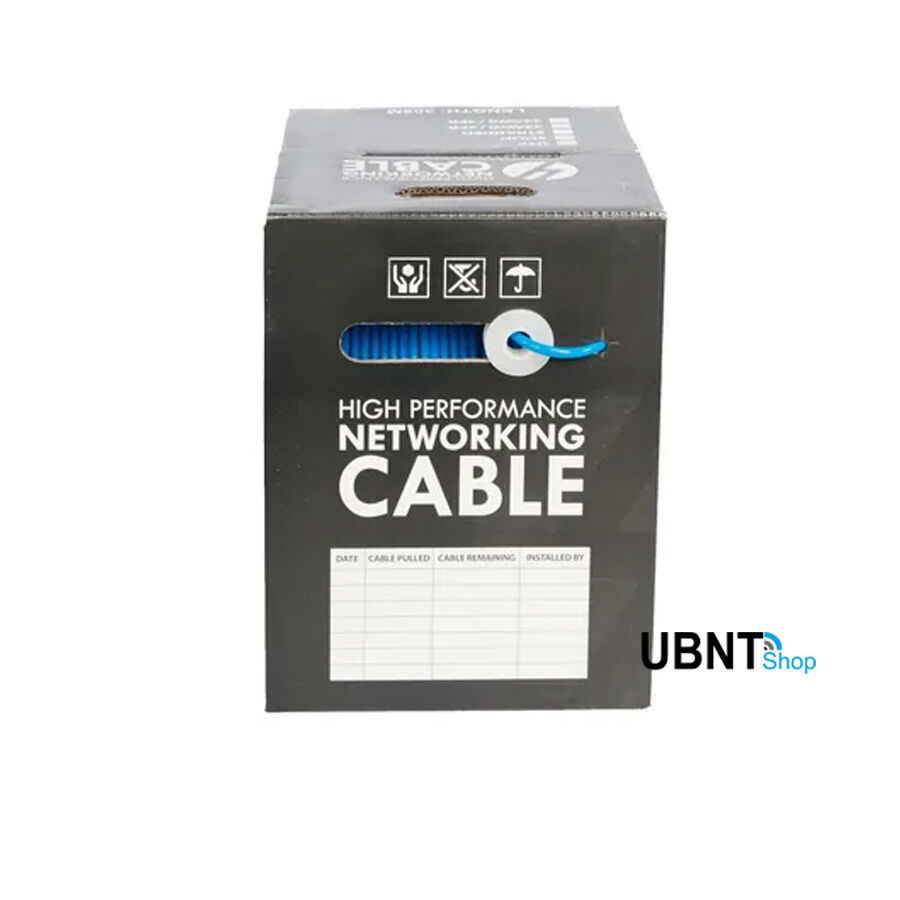

CAT6 LSZH LAN Ethernet Cable 305m - Reel Box: Blue



Cat 6 LSZH Jacket UTP LAN Ethernet Cable w/ Solid Conductors 305m - Reel Box: Blue

Cat 6 Ethernet Cables allow for better signal to noise ratio with minimal loss - which translates to faster and more reliable networks for today 's applications.

Category 6 cable, commonly referred to as Cat-6, is a cable standard for Gigabit Ethernet and other network protocols that are backwards compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat-5 and Cat-5e, Cat-6 ethernet cable features more stringent specifications for crosstalk and system noise. The cable standard provides the performance of up to 250 MHz and is suitable for 10BASE-T, 100BASE-TX (Fast Ethernet), 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) and 10GBASE-T (10-Gigabit Ethernet).

Applications:

  • Gigabit Ethernet, Multimedia, video, voice & data
  • Horizontal wiring in Local Area Networks (LAN)
  • 550MHz Broadband Video

CABLE SPECIFICATIONS

  • Cable Type: Cat 6
  • Connectors: Unterminated
  • Length: 305m (1000ft)
  • Colour: Blue
  • Jacket Material: LSZH
  • Diameter: 6.2mm
  • Bending Radius: 8 x OD

FEATURES

  • Unterminated Cat 6 on cable reel
  • Low Smoke, Zero Halogen (LSZH)
  • Meter Marked
  • 305m easy-pull box
  • 23 AWG

CERTIFICATIONS

  • UL listed
  • EIA/TIA and ACMA approved
  • ANSI/TIA/EIA 568-B.2-1 CAT.6
  • ISO/IEC 11801 CLASS E, 2nd Edition
  • IEC 61156-6
  • CENELEC EN 50173-1 CENELEC EN 50288-5-1
  • CENELEC EN 50288-5-2
  • Flame Retardancy is verified according to IEC 60332-1-2
  • RoHS compliance the European Union issued Directive 2002/95/EC



WARRANTY

3 year limited warranty.



(4CBL-CAT6-UTP-ETH-305M)

CAT6 LSZH LAN Ethernet Cable 305m

Pack Includes

1 x UCAT6 LSZH LAN Ethernet Cable - Reel Box: Blue 1000 ft (304.8 m)

CAT6 LSZH LAN Ethernet Cable 305m - Specifications



4CBL-CAT6-UTP-ETH-305M
Cable Type Category 6
Ethernet Support Up to 10 Gbps
Conductor Wire Gauge 23 AWG
Insulation Thickness Avg. 0.2 mm, Nominal
Insulation Diameter 1.0 ± 0.1 mm
Jacket Material LSZH
Jacket Thickness 0.50 mm, Nominal
Jacket Outer Diameter 6.2mm
Bending Radius: 8 x OD
Jacket Color Blue



Shipping Specifications

SKU 4CBL-CAT6-UTP-ETH-305M
Model # 007.002.0050-R
Brand Ubiquiti
Shipping Weight 16.5000kg
Shipping Width 0.318m
Shipping Height 0.328m
Shipping Length 0.332m
Shipping Cubic 0.034629000m3
Unit Of Measure ea
