Ubiquiti Bullet M2 High Powered, Zero-Variable Outdoor airMAX® Radio



Pair the Ubiquiti Bullet™M with any antenna for airMAX® deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.

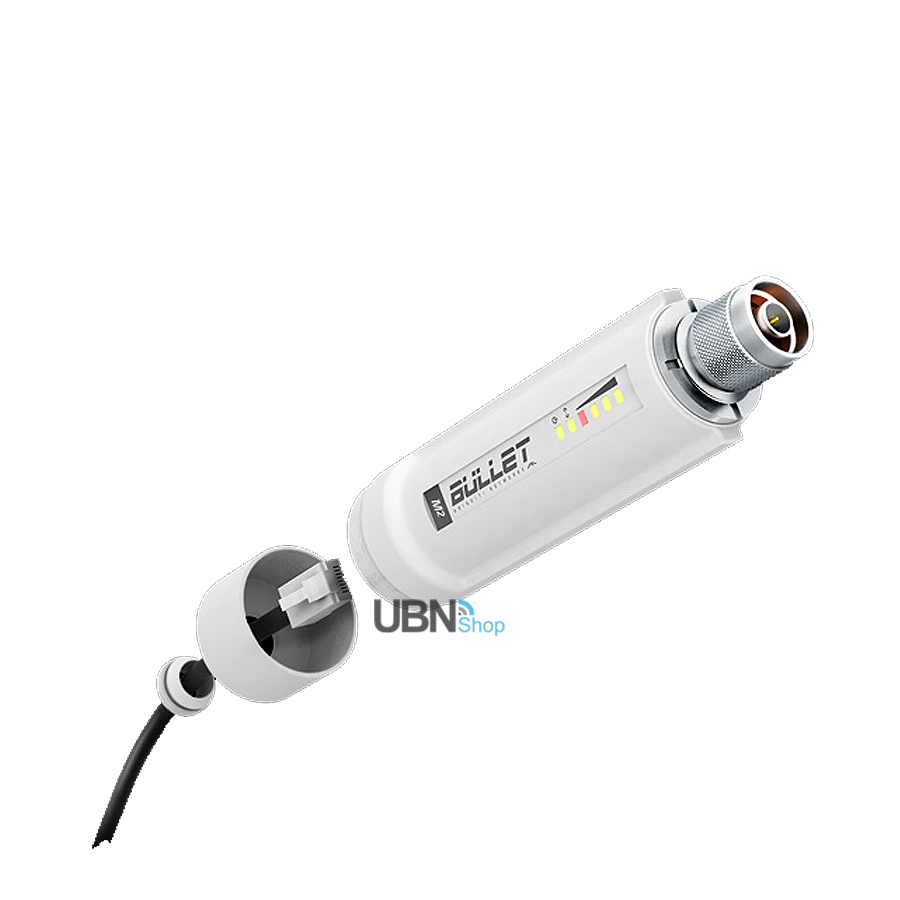

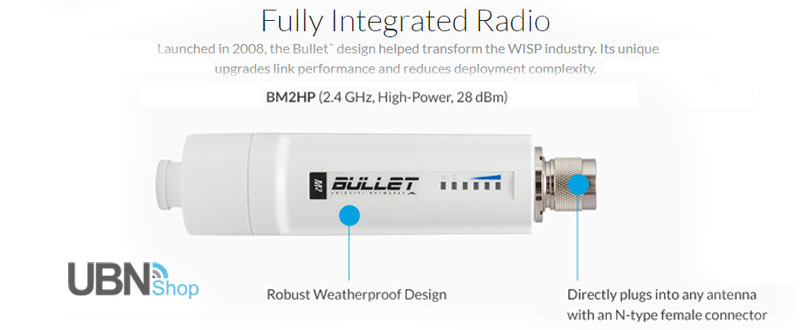

Bullet M is a wireless radio with an integrated Type N RF connector that can be directly plugged in to any Antenna* to create a powerful and robust outdoor Access Point, Client, or Bridge. The Bullet M features a signal strength LED meter for antenna alignment, a low-loss integrated N-type RF connector, and a robust weatherproof design. With up to 600mW of power and enhanced receiver design, the Bullet M is ideal for long-distance links, capable of 100Mbps+ real TCP/IP speeds over multi-km distances



Zero Variable Deployment

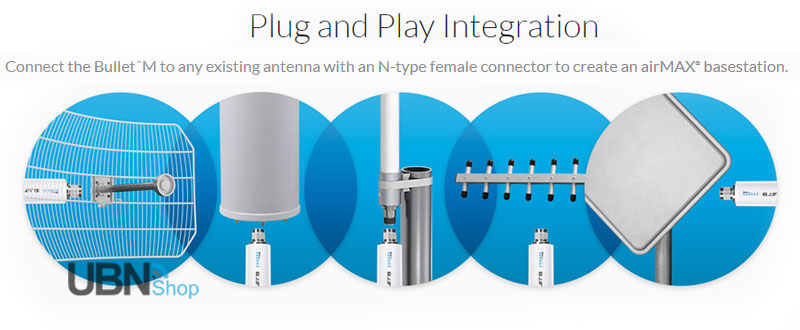

Bullet M eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet M, operators can just plug and go.

* Bullet M HP works with any antenna with a Type N female connector

** Ethernet cable and POE Adapter sold separately

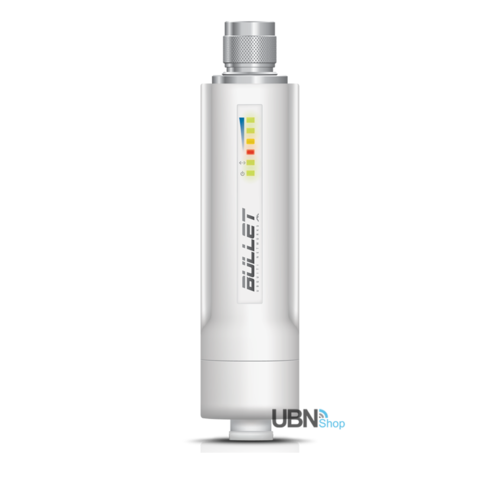

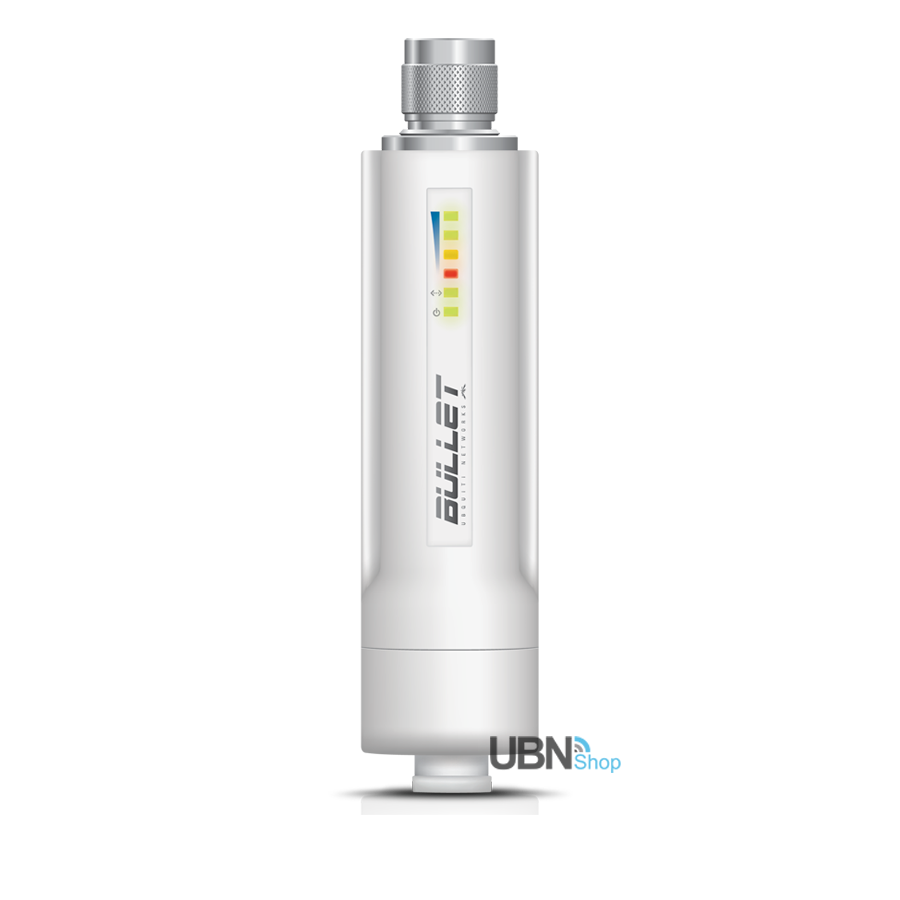

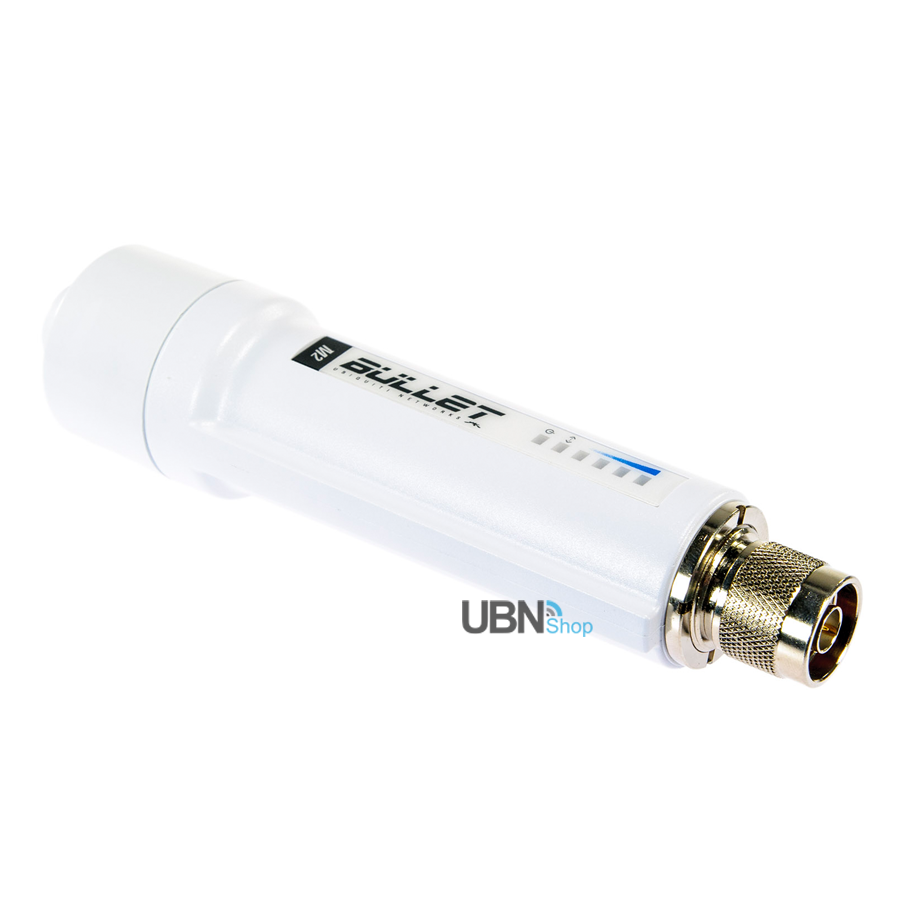

Bullet M2 High Powered

Ubiquiti Bullet™ M2 HP delivers up to 100+ Mbps real TCP/IP throughput.

(BulletM2-HP)

Bullet M2 2.4GHz, airMAX, HP

Pack Includes:

  • Bullet M2 2.4GHz, airMAX, HP

** Ethernet cable and POE Adapter sold separately

Bullet M2 2.4GHz, airMAX, HP- Specifications

Specifications

System Information
Processor Specs Atheros MIPS 24KC, 400MHz
 Memory Information 32MB SDRAM, 8MB Flash

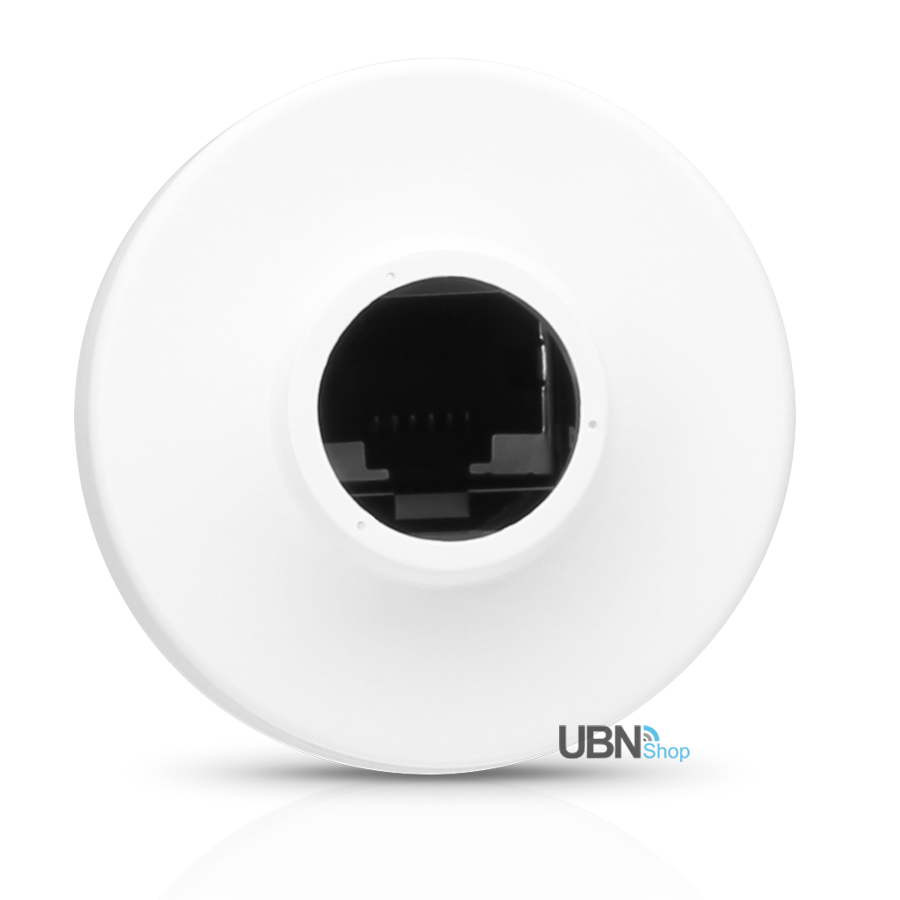

Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Regulatory / Compliance Information
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance YES
Physical / Electrical / Environmental
RF Connector Integrated N-type Male Jack (connects directly to antenna)
Enclosure Size 15.2 x 3.7 x 3.1 cm (length, width, height)
Weight 0.18kg
Enclosure Characteristics Outdoor UV Stabilized Plastic
Max Power Consumption 7 Watts 6 Watts
Power Rating Up to 24V
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)*
Operating Temperature -40C to 80C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Range Performance
Outdoor (Antenna Dependent) Over 50km



* POE Adapter is sold separately

SKU BulletM2-HP
Model # BULLETM2-HP
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.037m
Shipping Height 0.032m
Shipping Length 0.150m
Shipping Cubic 0.000178000m3
Unit Of Measure ea
