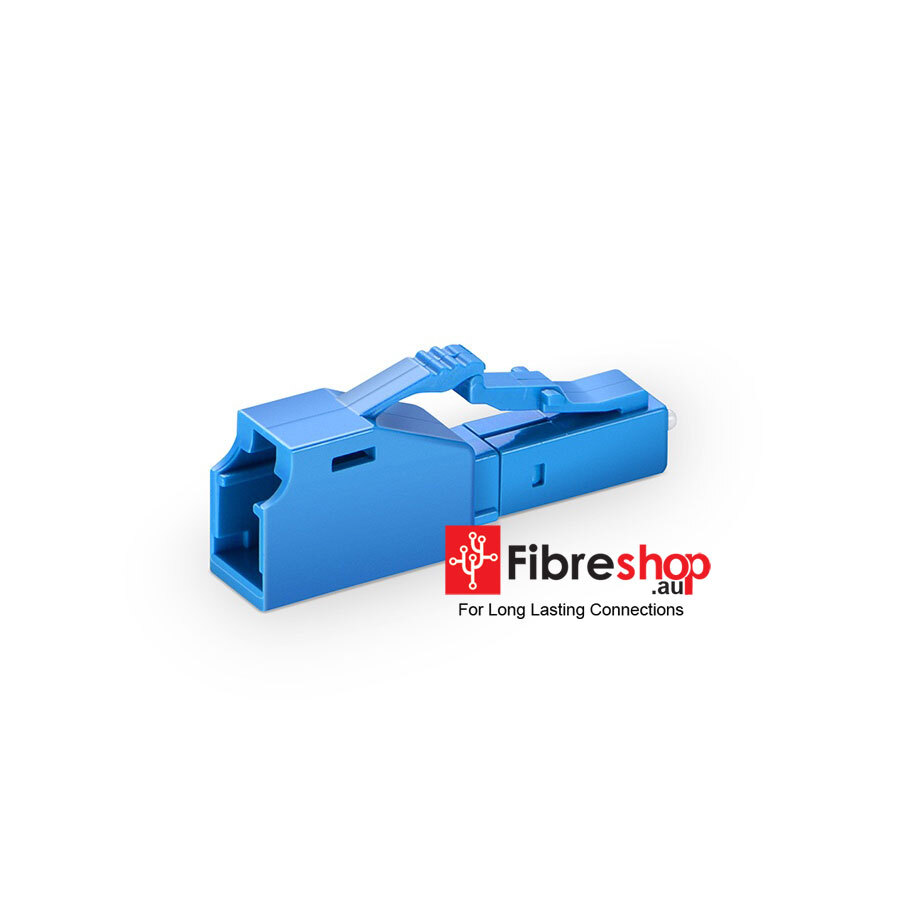

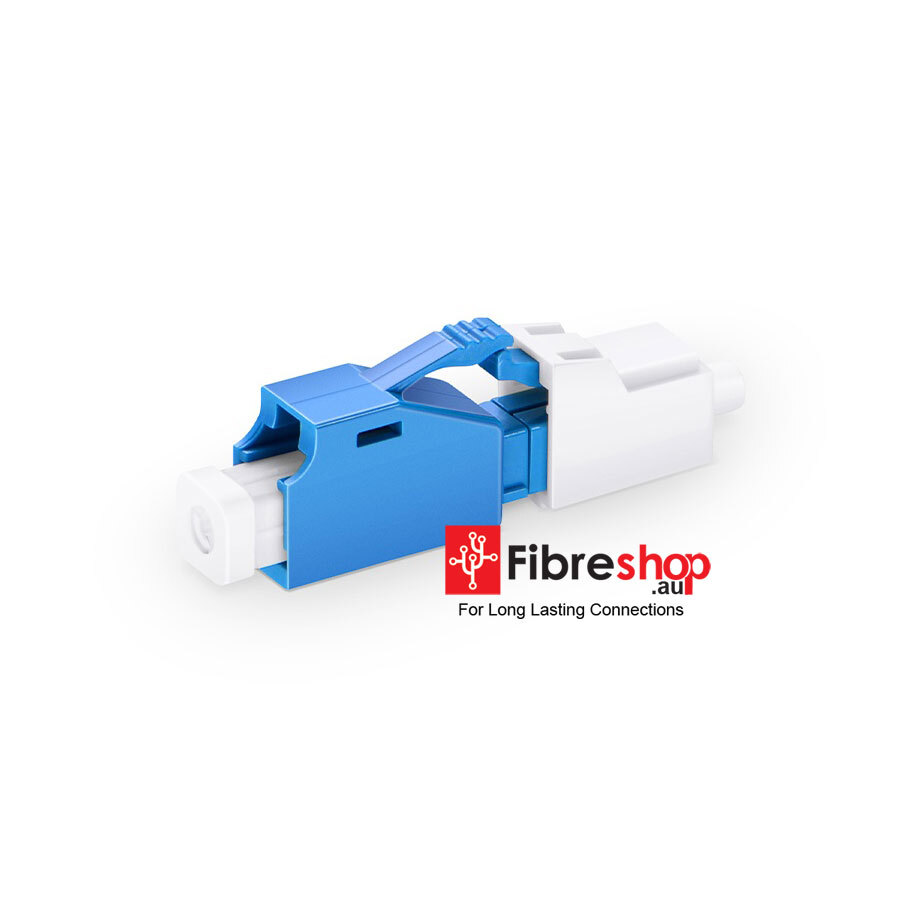

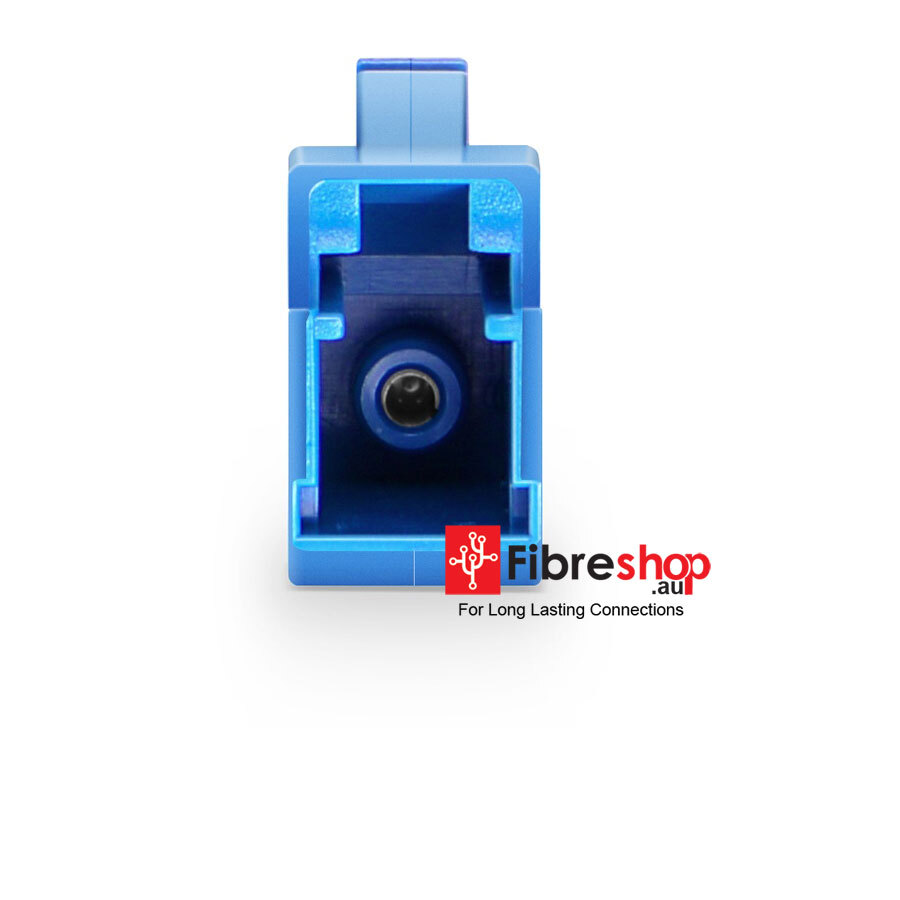

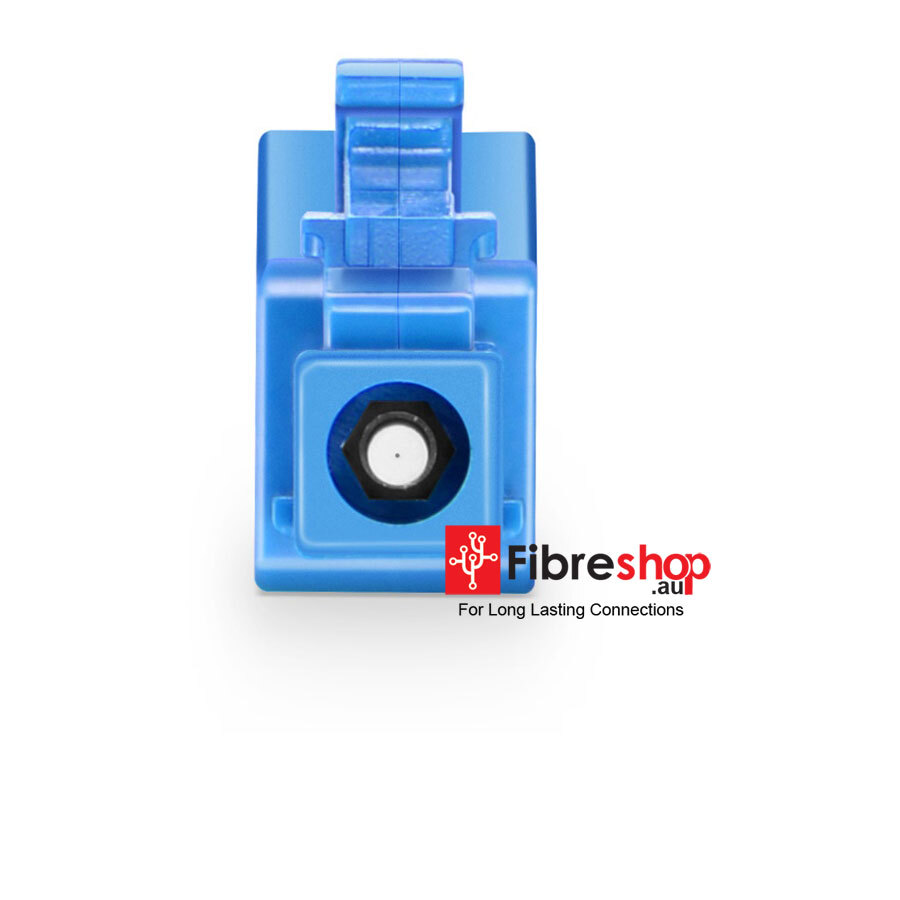

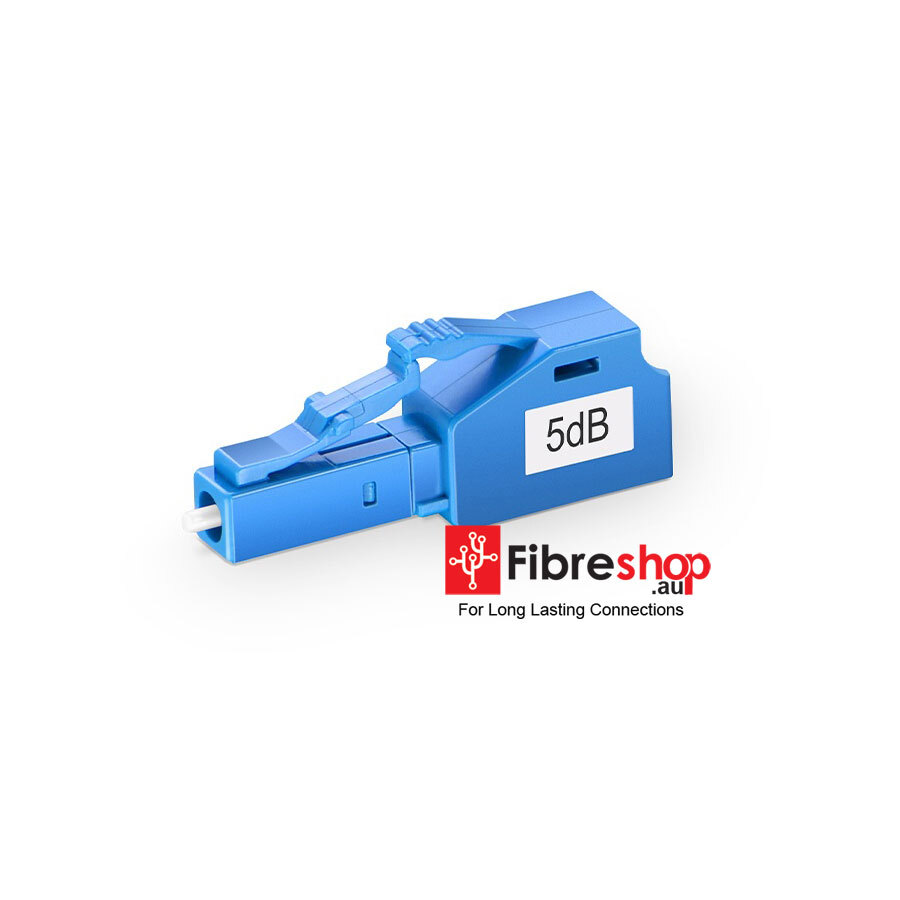

LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 5dB by Fibreshop



As optical passive devices, Fibreshop attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

Features:

  • Standard Fixed Attenuation Value of 5dB
  • Applied for CWDM, DWDM, Test Equipment, CATV Systems, Point to Point Systems, etc.
  • Attenuating Material-ion Doped Fiber
  • 1260 to 1620nm Wavelength Singlemode Attenuators
  • Precision Polishing for Reduced Back Reflection
  • High Precision Fiber Optic Ceramic Ferrules
  • Snap in Body for Fast Mating and De-mating

Description:

Fiber Connector LC/UPC Ferrule Type Zirconia Ceramic
Connector Gender  Fixed Male to Female Transfer Mode Singlemode
Attenuation 5dB Operating Wavelength(nm) 1310~1550(SM)
Attenuation Accuracy ±0.5dB Return Loss ≥50dB
Polarization Dependent Loss ≤0.2dB Max Optical Input Power 200mW
Durability 1000 times Humidity 95%RH
Operating Temperature Range -40 to 80°C (-40 to 176°F) Storage Temperature Range -40 to 80°C (-40 to 176°F)



(FS-ATTEN-SM-LC-5DB)

LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 5dB by Fibreshop



Pack Includes:

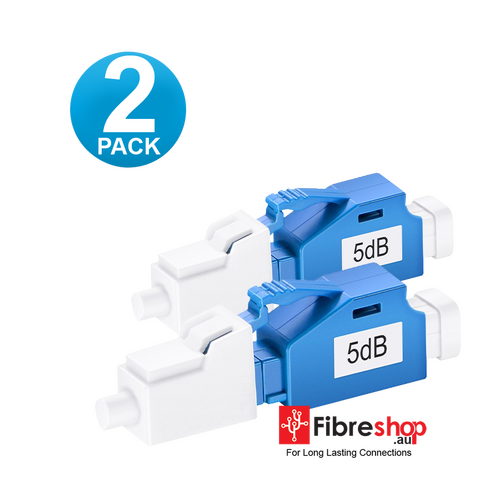

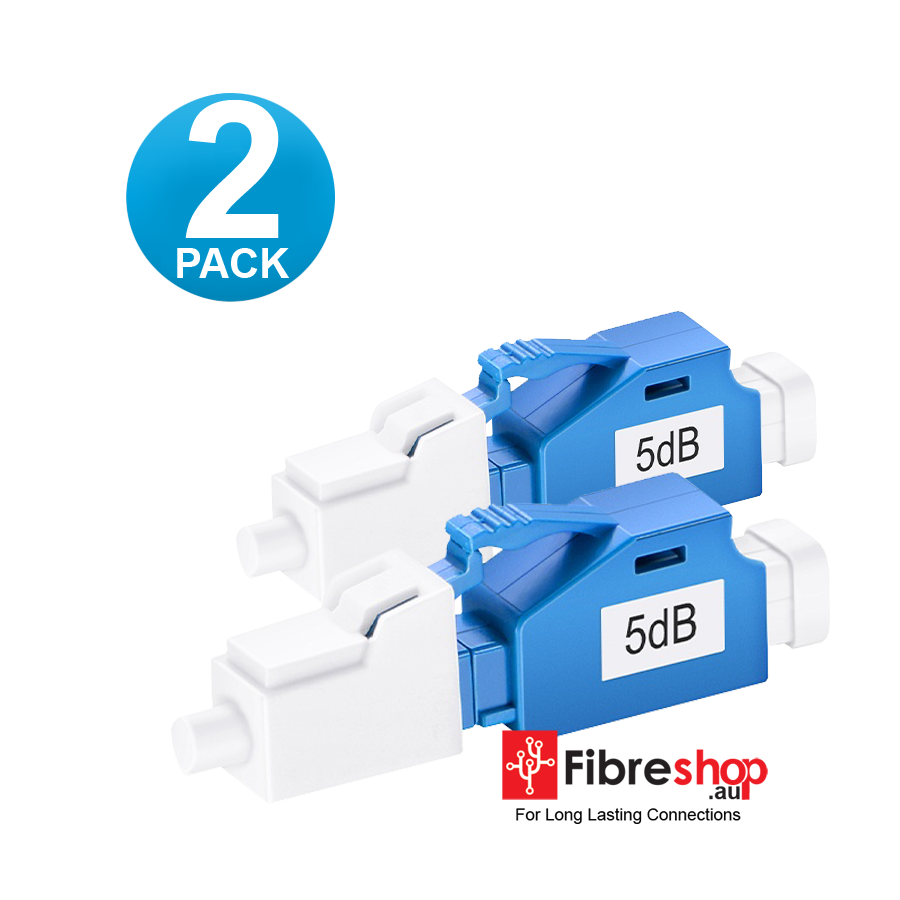

  • 2 x LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 5dB by Fibreshop

LC/UPC Singlemode Fixed Fiber Optic Attenuator, Male-Female, 5dB by Fibreshop - Specifications

Description:

Fiber Connector LC/UPC Ferrule Type Zirconia Ceramic
Connector Gender  Fixed Male to Female Transfer Mode Singlemode
Attenuation 5dB Operating Wavelength(nm) 1310~1550(SM)
Attenuation Accuracy ±0.5dB Return Loss ≥50dB
Polarization Dependent Loss ≤0.2dB Max Optical Input Power 200mW
Durability 1000 times Humidity 95%RH
Operating Temperature Range -40 to 80°C (-40 to 176°F) Storage Temperature Range -40 to 80°C (-40 to 176°F)
Durability 500 times Humidity 95%RH



SKU FS-ATTEN-SM-LC-5DB
Model # FS-ATTEN-SM-LC-5DB
Barcode # 4.81E+11
Brand FibreShop
Shipping Weight 0.1000kg
Shipping Width 0.015m
Shipping Height 0.015m
Shipping Length 0.050m
Shipping Cubic 0.000011000m3
Unit Of Measure ea
