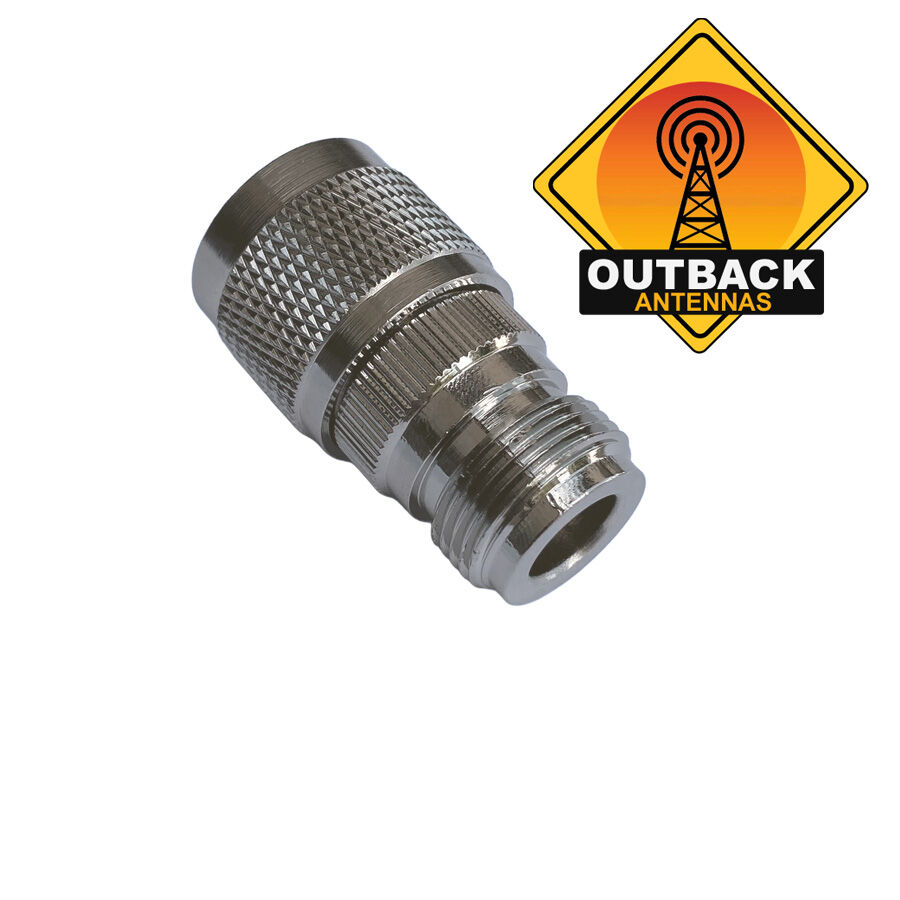

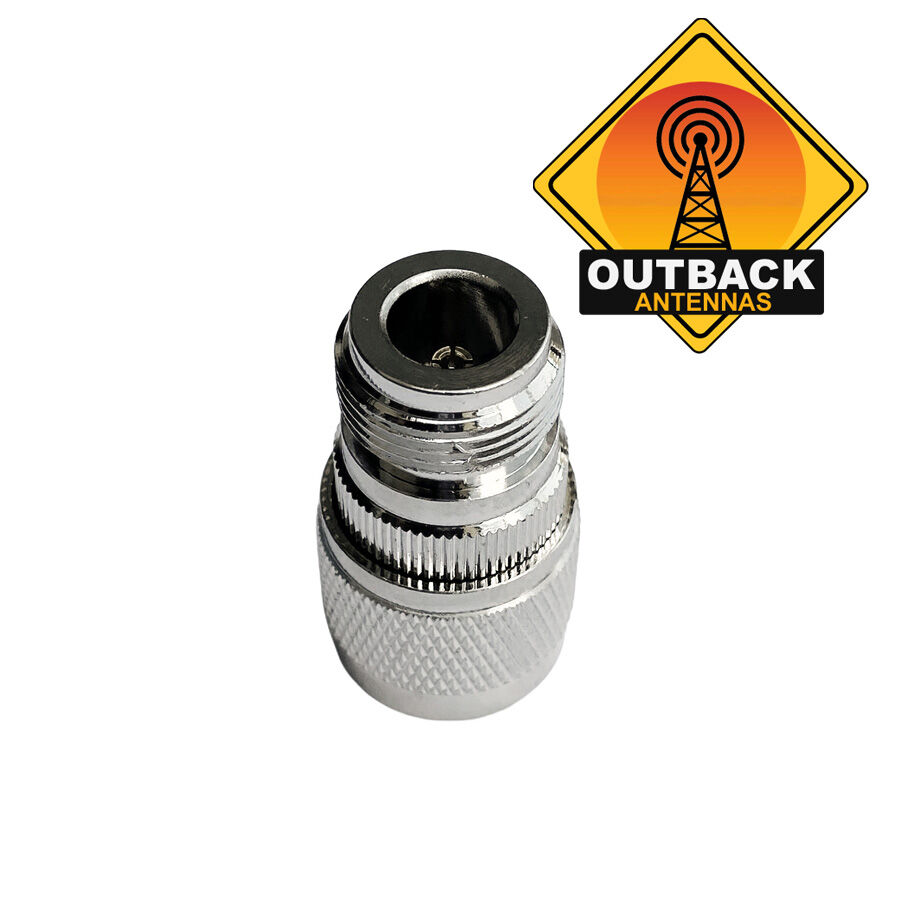

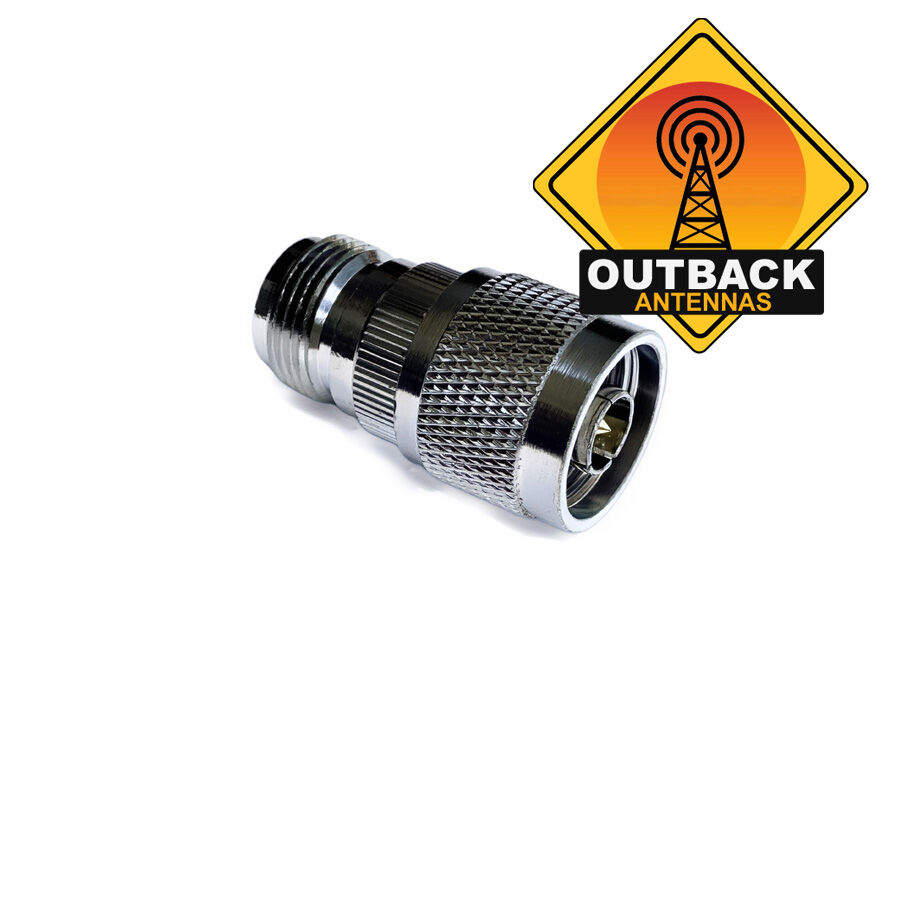

N Type Female to N Type Male RF Coaxial Adapter. Double Plugger by OUTBACK ANTENNAS



High quality N Type Female to N Type Male Straight RF Coaxial Adapter. Made from Brass to maximise connectivity efficacy. N Type Female to N Type Male RF Coaxial Adapter are high-quality, 50 ohm, coaxial interconnect series with a threaded coupling mechanism.

N-Type connectors are primarily used in the communications and broadcast industries with applications including base station equipment, satellite systems, antennas, instrumentation equipment, radar, and WLAN.

(ADAPT-OA-NF-NM)

N Type Female to N Type Male Straight RF Coaxial Adapter Brass

Pack Includes:

  • 1 x N Type Female to N Type Male Straight RF Coaxial Adapter Brass.

N Type Female to N Type Male Straight RF Coaxial Adapter - Specifications

Connector Types: N Type Female to Female RF Coaxial Adapter.
Dimensions 125mm*30mm-30mm
Cable Types:

N Connector Technical Datasheet







Electrical Characteristics
Impedance
50 ohm
Frequency Range
0~11 GHz for 50 ohm,
VSWR
(Voltage Standing Wave Ratio)
Straight type ≦ 1.15max ,
R/A type ≦ 1.25max
Dielectric Withstanding Voltage
1000V r.m.s at sea level
2500V r.m.s at sea level
Working Voltage
1000V r.m.s at sea level
Center Contact Resistance
≤ 1 mΩ (Milliohms max.)
Outer Contact Resistance
≦ 1 mΩ (Milliohms max.)
Insultation Resistance
≧ 5000 mΩ (Megohms min.)


Mechanical Characteristics
Coupling
Bayonet
Contact Retention
4 lbs min.
Mating Durability
≧ 500 cycles (For Beryllium Copper Contact)


Environmental Characteristics
Temperature Range
-55℃~+155℃
Vibration
MIL-STD-202 Meth. 204
Corrosion Resistance
MIL-STD-202 Meth. 101
SKU ADAPT-OA-NF-NM
Model # ADAPT-OA=NF-NM
Brand Outback-Antennas
Shipping Weight 0.0800kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.130m
Shipping Cubic 0.000117000m3
Unit Of Measure ea
