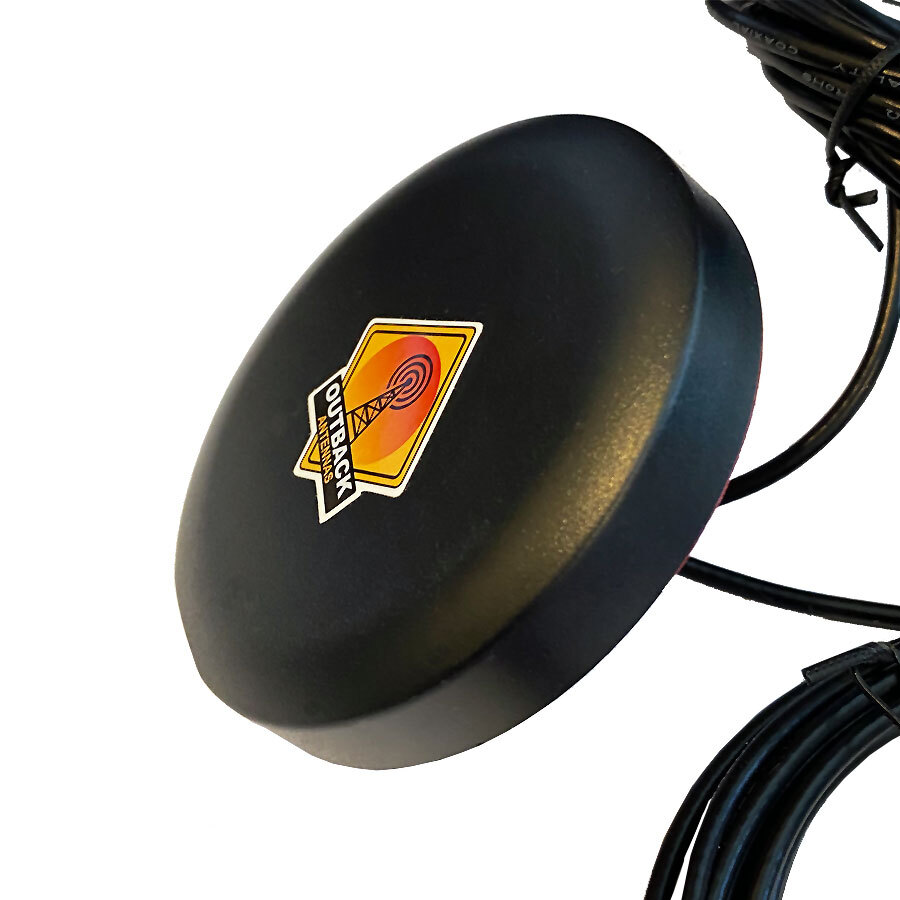

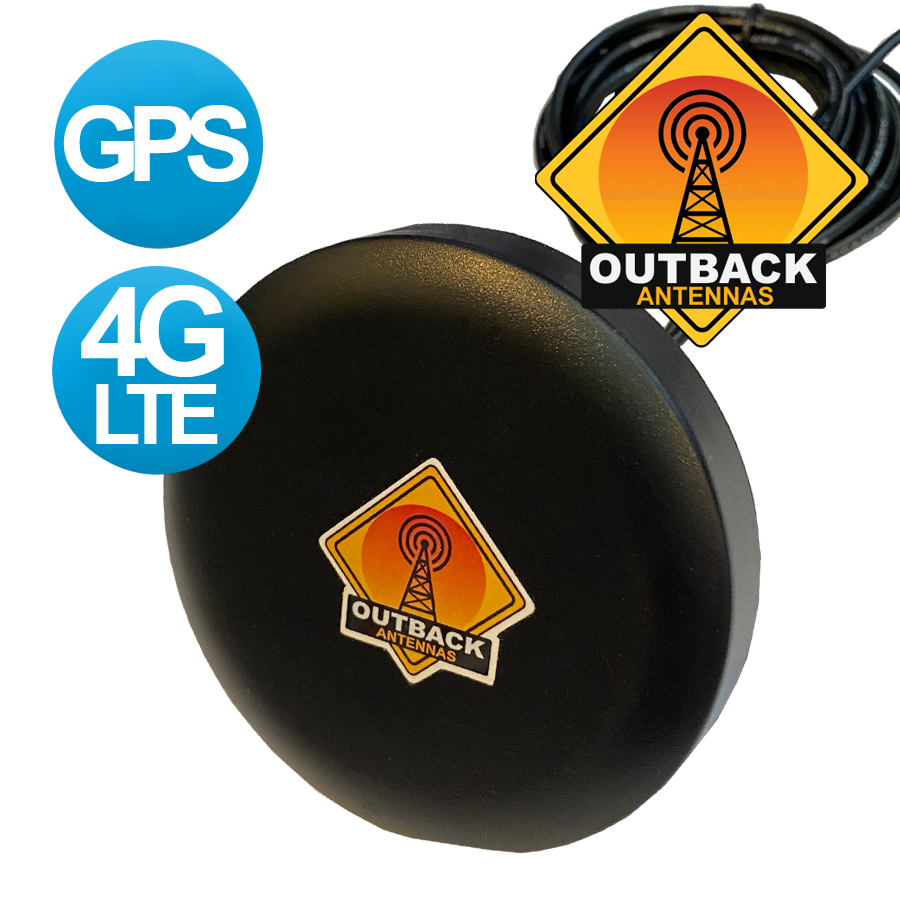

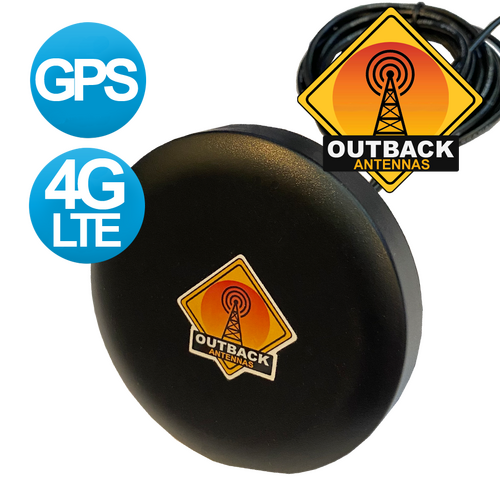

Buy the "Puck IT" Omni Antenna GPS/LTE 2 in 1

Omni Antenna Outdoor DISK PUCK 2 in 1 Combo GPS/LTE Machine to Machine (M2M) 3/5dBi, GPS 1575.42MHz±3 MHz/1602MHz, LTE 698-960/1710-2700MHz

Features

5dBi gain across GPS lower bands 1575.42MHz±3 MHz/1602MHz
3dBi gain across LTE upper bands 698-960/1710-2700MHz
Very Low Profile Antenna
Ideal for Caravans, Campers & Marine Installations

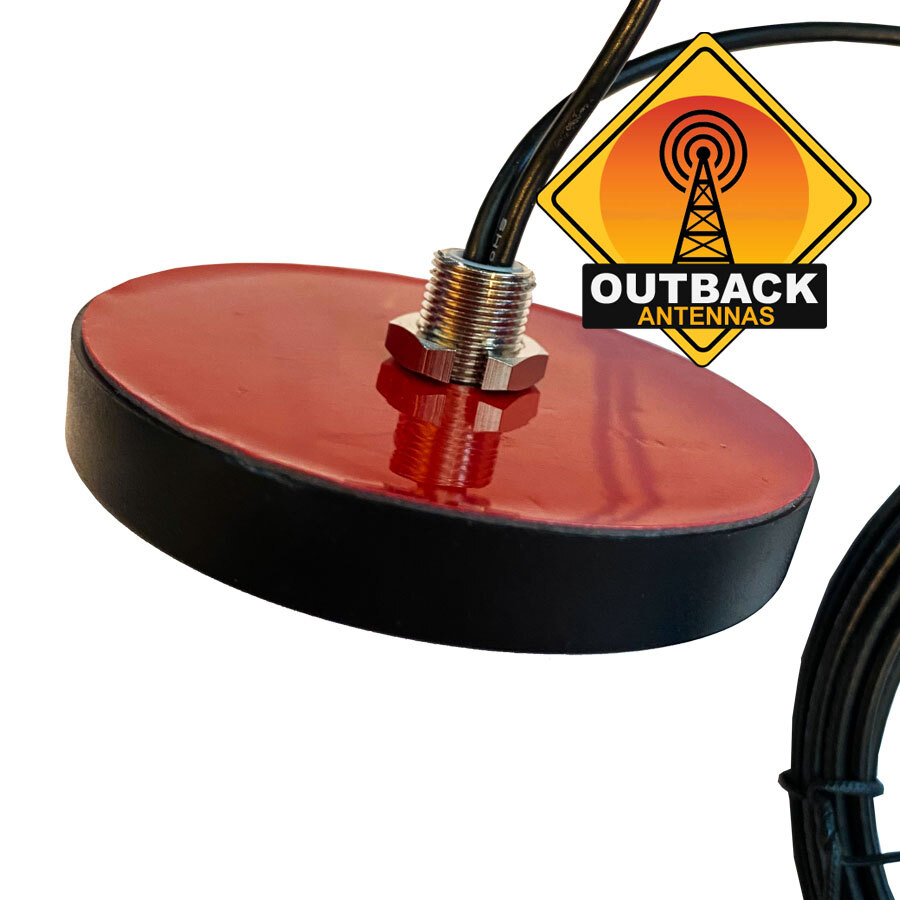

Screw & Adhesive 3M Mount (included)
No alignment required with 360° coverage
IP Rated: IP67
Ruggedised construction for Australian conditions
UV-stable PVC construction

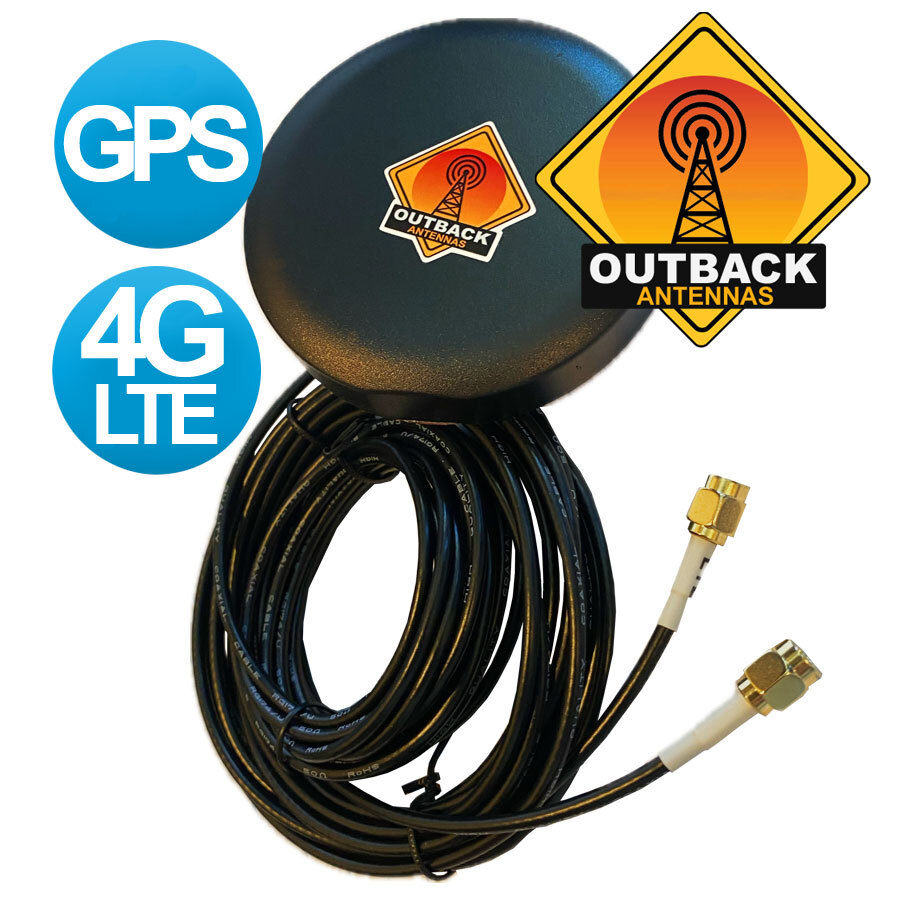

Integrated 2 x 3M RG174 cable with 2 x SMA Male waterproof connectors

Dimensions:

Φ80x14mm

Weight:

With Mount - 122g

Recommended Applications:

Caravans & Campers, RV's*
Machinery
Vehicles*
Marine (Boats) & Marinas*

Antennas For Heavy Vehicle Applications

(ANT-OA-PUCK-GPS-LTE)

Omni Antenna Outdoor DISK PUCK 2 in 1 Combo 4G LTE/GPS 1575.42MHz±3 MHz/1602MHz, LTE 698-960/1710-2700MHz

Pack Includes:

1 x Omni Antenna Outdoor DISK PUCK 2 in 1 Combo 4G LTE-GPS "PUCK IT"

Omni Antenna Outdoor DISK PUCK 2 in 1 Combo LTE-GPS "PUCK IT" GPS 1575.42MHz±3 MHz/1602MHz, LTE 698-960/1710-2700MHz - Specifications

ELECTRICAL
GPS Part:	Dielectric Antenna
	Frequency Range	1575.42MHZ±3MHz
	Polarization Type	RHCP
	Gain	5dBi
	V.S.W.R	<1.5
	Impedance	50ohm
	LNA Gain	28±2dB Typical
	Noise Figure	1.5dB
	Ex-band Attenuation	12dB@CF+50MHz/16dB@CF
	Voltage	<2.0
	Current Consumption (mA)	11 Max
LTE Part:	Frequency Range	698-960/1710-2700MHz
	V.S.W.R	<2.0
	Gain	3dBi
	Polarization	Linear
	Impedance	50ohm
MECHANICAL
	Housing	Black
	Cable	2 x RG174
	Length	2 x 3M
	Connector	2 x SMA Male
ENVIRONMENTAL
	Working Temp	-40℃~+80℃
	Humidity	55%-75%RH
	Waterproof	IP675
	Antenna Radome Material	ABS
	Mounting	Screw & 3M Adhesive Sticker
	Antenna Dimensions	Φ80x14mm
	Weight	230g
	RoHS Compliant	YES

SHIPPING SPECIFICATIONS

SKU	ANT-OA-PUCK-GPS-LTE
Model #	ANT-OA-PUCK-GPS-LTE
Barcode #	4.81E+11
Brand	Outback-Antennas
Shipping Weight	0.1220kg
Shipping Width	0.080m
Shipping Height	0.017m
Shipping Length	0.080m
Shipping Cubic	0.000109000m3
Unit Of Measure	ea

Omni Antenna Outdoor DISK PUCK 2 in 1 Combo 4G LTE-GPS "PUCK IT" - Documents

Datasheet Omni Antenna Outdoor 4G LTE 360° 3/5dBi, 600-960/1710-3800Mhz - PUCK IT
