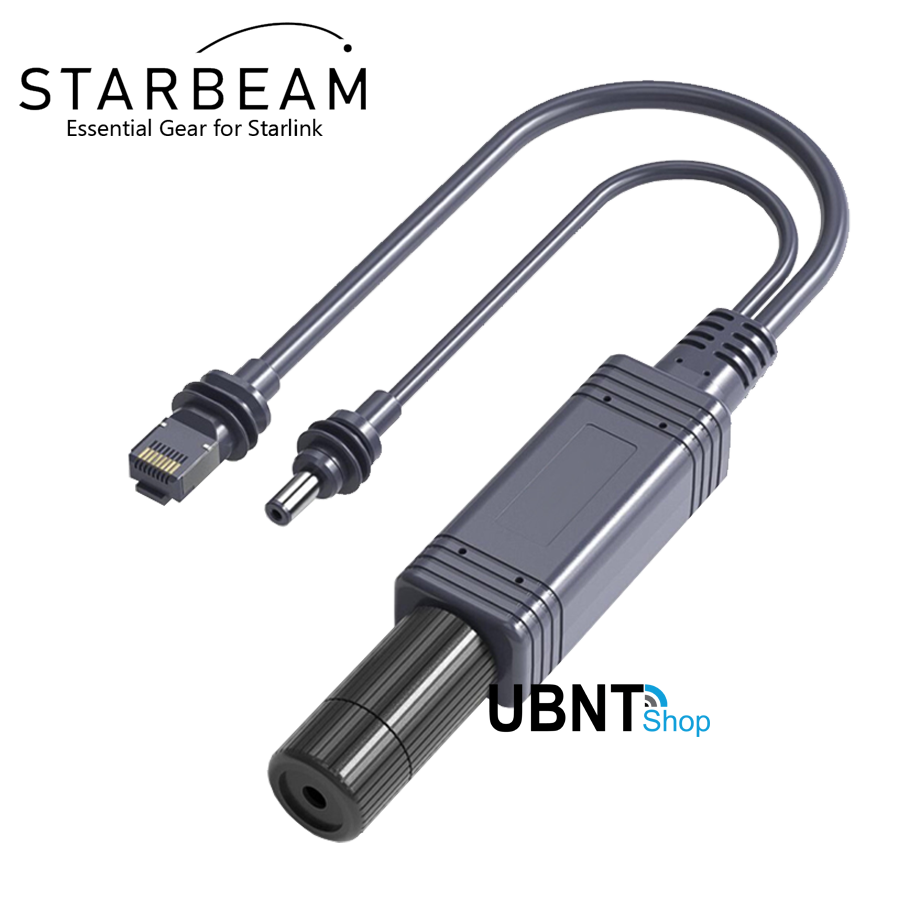

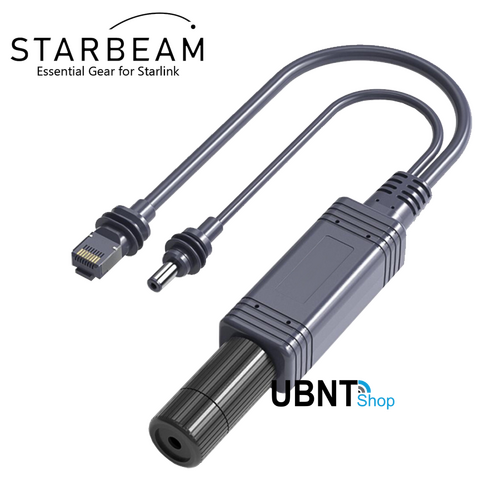

STARBEAM Starlink Mini PoE Splitter Cable

Single Cable to Mini Dish
This splitter enables you to provide both power and data connectivity in a single PoE ethernet cable to the Starlink Mini dish. The Mini does not come with a PoE injector like the other Starlink dishes, it has it own DC barrel port for powering. This splitter cable basically allows you to power the Mini dish via PoE from a single network cable.

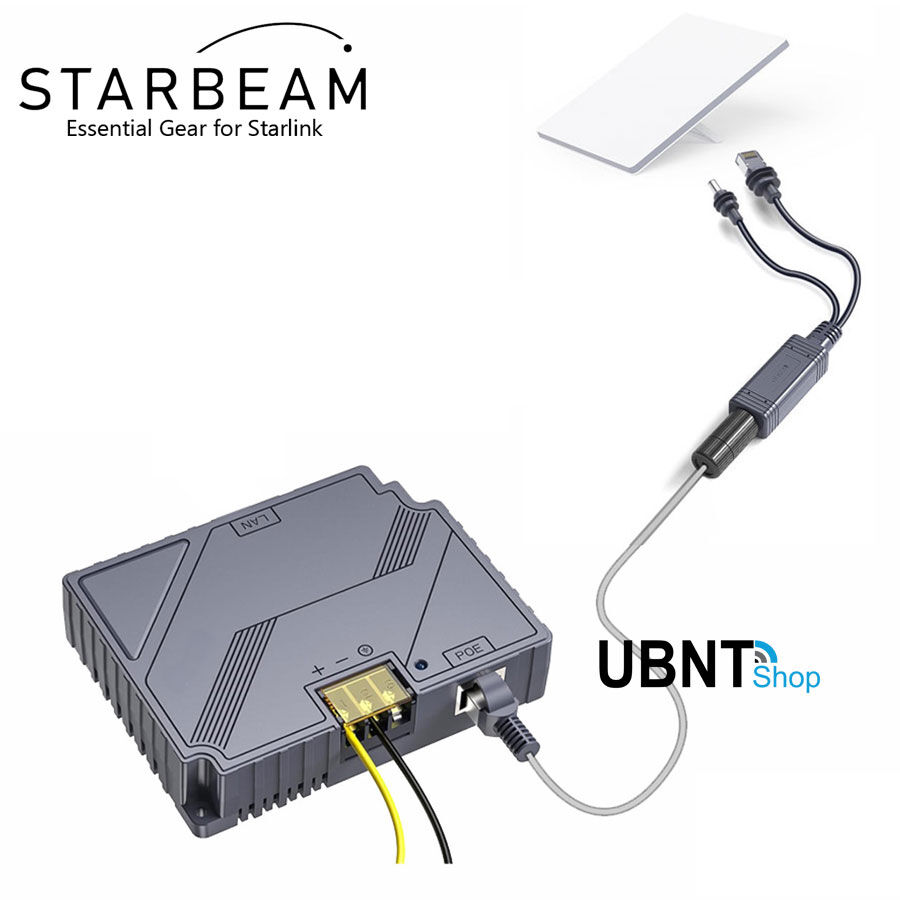

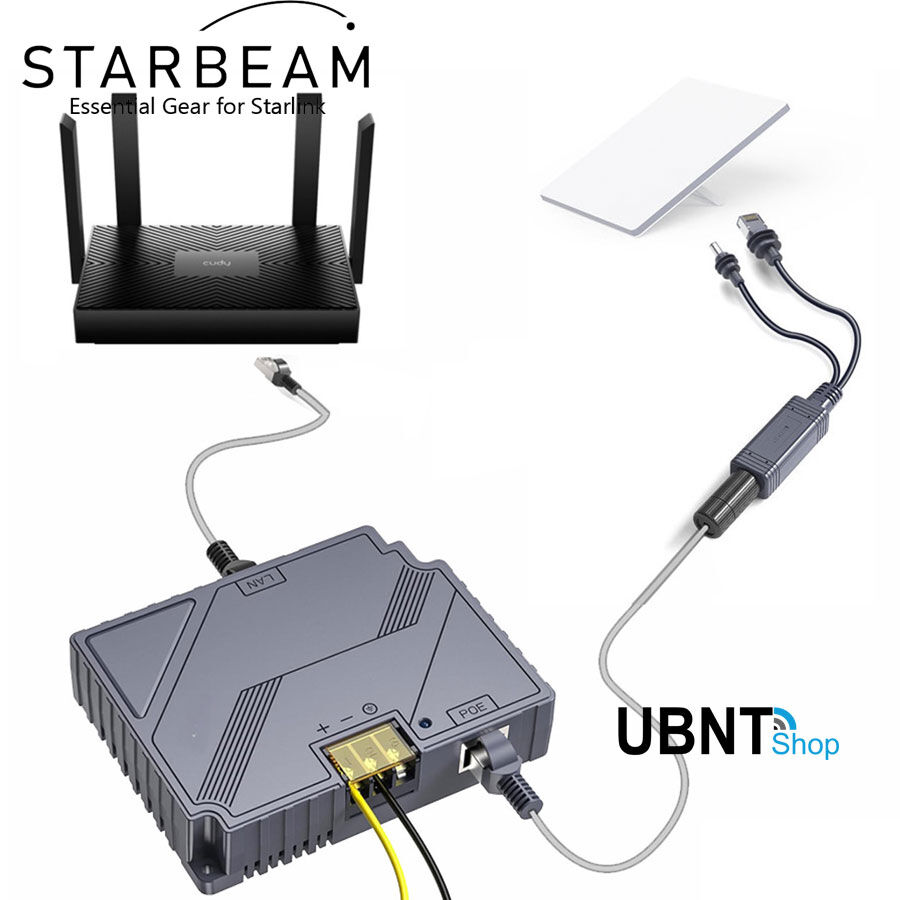

Extend the Cable Run to the Mini DishEven though the Mini dish has a 12V input, 48V is recommend over medium to long cable runs to avoid voltage drop and the dish cutting out under load. When used in conjection with the Powertec Starlink Gen3 DC/DC Power Converter this cable will provide 48V to the mini dish resulting in you being able to run much longer cables to power the Mini dish.

(SAT-SB-00007)

STARBEAM Starlink Mini PoE Splitter Cable



STARBEAM Starlink Mini PoE Splitter Cable - Specifictions

Specifications

Pin Configuration +V: 1, 2, 3, 6; -V: 4, 5, 7, 8
Interface Input:1*RJ45,Output:1*RJ45,1*DC 5.5*2.1mm
Network Speed 10/100/1000M
Input DC 37~52V
Output 48V 2.5A Max
Transmission distance Up to 100 meters
Cable Type Cat5e or higher category cables
Operating Temperature -25~+70° C
Operating Humidity 10% - 90% (Non-condensing)
Storage Temperature -40 to +80 ° C
Power 100W
General Information
Manufacturer:
Manufacturer Part Number: SB-CAB-MINI-SPLIT
Barcode: 9337692005596
Packaging Details
Weight: 0.10 KGS
Width: 3.00 (cm)
Height: 10.00 (cm)
Depth: 3.00 (cm)
SKU SAT-SB-00007
Model # SB-CAB-MINI-SPLIT
Barcode # 9337692005596
Brand Powertec Starlink Accessories
Shipping Weight 0.2000kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.100m
Shipping Cubic 0.000090000m3
Unit Of Measure ea
