Ubiquiti UVC-AI-LPR-B AI LPR UniFi Protect Camera Specialized 4K, 3x Optical Zoom, Long-Lange IR
UVC-AI-LPR-B
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:

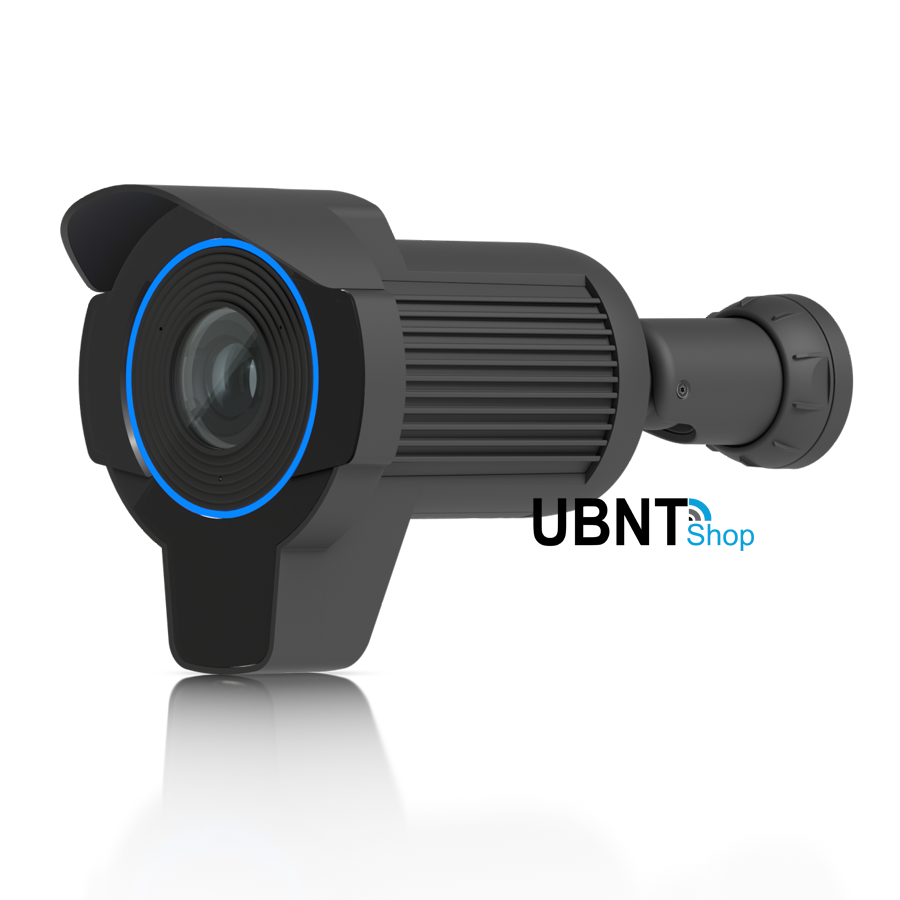

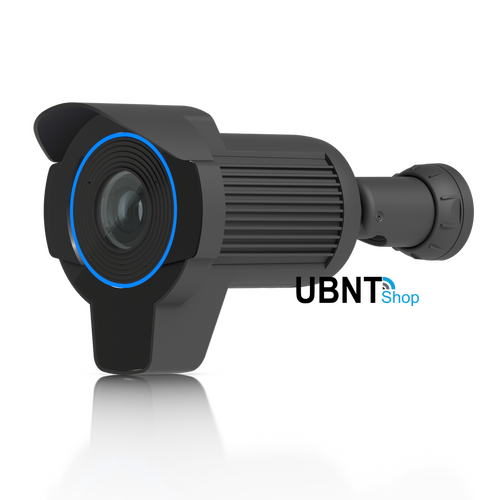

Ubiquiti UVC-AI-LPR-B AI LPR UniFi Protect Camera Black Specialized 4K, 3x Optical Zoom, Long-Lange IR
Specialised 4K LPR camera with IR, glare-cut filter to enable clear night shots of fast vehicles. The camera comes with 3x optical zoom and long-range IR night vision optimised for recognising license plates on vehicles moving up to 90 km/h.
Features:
4K (8MP) video resolution
3x optical zoom
15 m (50 ft) IR capture distance
Advanced LPR: high-speed detections at night*
Cover up to two lanes of traffic
Record audio with integrated microphones
Weatherproof (outdoor exposed)
*The AI-LPR is optimized to exclusively capture reflective or non-reflective license plates at night. Install additional cameras to capture other vehicle details in dark conditions
(UVC-AI-LPR-B)
Ubiquiti UniFi Protect UVC-AI-LPR-B, Black

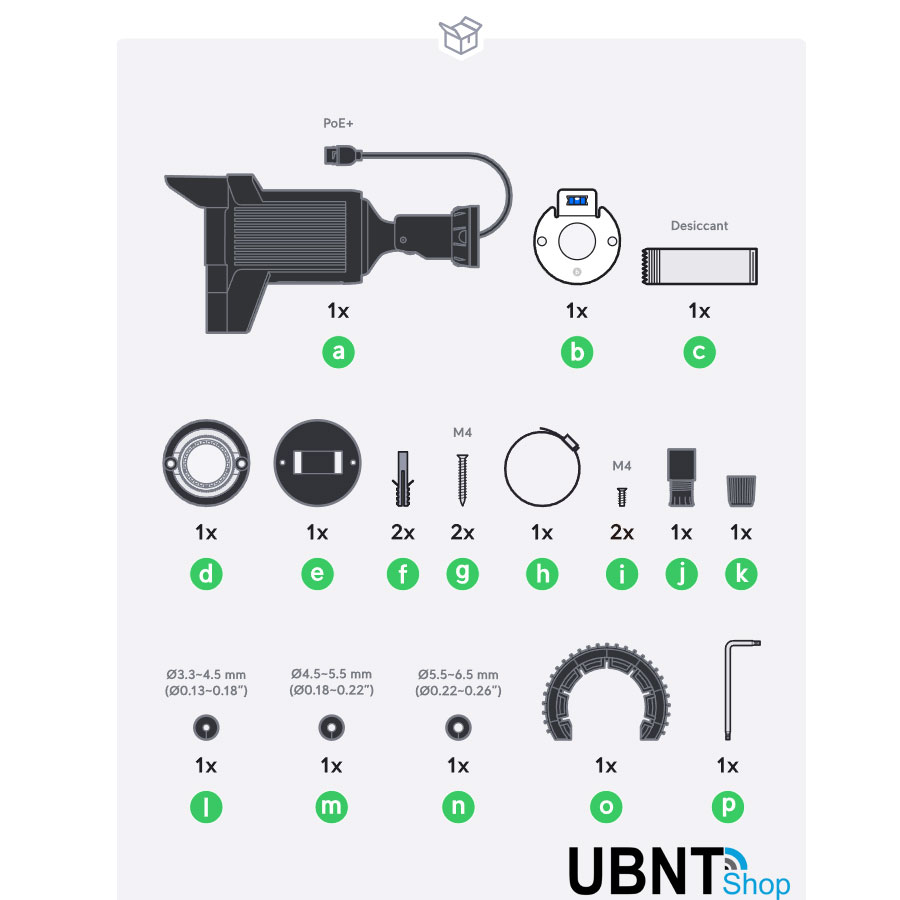

Pack Includes
Ubiquiti UniFi Protect UVC-AI-LPR-B, Black - Specifications
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK04 |
| Pole mount diameter | 38–50 mm (1.5–2") on pipe outer diameter (Metal strap torque: 6Nm) |
| Cable jacket enclosure dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Cable jacket enclosure material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable length | 30 cm (1 ft) |
| Cable diameter | 4.5 mm (0.2") |
| Cable jacket material | Thermoplastic elastomer |
| Cable connector type | RJ45 |
| Optics | |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| View angle | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| LPR night mode | LPR optimization filter |
| IR capture distance | 15 m (50 ft) |
| Video | |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 25.5W |
| Power method | PoE+ |
| Supported voltage range | 42.5–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Expansion slot | Micro SD memory card* *Requires a memory card with at least 64 GB of storage. |
| Mounting | Wall, pole |
| Ambient operating temperature | -20 to 50° C (-4 to 122° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | No |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Shipping Specifications
| SKU | UVC-AI-LPR-B |
| Model # | UVC-AI-LPR-B |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.9800kg |
| Shipping Width | 0.118m |
| Shipping Height | 0.260m |
| Shipping Length | 0.136m |
| Shipping Cubic | 0.004172480m3 |
| Unit Of Measure | ea |
Ubiquiti UniFi Protect UVC-AI-LPR-B, Black - Documents
Installation Guide Ubiquiti UniFi Protect UVC-AI-LPR-B, BlackBe The First To Review This Product!
