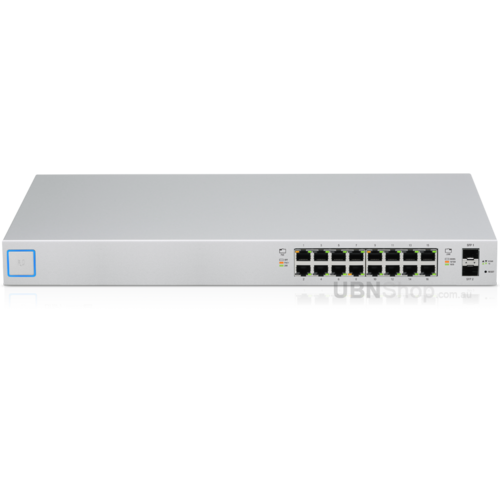

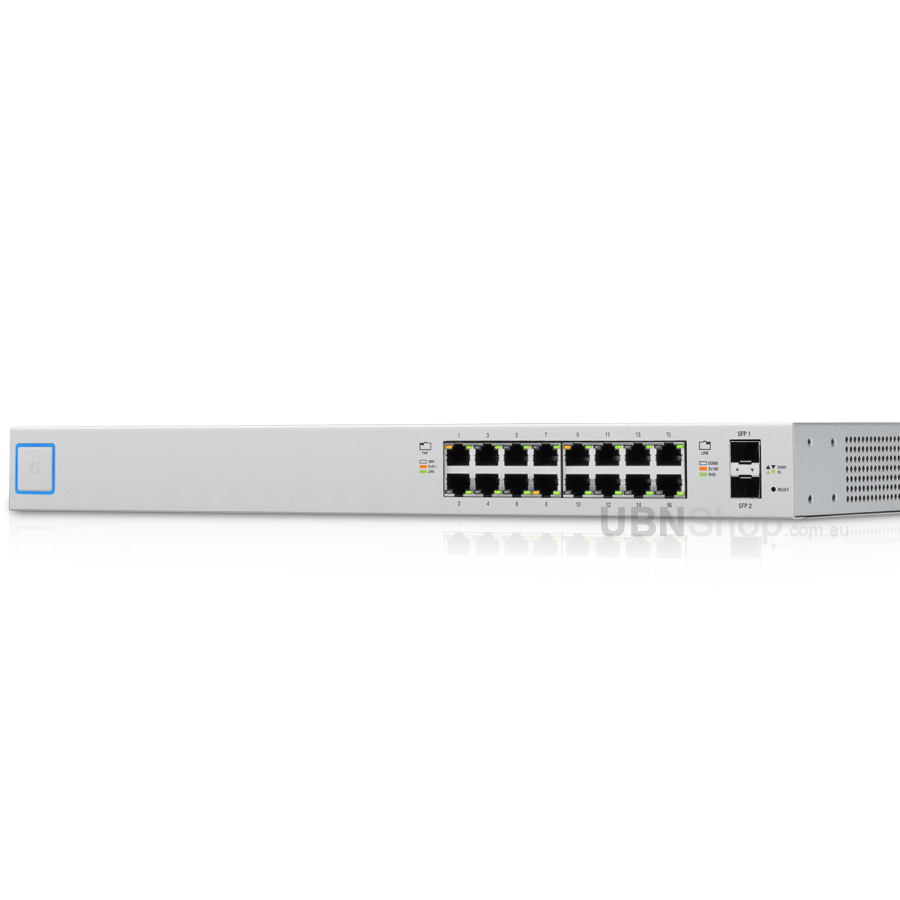

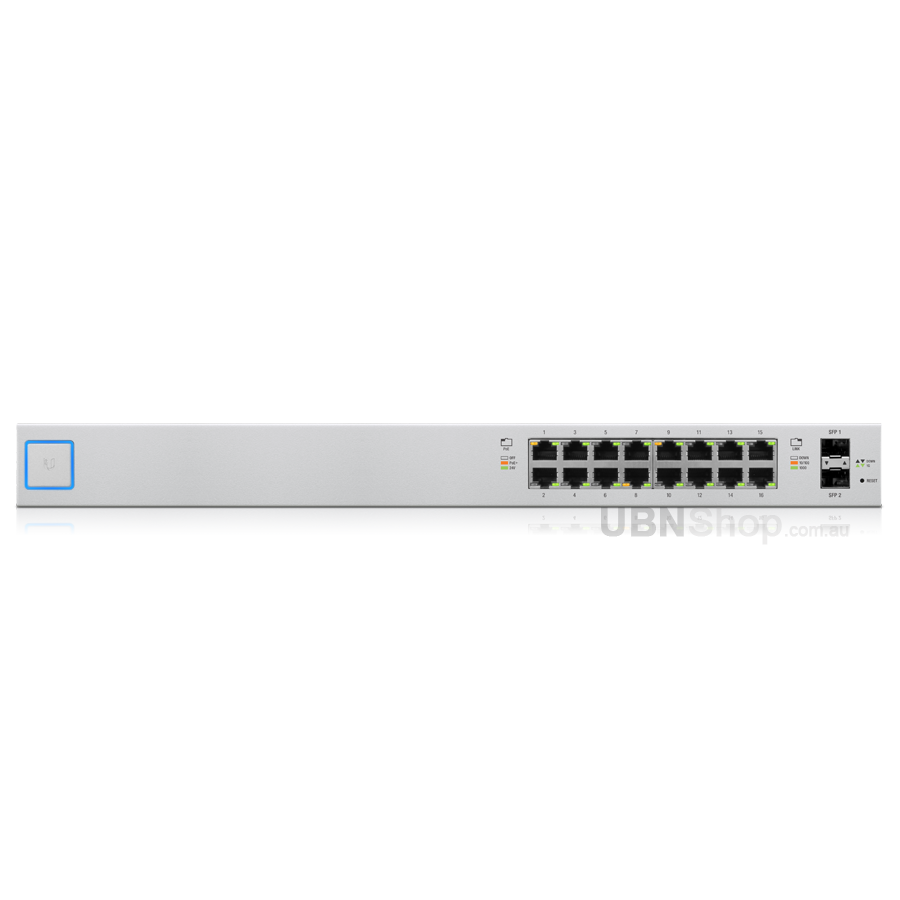

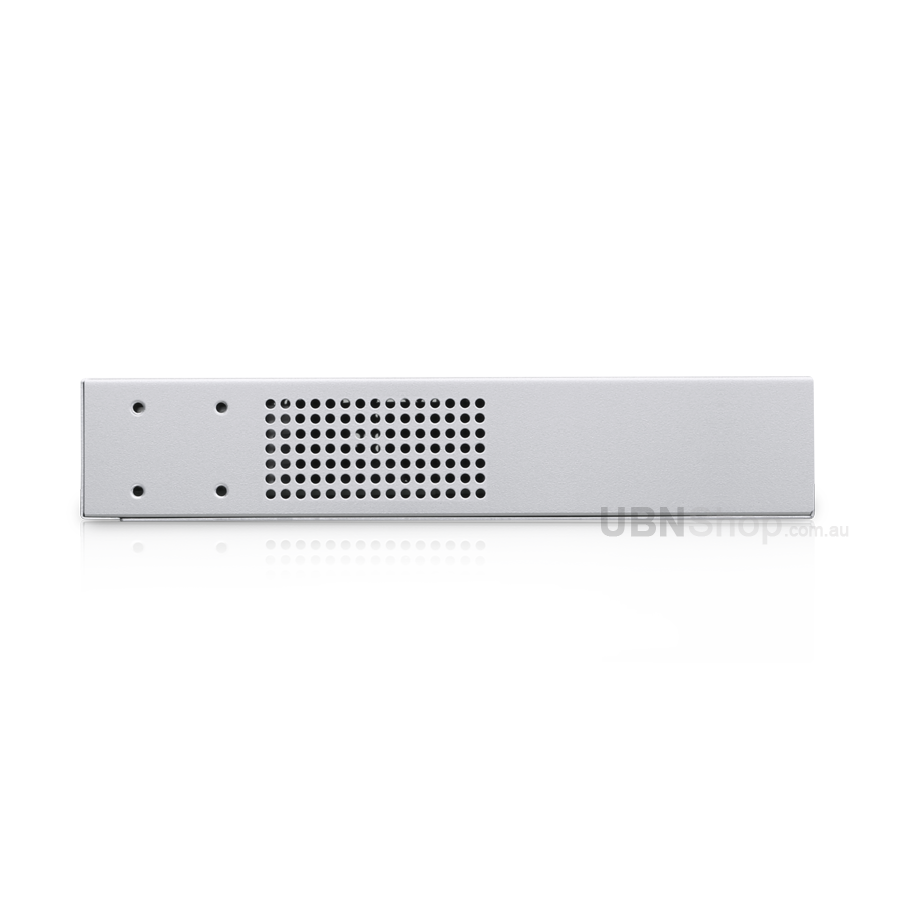

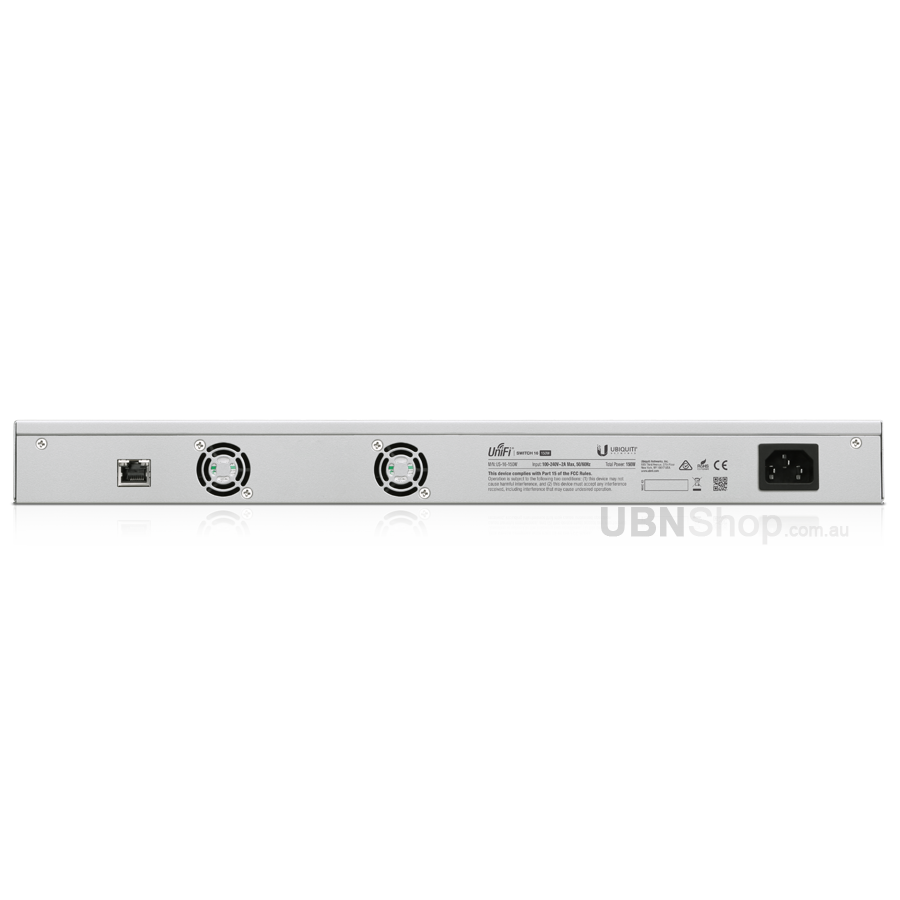

Managed PoE+ Gigabit Switch with SFP



The UniFi® Switch delivers robust performance over its 18 independent switching ports. Two SFP ports offer optical connectivity, and 16 Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE sharing a total of 150W PoE.

UniFI Switch 16 150W

Package Includes

  • 1 x UniFi Switch 16 150W
  • 2 x Mounting Brackets
  • 8 x Bracket Screws (M4)
  • 4 x Mounting Screws
  • 4 x Cage Nuts
  • 4 x Rubber Feet
  • 1 x Power Cord
  • Quick Start Guide

UniFI Switch 16 150W - Specifications

UNIFI SWITCH 16 150W
Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
Weight 2.89 kg (6.37 lb)
Total Non-Blocking Throughput 18 Gbps
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Max. Power Consumption 150W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
Networking Interface (16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band (Reserved for Future Use), Ethernet In-Band
Certifications CE, FCC, IC
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing

Shipping Specifications

SKU US-16-150W
Model # US-16-150W
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 3.2000kg
Shipping Width 0.266m
Shipping Height 0.076m
Shipping Length 0.550m
Shipping Cubic 0.011119000m3
Unit Of Measure ea
