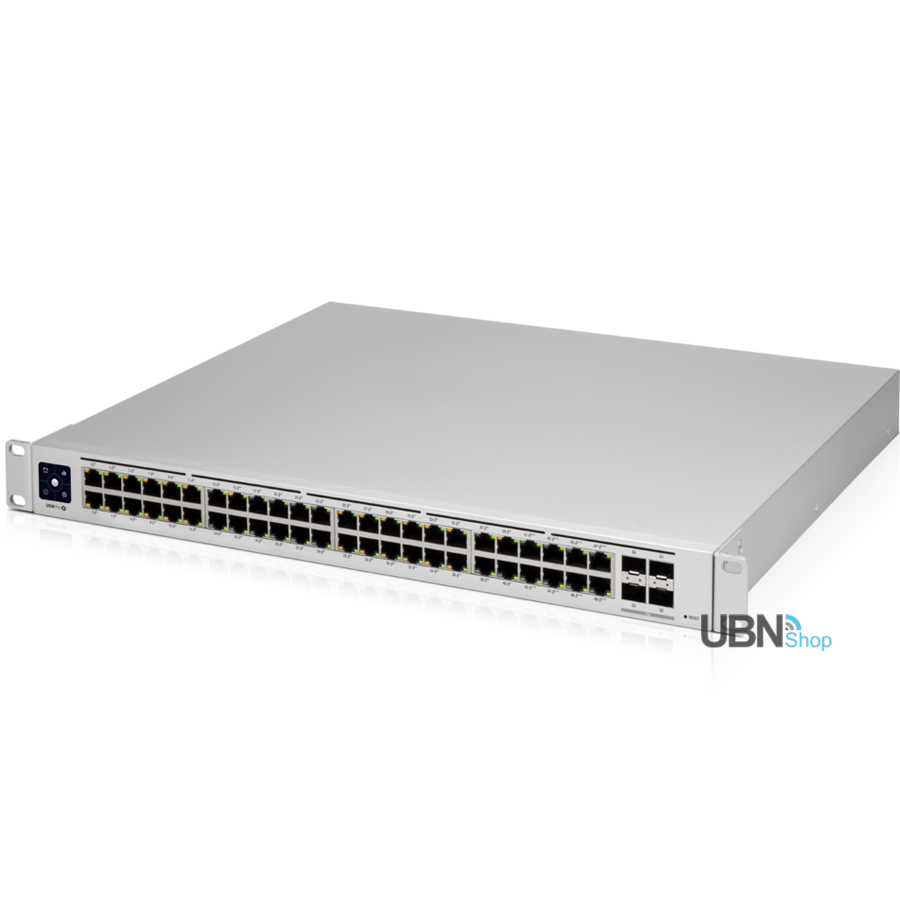

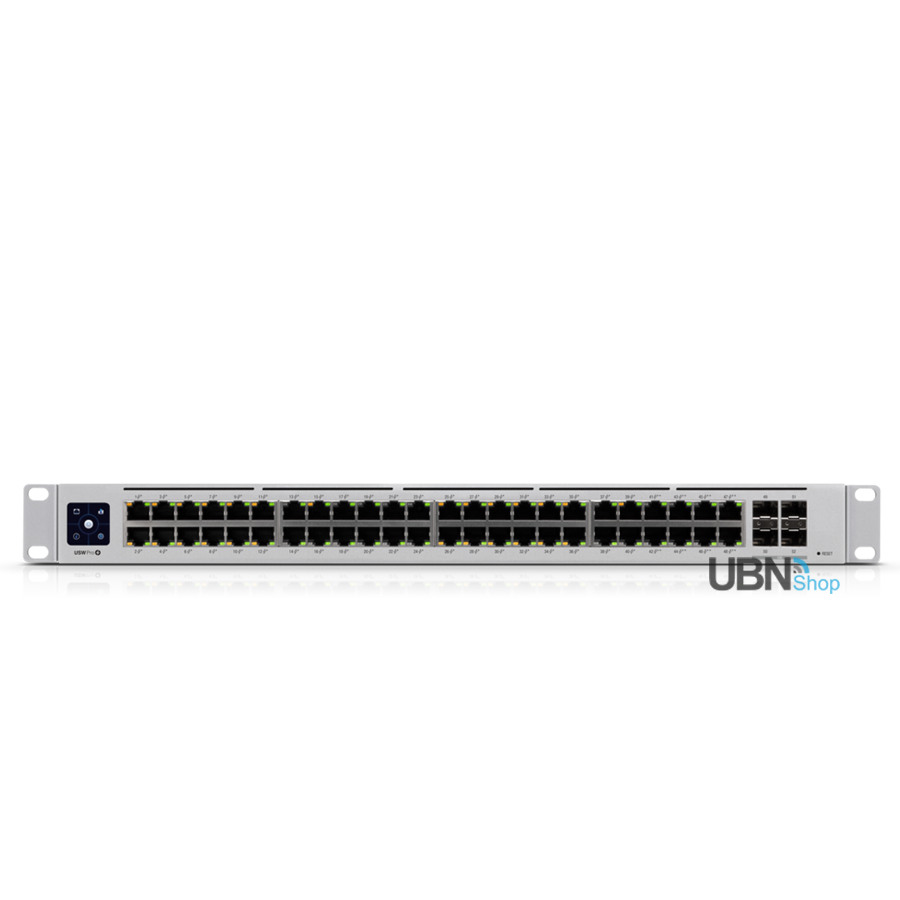

UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+
The USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.
Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
• USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
• USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities*, such as inter‑VLAN routing, static routing, and DHCP server functionality.
* Available in a future software release
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high‑power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option

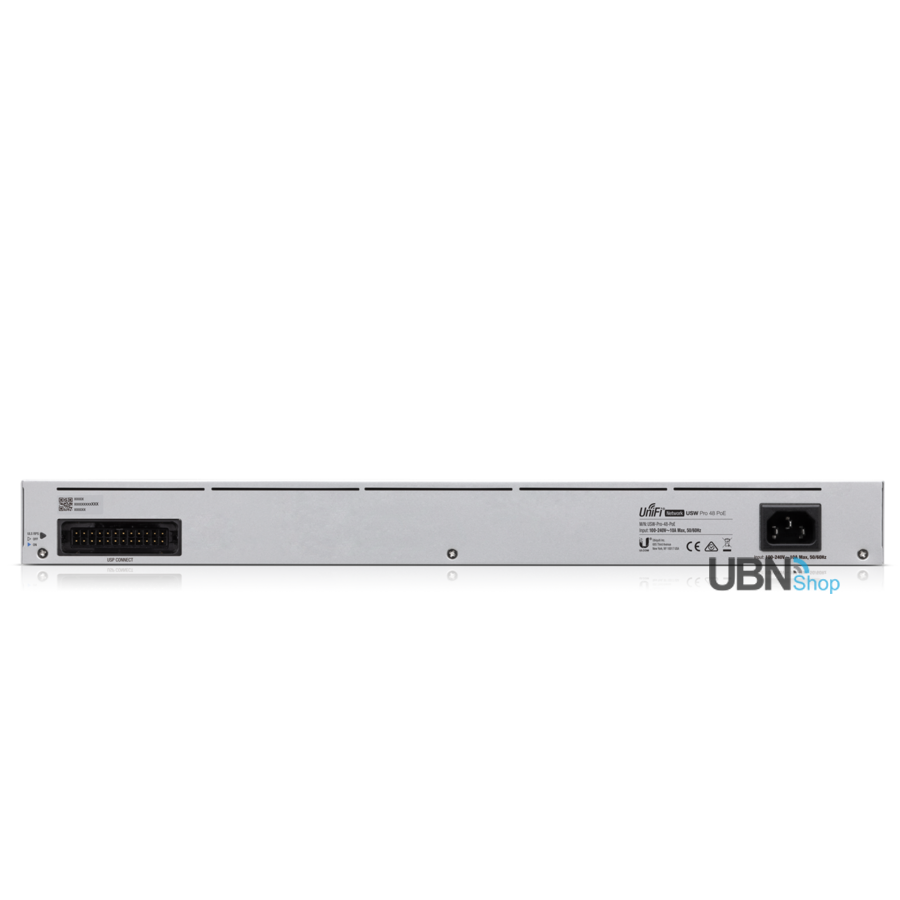

The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

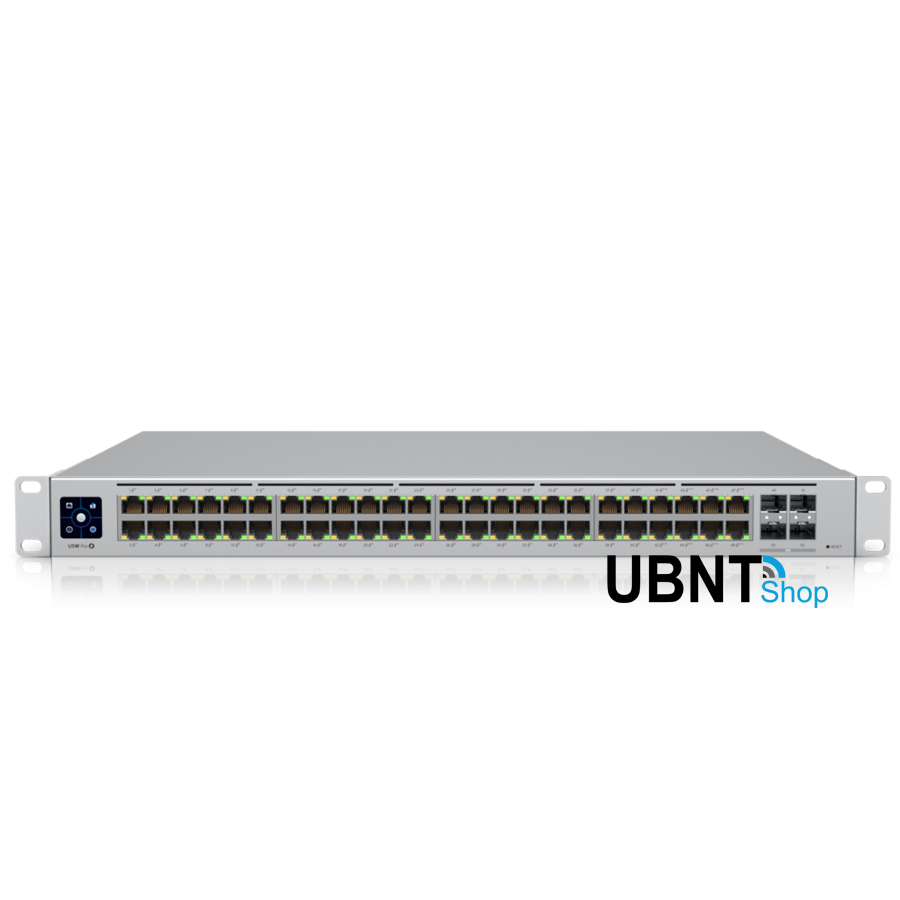

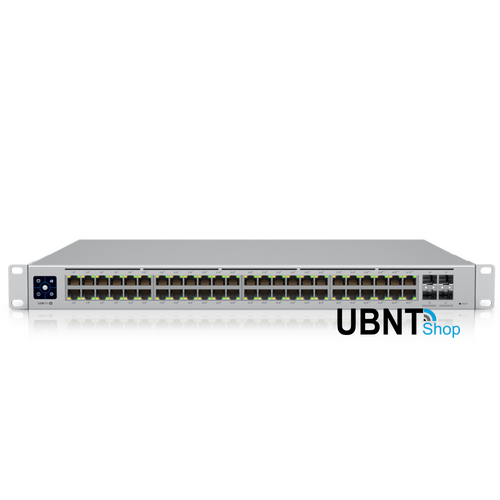

UniFi Pro 48-Port PoE Switch
• (40) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (4) 1/10G SFP+ ports
• 1U Rackmountable (hardware included)

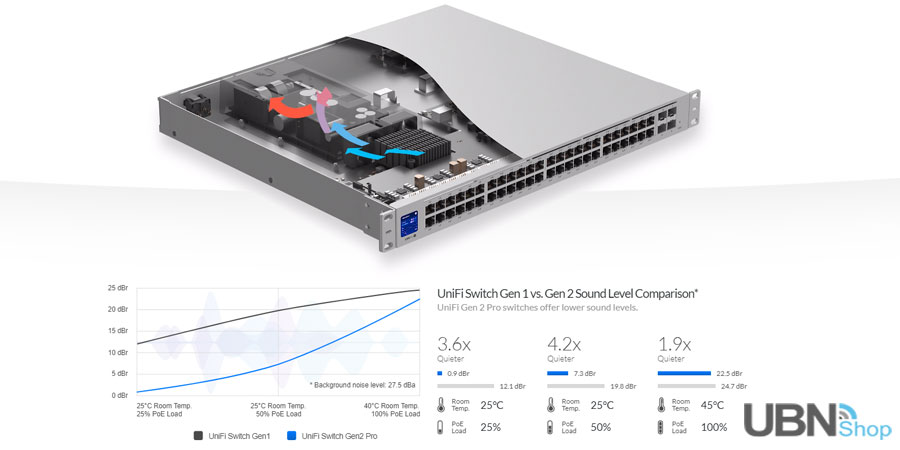

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

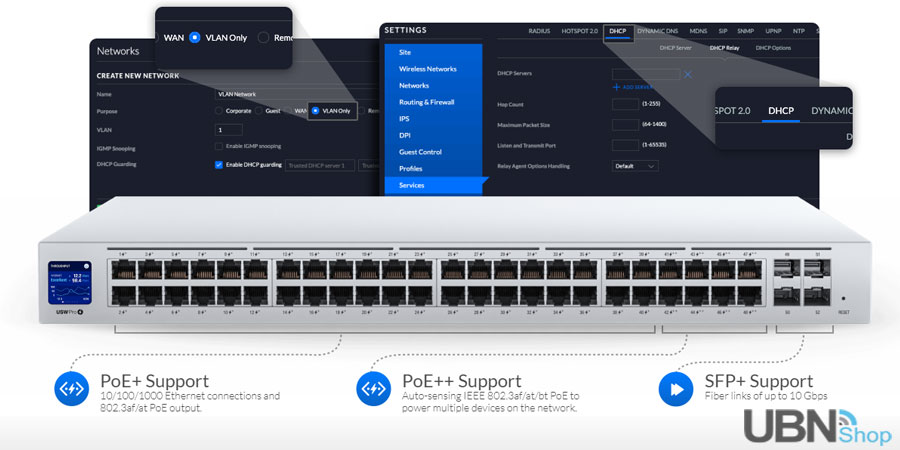

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.* Available in a future software release

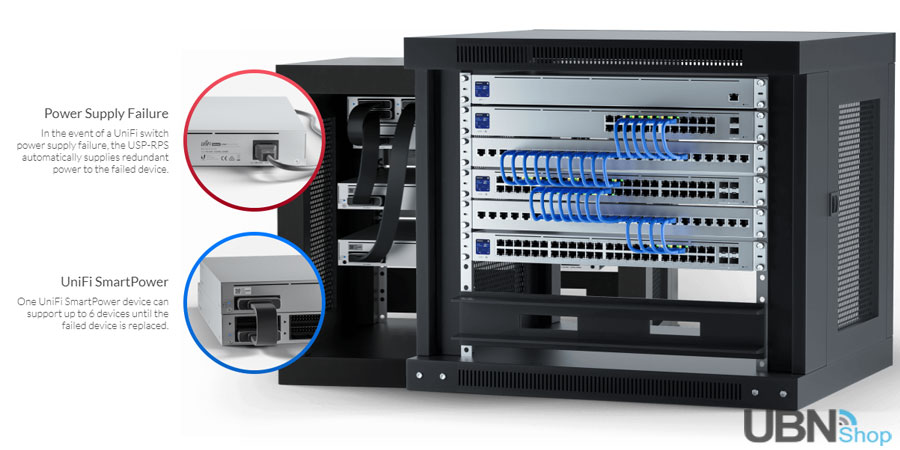

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

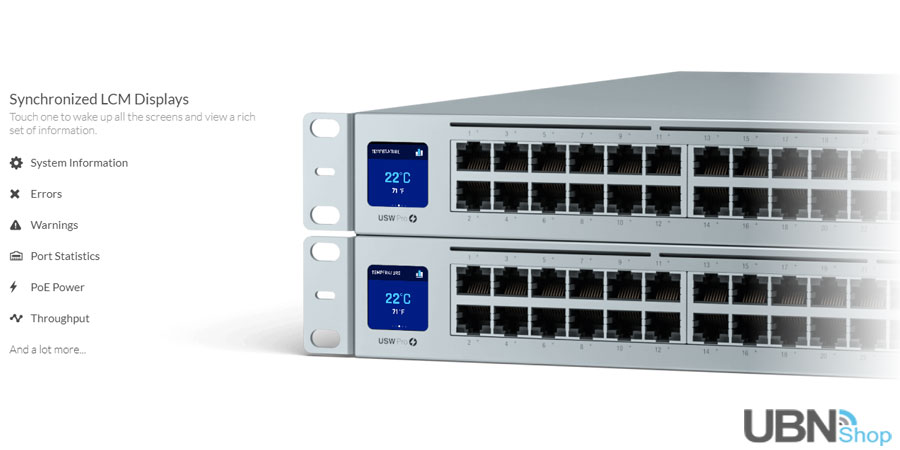

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

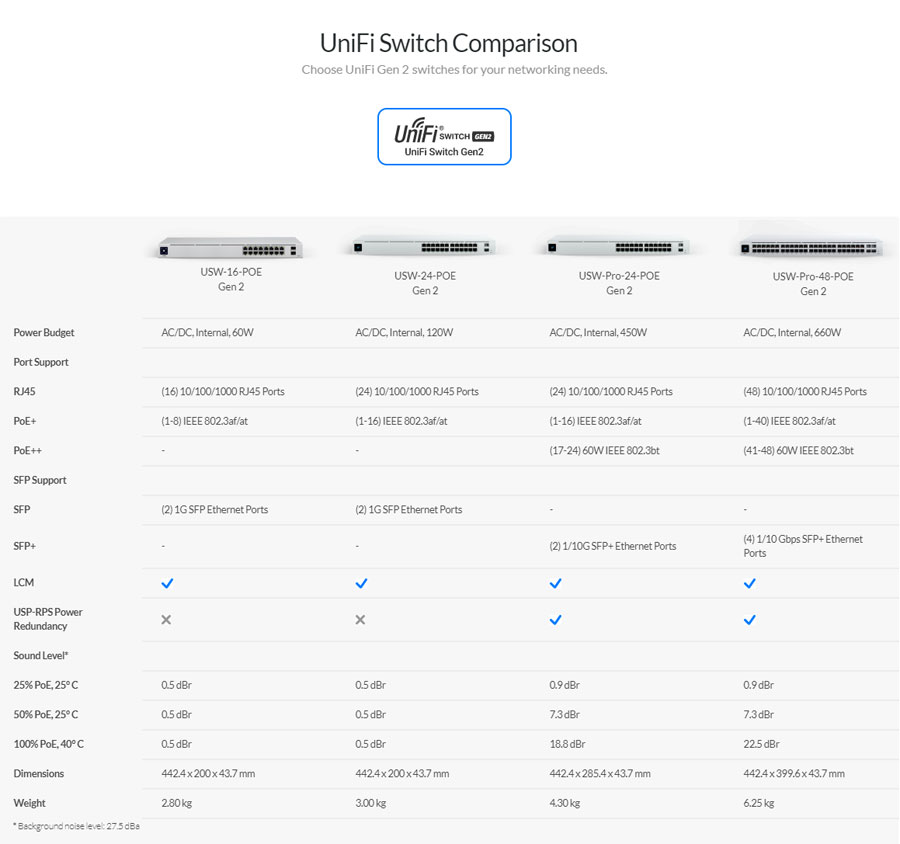

Comparison Chart USW-Gen2
Compare the UniFi Gen2 Switches.
(USW-PRO-48-POE)
UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+
Pack Includes:
- 1 x USW-Pro-48-POE Gen2
- 2 x Rack-Mount Brackets (Qty. 2)
- 8 x Bracket Screws
- 4 x Mounting Screws
- 4 x Cage Nuts
- 1 x Power Cord
- 4 x Rubber Feet
- Quick Start Guide
UniFi 48 Port Gigabit Switch Gen2, 802.3bt PoE, Layer3 Features and SFP+- Specifications:
|
USW-Pro-48-POE |
|
|
Dimensions |
442.4 x 399.6 x 43.7 mm |
|---|---|
|
Weight |
6.25 kg (13.78 lb) |
| With Rackmount Brackets | 6.34 kg (13.98 lb) |
|
Interfaces |
|
| Networking | (48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports |
| Management | Ethernet In-Band |
|
Power Method |
|
| Universal Input | 100-240VAC/50-60 Hz |
| USP RPS DC Input | 52VDC, 11.54A; 11.5VDC, 5.22A |
|
Power Supply |
AC/DC, Internal, 660W |
|
Supported Voltage Range |
100 to 240VAC |
|
Max. Power Consumption |
60W |
|
LEDs |
|
| System | Status |
| RJ45 Data Ports | PoE; Speed/Link/Activity |
| SFP+ Data Ports | Link/Activity |
|
ESD/EMP Protection |
Air: ± 16 kV, Contact: ± 12 kV |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
10 to 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
Sound Level* |
|
|
25% PoE Load, 25° C Room Temperature |
0.9 dBr |
|---|---|
|
50% PoE Load, 25° C Room Temperature |
7.3 dBr |
|
100% PoE Load, 40° C |
22.5 dBr |
* Background noise level: 27.5 dBa
|
PoE |
|
|
PoE Interfaces |
|
|---|---|
| Ports 1-40 | POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| Ports 41-48 | 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
|
Max. PoE Wattage per Port by PSE |
|
| 802.3at | 32W |
| 802.3bt | 64W |
|
Voltage Range 802.3af Mode |
44-57V |
|
Voltage Range 802.3at/bt Mode |
50-57V |
Shipping Specifications
Shipping Specifications | |
| SKU | USW-PRO-48-POE |
| Model # | USW-PRO-48-POE |
| Brand | UniFi-Switching |
| Barcode # | 8.18E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 6.5800kg |
| Shipping Width | 0.420m |
| Shipping Height | 0.093m |
| Shipping Length | 0.570m |
| Shipping Cubic | 0.022264000m3 |
| Unit Of Measure | ea |
