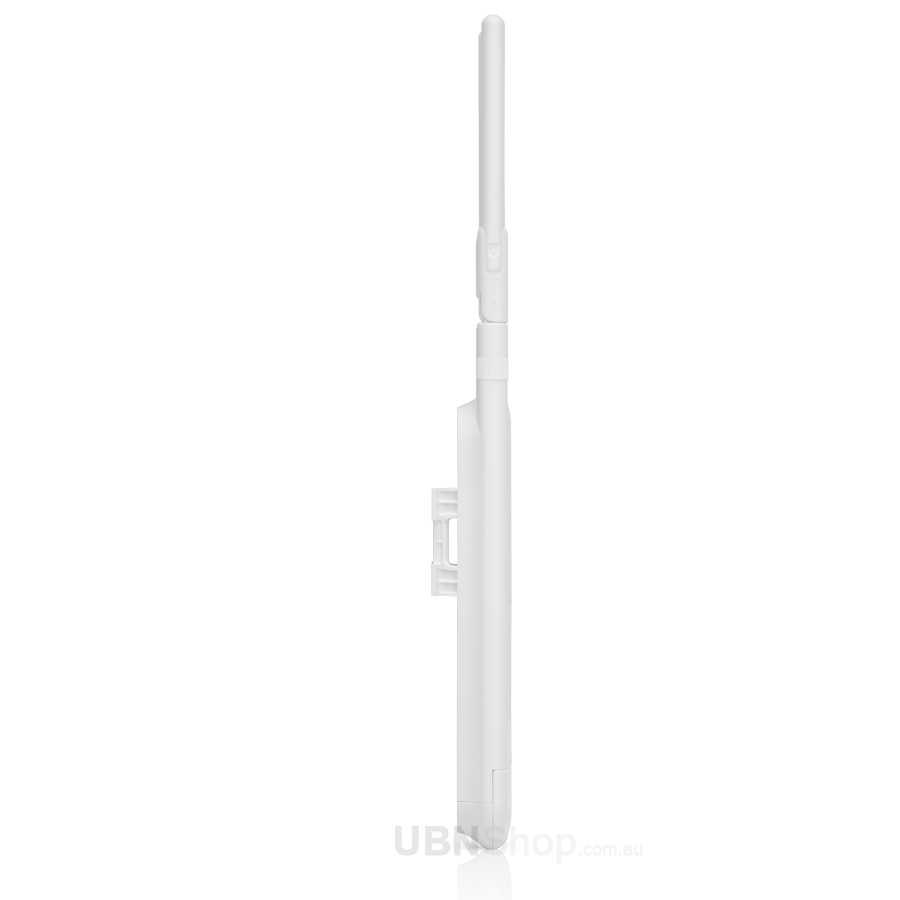

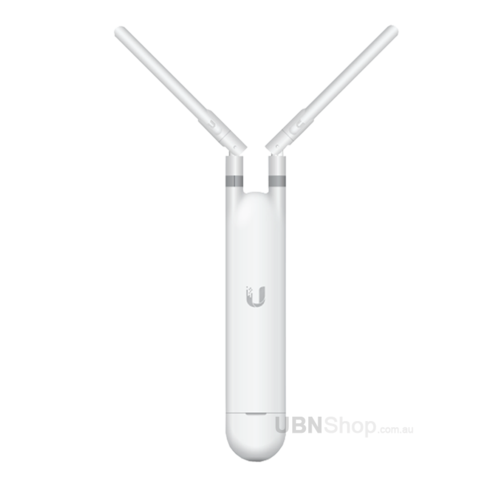

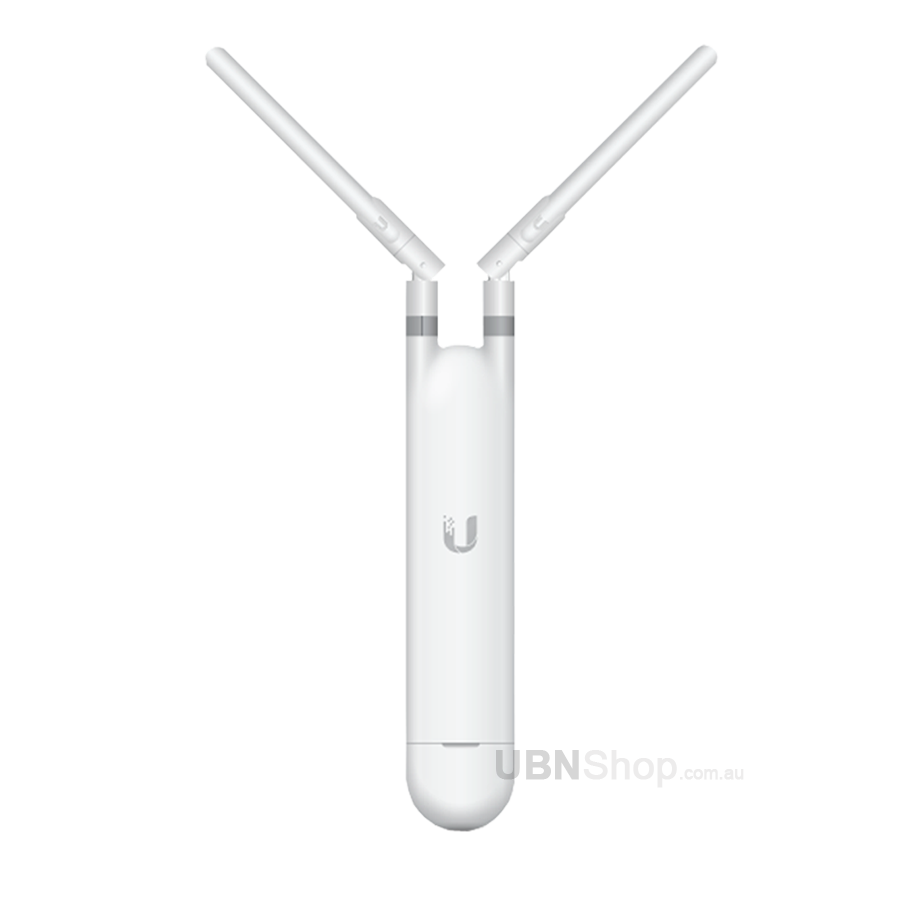

UniFi AC Outdoor Access Point Mesh



802.11AC Indoor/Outdoor Wi-Fi Access Point with Plug & Play Mesh Technology

The UniFi AC Mesh AP's have a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

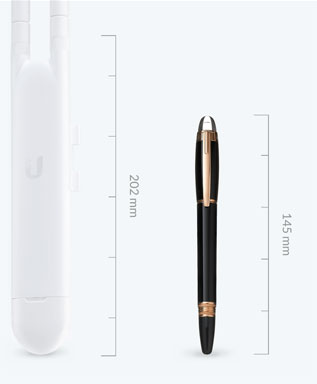

Compact Form Factor
The UAP-AC-M discreetly integrates into any environment. The UniFi AC Mesh base is just slightly larger than a standard pen, making it easy to deploy anywhere.
Dimensions: 354 x 46 x 34 mm (H x W x D)

Compact Form Factor

Weather-Resistant Enclosure
The UAP-AC-M can be used indoors or outdoors.

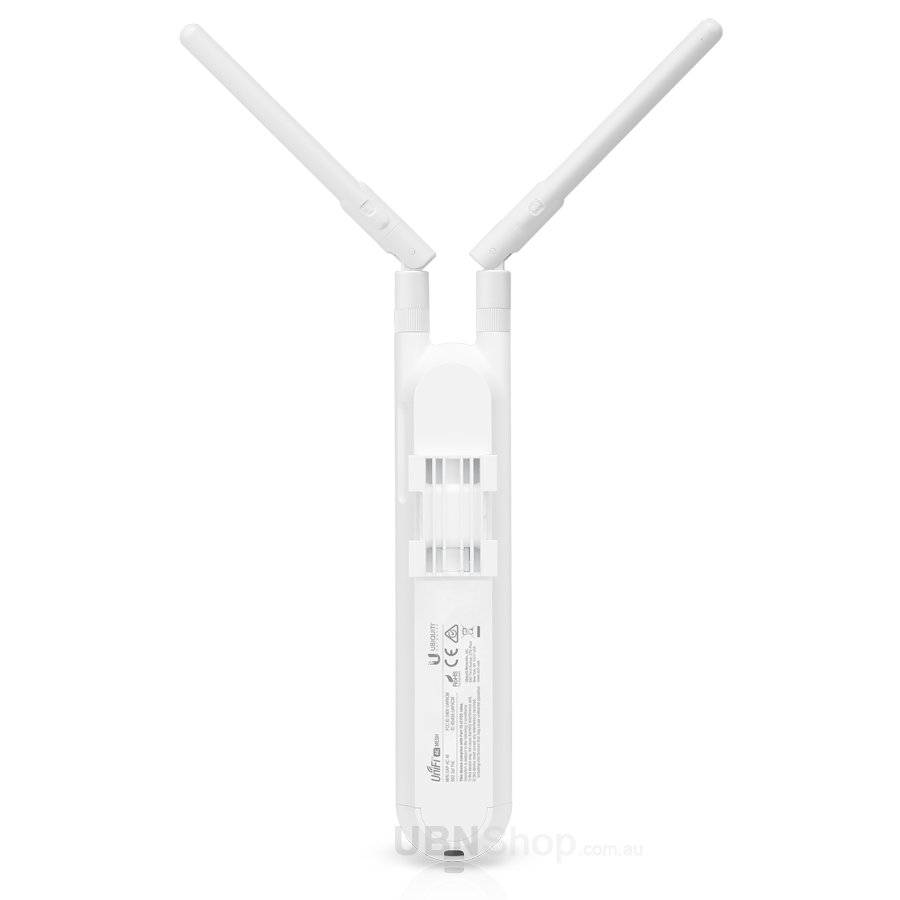

Versatile Mounting
The UAP-AC-M can be mounted on a wall, pole, or fast-mount of an optional Ubiquiti® high-gain antenna2. (All accessories are included.)

Multiple Power Options

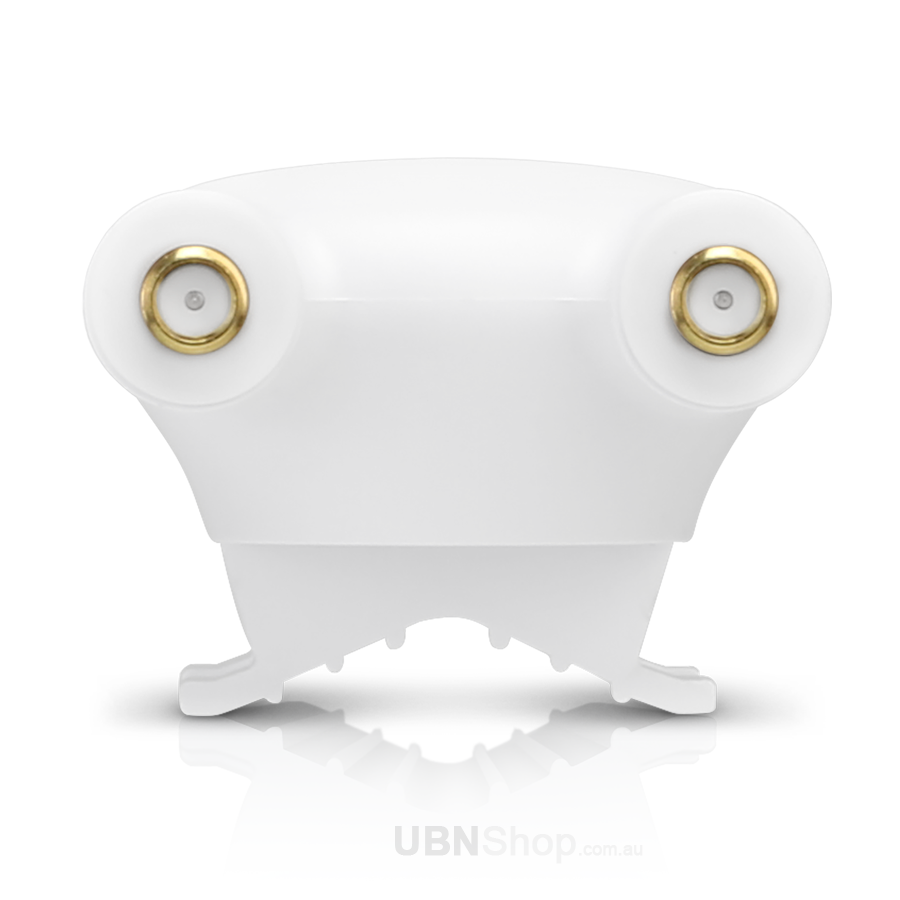

The UAP-AC-M is compatible with 802.3af PoE Alternative A and 24V passive PoE. You can power it with the included Gigabit PoE adapter1 or an 802.3af Alternative. A compatible switch, such as the UniFi PoE Switch or EdgePoint™ EP-R6. Antenna Options Use the included omni antennas, or use the included fast-mount adapter to install the AP on an optional connectorized antenna2 for expanded range coverage and customized pattern shaping.

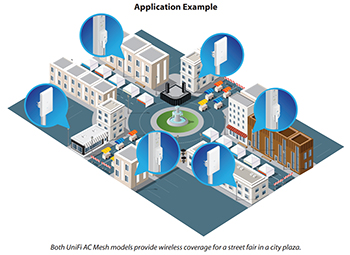

UniFi Mesh Application Example



(UAP-AC-M)

UniFi AC Outdoor Access Point Mesh

Pack Includes:

UniFi AC Outdoor Access Point Mesh

Pack Includes:

  • 1 x Ubiquiti UniFi AC Mesh AP
  • 2 x Antennas
  • 1 x Wall Mount Bracket
  • 2 x Screws
  • 2 x Screw Anchors
  • 2 x Zip Ties
  • 1 x Fast-Mount Adapter
  • 1 x Gigabit PoE (24V, 0.5A) with Mount Bracket*
  • 1 xPower Cord*
  • Quick Start Guide

* Gigabit PoE and Power Cord are not included with UAP-AC-M 5-Pack

UniFi AC Outdoor Access Point Mesh- Specifications:

UniFi AC Outdoor Access Point Mesh - Specifications

UniFi UAP AC Mesh
Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")
Weight 152 g (5.36 oz) with Antennas
Networking Interface 2x2 WiFi dual band / Ethernet Gigabit

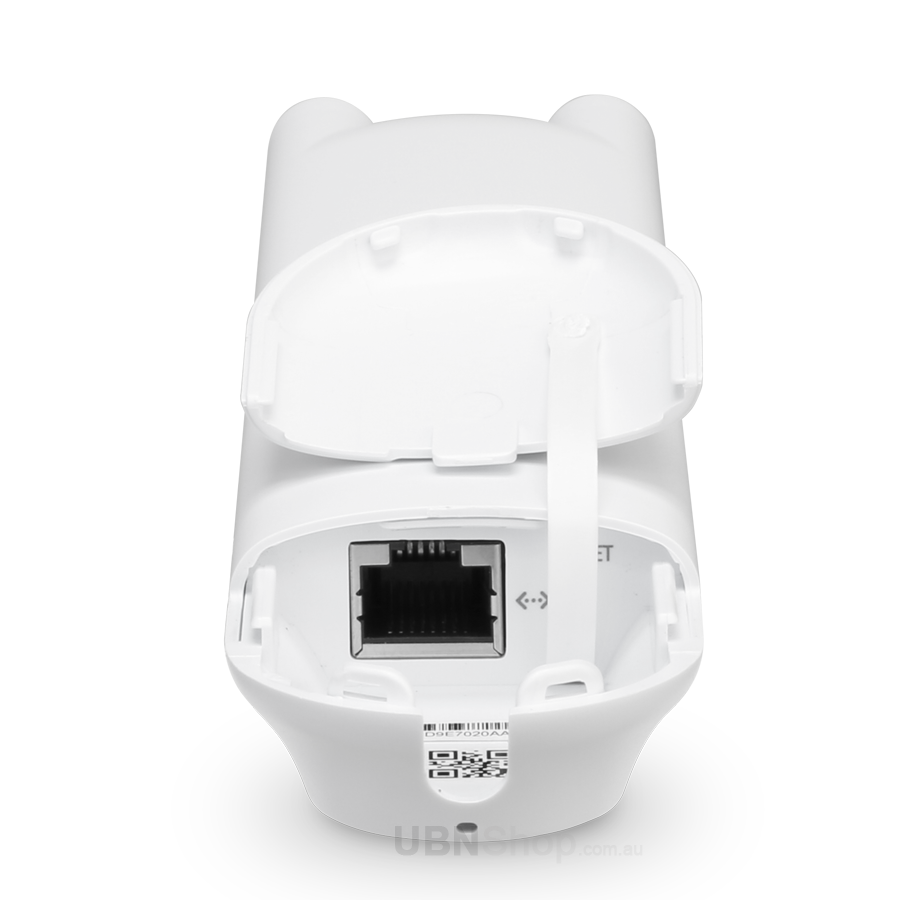

Ports (1) 10/100/1000 Ethernet
Buttons Reset
Antennas 2 Dualband antennas
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)(Supported Voltage Range: 44 to 57VDC)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption 8.5W
Max TX Power 20 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature -30 to 70° C (-22 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 100+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

SHIPPING SPECIFICATIONS

Shipping Specifications

SKU UAP-AC-M
Model # UAP-AC-M
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.4000kg
Shipping Width 0.110m
Shipping Height 0.090m
Shipping Length 0.250m
Shipping Cubic 0.002475000m3
Unit Of Measure ea
