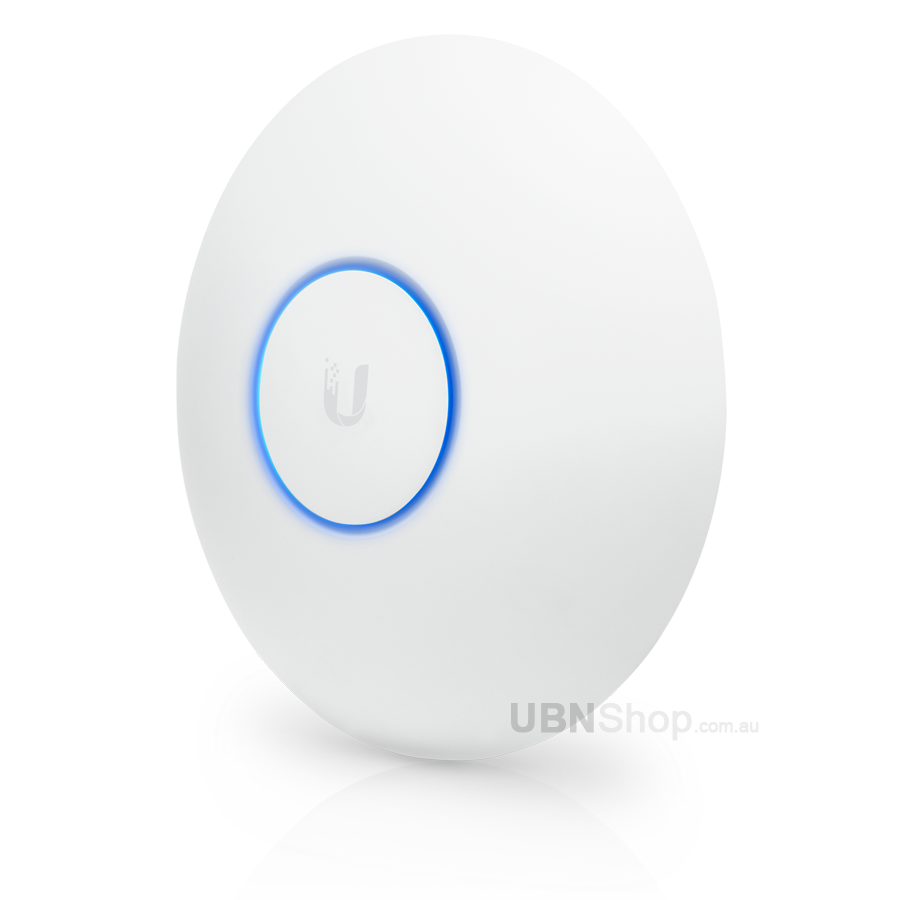

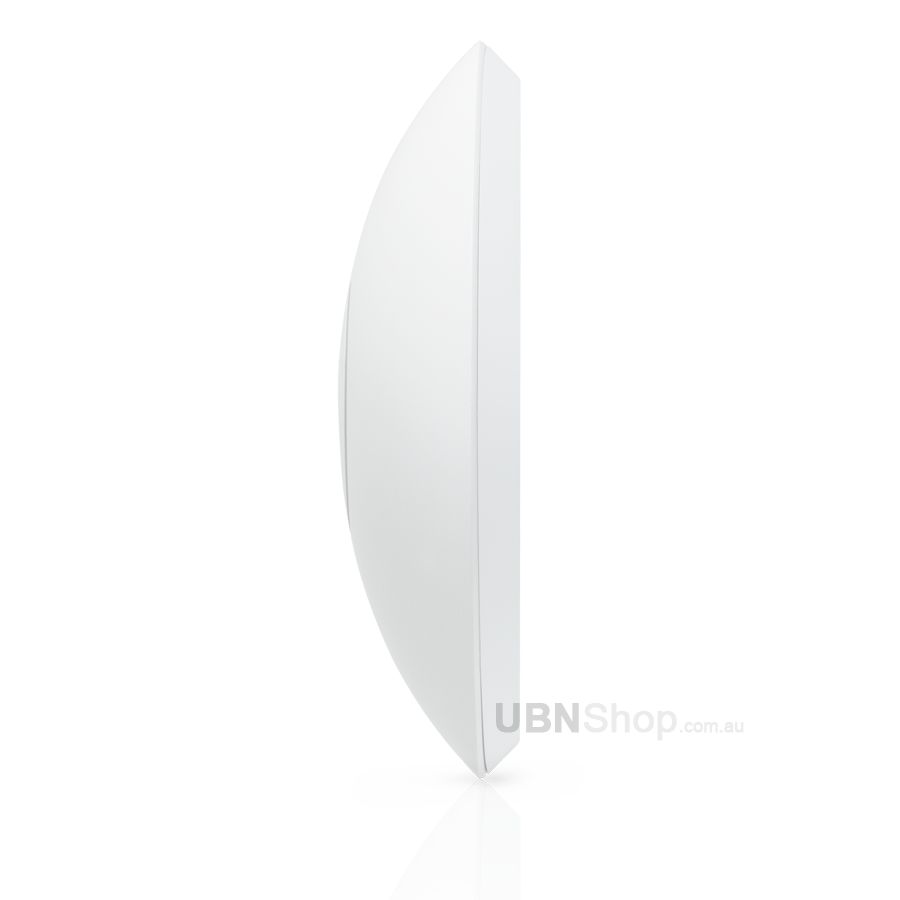

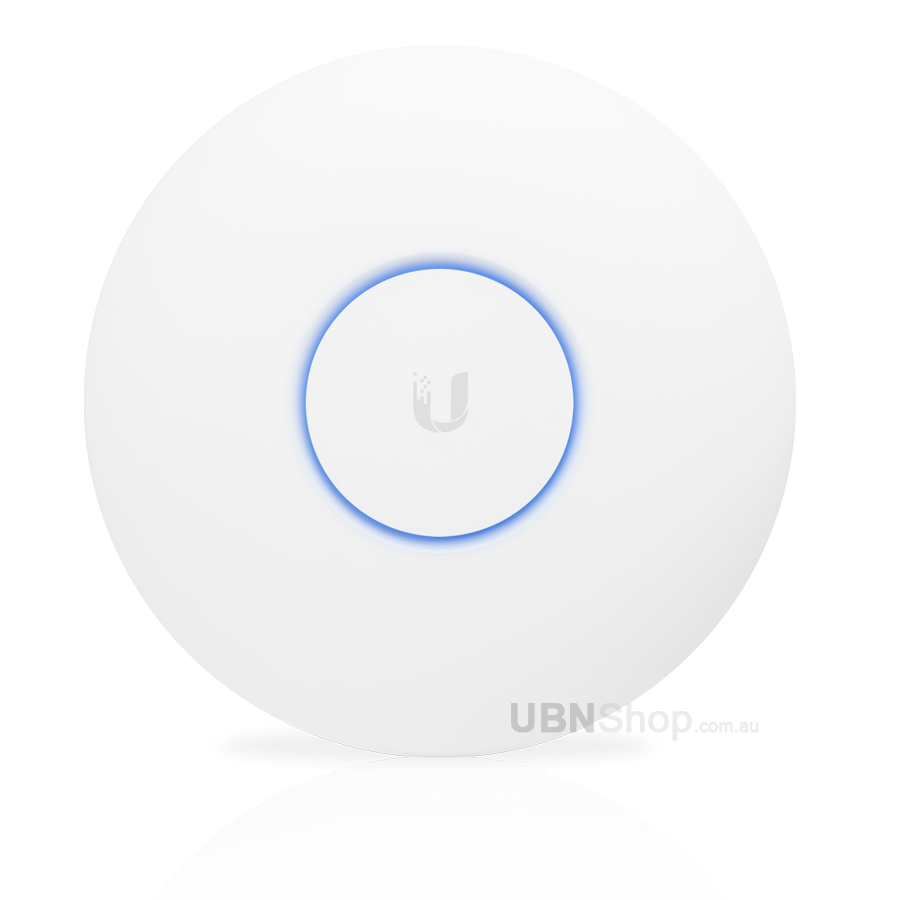

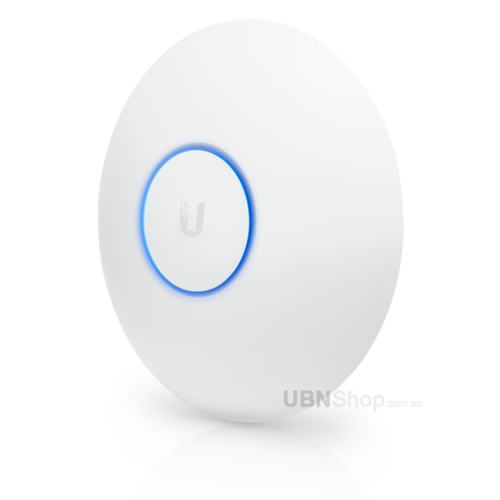

UniFi AC Long Range



802.11ac Dual Radio Access Point Long Range



The UniFi AC Long Range AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high‑performance wireless networks. The UniFi AC LR AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy. The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.



UniFi Wireless Comparison Chart

(UAP-AC-LR)

UniFi AC Long Range

Pack Includes:

UniFi Access Point AC Long Range

Pack Includes:

  • 1 x UniFi AC Long Range Access Point
  • 1 x Mounting Plate
  • 1 x Ceiling Backing Plate
  • 4 x Plate Ceiling Screws
  • 4 x Keps Nuts
  • 4 x Wall Screws
  • 4 x Screw Anchors
  • 1 x Gigabit PoE (24V, 0.5A)*
  • 1 x Power Cord*
  • Quick Start Guide

* Included only in the single-pack of the UAP-AC-LR

UniFi AC Long Range- Specifications:

UniFi Access Point AC Long Range - Specifications

UNIFI
Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight 240 g (8.5 oz), 315 g (11.1 oz) with Mounting Kits
Networking Interface (1) 10/100/1000 Ethernet Port
Ports No
Buttons Reset
Antennas (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter
Maximum Power Consumption 6.5W
Max TX Power 24 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC

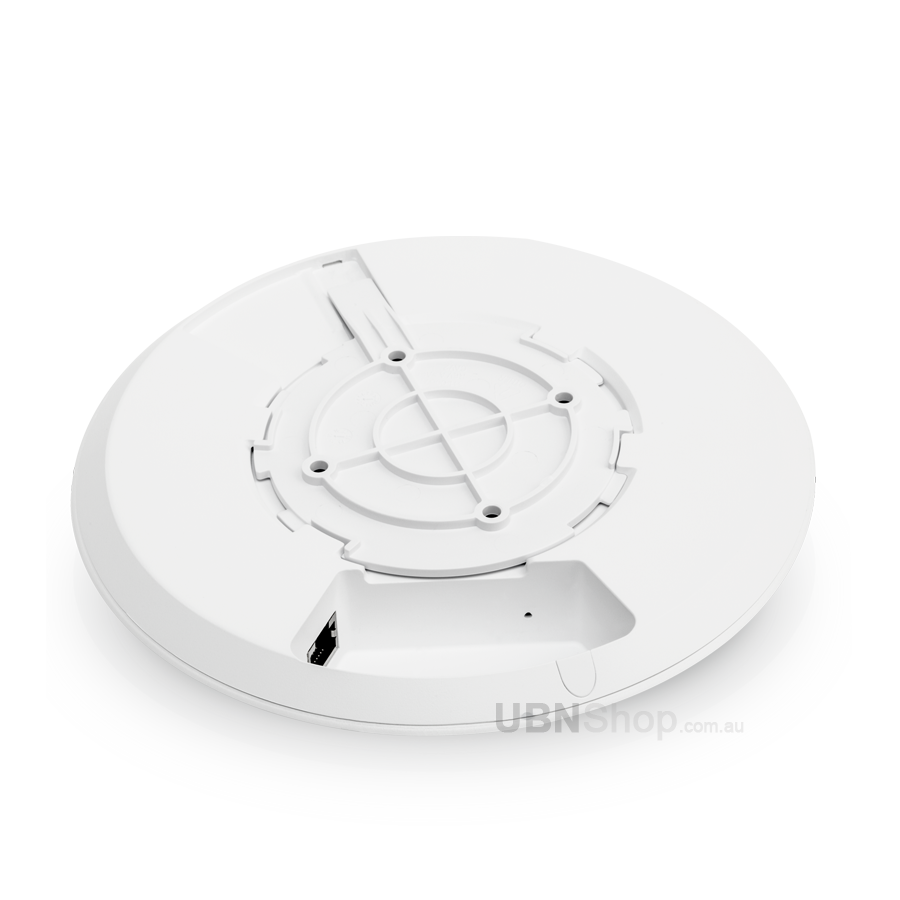

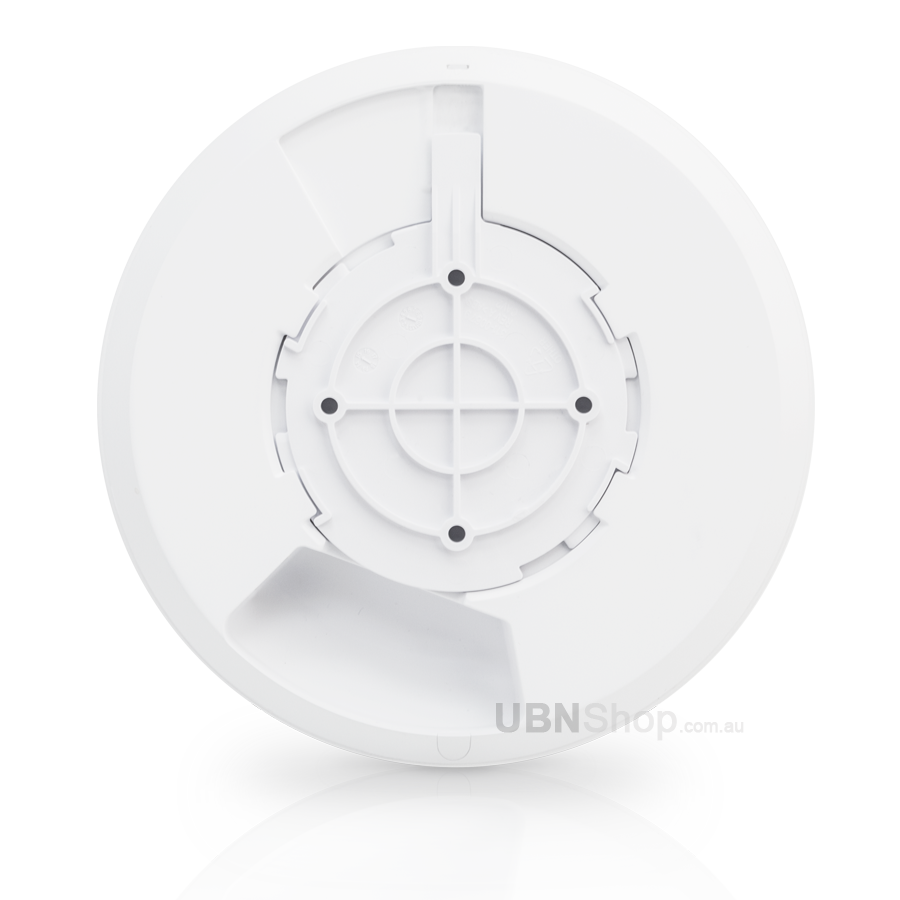

Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
ADVANCED TRAFFIC MANAGEMENT
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
SUPPORTED DATA RATES (MBPS)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Shipping Specifications

Shipping Specifications

SKU UAP-AC-LR
Model # UAP-AC-LR
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.4550kg
Shipping Width 0.212m
Shipping Height 0.099m
Shipping Length 0.230m
Shipping Cubic 0.004827000m3
Unit Of Measure ea
