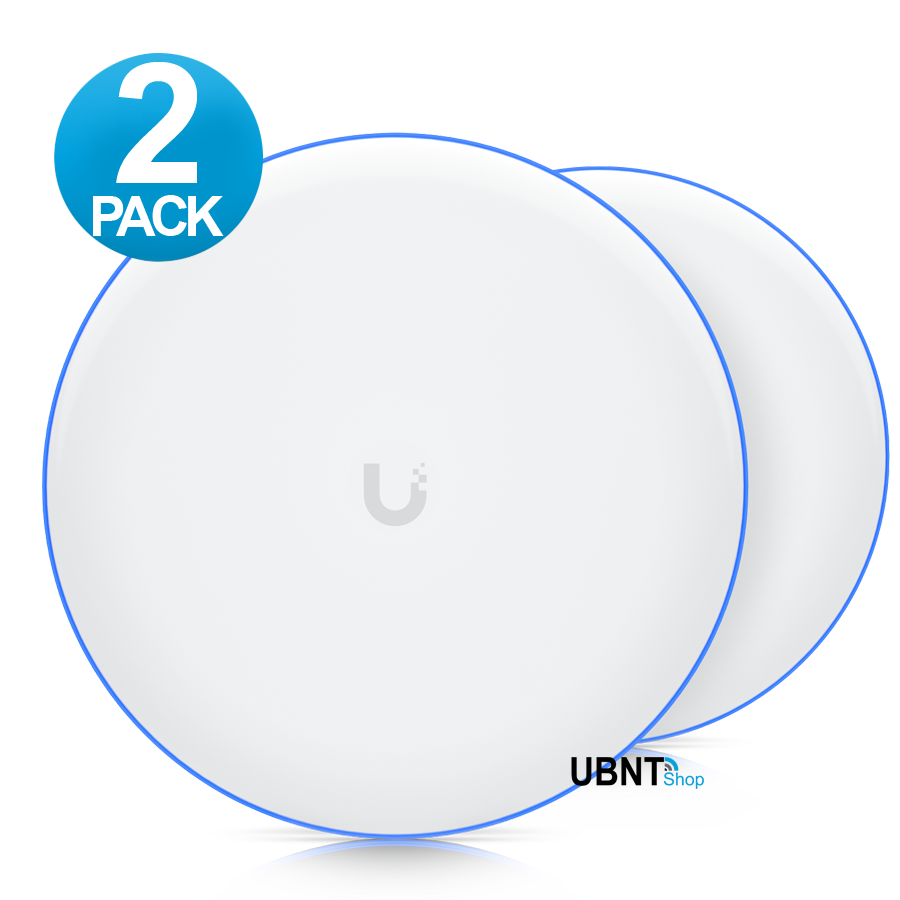

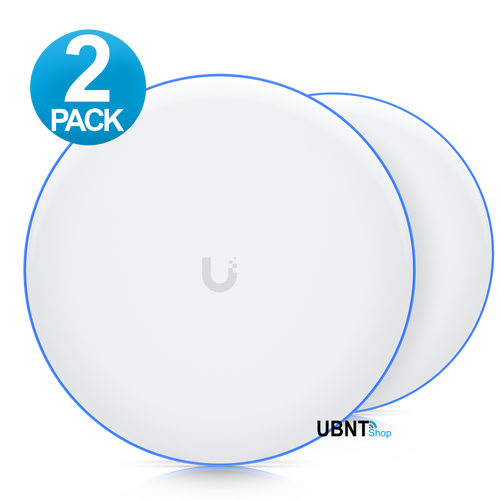

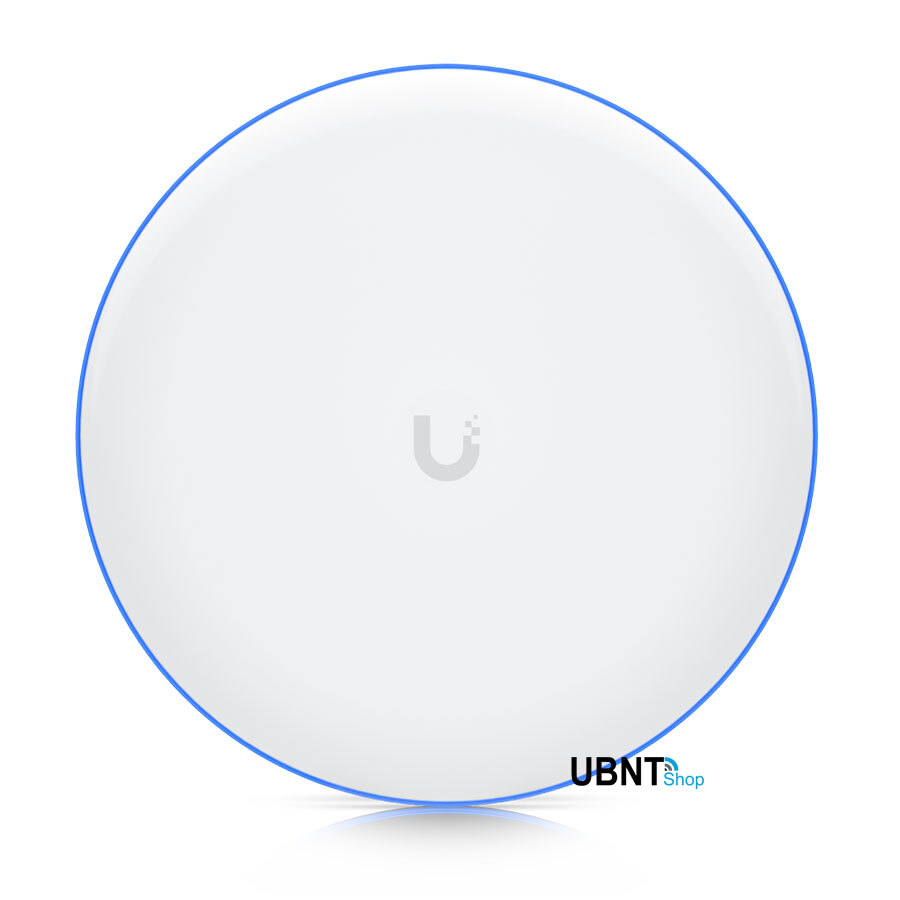

UniFi Building-to-Building Bridge XG, 60 GHz wireless bridge with a 10 Gbps SFP+ interface (2 Pack)
UniFi Building-to-Building Bridge XG 60 GHz Gigabit+ Wireless Bridge Kit (2 PACK)

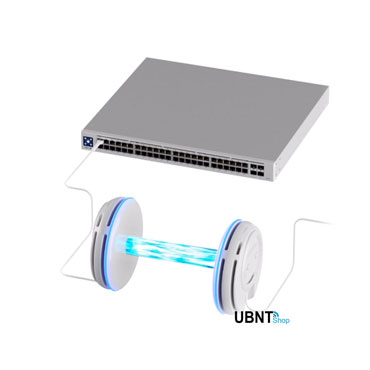

A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.
500 m (1,640 ft) maximum range
60 GHz & 5 GHz dual-radio redundancy
(1) 10G SFP+ and (1) GbE PoE++ port
Powered using PoE++*
Built-in LED alignment indicators
Sold as 2-pack
Note. Cannot be set up standalone and requires a UniFi gateway or self-hosted Network server.
*Includes PoE power adapter.
(UBB-XG)
UniFi Building-to-Building Bridge XG, 60 GHz wireless bridge with a 10 Gbps SFP+ interface (2 Pack)

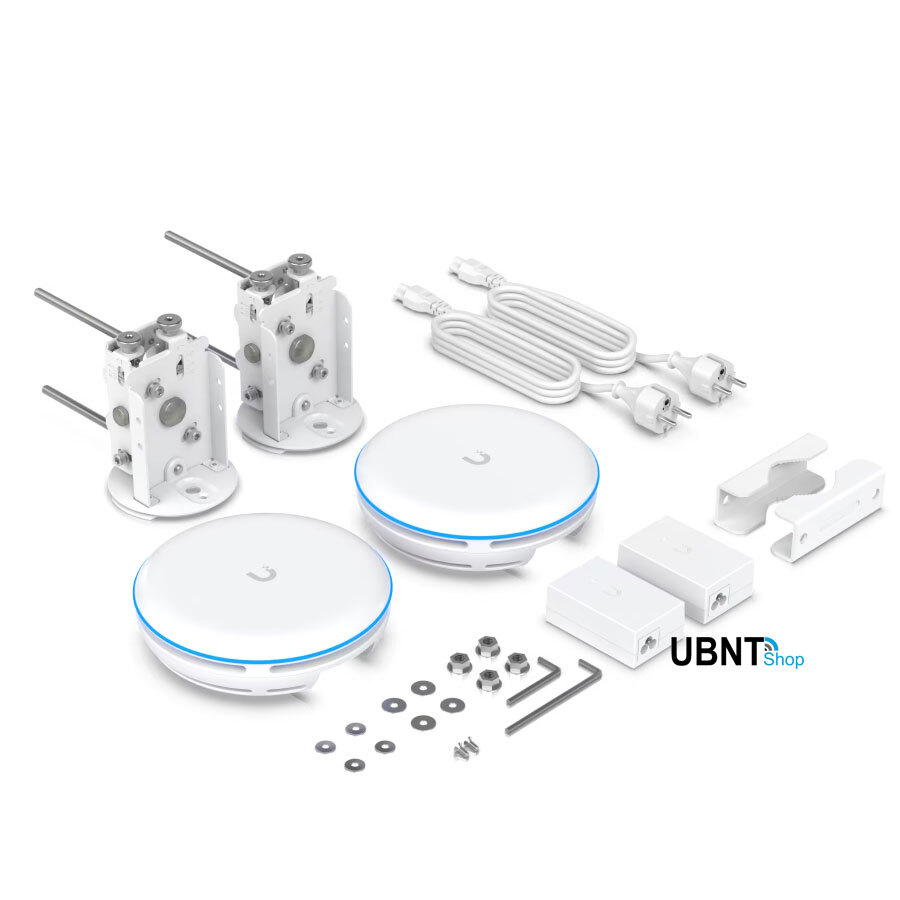

Pack Includes:
UniFi Building-to-Building Bridge XG
Pack Includes:
- UniFi Building-to-Building Bridge XG (x2)
- Ball joint mount (x2)
- Lock ring (x2)
- Metal strap (x2)
- Gigabit PoE (48V, 0.32A) with mounting bracket (x2)
- Power cord (x2)
- Quick Start Guide
UniFi Building-to-Building Bridge XG, 60 GHz wireless bridge with a 10 Gbps SFP+ interface (2 Pack)- Specifications:
UniFi Building-to-Building Bridge XG - Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure materials | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |

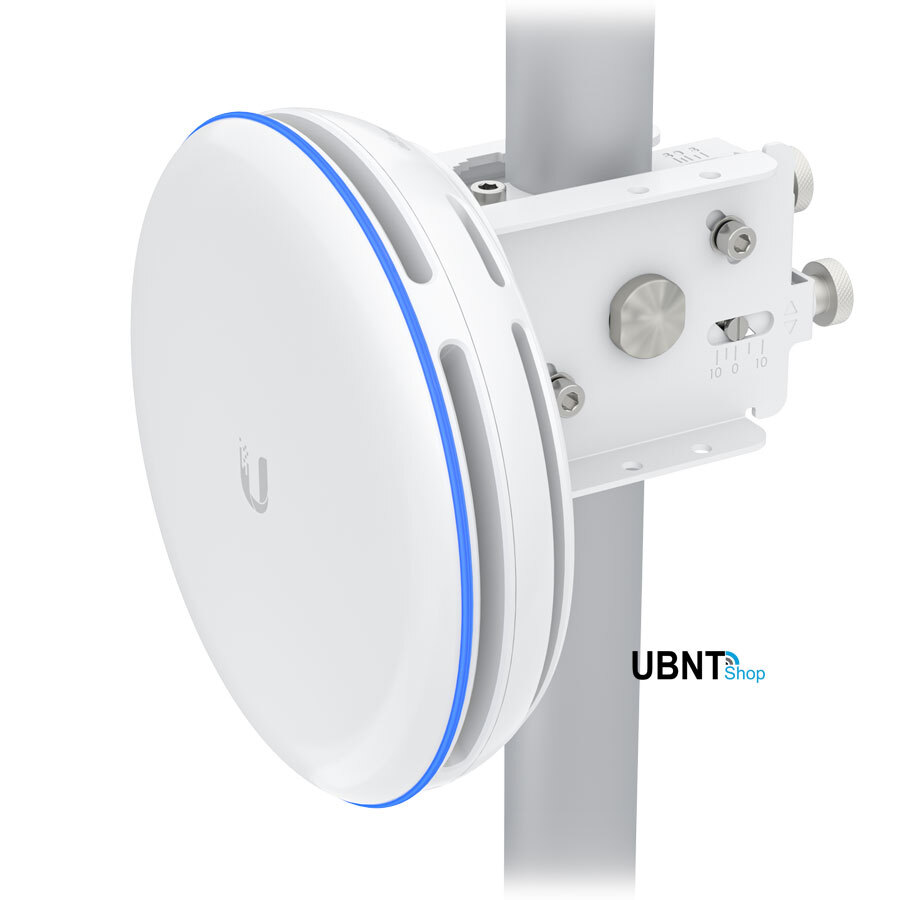

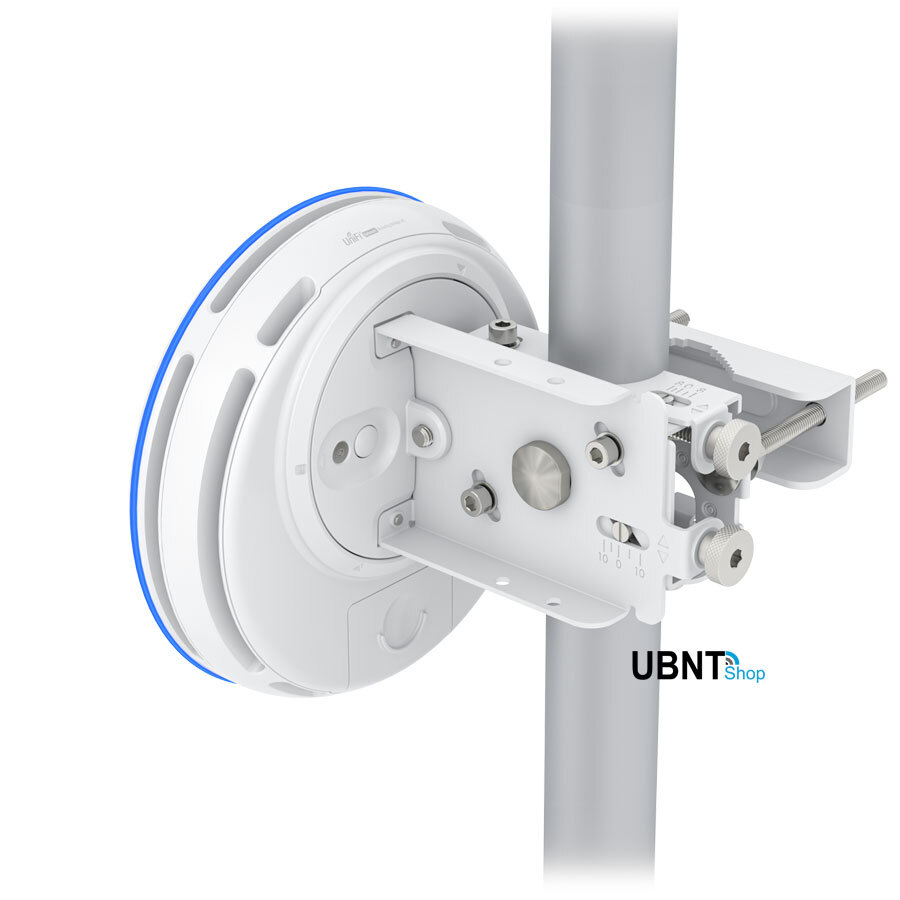

| Mounting | 60G precision alignment pole mount (Included) Pole compatibility: Ø25.4-63.5 mm (Ø1-2.5") |
| Weatherproofing | IPX6 |
| Hardware | |

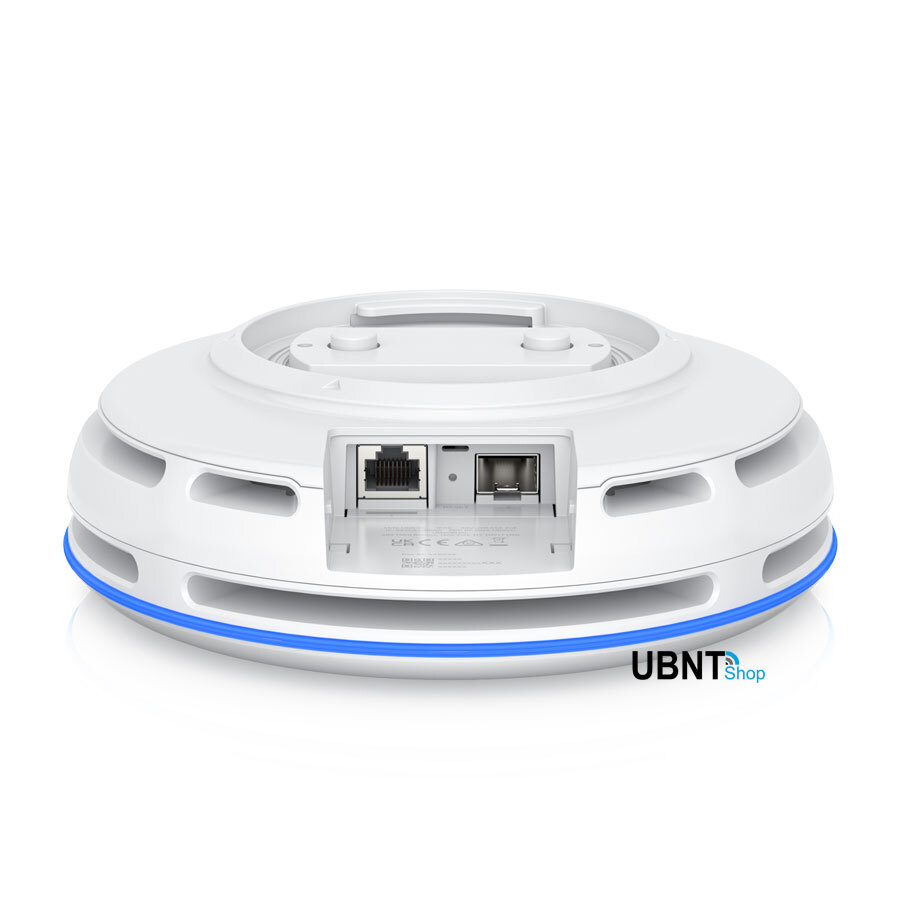

| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE++ Passive PoE [4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)] |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Throughput rate 5 GHz 60 GHz |
866.6 Mbps 6 Gbps |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ad/ay 802.11ac (WiFi 5) |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* US/CA Worldwide |
U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz 5,150 - 5,725 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
Shipping Specifications
Shipping Specifications | |
| SKU | UBB-XG |
| Model # | UBB-XG |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.090m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.001764000m3 |
| Unit Of Measure | ea |
