Buy Outback Antenna Yagi Antenna 5GHz 5725-5850MHz 13dBi Anti Vibration Online in Australia
ANT-OA-YAGI-5-NF-13-AV
ALTERNATE PRODUCT:
ANT-OA-G-SPOT-Wideband LPDA Antenna 9/11 dBi 3G, 4G, 5G & WiFi 2.4Ghz 698~960Mhz/1710~3800Mhz.In Stock: YES
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:

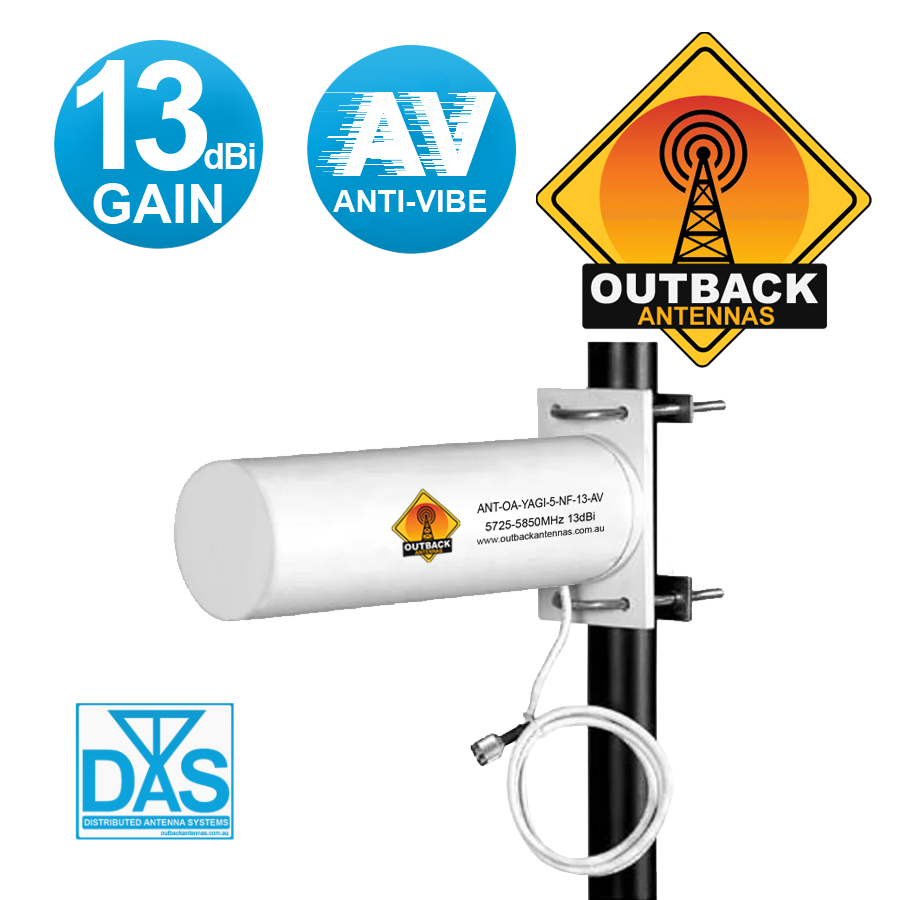

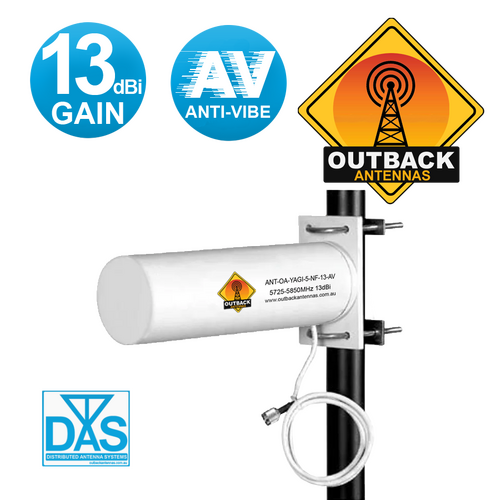

Yagi Antenna 5GHz 5GHz 5725-5850MHz 13dBi WiFi with Anti Vibration
Support 5GHz WIFI band from 5725-5850MHz for WIFI signal transmitting and receiving. Applications include wireless surveillance system, WIFI router, IoT smart home, smart workplace, smart vending machine and FPV drones.
ANTI-VIBRATION
The AV range of Antennas by Outback Antennas have Strengthened internal elements to with-stand vibrations, designed specifically for the harsh Australian conditions. Ideal Directional Antenna for Trailer, Building and Tower Applications.
Features
- 13dBi gain
- Lightweight, compact design
- MountingAssembly included
- 235mm Length
- 50cm Pigtail Cable with N Female connector
- Ideal for high speed WiFi 5Ghz applications.
(ANT-OA-YAGI-5-NF-13-AV)
Yagi Antenna 5GHz 13dBi
Pack Includes:
- 1 x Outback Antennas Yagi Antenna 5GHz 13dBi
- 1 x Pole Mount Assembly
Yagi Antenna 5GHz 13dBi - SPECIFICATIONS
| COMPATABILITY | |||
| MODEL | ANT-OA-YAGI-5-NF-13-AV | ||
| Electrical Specifications | |||
| Frequency Range (MHz) | 5725-5850 | ||
| Bandwidth (MHz) | 125 | ||
| Gain (dBi) | 13 | ||
| Horizontal beamwidth (°) | 40 | ||
| Vertical beamwidth (°) | 36 | ||
| F/B Ratio | ≥18 | ||
| VSWR | ≤1.5 | ||
| Impedance (Ω) | 50Ω | ||
| Polarization | Veritical | ||
| Maximum power (W) | 50 | ||
| Connector | N-Female | ||
| Mechanical Specifications | |||
| Cable Type | RG58 | ||
| Size (mm) | 235*95*35 | ||
| Weight (kg) | 1.0 | ||
| Wind Load (Max.) | 60m/s | ||
| Operating Temperature (℃) | -40 ~ +65 | ||
| Storage Temperature (℃) | -40 ~ +80 | ||
| Lightning Protection | DC Ground | ||
SHIPPING SPECIFICATIONS
| SKU | ANT-OA-YAGI-5-NF-13-AV |
| Model # | ANT-OA-YAGI-5-NF-13-AV |
| Barcode # | 481400202341 |
| Brand | Outback-Antennas |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.700m |
| Shipping Cubic | 0.007000000m3 |
| Unit Of Measure | ea |
Datasheet Outback Antennas Yagi AntennaBe The First To Review This Product!
