Cudy AX3000 Wifi6 2-5G Access Point Mesh

Cudy AX3000_P WiFi 6 2.5G Access Point With PoE Adapter

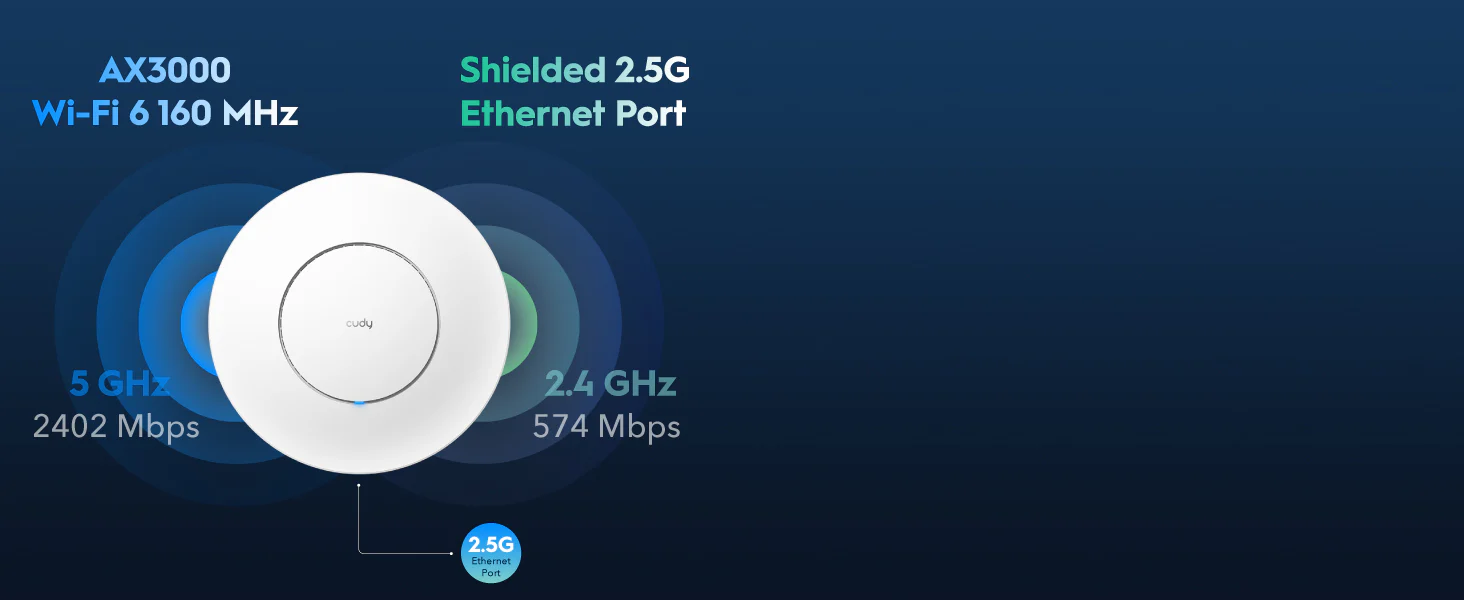

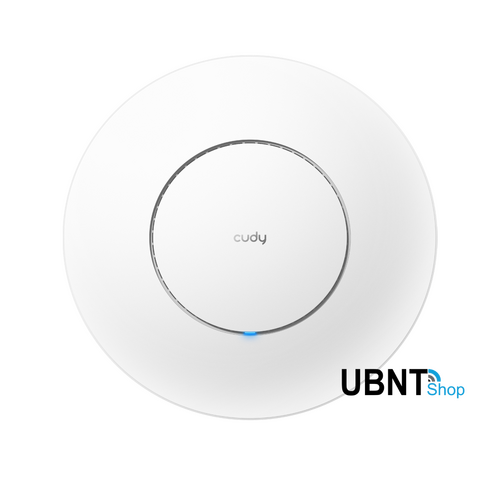

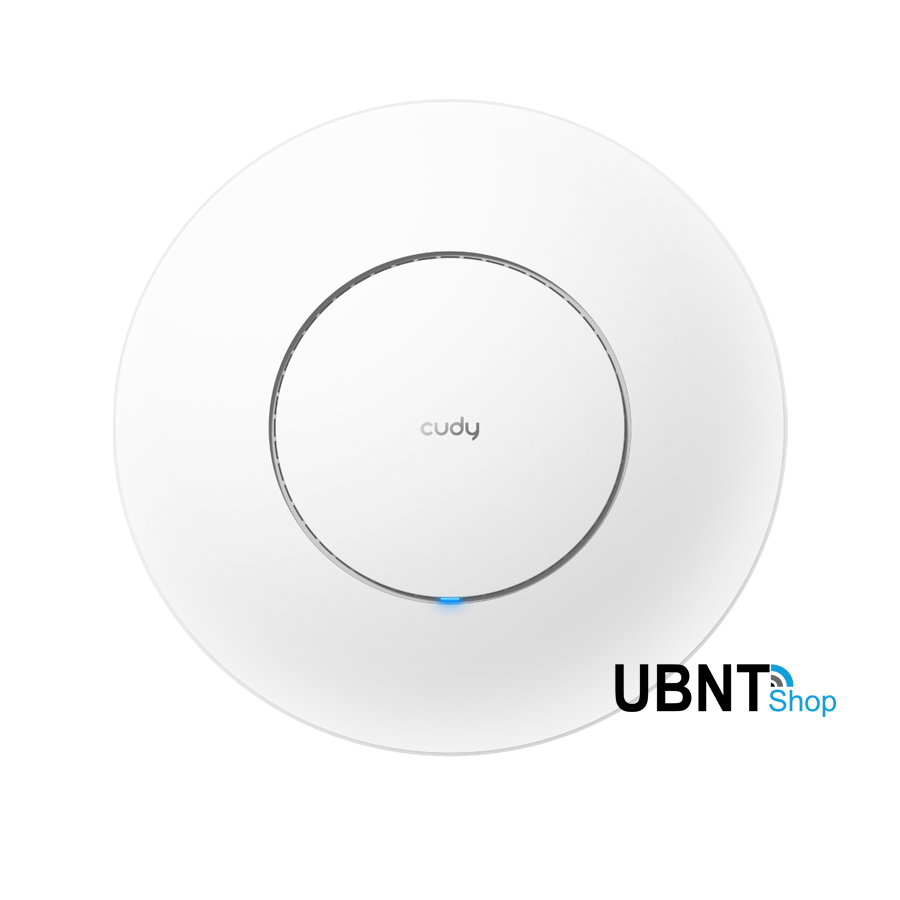

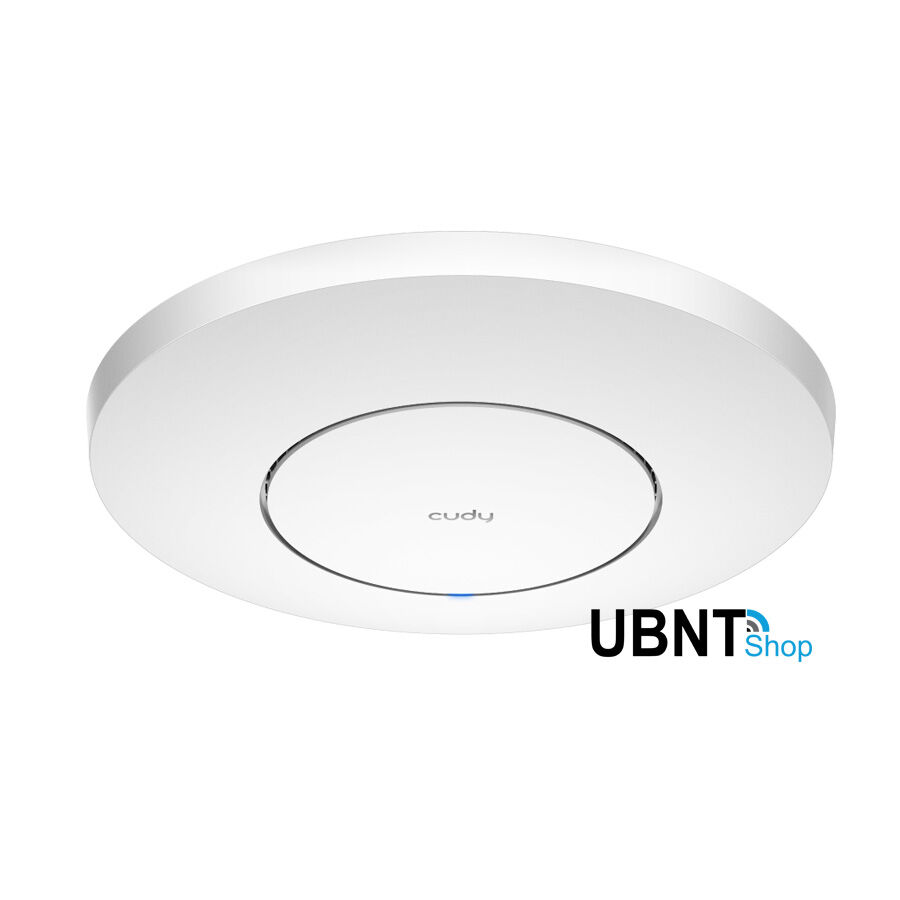

The Cudy AP3000 (also called “AX3000 2.5G Wi-Fi 6 Access Point”) is an indoor ceiling or wall-mounted access point aimed at small-to-medium commercial or high-end residential deployments. It supports Wi-Fi 6 (802.11ax) on dual bands (2.4 GHz + 5 GHz) and includes a 2.5 Gbps Ethernet port so that wired backhaul or uplink can exceed gigabit speeds.

You can power it via standard PoE (802.3at), passive PoE, or via a DC input, giving flexibility in installation. It also supports various deployment features (mesh, seamless roaming, multi-mode operation) and is manageable via Cudy’s AP controller / centralized management tools.

A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports, designed for connecting transportation hubs, hotels, offices, lecture halls, and classrooms.

1.3 GHz Dual-Core CPU
512 MB RAM
4-Stream Dual-Band Wi-Fi 6
2402 Mbps + 574 Mbps Wi-Fi ¹
1× Shielded 2.5GbE PoE IN
802.3at, Passive PoE, DC (Included)
Watchdog, Schedule Reboot
150 Connected Devices ²
Covers 130 m² (1,400 ft²) ³

Use-Case Fit & Recommendations

This AP is well suited for small to medium commercial installations (offices, small hotels, classrooms, cafes) where you want strong wireless performance and a wired backbone that can exceed gigabit.
In a home setting with gigabit or higher internet, it would also shine as a ceiling-mounted “infrastructure” AP, especially in large or multi-story houses.
If you plan a multi-AP deployment, pairing with Cudy’s AP controller or mesh-capable devices makes sense to unify management.
Always plan your wired infrastructure to feed that 2.5G port, ensure proper power (PoE), and do a site survey (for interference, channel planning, placement) to maximize performance.

(CU-AP3000_P)

Cudy AX3000_P WiFi 6 2.5G Access Point With PoE Adapter

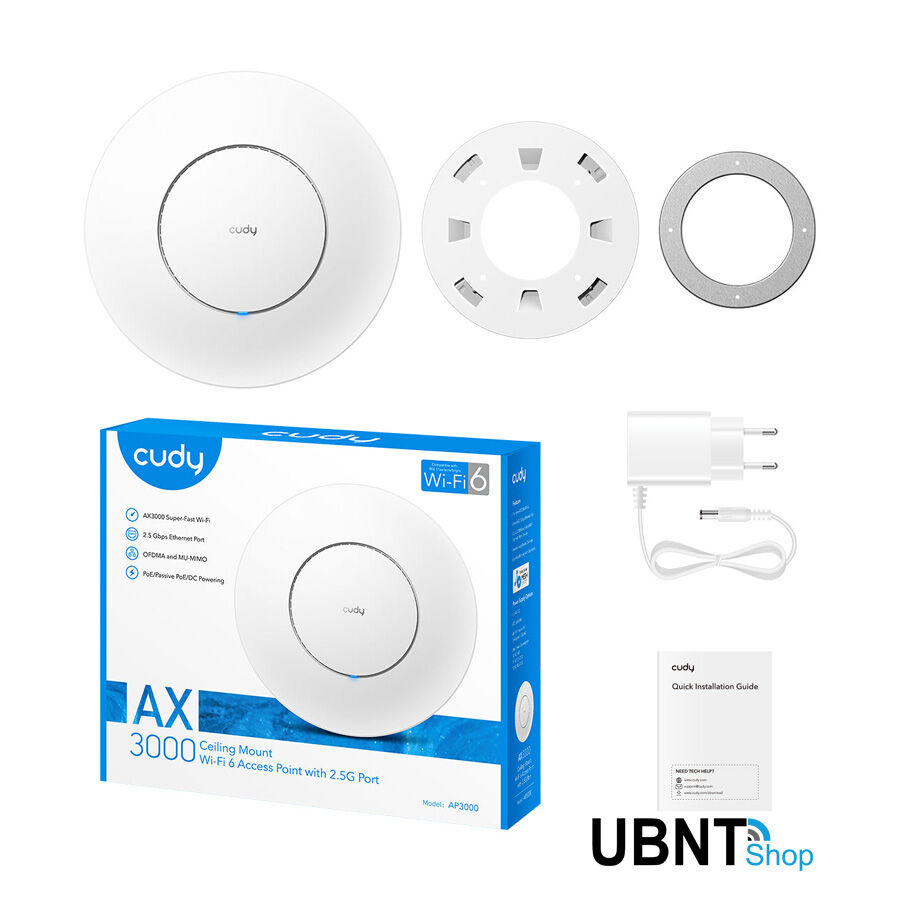

Pack Includes:

AP3000
PoE Adapter 48V Passive PoE 802.3at/af PoE
Mounting Kit
Ethernet Cable
Installation Guide

Cudy AX3000_P WiFi 6 2.5G Access Point With PoE Adapter- Specifications:

Model Version	AP3000 1.0
CPU	CPU Details	1.3 GHz Dual-Core CPU
Memory/Storage	Flash/ROM	256 MB (2 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR4
Wireless	5 GHz Wi-Fi Speed	2402Mbps
	2.4 GHz Wi-Fi Speed	574 Mbps
	5 GHz Wi-Fi Streams	3T3R (3×3 MIMO)
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	5× Internal
	FEM or PA/LNA	5 GHz: 3× External 2.4 GHz: 2× External
	Beamforming	True
	Range Performance	Max: 200 m (656 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

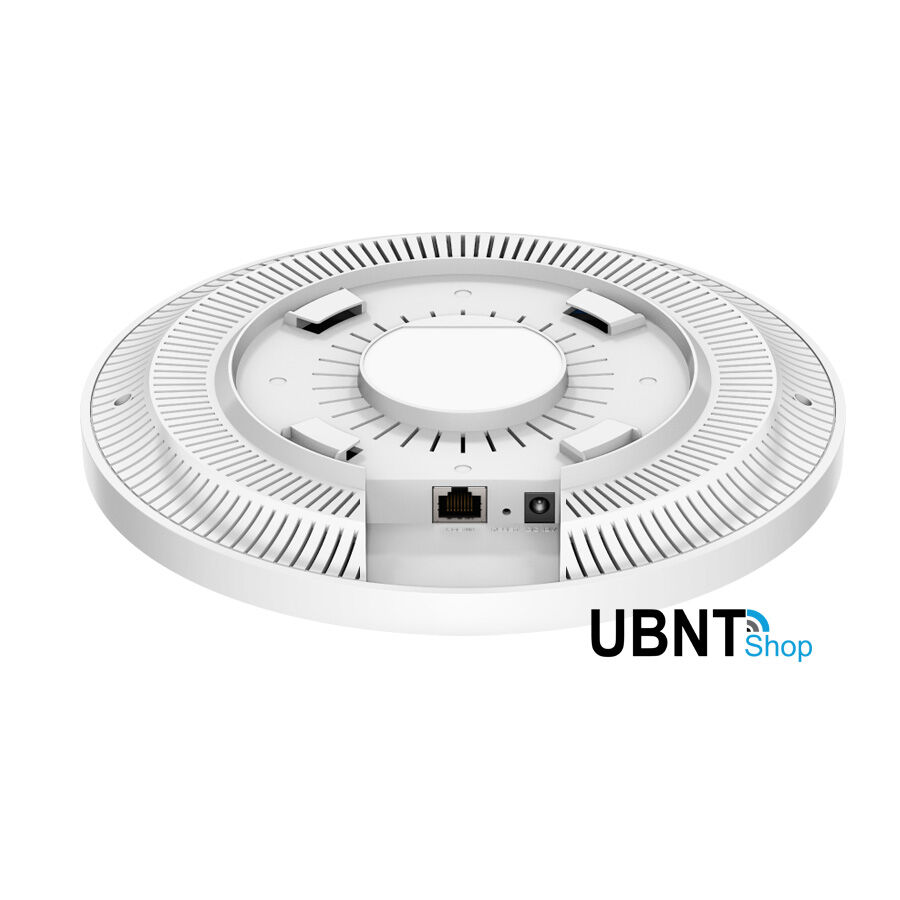

Interfaces	2.5G RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Input	DC Jack PoE via Ethernet Port
Power	Power Methods	DC 802.3at/af PoE Passive PoE
	DC Input	12V 1.5A
	Passive PoE Input	48 ~ 57V
	Power Adapter	AP3000 \| DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC AP3000_P \| PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE
	Max Power Consumption (W)	12 W (48 V PoE) 12 W (DC)
	Idle Power Consumption (W)	6.1 W (48 V PoE) 6.1 W (DC)
Reliability	Advanced	Hardware Watchdog
	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	Φ231.9×57.1 mm Φ9.13×2.25 inches
	Product Weight	494 g (17.43 oz.)
Package Content	AP3000 Power Adapter Mounting Kit Ethernet Cable Installation Guide
Ordering Information	Retail Package Weight	With PoE Adapter (_P) \| EU: 1015 g (35.8 oz.) With DC Adapter \| EU: 941 g (33.19 oz.)
	Retail Package Dimension	283×238×68 mm 11.14×9.37×2.68 inches
	Units per Carton	20
	Carton Net Weight	With PoE Adapter (_P) \| EU: 20.3 kg (44.75 lbs) With DC Adapter \| EU: 18.8 kg (41.45 lbs) With DC Adapter \| UK: 19 kg (41.89 lbs)
	Carton Gross Weight	With PoE Adapter (_P) \| EU: 21.7 kg (47.84 lbs) With DC Adapter \| EU: 20.0 kg (44.09 lbs) With DC Adapter \| UK: 20.2 kg (44.53 lbs)
	Carton Dimension	58×37.5×49.5 cm 22.83×14.76×19.49 inches

Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
