The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices.



The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.



Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Features
(8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
Managed by UniFi Controller (5.13.10 or later)
External 60W power adapter

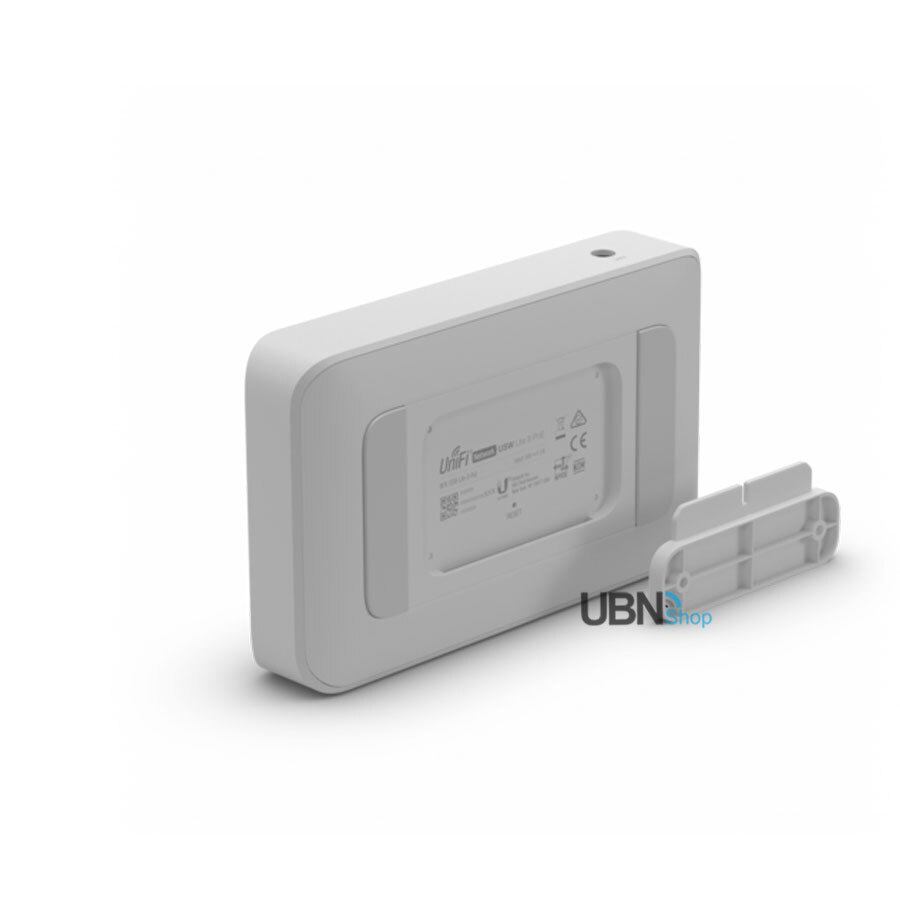

Wall-mountable (Kit included)



(USW-LITE-8-POE)

UniFi Switch Lite 8 PoE

Package Includes

  • 1 x USW-LITE-8-POE
  • 1 x Wall Mount
  • 2 x Mounting Screws
  • 2 x Screw Anchors
  • Quick Installation Guide

UniFi Switch Lite 8 PoE- Specifications



USW-LITE-8-POE
MECHANICAL
Dimensions

99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
Weight

450 g (15.87 oz)
HARDWARE
Total Non-Blocking Line Rate

8 Gbps
Max. Power Consumption

8W
Power Method

54VDC, 1.1A Power Adapter
Power Supply

External 54V/60W Power Adapter
Supported Voltage Range

DC 50V to 57V
Networking Interfaces

(8) 10/100/1000 Mbps Ethernet RJ45 Ports
PoE Interfaces

(4) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Mangement Interface

Ethernet In-Band
Max. PoE+ Wattage per Port by PSE

30W
Modes

SMB Layer 2 PoE Gigabit Ethernet Switch
Operating Temperature

-15 to 40° C (5 to 104° F)
Operating Humidity

10 - 90% Noncondensing
Certifcations

CE, FCC, IC
LEDS
System

(1) Power, Blue/White

Flashing White: Bootup in Progress

Flashing Blue: Firmware Upgrading

Steady White: Factory Defaults, Awaiting Adoption

Steady Blue: Device is Adopted
Ethernet

Green: 1G, Amber: 10/100 Mbps
PoE

Amber: IEEE 802.3af/at



Shipping Specifications

SKU USW-LITE-8-POE
Model # USW-LITE-8-POE
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.5000kg
Shipping Width 0.100m
Shipping Height 0.032m
Shipping Length 0.164m
Shipping Cubic 0.000525000m3
Unit Of Measure ea
