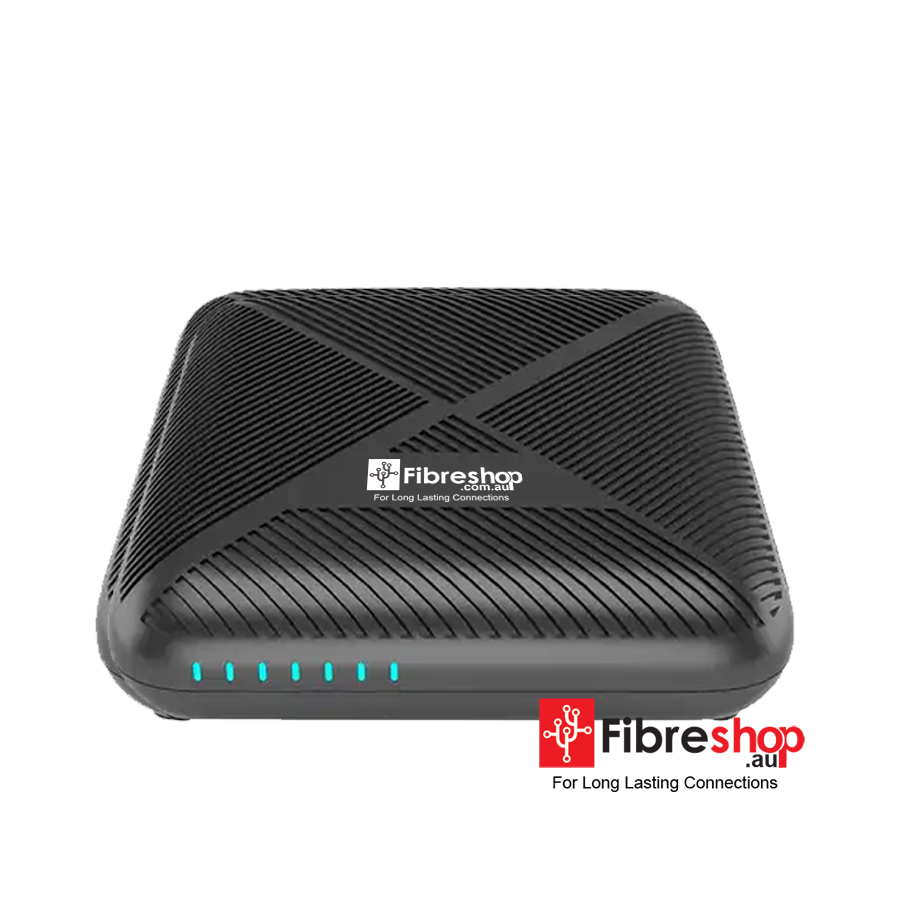

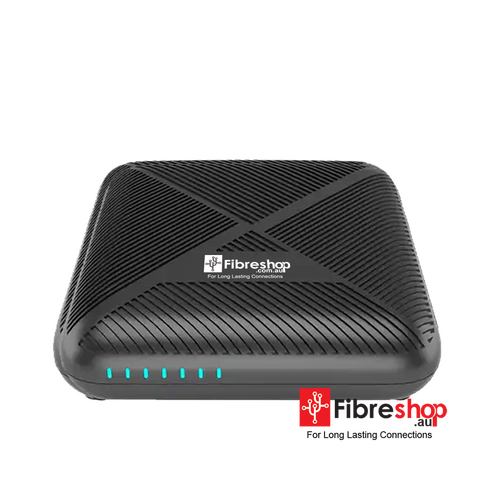

Fibre Optic XGSPON ONU ONT with 1*10GE + 1*GE + 1*POTS ROUTER 20KM



The FS-XGSPON-10GE-GE-POTS  is a sleek design, with high‑performance XGSPON CPE that features 1 X 10GE Port Plus 1 x GE Port and 1 x POTS ports supporting GPON links of up to 20 km, the FS-XGSPON-10GE-GE-POTS integrates with most third party OLT.

FEATURES:

  • Support downstream 10Gbps and upstream to 10Gbps with transmission distance up to 20km;
  •  Supports the ONT Management and Contol Interface (OMCI), making it easy to confiqure;
  •  Fiber access and gigabit port provide incredibly fast transfer speeds

* Included AU Power Adapter

(FS-XGSPON-10GE-GE-1POTS)

FS-XGSPON-10GE-GE-1POTS

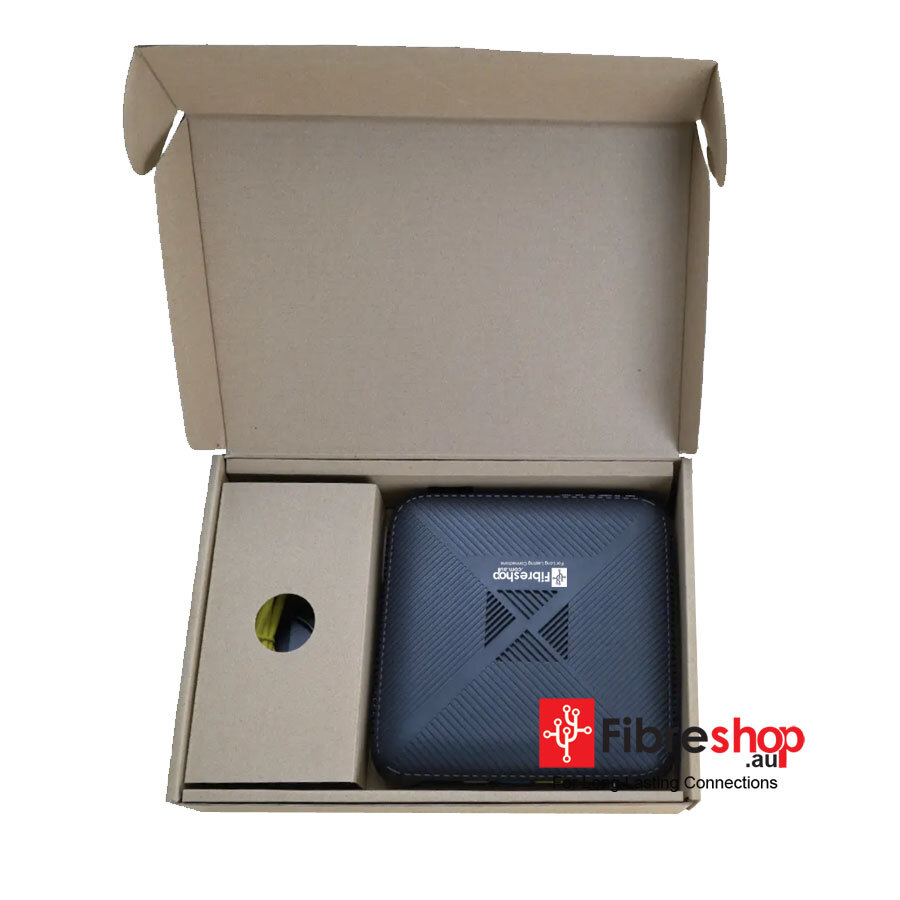

Pack Includes:

  • 1 x Fibreshop FS-XGSPON-10GE-GE-1POTS
  • 1 x DC Power Adapter* (12V, 1A)
  • Quick Start Guide



FS-XGSPON-10GE-GE-1POTS - Specifications

General
PON Standards G ITU-T G.984
Networking Interface & Data Rates (1) SC/APC XGSPON Port Upstream: 10Gbps, Downstream: 10Gbps
(1) 10GE Port
Weight 77 g (2.72 oz)
Hardware

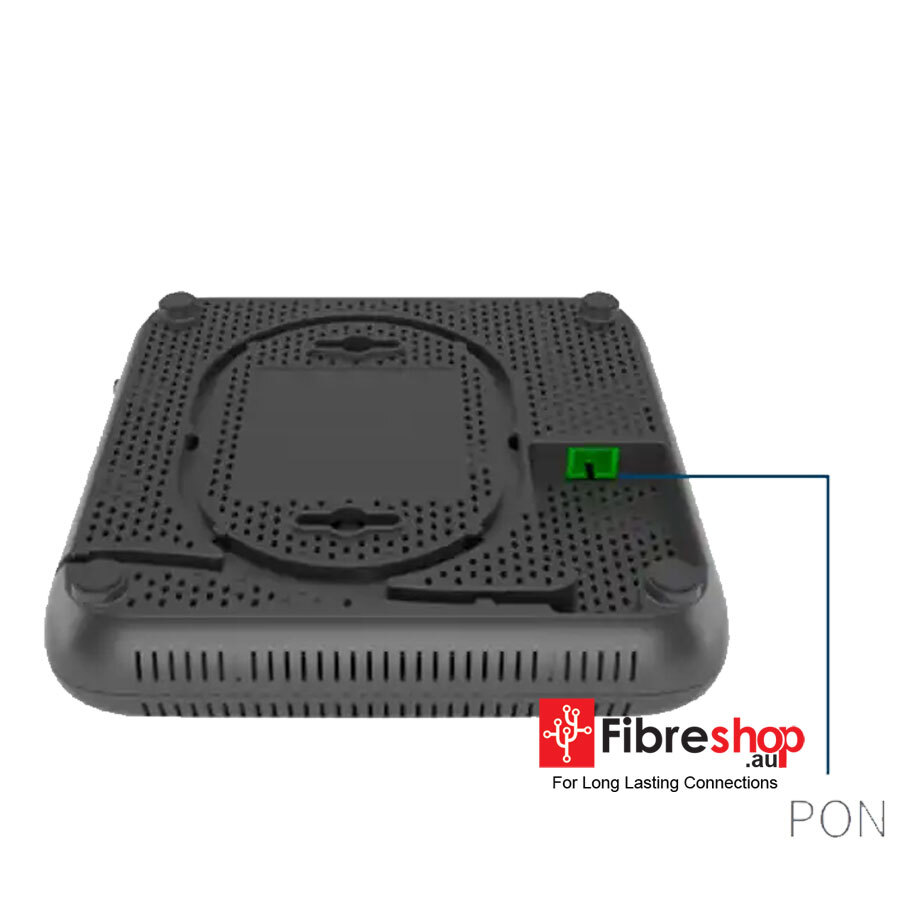

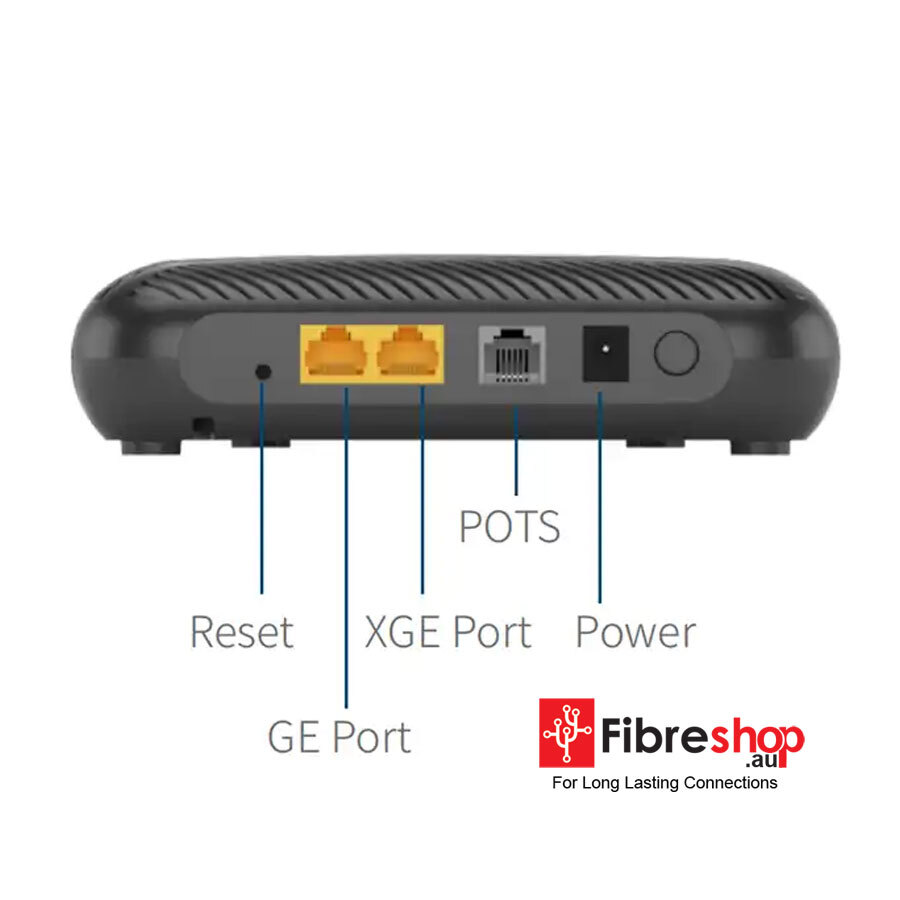

Interfaces FS-XGSPON-10GE-SC-20K, (1) XGSPON 10GE Port
Processor Specs MIPS32, 240 MHz
Memory Information 128 MB DDR3
Buttons (1) Reset, Power ON/OFF Button
Power Method 12V Power Adapter (Included)
Dimensions 90 x 73 x 25 mm (3.01 x 3.01 x 1.04")
Environment
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Storage Humidity 5%~95%, non-condensing
Relative Humidity 10%~90%, non-condensing
Software Features
Port Forwarding L2/L3 forwarding, L3 NAPT
Quality of Service WMM, Bandwidth Control
VPN 802.1Q tag VLAN, VLAN transparent mode/ VLANtranslation mode/ VLAN trunk mode
Interface Management Support the ONT Management and Contol Interface (OMCI), making it easy to confiqure;
Access Control Access Control, Local Management, Remote Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/DomainFilter
IP and MAC Address Binding
Electrical
Normal Optical Power Range TX (Class B+): 1.5 dBm to 5 dBm
RX: -28 dBm to -8 dBm
Max. Power Consumption 3.5W
Supported Voltage Range 4.7 to 5.3V
Certifications CE, FCC, IC





Shipping Specifications

SKU FS-XGSPON-10GE-GE-1POTS
Model # FS-XGSPON-10GE-GE-1POTS
Barcode # 4.81E+11
Brand FibreShop
Shipping Weight 0.2000kg
Shipping Width 0.090m
Shipping Height 0.025m
Shipping Length 0.073m
Shipping Cubic 0.000164000m3
Unit Of Measure ea

FS-XGSPON-10GE-GE-1POTS - Documents
