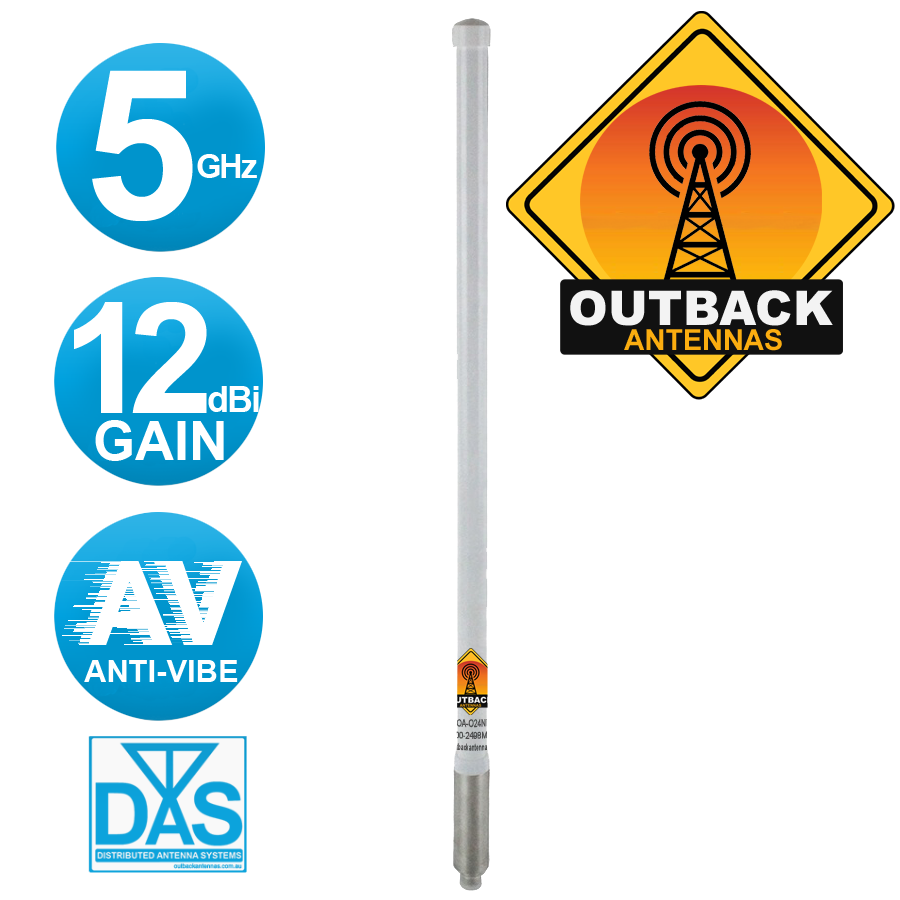

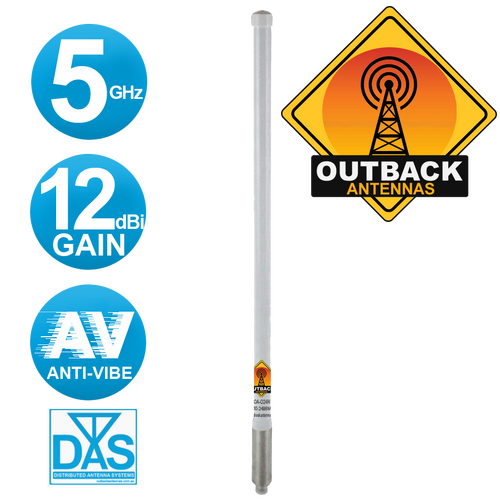

Omni Directional Antenna 360° 12dBi 5GHz Anti-Vibration (AV) with N-Type Female Connector by Outback Antennas



High gain 12dBi omnidirectional antenna provides 5150-5250/5725-5850MHz signal coverage for IEEE802.11g/b/n/ac wireless network and wireless internet provider cell sites.

Antenna frequency range of 5150-5250/5725-5850MHz with 12dBi Omni Antenna with 7°vert/360° horizontal beam. Suitable for Ubiquiti bullets with N-type female connector. Comes with quality mounting bracket and bolts suitable for mounting to pole or wall.

Applications:

  • Wireless bridge and wireless backhaul
  • Point-to-multipoint Bridging
  • Hot spot applications



Anti-Vibration Antenna Range designed for harsh Australian Conditions.ANTI-VIBRATION

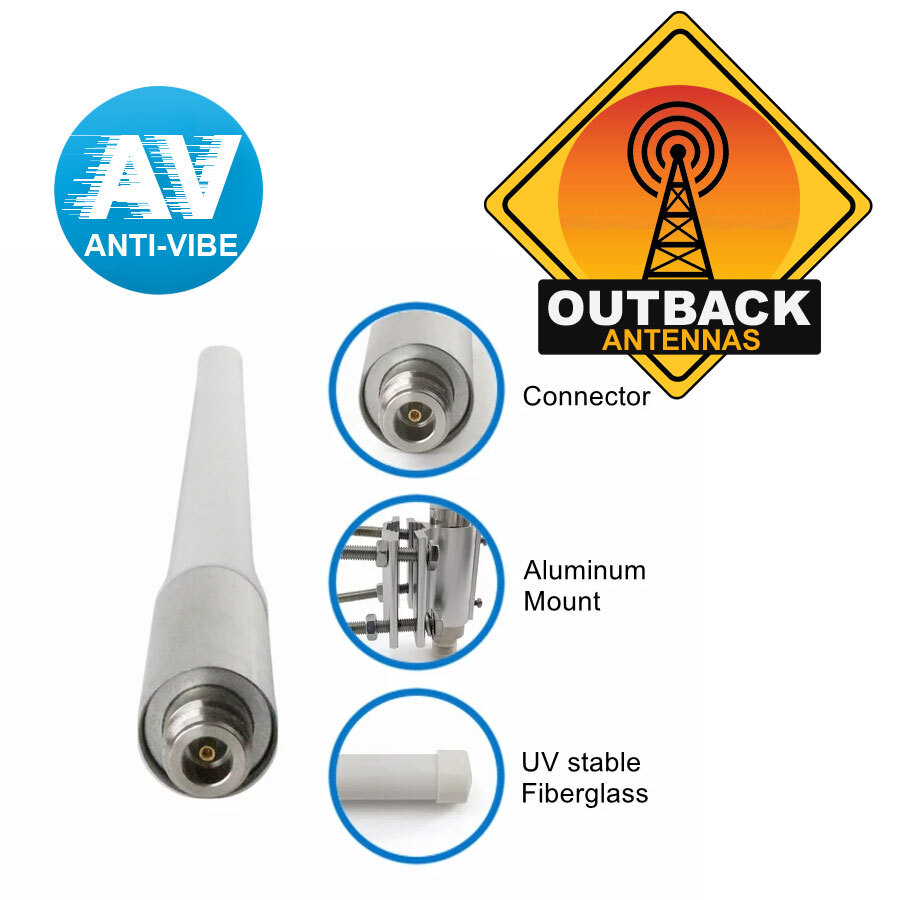

The AV range of Antennas by Outback Antennas have Strengthened internal elements to with-stand vibrations, designed specifically for the harsh Australian conditions. Ideal Omni Directional Antenna for Vehicle, Caravan, Trailer, Building and Tower Applications.



Features

  • Omni Directional
  • Band: 5GHz (5150-5250/5725-5850MHz)

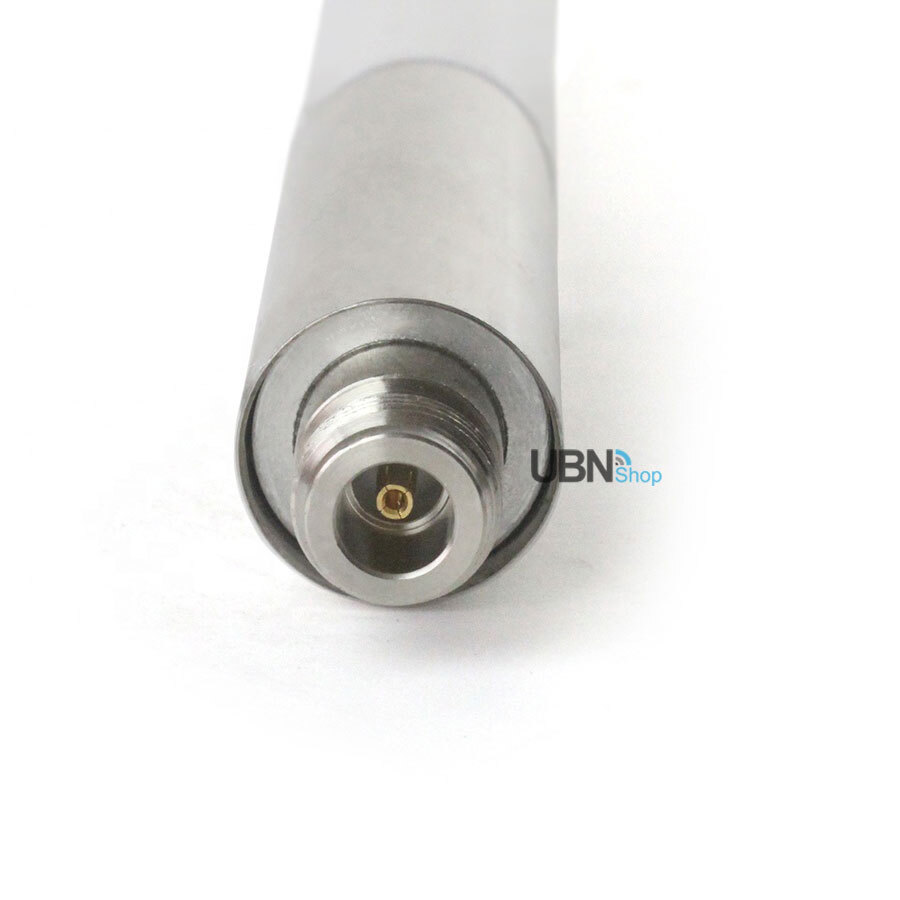

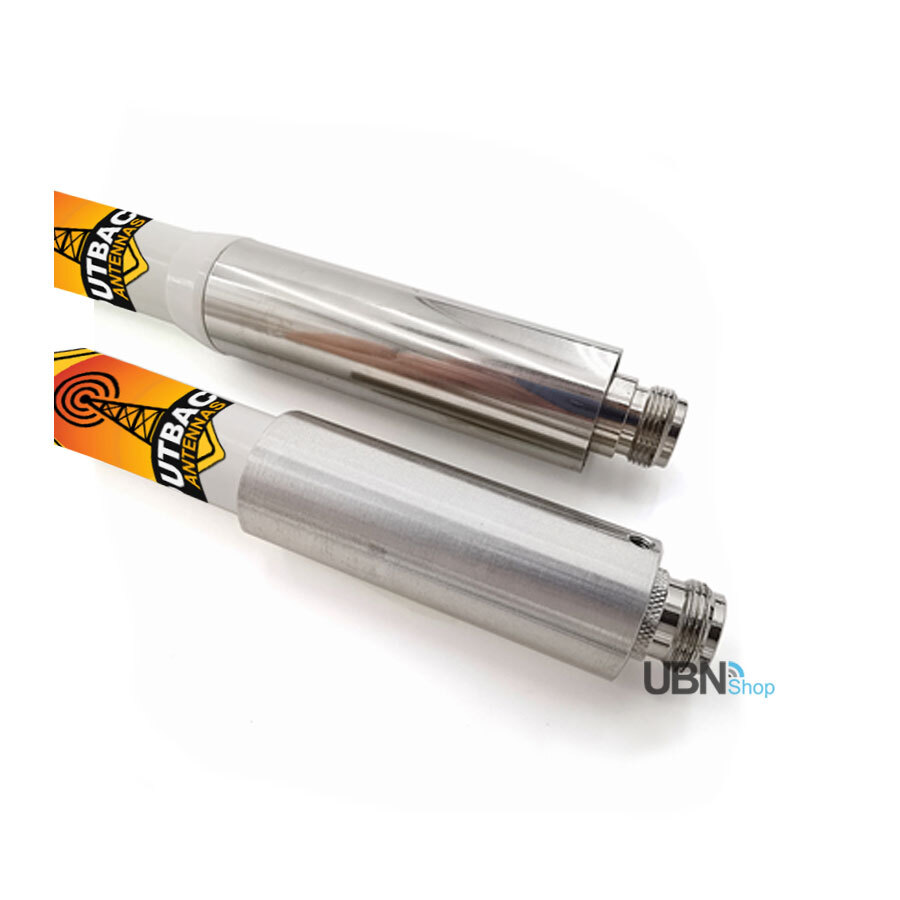

  • Connector Type: N-type Female
  • Anti-Vibration Technology
  • Horizontal Beamwidth: 360°
  • Vertical Beamwidth: 7°
  • Gain: 12dBi
  • High gain, Low VSWR, Long coverage

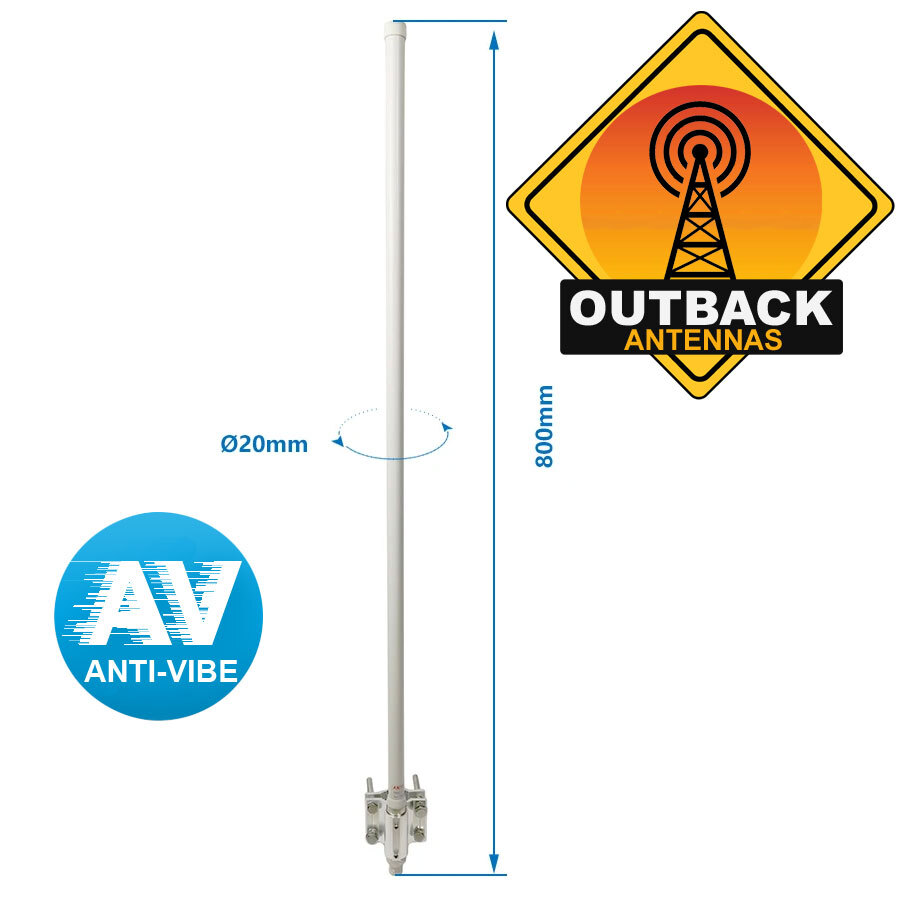

  • Dimension: 800 x 20mm
  • Weight: 0.65kg

(ANT-OA-O5NF-12-AV)

Omni Antenna 360° 12dBi 5GHz Anti-Vibration  " THE DIP-STICK"

Pack Includes:

  • 1 x Outback Antennas Omni Antenna 360° 12dBi 5GHz with N-Type Female Connector.

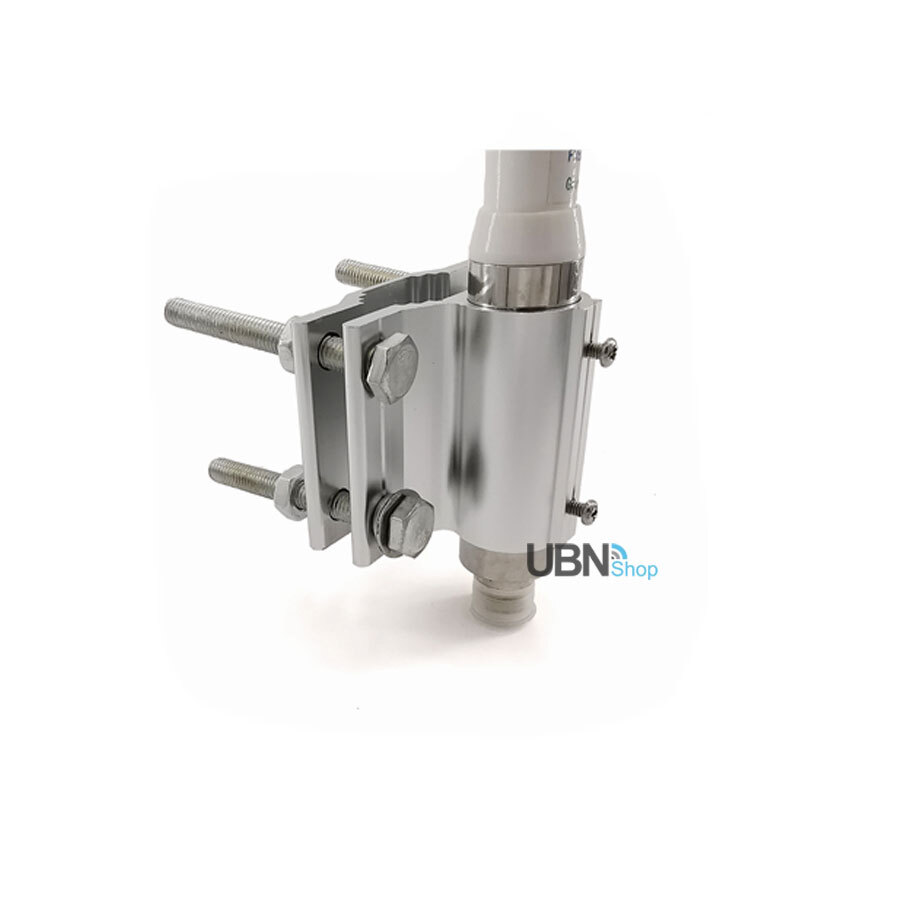

  • 1 x Bracket Pole/Wall



Omni Antenna 360° 12dBi 5GHz Anti-Vibration  - SPECIFICATIONS

COMPATABILITY
MODEL ANT-OA-O5NF-12-AV
Electrical Specifications
Frequency Range (MHz) 5150-5250/5725-5850
Bandwidth (MHz)  100/125
Gain (dBi) 12
Horizontal beamwidth (°) 360
Vertical beamwidth (°) 7
F/B Ratio ≥25
VSWR ≤1.5
Impedance (Ω) 50Ω
Polarization Veritical
Maximum power (W) (W) 100
Connector N-Female
Mechanical Specifications
Cable Type RG58
Size (mm) φ20×800
Weight (kg) 2.2
Wind Load (Max.) 60m/s
Operating Temperature (℃) -40 ~ +65
Storage Temperature (℃) -40 ~ +80
Lightning Protection   DC Ground

SHIPPING SPECIFICATIONS

SKU ANT-OA-O5NF-12-AV
Model # ANT-OA-DIP-STICK-O5NF-12
Brand Outback-Antennas
Shipping Weight 0.7000kg
Shipping Width 0.035m
Shipping Height 0.035m
Shipping Length 0.800m
Shipping Cubic 0.000980000m3
Unit Of Measure ea
