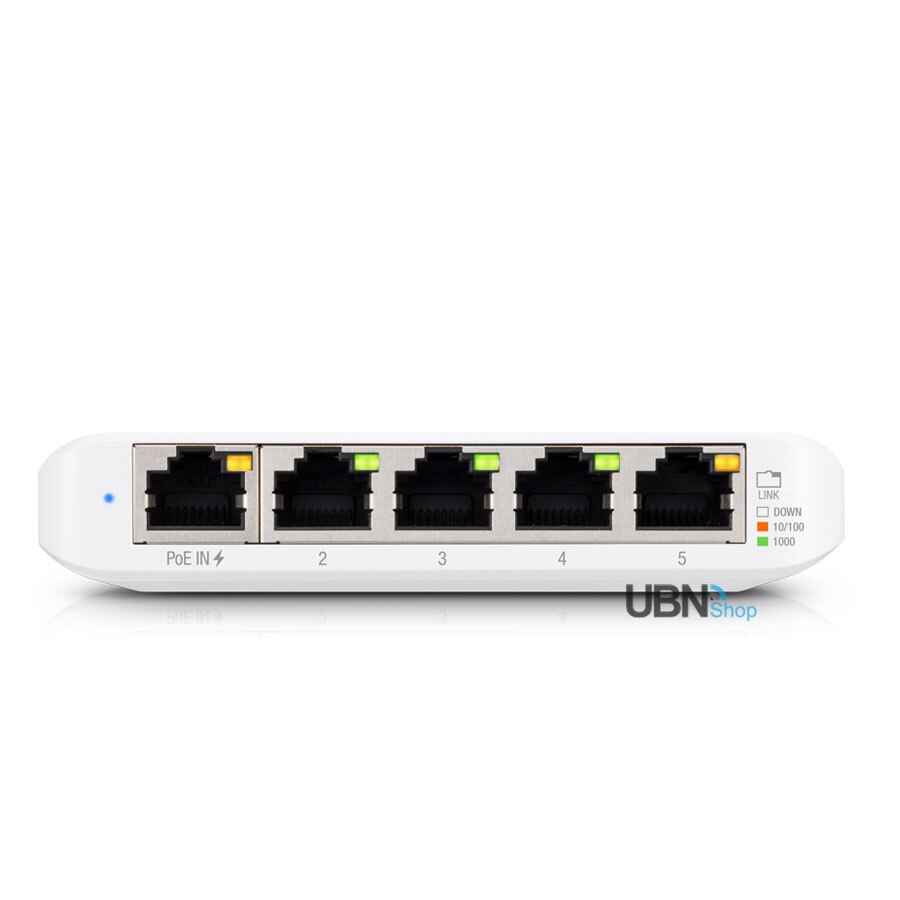

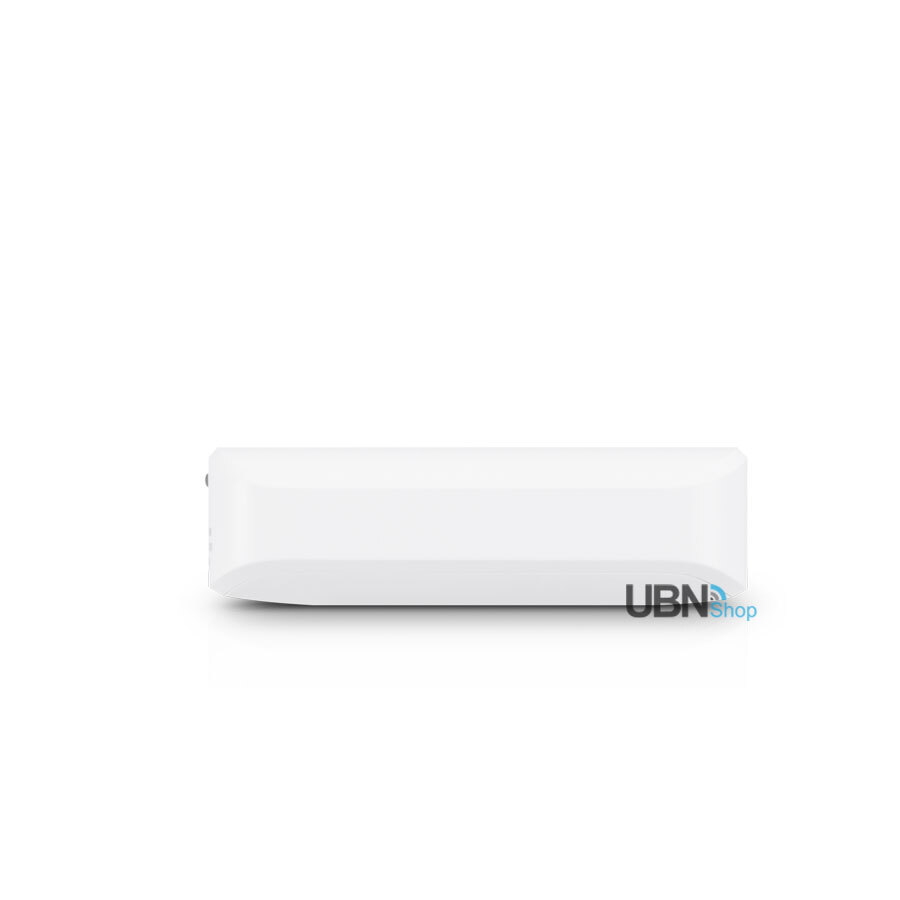

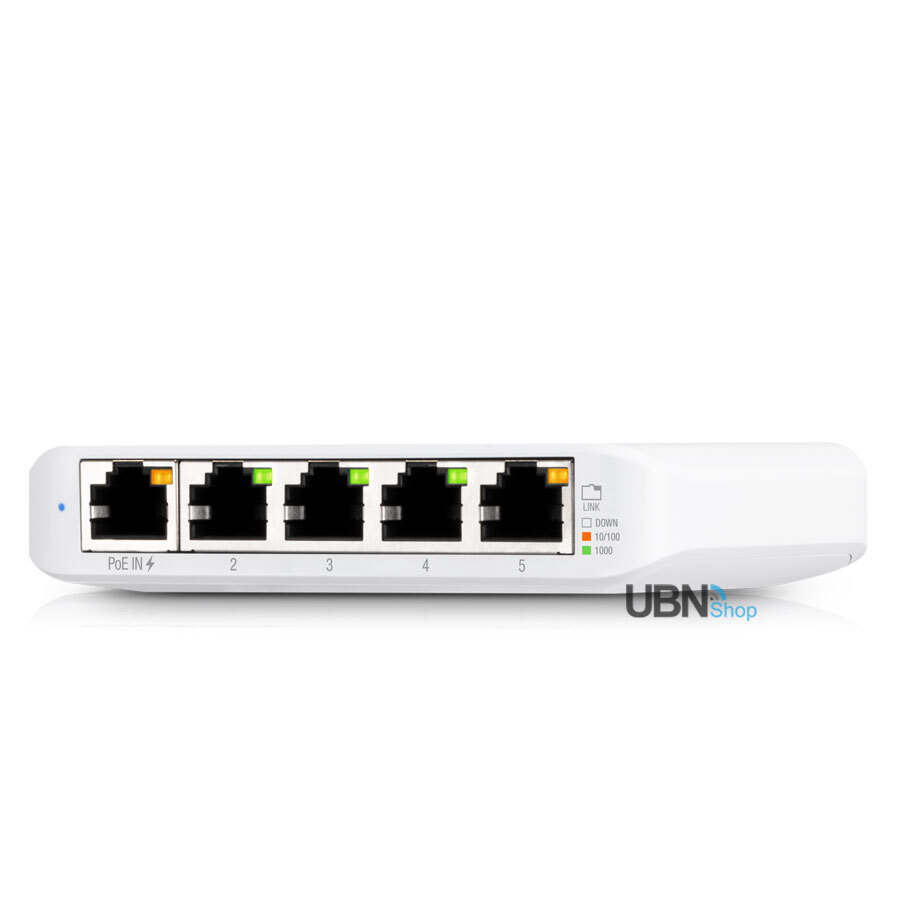

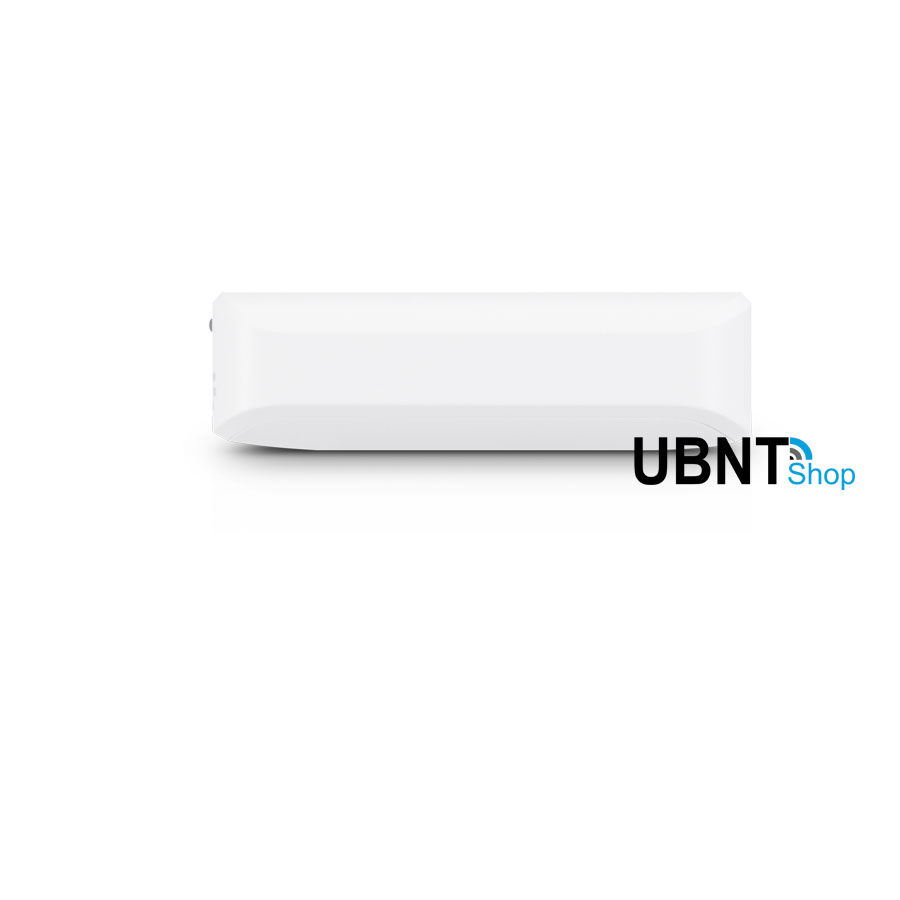

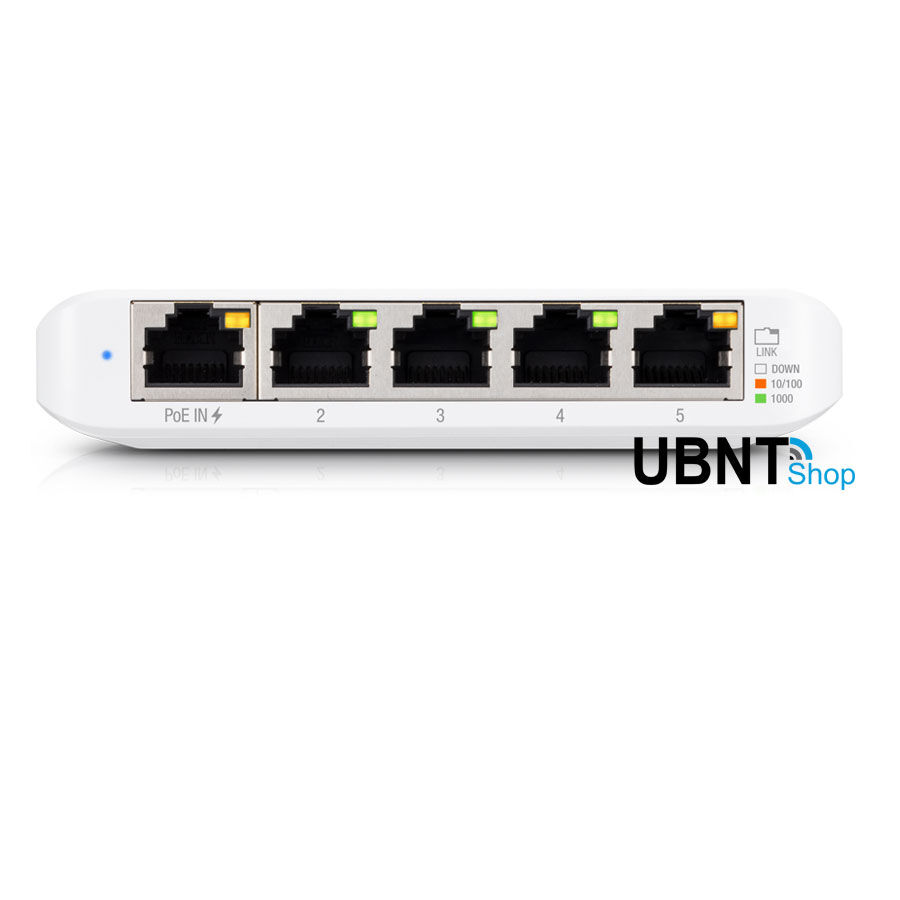

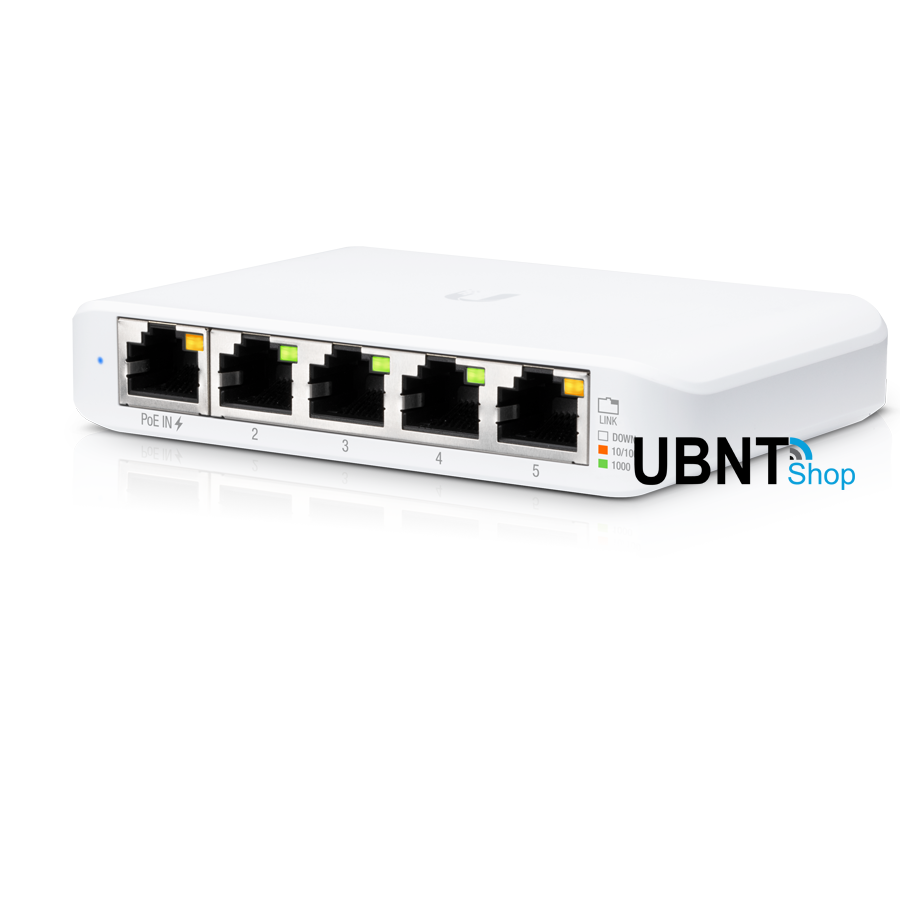

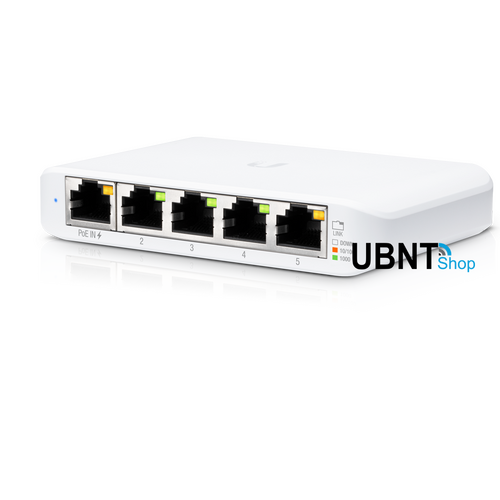

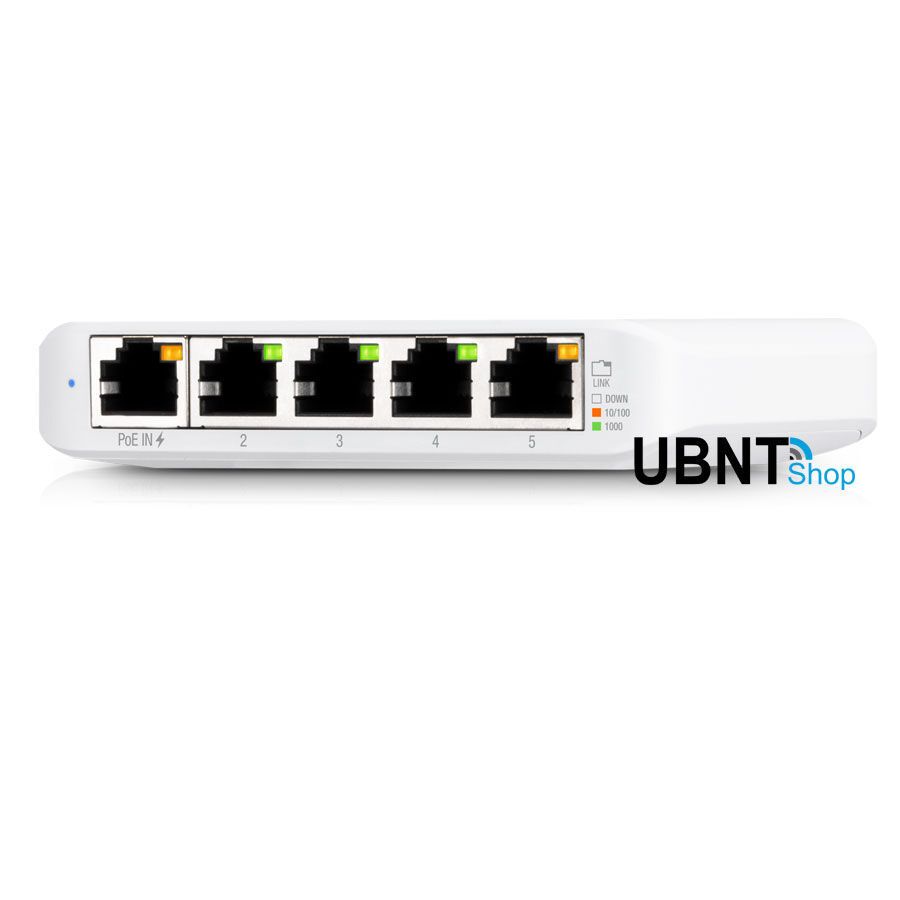

USW Flex Mini 5-Port Managed Gigabit PoE Switch

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. The 5-Port managed Gigabit Ethernet Switch can be powered by 802.3af/at PoE switch, PoE Adapter (Model USW-FLEX-MINI-NPS), or 5V, 1A USB-C power adapter (Model USW-FLEX-MINI-PS).

Power Options

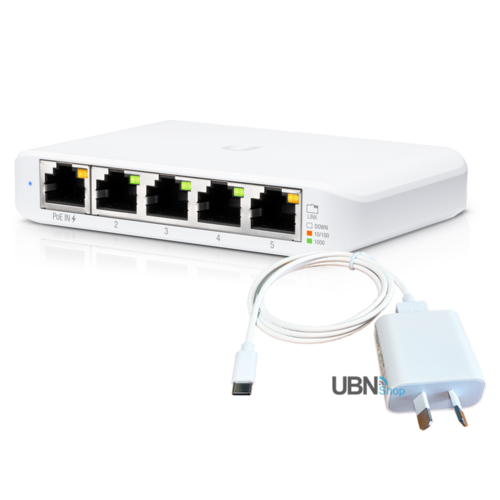

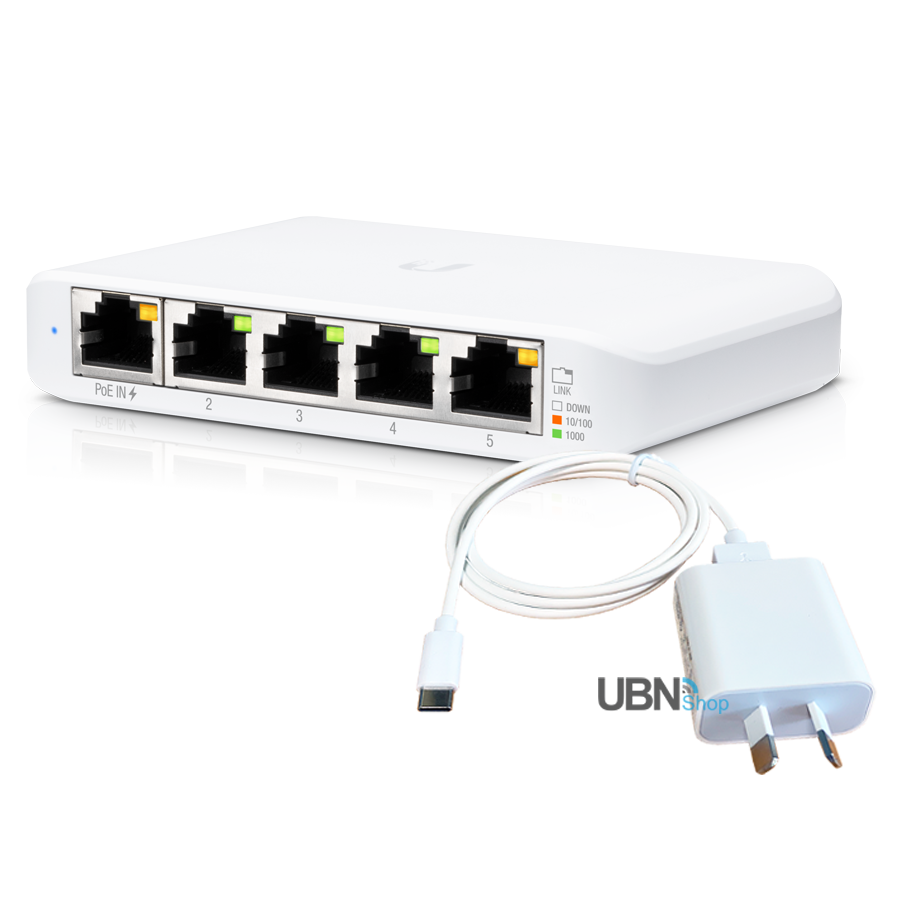

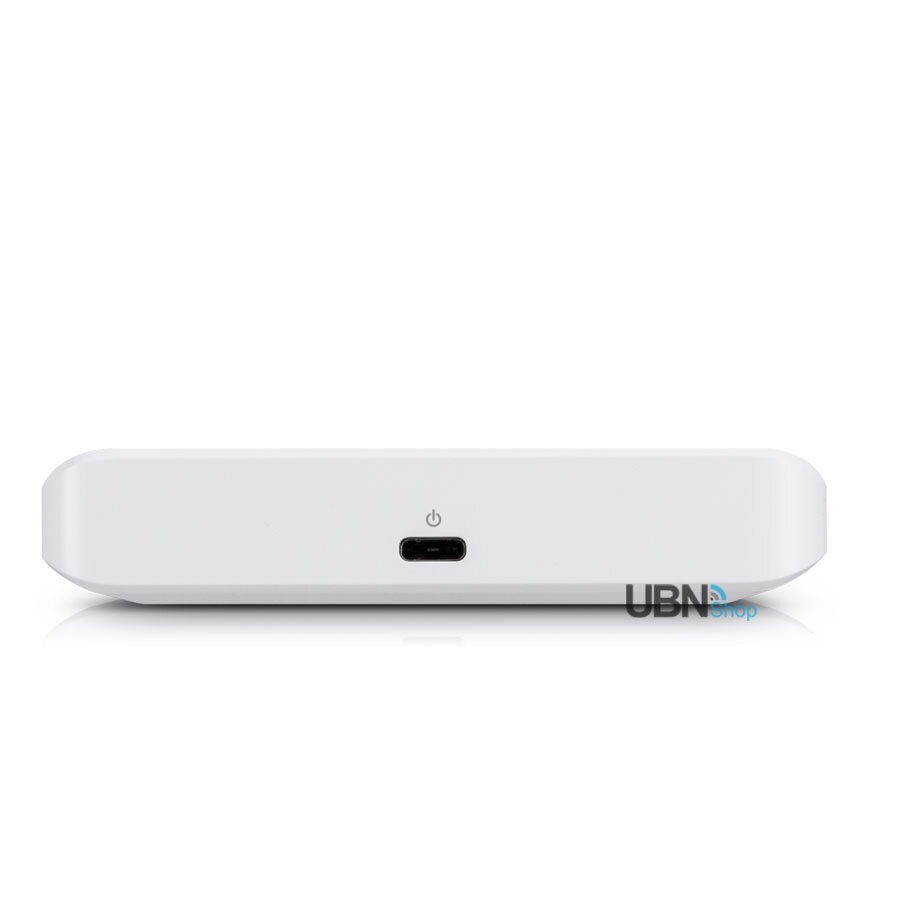

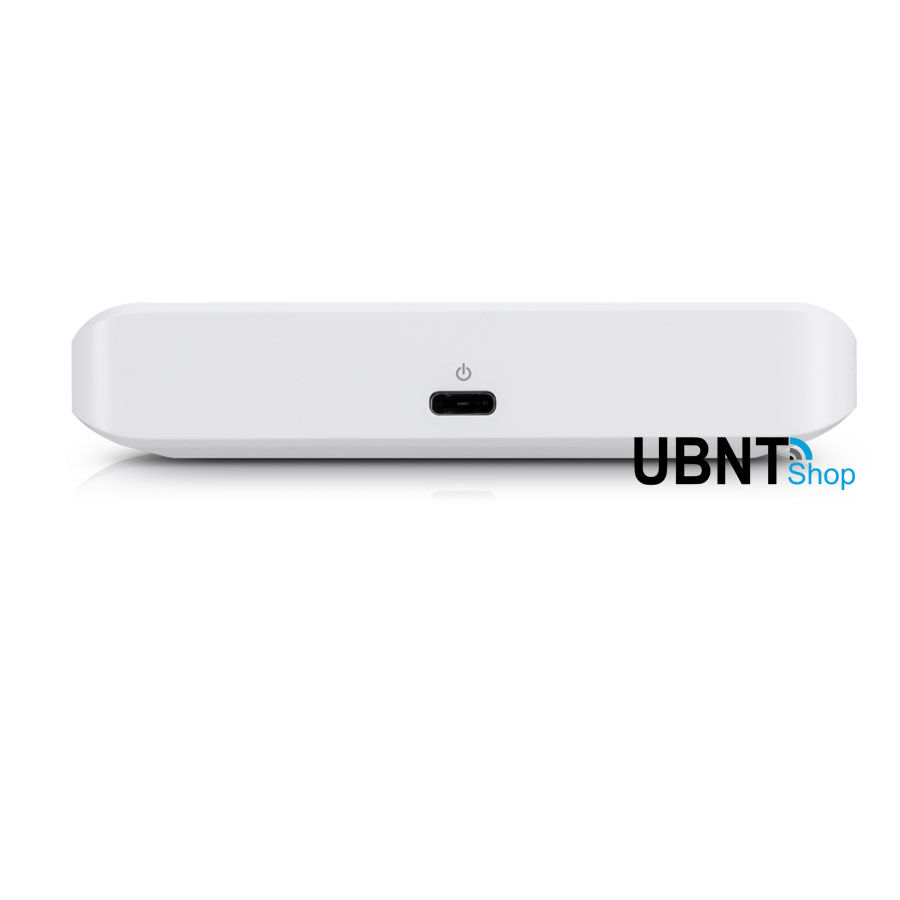

Power up with USB Type-C power adapter included with model USW-FLEX-MINI-PS or
with 802.3af/at PoE Adapter (Sold Separately), or 802.3af/at PoE switch via Ethernet in port 1.

(USW-FLEX-MINI)

USW Flex Mini 5-Port Managed Gigabit PoE Switch

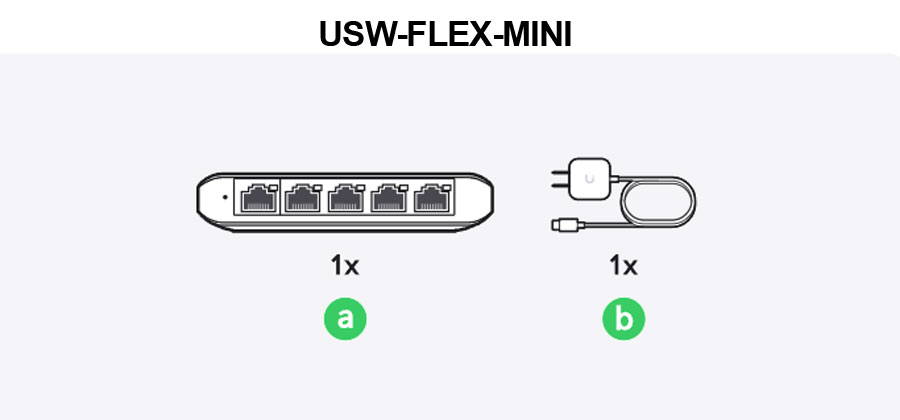

Pack Includes:

Package Includes:

UniFi USW Switch Flex Mini

1 x USW-Flex-Mini
1 x USB Type-C power adapter*
Quick Start Guide

* Included only in the single-pack of the USW-Flex-Mini.

USW Flex Mini 5-Port Managed Gigabit PoE Switch- Specifications:

USW-Flex-Mini
Dimensions	107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight	150 g (5.29 oz)
Networking Interfaces	(5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface	802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max. Power Consumption	2.5W
Power Method	USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply	5V, 1A Power Adapter*
Voltage Range
USB Type C	4.7 - 5.2VDC
802.3af/at PoE	44 - 57VDC
LEDs
System	Status
RJ45 Data Ports	Link/Speed/Activity
ESD/EMP Protection	± 16kV Air, ± 12kV Contact
Operating Temperature	-5 to 45° C (23 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC

* Included only in the single-pack of the USW-Flex-Mini.

Shipping Specifications

Shipping Specifications
SKU	USW-FLEX-MINI
Model #	USW-Flex-Mini
Brand	UniFi-Switching
Barcode #	8.18E+11
Brand	Ubiquiti
Shipping Weight	0.1500kg
Shipping Width	0.072m
Shipping Height	0.022m
Shipping Length	0.110m
Shipping Cubic	0.000174000m3
Unit Of Measure	ea

USW Flex Mini 5-Port Managed Gigabit PoE Switch- Documents

Installation Guide USW Flex Mini 5-Port Managed Gigabit PoE Switch

Datasheet USW Flex Mini 5-Port Managed Gigabit PoE Switch
