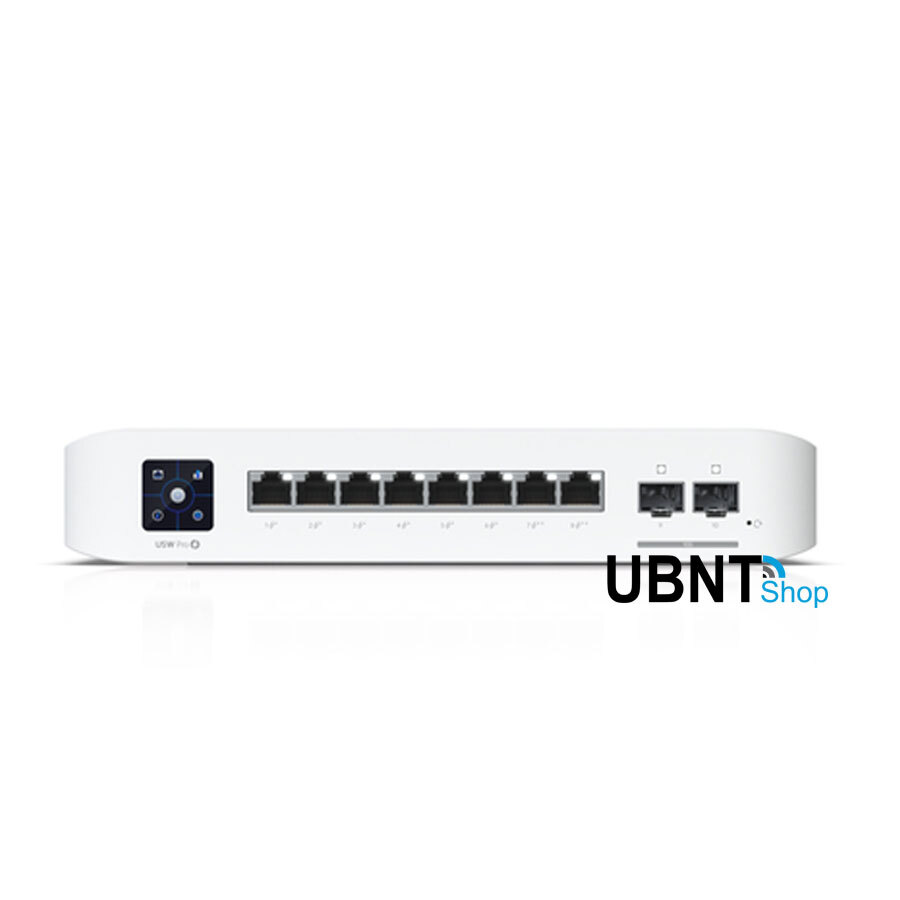

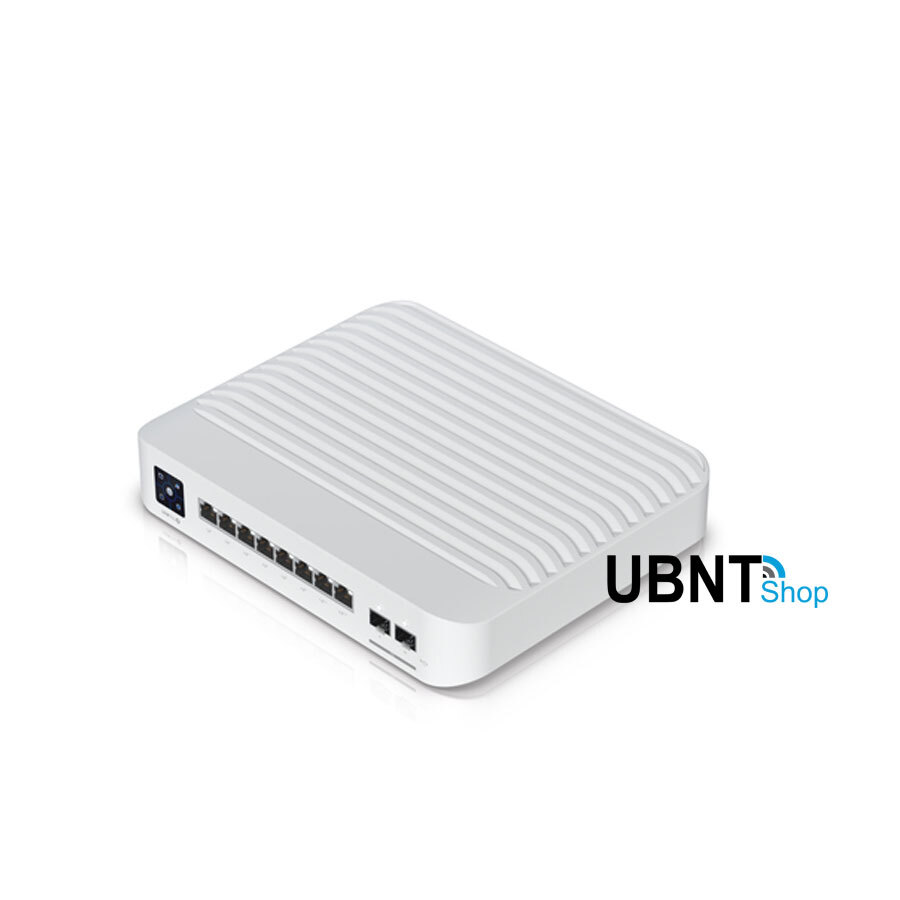

UniFi Professional 8 port PoE Gigabit Switch , Layer 3 Switch With PoE+ And PoE++ Output,SFP+



Description: UniFi 8 port Managed Gigabit 8-port, Layer 3 switch with PoE+ and PoE++ output.


Features:
• (6) GbE PoE+ ports
• (2) GbE PoE++ ports
• (2) 10G SFP+ ports
• 120W total PoE availability
• Application Requirements: UniFi Network Version 7.5.176 and later



(USW-PRO-8-POE)

Switch Professional 8 PoE

Package Includes

  • 1 x USW-PRO-8-POE

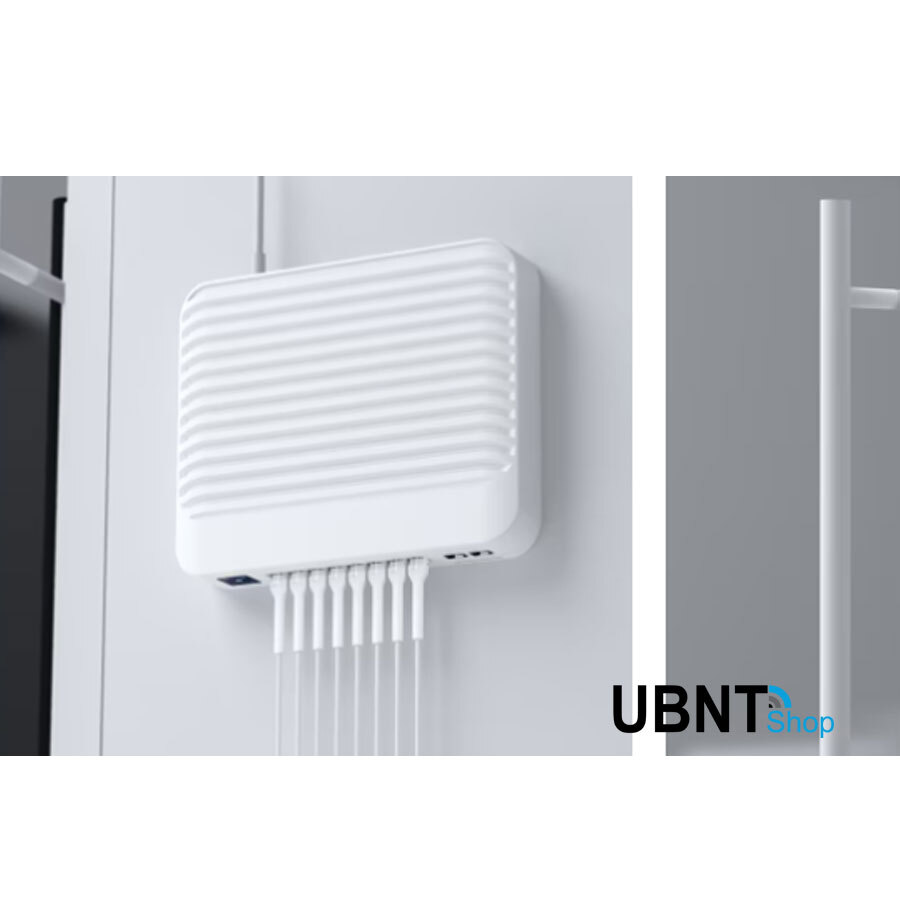

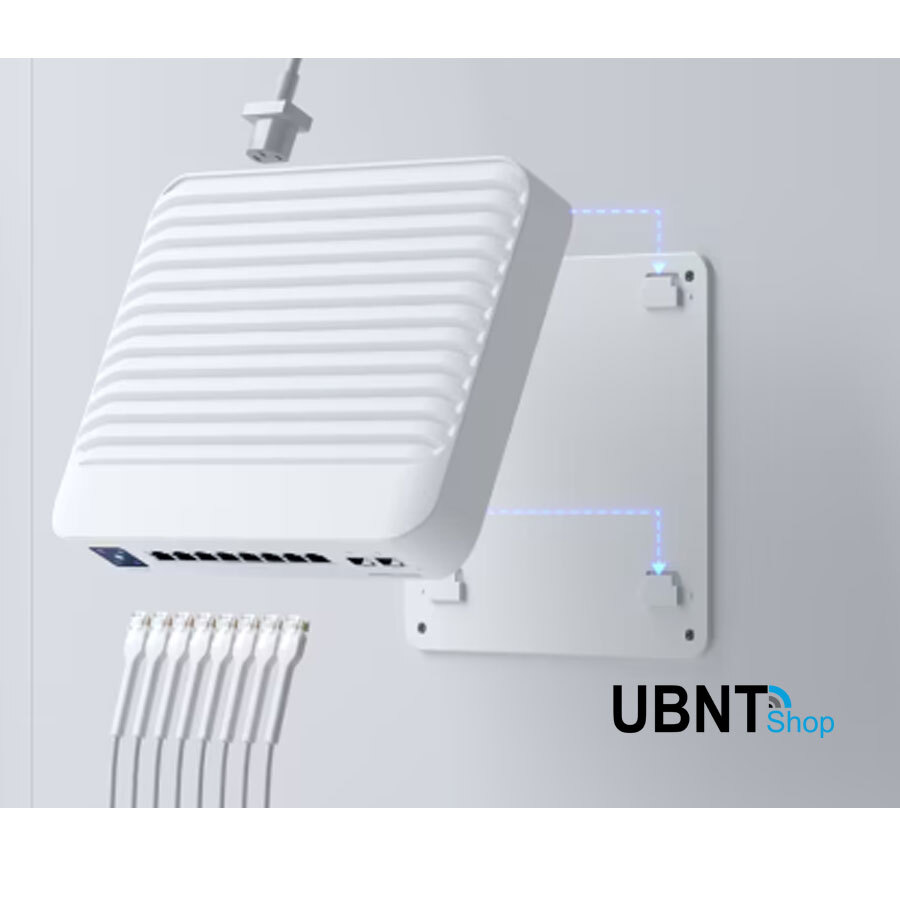

  • 1 x Wall Mount
  • 1 x Wall Mount Cover
  • 4 x Mounting Screws
  • 4 x Screw Anchors
  • Power Cable
  • Quick Installation Guide

Switch Professional 8 PoE - Specifications



Mechanical
Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure materials Plastic, metal
Mount material Plastic
Hardware
Management interface Ethernet In-Band
Networking interface (8) GbE RJ45 ports
(2) 10 Gbps SFP+ ports
PoE interface (6) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 28 Gbps
Switching capacity 56 Gbps
Power method Universal input, 100—240V AC, max. 2A
Power supply AC/DC, internal
Supported voltage range 100—240V AC
Max. power consumption 30W (Excluding PoE output)
Total available PoE 120W
Max. PoE wattage per port by PSE PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display (1) 1.3" touchscreen
LEDs RJ45 ports: link/activity
Button Factory reset
Operating temperature -5 to 45° C (23 to 113° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Application Requirements
UniFi Network Version 7.5.176 and later



Shipping Specifications

SKU USW-PRO-8-POE
Model # USW-PRO-8-POE
Brand Ubiquiti
Shipping Weight 2.4000kg
Shipping Width 0.200m
Shipping Height 0.044m
Shipping Length 0.248m
Shipping Cubic 0.002182000m3
Unit Of Measure ea
