Ubiquiti Flex 2.5G, Flexible, 8-port 2.5 GbE Switch,10 GbE RJ45/SFP+ Combination Uplink Port, Powered With USB-C /PoE+ adapter



UbiquitiFlex 2.5G SKU: USW-Flex-2.5G-8

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

Features:

•(8) 2.5 GbE ports

•(1) 10 GbE PoE+ input port for power / SFP+ port combo

•Optional powering with included 5V, 3A USB-C adapter

(USW-FLEX-2.5G-8)

Ubiquiti Flex 2.5G, Flexible, 8-port 2.5 GbE Switch,10 GbE RJ45/SFP+ Combination Uplink Port, Powered With USB-C /PoE+ adapter

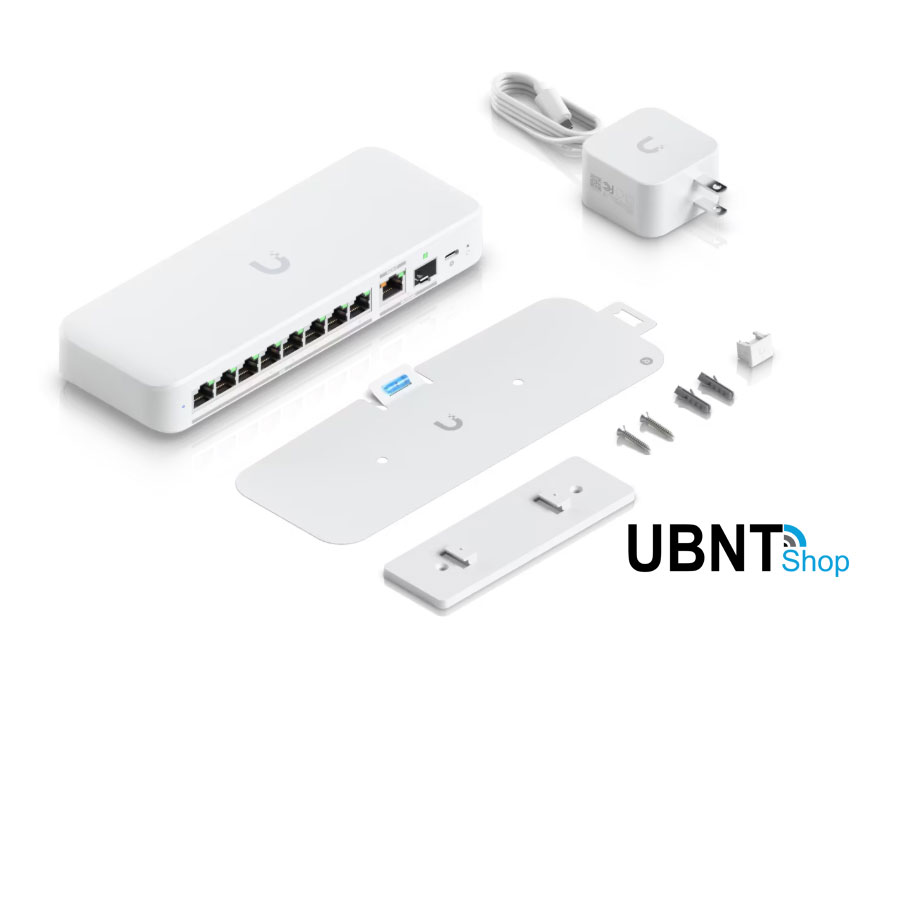

Pack Includes:

Ubiquiti Flex 2.5G, Flexible, 8-port 2.5 GbE Switch,10 GbE RJ45/SFP+ Combination Uplink Port, Powered With USB-C /PoE+ adapter- Specifications:

Mechanical
Dimensions 212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")
Weight 420 g (14.8 oz)
Enclosure material Polycarbonate

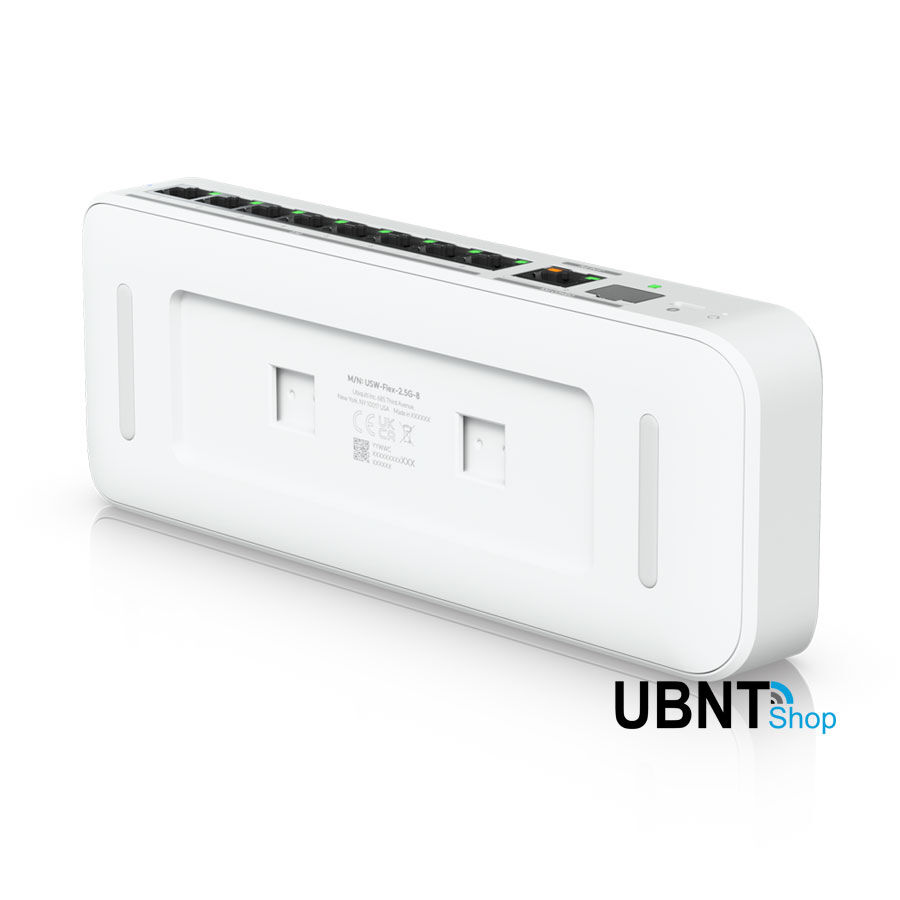

Mounting Wall-mountable (kit included)
DIN rail-mountable (sold separately)
Hardware
Management interface Ethernet In-Band
Networking interface (8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE combination port*
While only one is active, GbE can receive power and SFP+ can be utilized for data.
Total non-blocking throughput 30 Gbps
Switching capacity 60 Gbps
Forwarding rate 44.64 Mpps
Power method (1) AC power adapter, 5V DC, 3A
(1) PoE+ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)
Power supply External AC/DC adapter
UniFi PoE switch
Supported voltage range AC/DC input: 5V DC
PoE input: 42.5—57V DC
Max. power consumption 14W
Button Factory reset
Ambient operating temperature -20 to 45° C (-4 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring
LEDs
System Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted
Ethernet Link/activity
PoE input
SFP+ Link/activity

Shipping Specifications

SKU USW-FLEX-2.5G-8
Model # USW-Flex-2.5G-8
Brand UniFi-Switching
Barcode # 810084696149
Brand Ubiquiti
Shipping Weight 0.4200kg
Shipping Width 0.080m
Shipping Height 0.035m
Shipping Length 0.220m
Shipping Cubic 0.000616000m3
Unit Of Measure ea
