Ubiquiti Switch Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power
Ubiquiti Flex Mini 2.5G SKU: USW-Flex-2.5G-5. Description: Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter. Features: •(4) 2.5 GbE ports •(1) 2.5 GbE PoE input port for power •Optional powering with included 5V, 1A USB-C adapter
(USW-FLEX-2.5G-5)

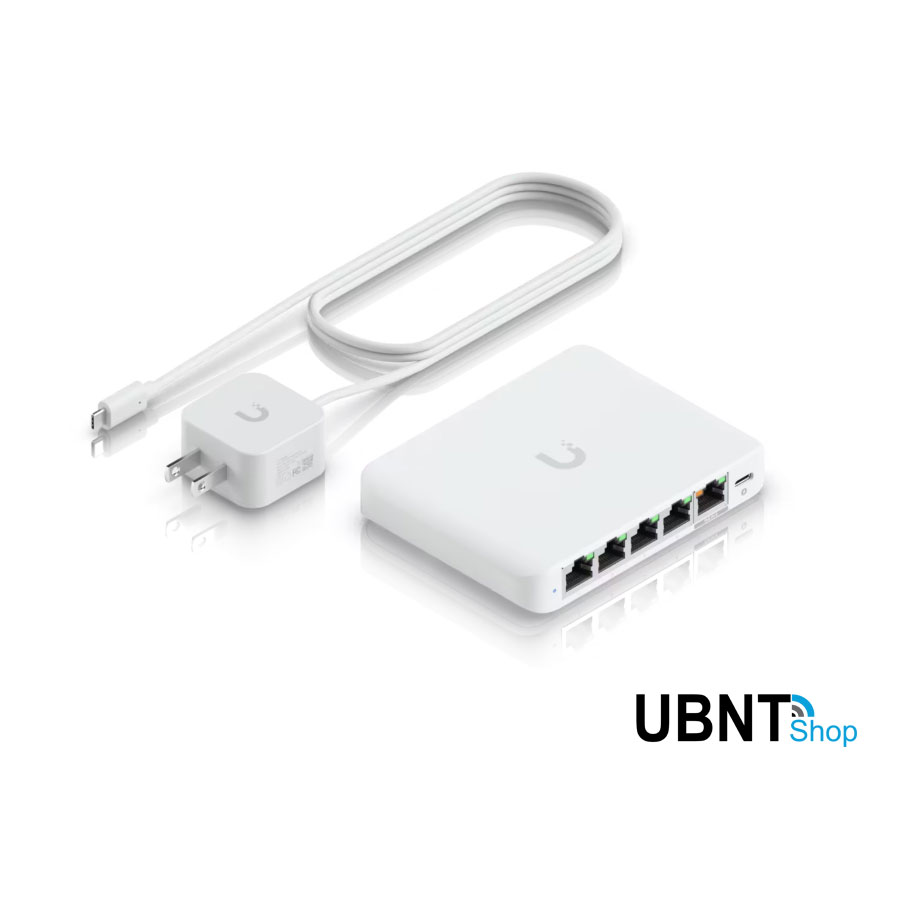

Ubiquiti Switch Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power - In The Box
* AU Power Adapter Included
Ubiquiti Switch Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power - Specifications
| Mechanical | |
|---|---|
| Dimensions | 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
| Weight | 206 g (7.3 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) 1/2.5 GbE RJ45 ports |
| Total non-blocking throughput | 12.5 Gbps |
| Switching capacity | 25 Gbps |
| Forwarding rate | 18.6 Mpps |
| Power method | (1) AC power adapter, 5V DC, 1A (1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-) |
| Power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 5V DC PoE input: 44—57V DC |
| Max. power consumption | AC/DC input: 5W PoE input: 6.4W |
| Button | Factory reset |
| Ambient operating temperature | -20 to 45° C (-4 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | STP / RSTP with priorities and port-level disable Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | – |
| LEDs | |
| System | (1) Blue/white: power Blinking white: bootup in progress Blinking blue: firmware upgrading Steady white: factory defaults; unit is awaiting adoption Steady blue: unit is adopted |
| Ethernet | (5) Green: link/activity |
| SKU | USW-FLEX-2.5G-5 |
| Model # | USW-Flex-2.5G-5 |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4600kg |
| Shipping Width | 0.126m |
| Shipping Height | 0.080m |
| Shipping Length | 0.130m |
| Shipping Cubic | 0.001310400m3 |
| Unit Of Measure | ea |
Ubiquiti Switch Flex Mini 2.5G, (4) 2.5 GbE Ports, (1) 2.5 GbE PoE Input Port for Power - Documents
Installation Guide UniFi-Switch_Flex 2.5G-5_QIG.pdfBe The First To Review This Product!
