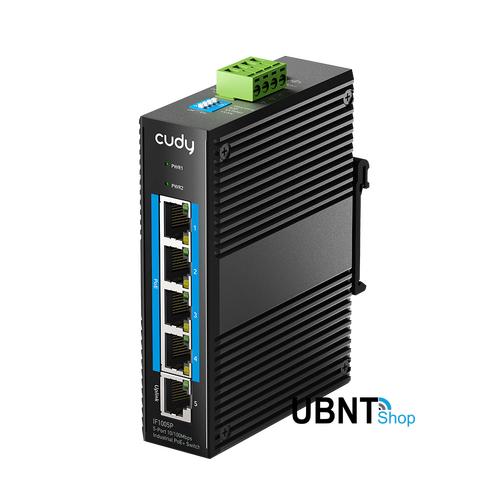

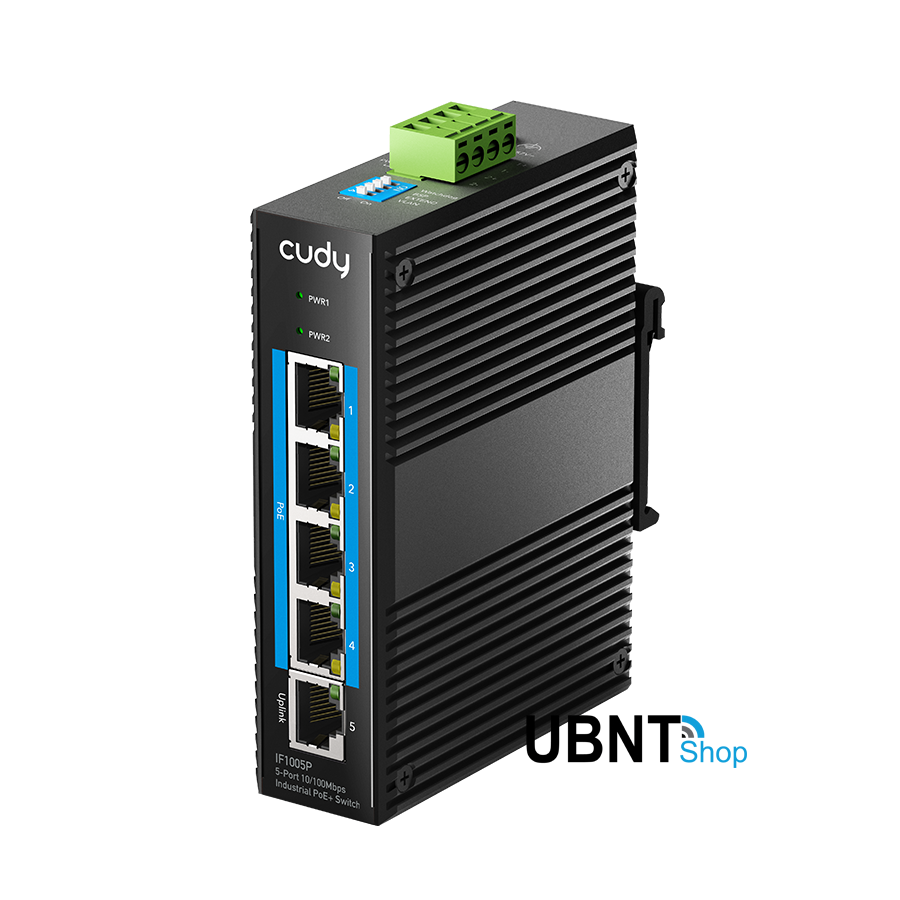

Cudy IF1005P 5-Port 10/100M Industrial PoE+ Switch



A 5-FE industrial switch for networking in harsh conditions such as manufacturing, transportation, maritime, oil & gas, and mining.

  •  5× FE, Shielded, ±6kV Surge Resistant
  •  4× 802.3at/af Mode A PoE
  •  IP40, -40~75°C (-40~167°F)
  •  Dual-Power Redundancy, 44~57V Range
  •  Polarity Reverse Protection
  •  Short Circuit Protection
  •  Broadcast Storm Prevention On/Off
  •  Watchdog On/Off
  •  Extend On/Off, VLAN On/Off
  •  Integrated DIN-Rail Bracket

(CU-IF1005P)

Cudy IF1005P 5-Port 10/100M Industrial PoE+ Switch

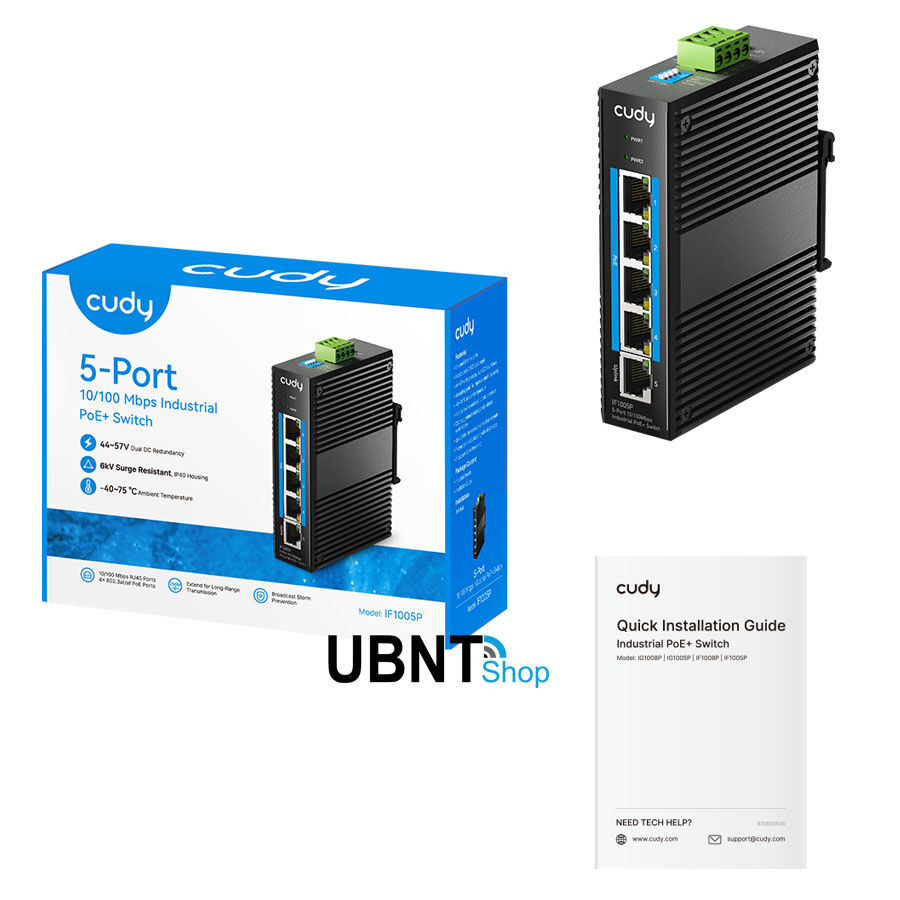

Pack Includes:

  • 1 X IF1005P
  • 1 IF1005P Quick Start Guide



Cudy IF1005P 5-Port 10/100M Industrial PoE+ Switch- Specifications:

Model Version IF1005P 2.0
Interfaces 10/100 Mbps RJ45 Ports 5
  10/100 Mbps RJ45 PoE Ports #1~#4
  Max Power on a Single PoE Port 30W
  PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.
  Shielded RJ45 Port True
  Extend Mode Ports #1~#4
  VLAN Mode Ports #1~#4
  LED
  • Power 1
  • Power 2
  • Link/ACT of Each Ethernet Port
  • PoE Status of Each PoE Port
  Power Input 4-Pin Terminal Block
  Physical Buttons
  • PoE Watchdog On/Off
  • VLAN On/Off
  • Extend On/Off
  • Broadcast Storm Prevention On/Off
  Watchdog Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Performance Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
  Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
  MAC Address Table 2048
  Max Switching Capacity 1 Gbps
  Max Forwarding Rate 0.744 Mpps
  Jumbo Frame 2 KB
  Packet Buffer 768 Kbit
Power Power Methods DC
  Power Redundancy Dual Inputs
  DC 44-57V⎓
  Max Power Consumption 120W
  Max Power Excluding PoE 0.9W
  Idle Power Consumption 0.25W
  Polarity Reverse Protection True
  Short Circuit Protection True
Switching 802.3 Protocols
  • 802.3at PoE
  • 802.3af PoE
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3x Flow Control
Reliability Grounding Methods Grounding Point
  Safety IEC/EN 62368
  EMC EN55032 Class A
EN55035 Class A
  EMI FCC 47 CFR Part 15B Class A
  EMS IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5 PMF
IEC/EN 61000-4-10, Level 5 DOMF
  EMS Note The levels listed in each EMS field are the highest level defined in the IEC/EN standard.
  Shock IEC 60068-2-27
  Vibration IEC 60068-2-6
  Free Fall IEC 60068-2-32
  Environment Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Mechanical Dimension 118×86×33.5 mm
4.65×3.39×1.32 inches
  Product Weight 341.5 g (12.05 oz.)
  Casing Material Aluminum
  Ingress Protection IP40

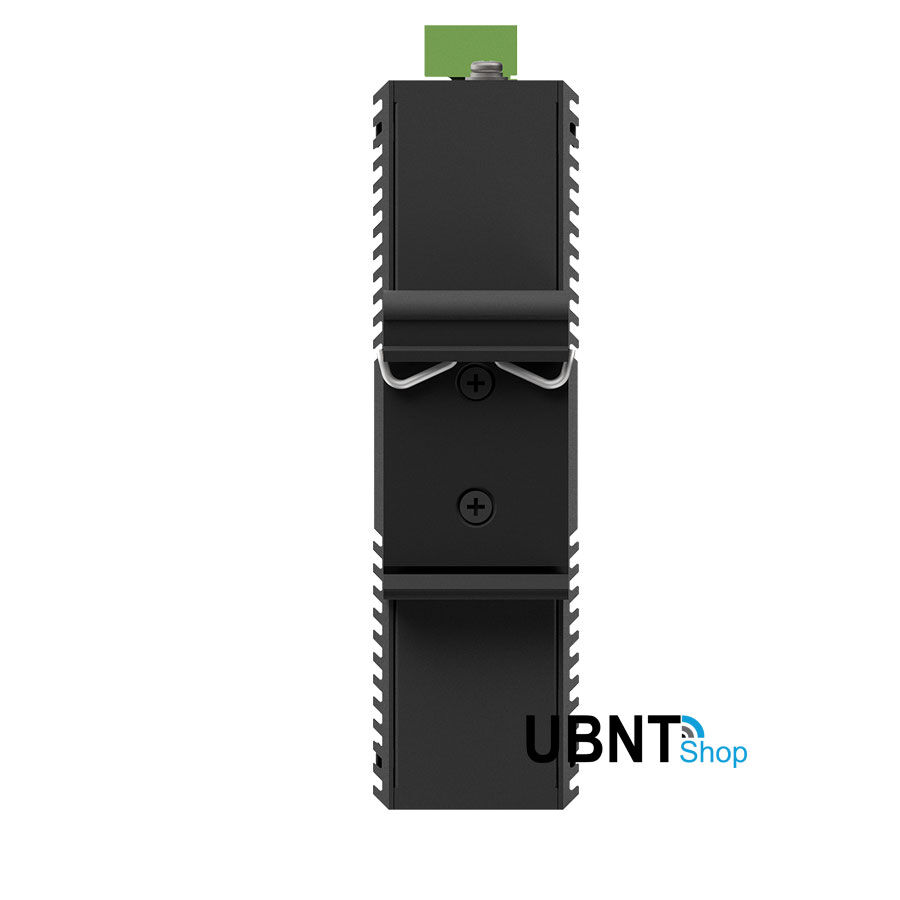

  Installation DIN-Rail
Package Content
  • IF1005P
  • Installation Guide
Ordering Information Retail Package Dimension 182×137×65 mm
7.17×5.39×2.56 inches
  Retail Package Weight 473.0 g (16.68 oz.)
  Units per Carton 20
  Carton Net Weight 9.5 kg (20.94 lbs)
  Carton Gross Weight 10.1 kg (22.27 lbs)
  Carton Dimension 38.8×34.8×29.8 cm
15.28×13.7×11.73 inches

Shipping Specifications

SKU CU-IF1005P
Model # IF1005P
Brand CUDY
Shipping Weight 0.4390kg
Shipping Width 0.182m
Shipping Height 0.065m
Shipping Length 0.137m
Shipping Cubic 0.001620710m3
Unit Of Measure ea
