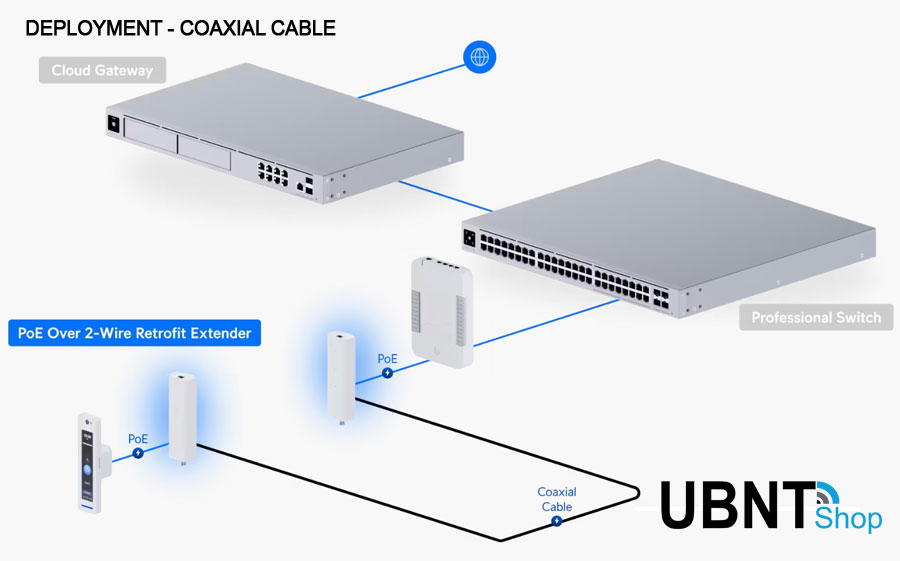

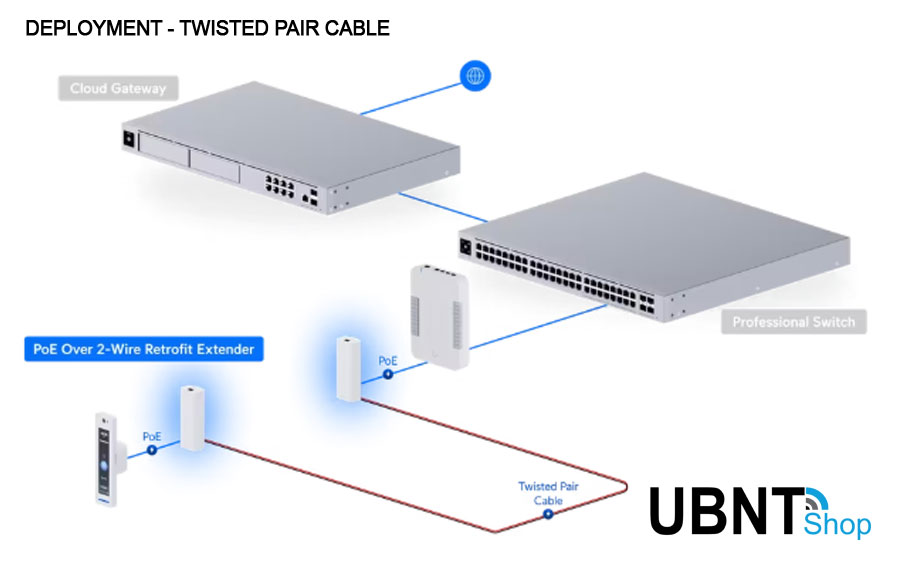

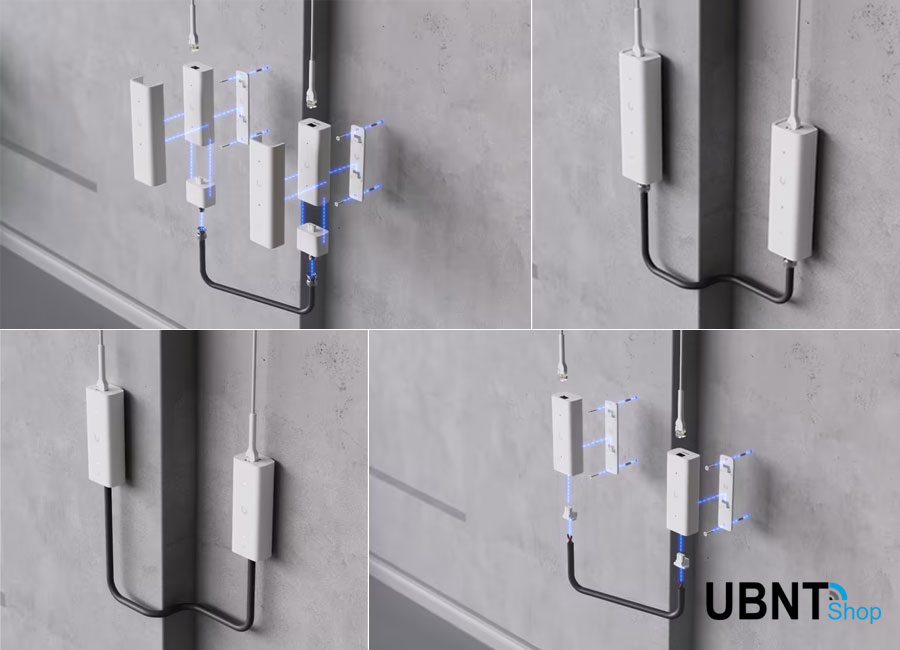

Ubiquiti Pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

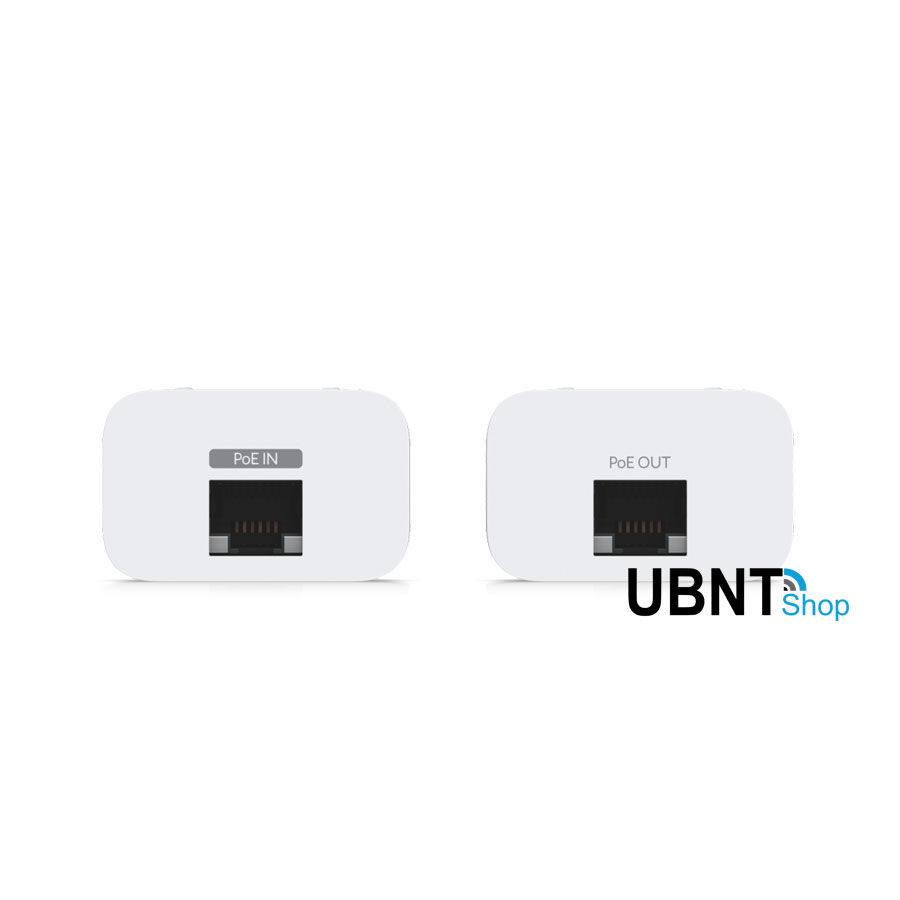

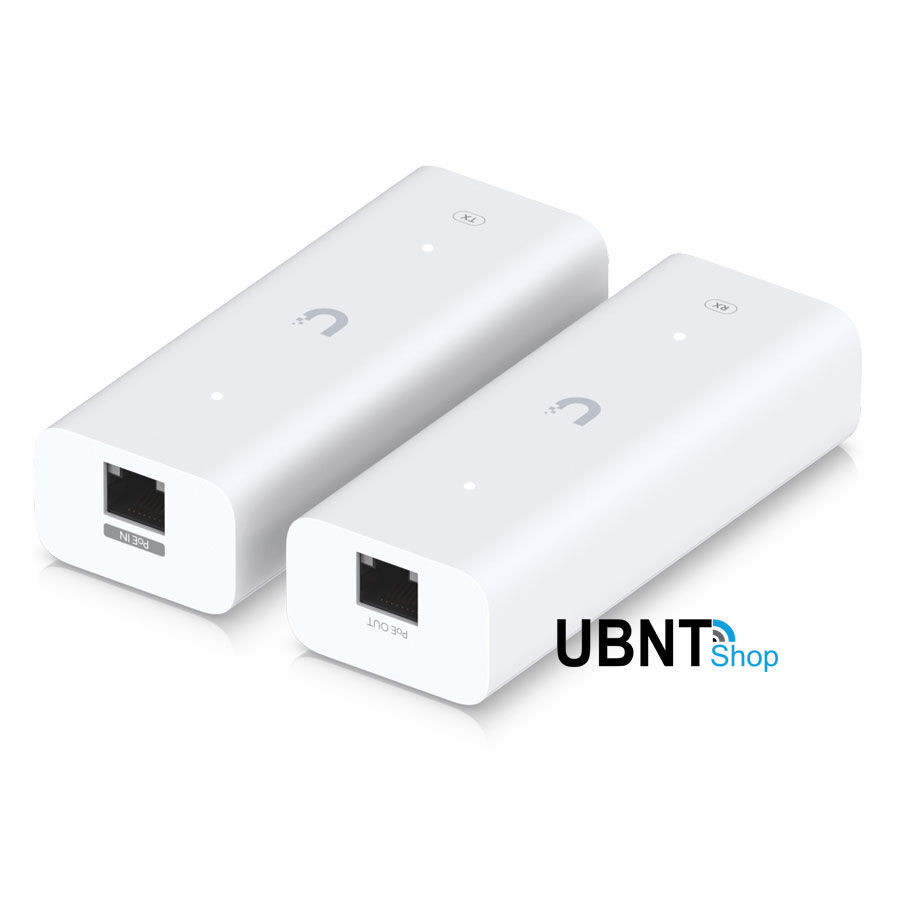

Transmitter

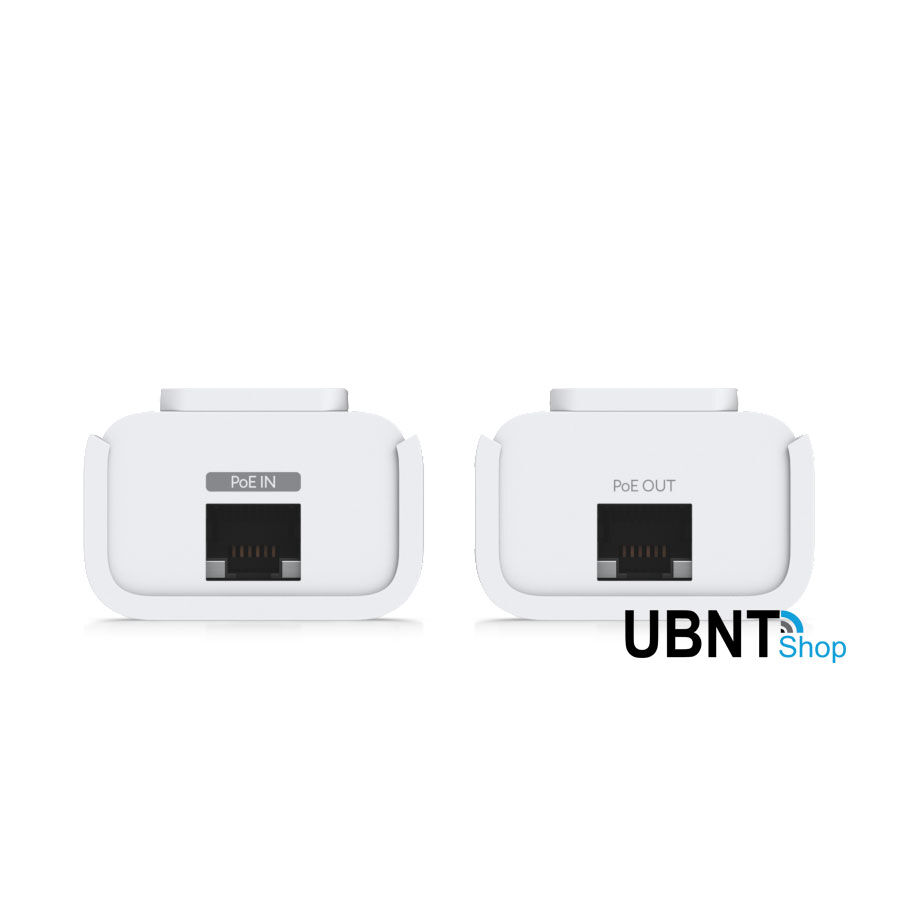

‎ (1) PoE++ input

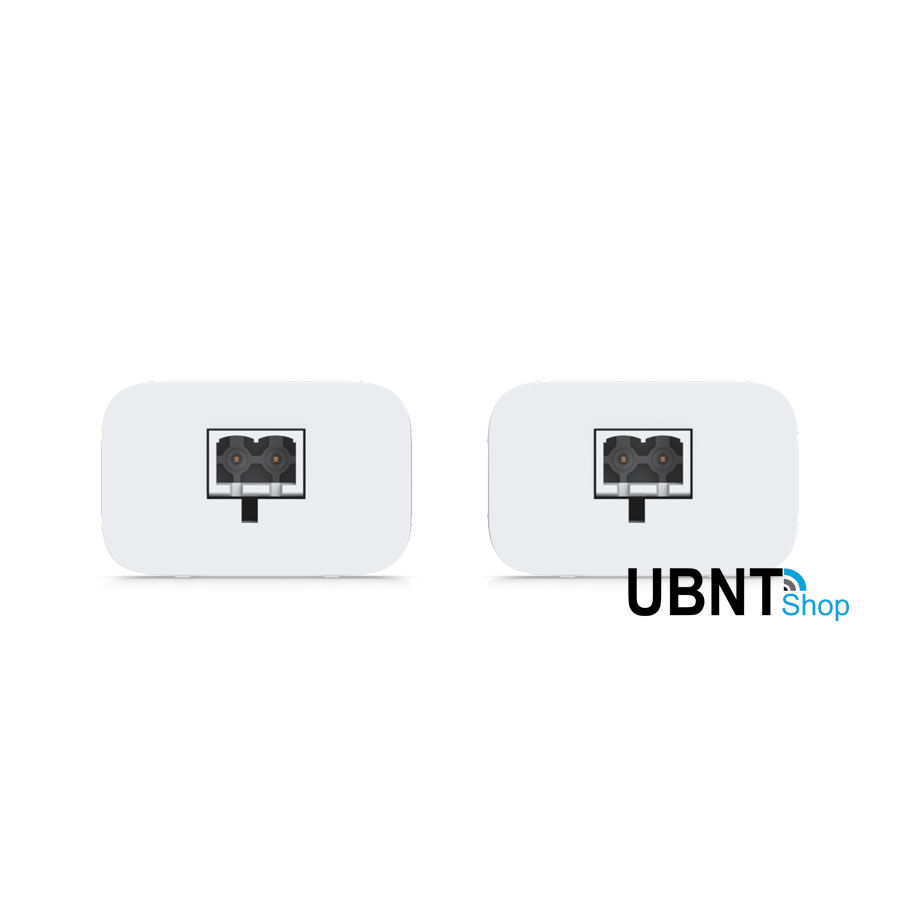

‎ (1) 2-wire output
‎ (1) 2-wire to BNC adapter

Receiver
‎ (1) PoE/PoE+ output
‎ (1) 2-wire input
‎ (1) 2-wire to BNC adapter



(UACC-RETROFIT-POE-2WIRE)

UACC-RETROFIT-POE-2WIRE

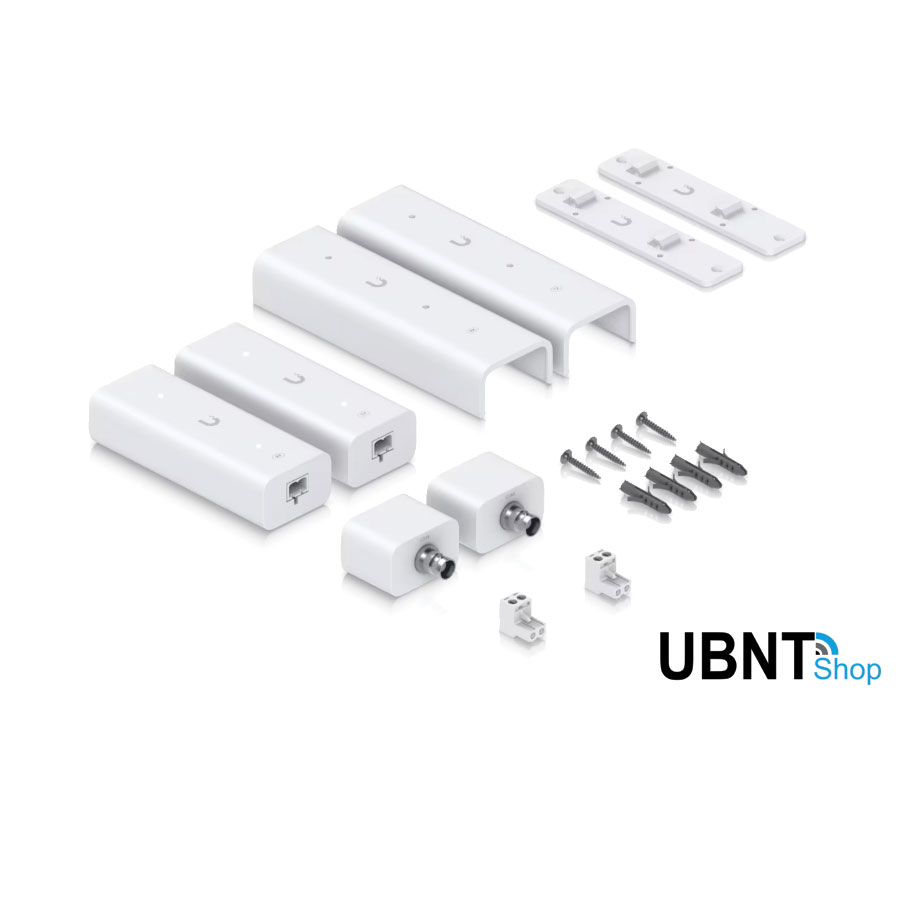

Pack Includes:

UNIFI ACCESS UACC-RETROFIT-POE-2WIRE - Specifications

Technical Specifications

Mechanical
Dimensions PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adapter: 140 g (4.9 oz)
Enclosure material Polycarbonate

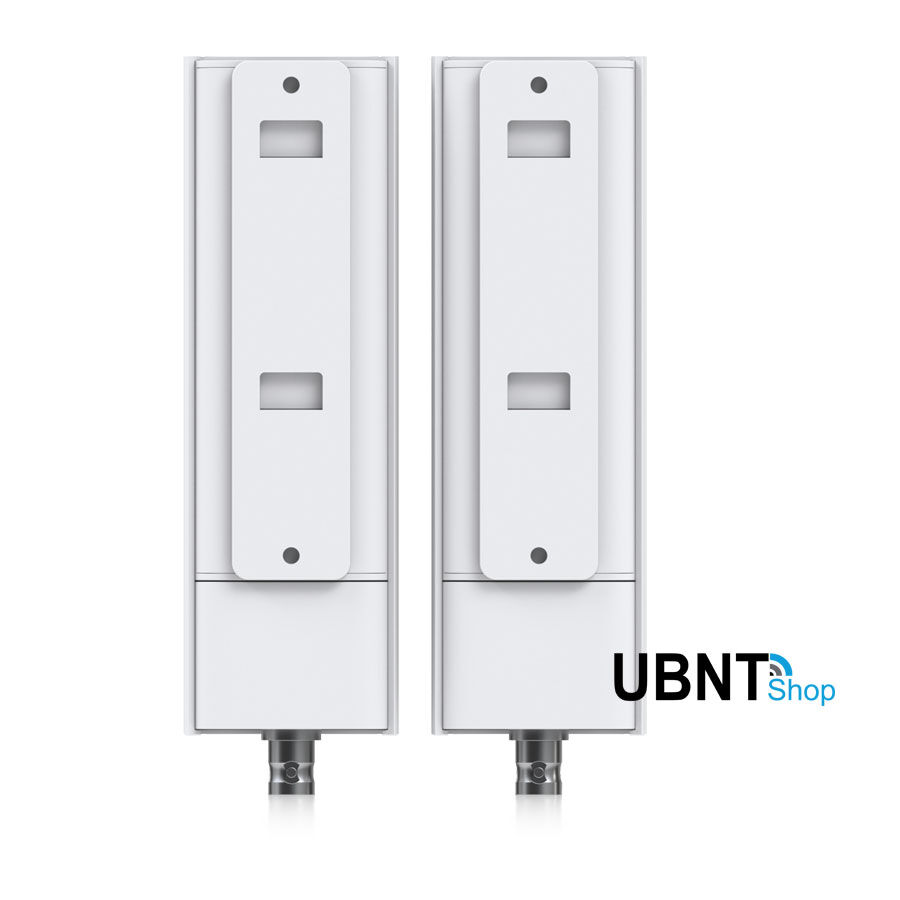

Mounting material Polycarbonate

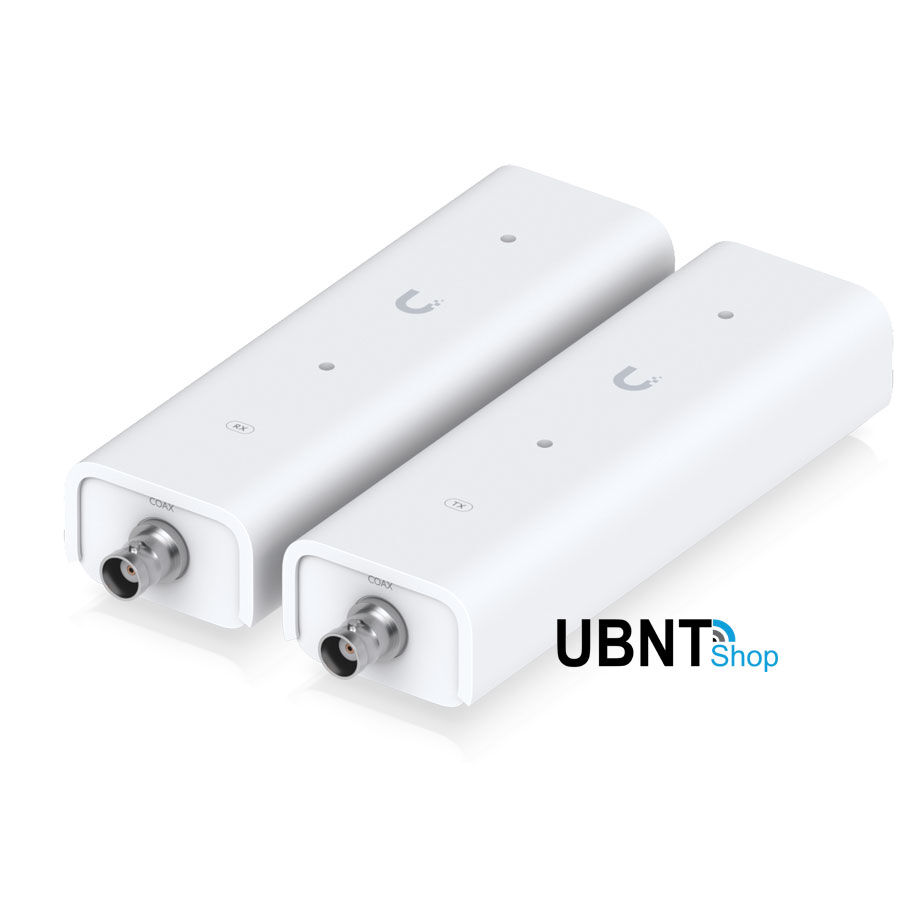

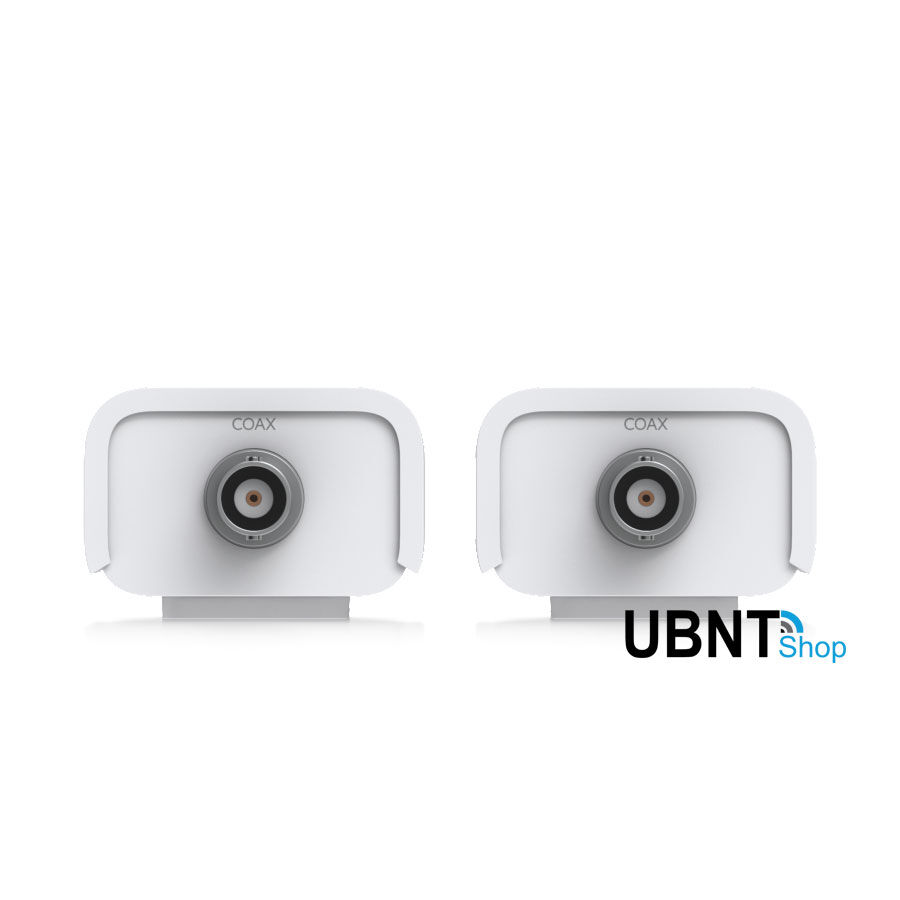

Coaxial connector BNC female
Hardware
Networking interface (1) 10/100 MbE
(1) Homeplug AV
Power method PoE++
PoE input (1) PoE++, 50V DC, 1.2A
PoE output (1) PoE+, 48V DC, 0.6A
Max. power consumption 3W (Without PoE output)
ESD/EMP protection Air: ±8kV, contact: ±4kV
Recommend max. cable length
  UTP 24AWG 0.18ohm/meter RG-6, 0.14ohm/meter
Cable
length

Bandwidth
(Mbps)

Max
output
(W)
Bandwidth
(Mbps)

Max
output
(W)
50 m 85 25 85 25
100 m 85 13 85 20
150 m 85 9 85 13
200 m 85 6 85 9
250 m 80 4 85 7
300 m 75 3 85 6
350 m 70 0 85 4
400 m 65 0 82 3
450 m 60 0 80 0
500 m 55 0 75 0
550 m 50 0 70 0
600 m 65 0
650 m 60 0
700 m 55 0
750 m 50 0
LED White
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 90% noncondensing



Shipping Specifications


SKU UACC-RETROFIT-POE-2WIRE
Model # UACC-Retrofit-PoE-2Wire
Barcode # 810177161660
Brand Ubiquiti
Shipping Weight 0.3000kg
Shipping Width 0.020m
Shipping Height 0.010m
Shipping Length 0.040m
Shipping Cubic 0.000008000m3
Unit Of Measure ea
