Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of Two-pair, low-voltage Cable, 36V DC, Sol

Ubiquiti Door Lock Relay Cable, 500-foot (152.4 m) Spool of Two-pair, low-voltage Cable, 36V DC, Solid bare copper, White

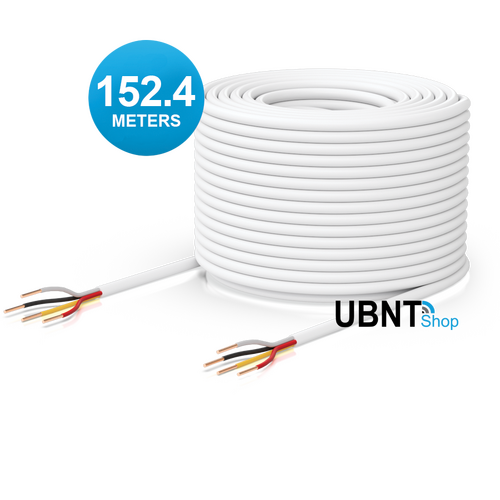

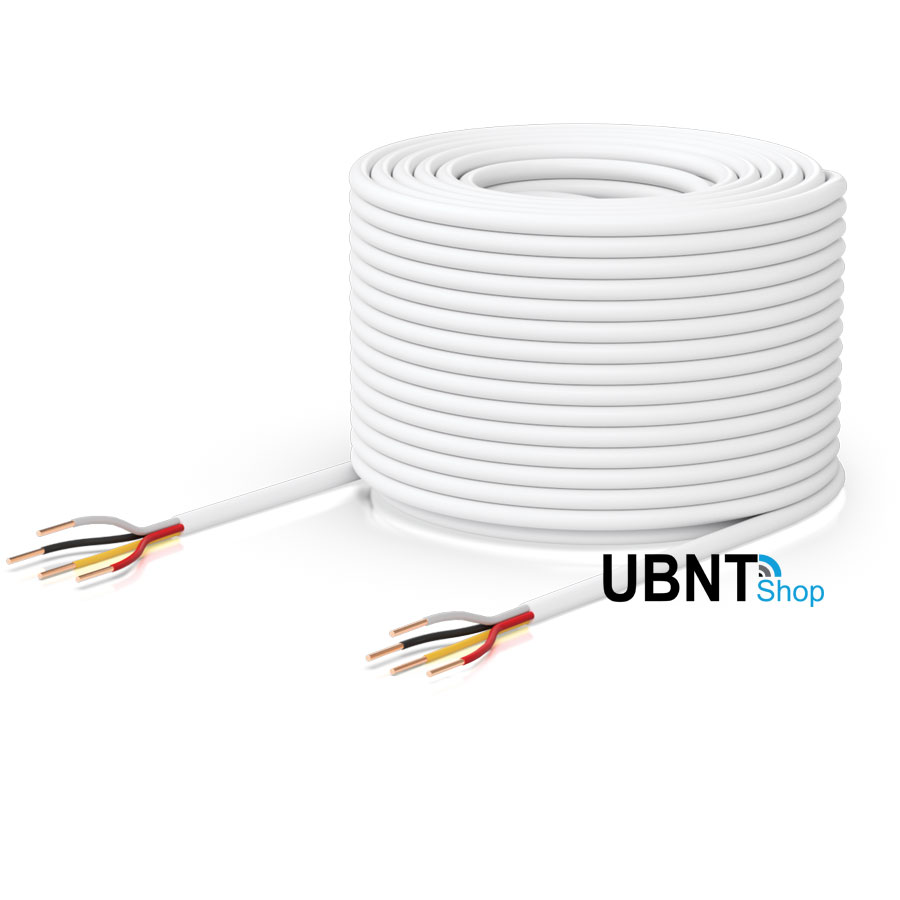

A 500-foot (152.4 m) spool of two-pair, low-voltage cable.

Features:

A 152.4 m spool of one or two-pair, low-voltage cable.

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

2-Pair Relay Cable:

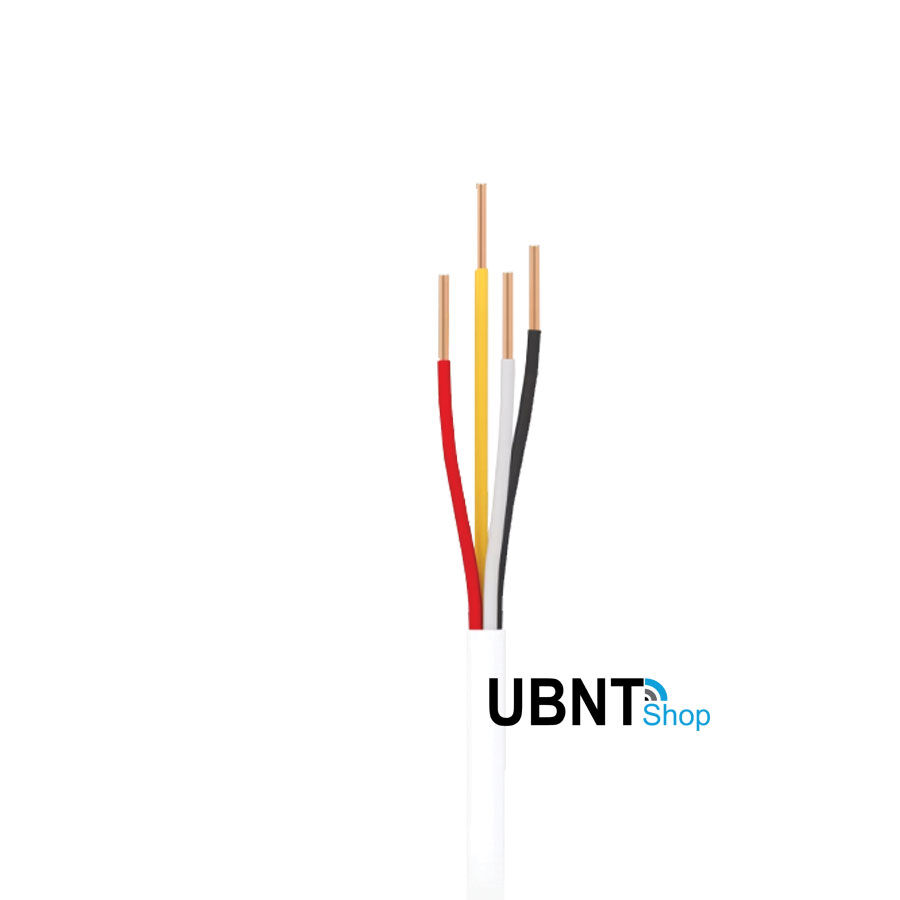

— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor

Cable length 152.4 m

Plenum-rated

(UA-CABLE-DOORLOCKRELAY-2P)

UACC-CABLE-DOORLOCKRELAY 2P

Pack Includes:

1 X 152.4M SPOOL CABLE DOORLOCKRELAY 2P

UACC-CABLE-DOORLOCKRELAY 2P - Specifications

152.4 m (500 ft)

Material

Conductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)

Insulation

UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)

Current Rating

18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length

Flame Rating

VW-1

Conductor Wire Gauge

UACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG

Weight

UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)

Cable

Jacket Outer Diameter

UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")

Jacket Color

White

Bend Radius

UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")

Pulling Tension

UACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf

Conductor DCR

UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)

Supported Voltage Range

36V DC

Number of conductors

UACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2

Ambient Storage Temperature

-45 to 65° C (-40 to 149° F)

Ambient Operating Temperature

-45 to 65° C (-40 to 149° F)

Shipping Specifications

SKU	UA-CABLE-DOORLOCKRELAY-2P
Model #	UACC-Cable-DoorLockRelay
Barcode #	810084691625
Brand	Ubiquiti
Shipping Weight	10.0000kg
Shipping Width	0.034m
Shipping Height	0.020m
Shipping Length	0.037m
Shipping Cubic	0.000025000m3
Unit Of Measure	ea

UACC-CABLE-DOORLOCKRELAY-2P - Documents

Installation Guide UniFi Access UACC-CABLE-DOORLOCKRELAY-2P

Datasheet UniFi Access UACC-CABLE-DOORLOCKRELAY-2P
