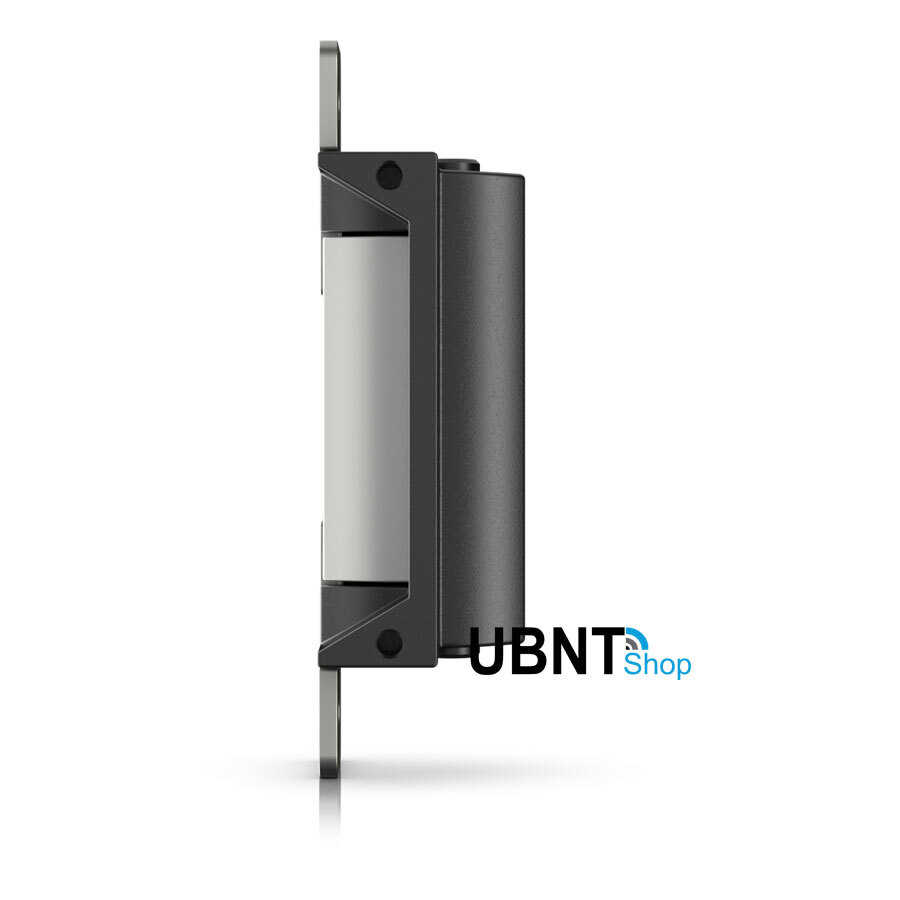

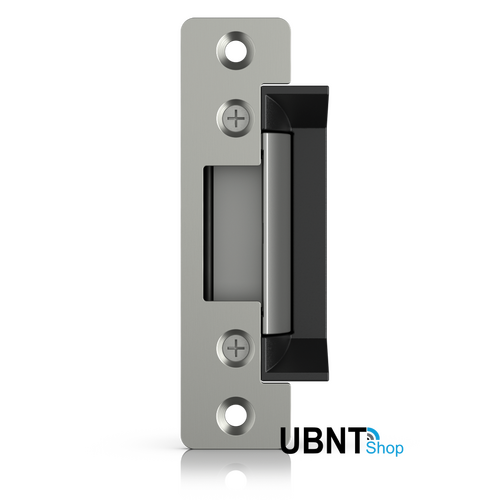

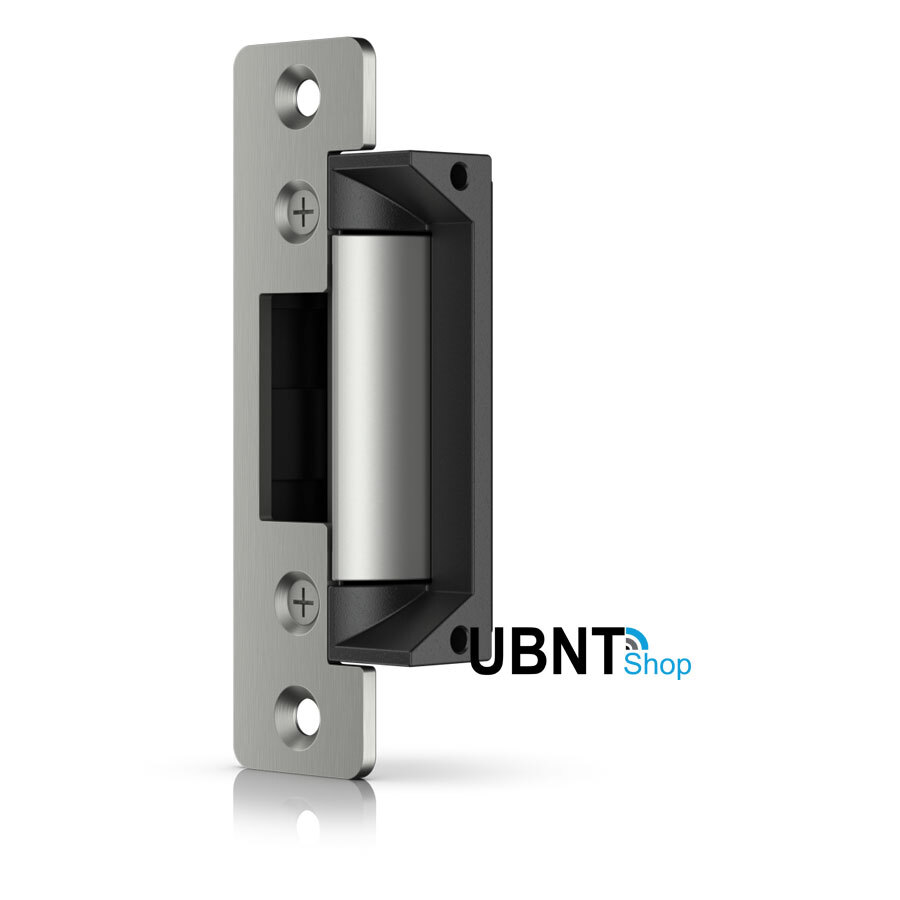

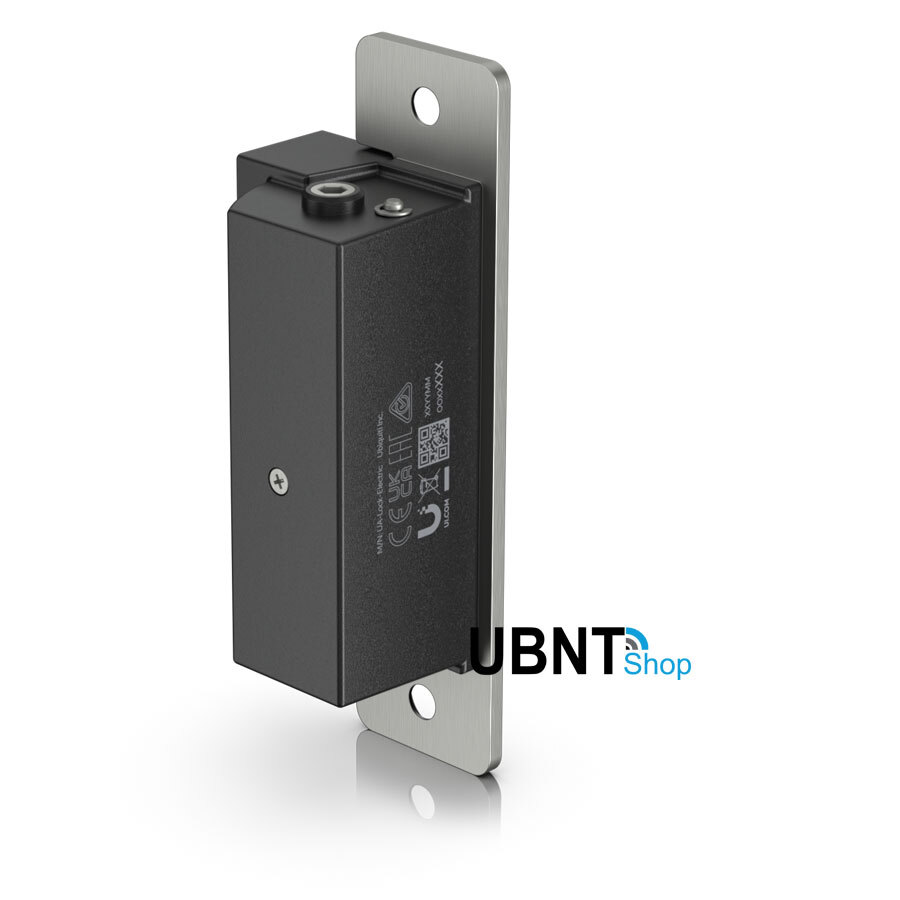

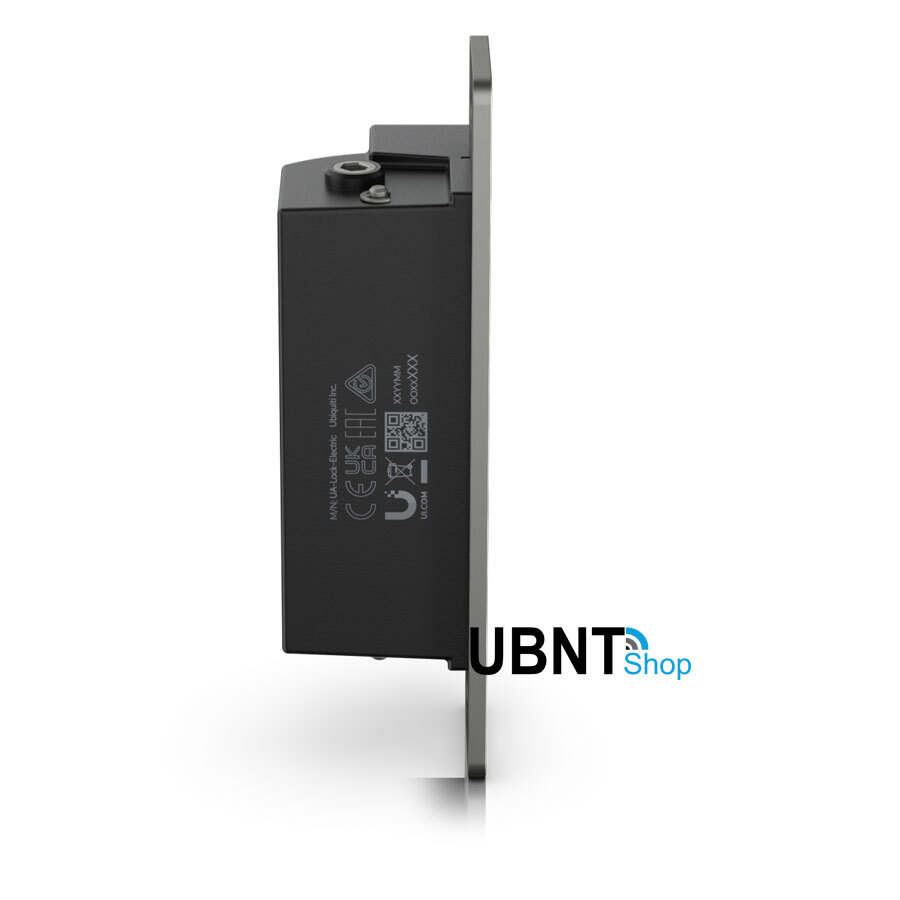

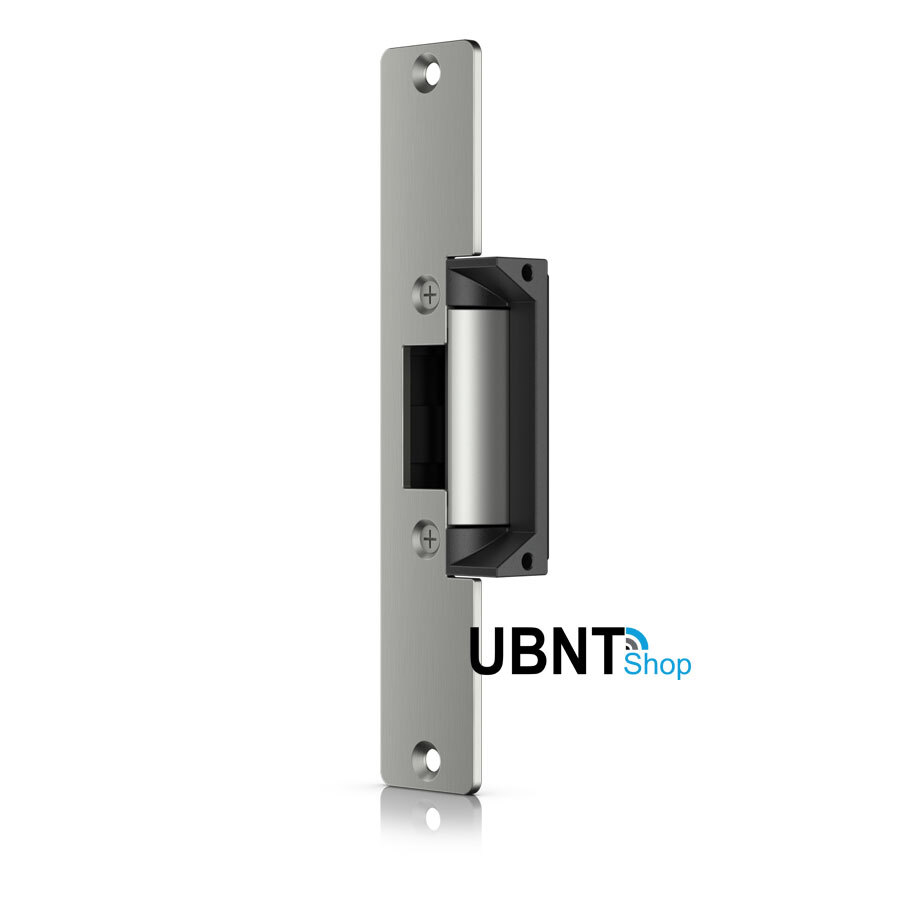

Ubiquiti UniFi Access Lock Electric, Intergrated Fail-secure Elecric Lock, Connects To UniFi Access Hub, Holds Up 1200 kg



Fail-secure electric strike lock that connects to a UniFi Access Hub.

Features:

Holds up to 1,200 kg (2,645 lb)

Can be installed on an aluminum, steel, or wooden door frame

ANSI-compliant design

Compatibility: UA-G2-SK-Pro, UA-G2-SK, EAH-8, UA-Hub

(UA-Lock-Electric)

Ubiquiti UniFi Access Lock Electric, Intergrated Fail-secure Elecric Lock, Connects To UniFi Access Hub, Holds Up 1200 kg

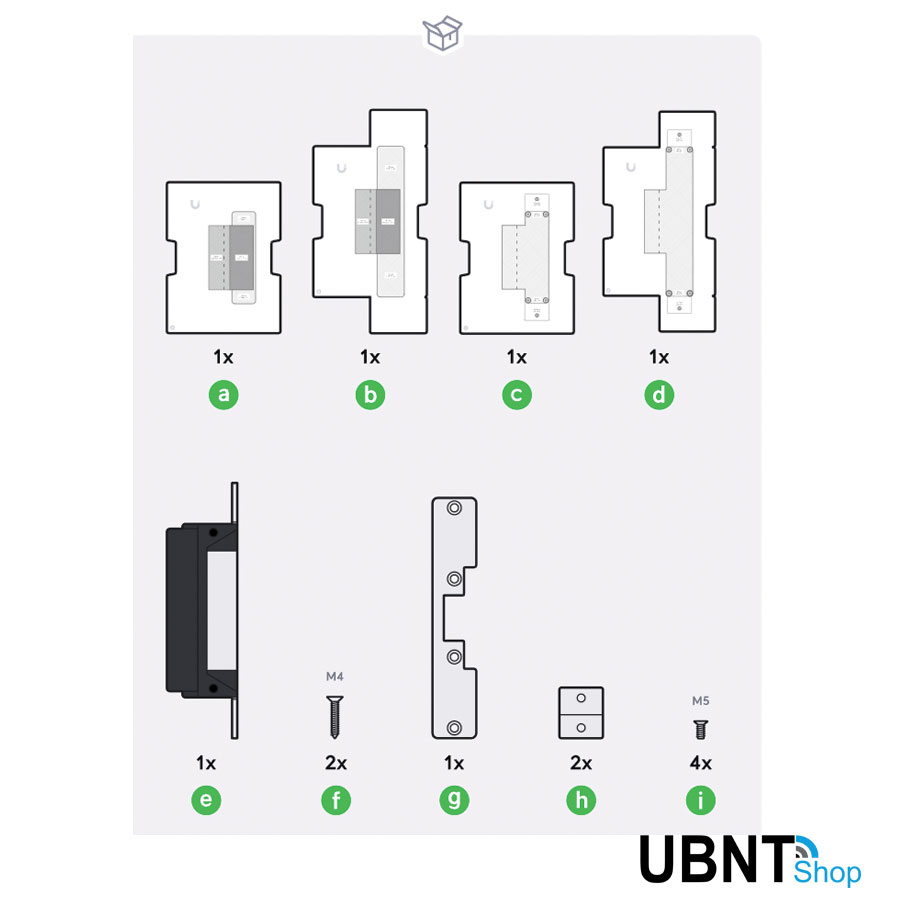

Pack Includes:

  • 1x UniFi Access Lock Electric
  • Quick Start Guide





Ubiquiti UniFi Access Lock Electric, Intergrated Fail-secure Elecric Lock, Connects To UniFi Access Hub, Holds Up 1200 kg- Specifications:

Mechanical

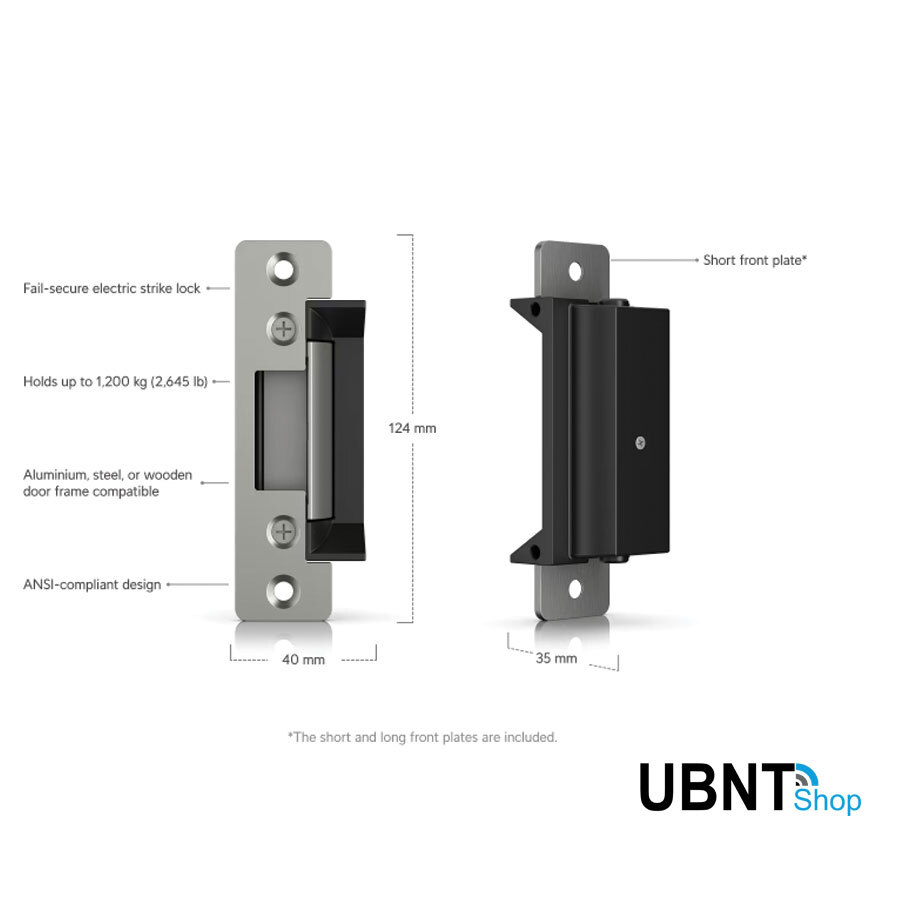

Dimensions Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4")
Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1")
Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1")
Weight Lock body: 185 g (6.5 oz)
Short front plate: 50 g (1.8 oz)
Long front plate: 130 g (4.6 oz)
Enclosure material Lock body: zinc alloy
Front plate/latches: stainless steel
Hardware
Voltage 12V DC
Current power 400mA ±10%
Wiring connection Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
Lock type Fail secure lock
Single door
Lock holding force 1,200 kg (2,645 lb)
Suitability Wooden, steel, aluminum door
Screw terminal + and -
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 5 to 90% noncondensing
Certifications FCC, IC, CE



Shipping Specifications

SKU UA-Lock-Electric
Model # UA-Lock-Electric
Brand UniFi-Access
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.4000kg
Shipping Width 0.100m
Shipping Height 0.040m
Shipping Length 0.220m
Shipping Cubic 0.000880000m3
Unit Of Measure ea
