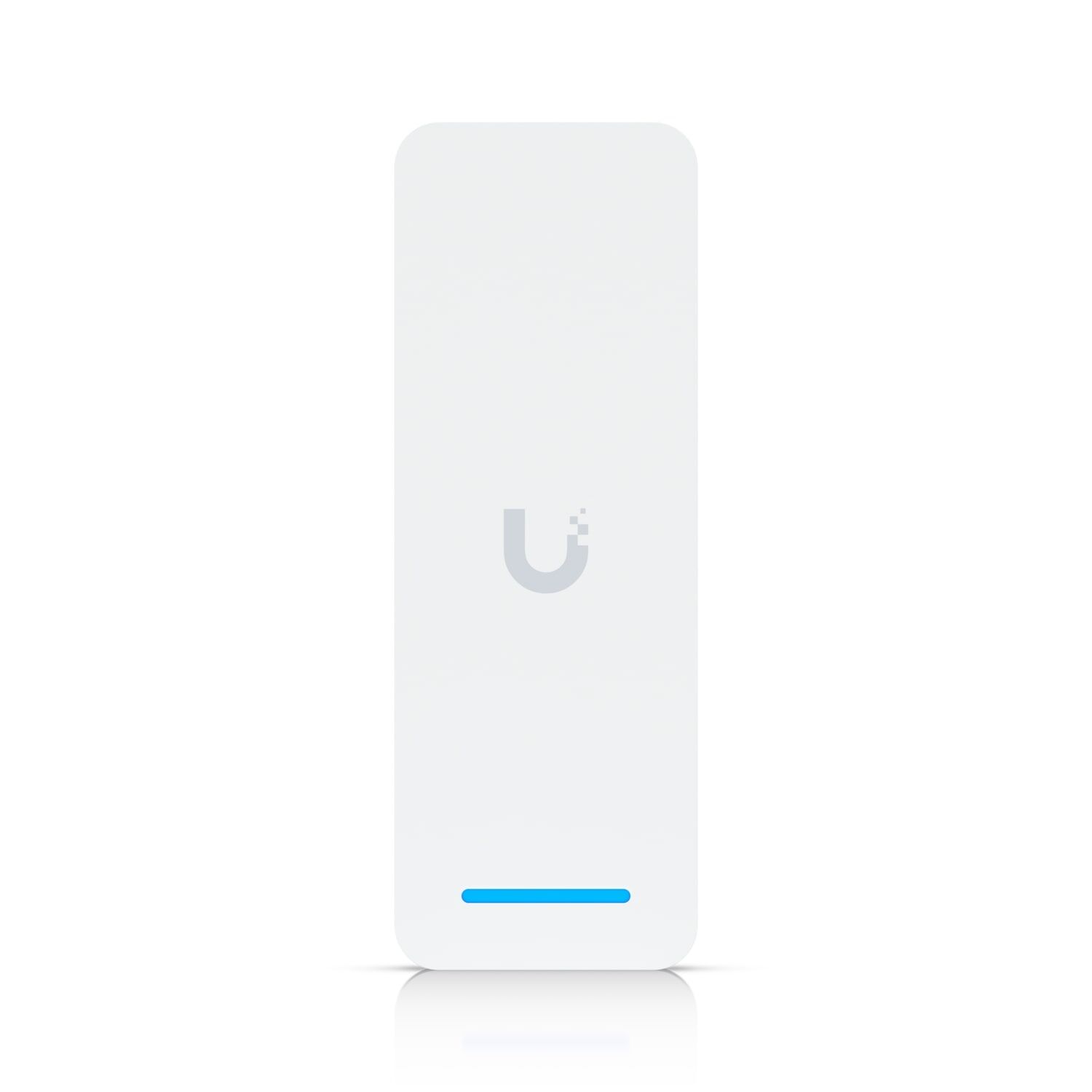

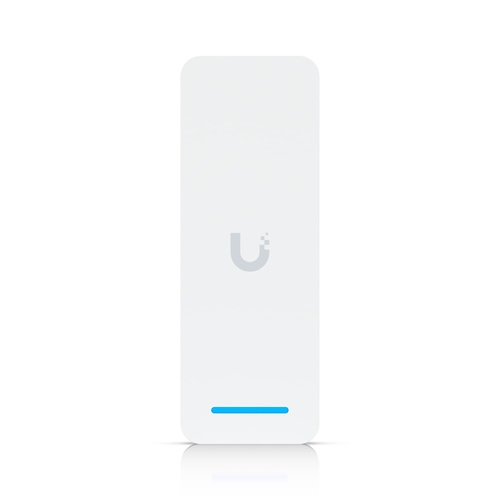

UniFi Access Ultra,Tamper-resistant Access Reader

Access Ultra,Tamper-resistant Access Reader, Built-in Hub,12V/1A,PoE+, Max Power 18W,Single-door Entry Control From One Device,IP55

Tamper-resistant access reader with a built-in hub for complete, single-door entry control from one device. Features: •(1) Lock terminal (12V/1A) •(1) Exit request input •Unlock using an NFC card or UniFi Identity mobile app •IP55 weather resistance (-30 to 40° C)

(1) Lock terminal (12V/1A)

(1) Exit request input

Unlock using an NFC card or UniFi Identity mobile app

Connect and power using PoE+

IP55 weather resistance (-30 to 40° C)

(UA-ULTRA)

UniFi Access Ultra

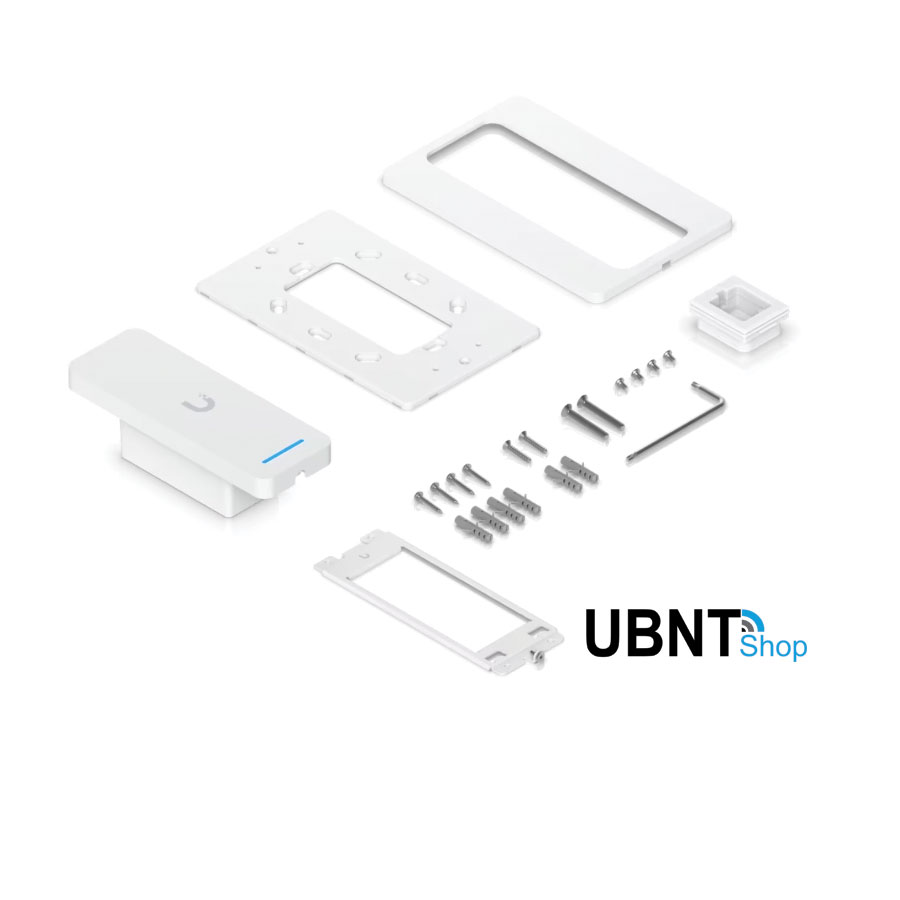

Pack Includes

UniFi Access Ultra - Specifications

Mechanical
Dimensions	126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5")
Weight	140 g (4.9 oz)
Enclosure material	Polycarbonate, aluminum alloy
Mounting	Wall mount, gang box mount
Weatherproofing	IP55
Hardware
Networking interface	10/100 MbE RJ45 port
Connectivity	Ethernet BLE 4.2
Digital input	(1) Exit request
Lock terminals	(1) 12V, 1A
Power method	PoE+
Max. power consumption	18W
ESD/EMP protection	Air: ±8kV, contact: ± 4kV
LEDs	Steady white: Pending adoption Steady blue: Adopted Alternating white/blue: Firmware updating Strobing red: Emergency lockdown Steady green: Emergency evacuation (2) Rapid flashing blue: NFC credential authenticated (2) Rapid flashing red: NFC credential authentication failed Breathing blue: Ready to register NFC cards
Button	(1) Factory reset
Tamper switch	Yes
Speaker	Buzzer
NFC frequency	13.56 Mhz
NFC read range	< 50 mm
NFC standards	ISO 14443A, 14443B, 15693
NFC technology	NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire
Ambient operating temperature	-30 to 40° C (-22 to 104° F)
Ambient operating humidity	5 to 90% noncondensing

SKU	UA-ULTRA
Model #	UA-Ultra
Barcode #	810084694305
Brand	Ubiquiti
Shipping Weight	0.4000kg
Shipping Width	0.098m
Shipping Height	0.078m
Shipping Length	0.172m
Shipping Cubic	0.001314768m3
Unit Of Measure	ea

UniFi Access Ultra -Documents

Installation Guide UniFi Access READER ULTRA

Datasheet UniFi Access READER ULTRA
