Purchase Unifi Access G3 Gate UA-SK-Gate Online in Australia

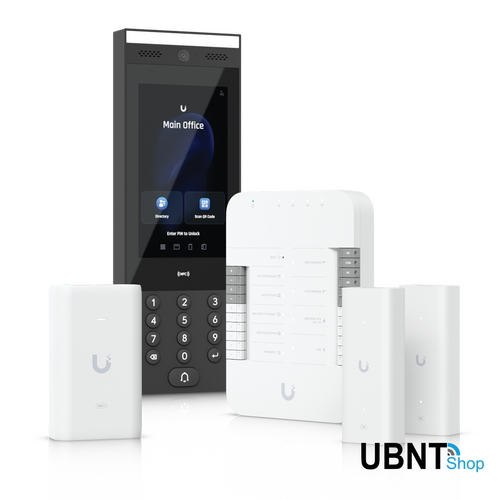

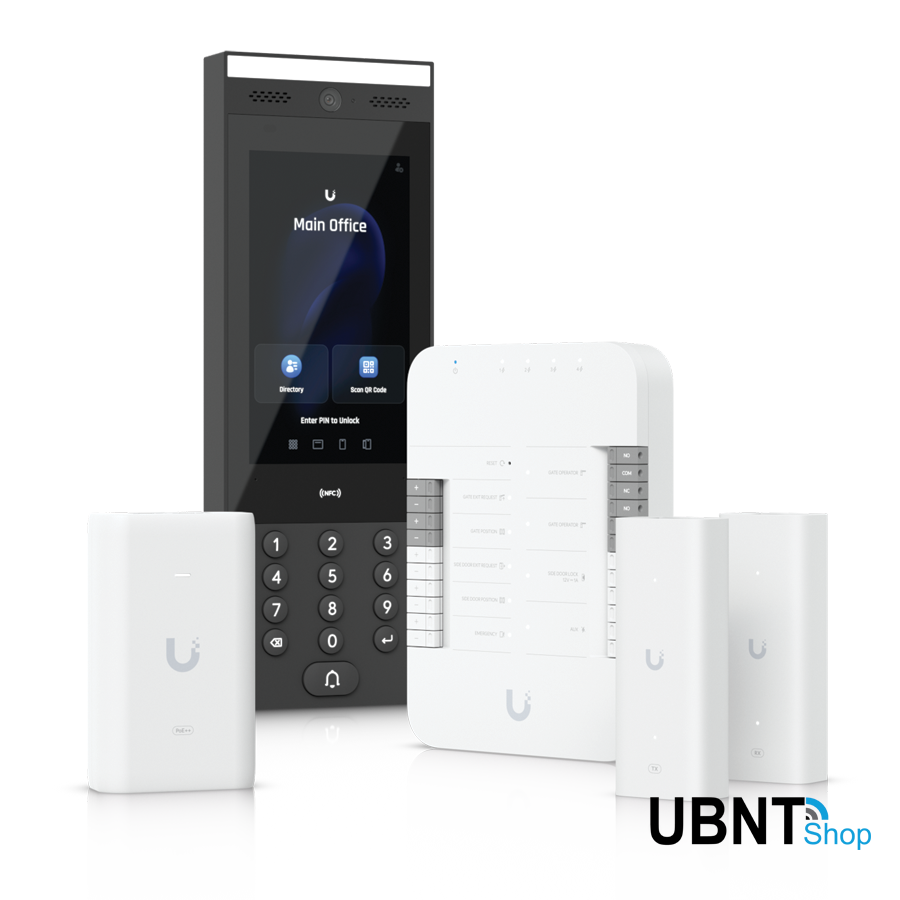

Ubiquiti G3 Gate Starter Kit, Come With 1x Gate Hub, 1x G3 Intercom, 1x PoE++ adapter, 2x 2-wire PoE Extenders

Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera*.

Features:

(1) Gate Hub

(1) G3 Intercom

(1) PoE++ adapter

(2) 2-wire PoE extenders

_{*Note. License Plate Recognition is supported on Protect AI Series cameras, excluding 360 lenses.}

(UA-G3-SK-GATE)

Ubiquiti UA-G3-SK-Gate Unifi Gate Access Starter Kit

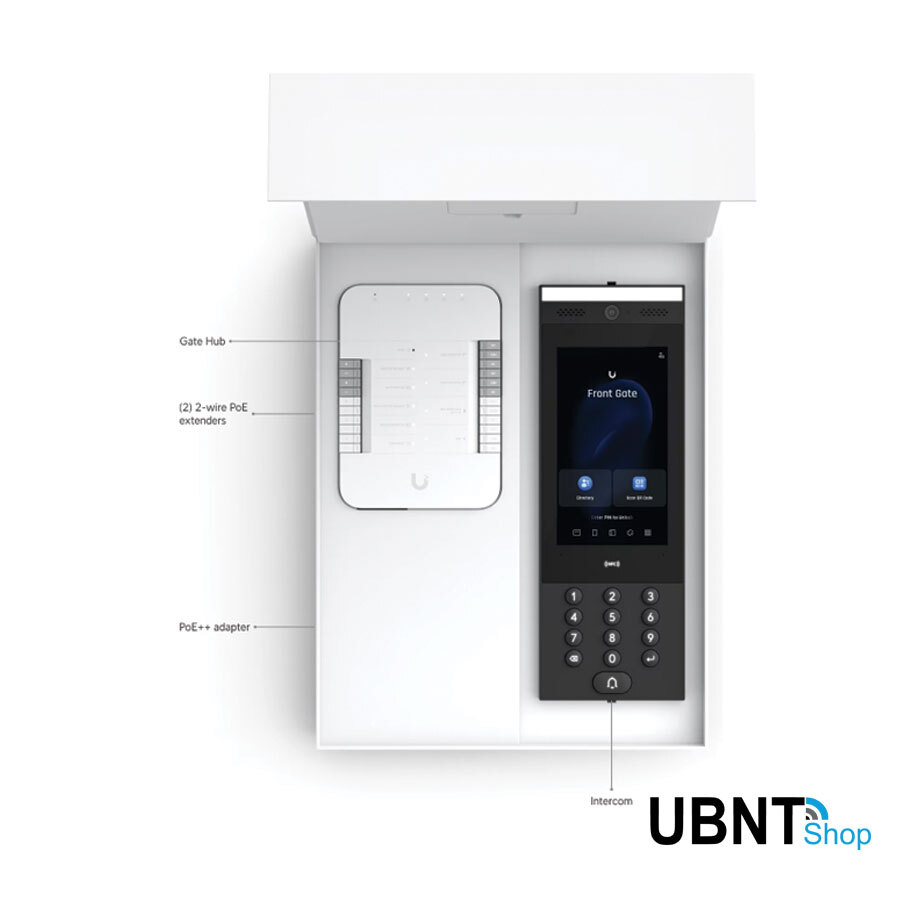

Pack Includes:

1x UA-G3-SK-Gate Unifi Gate Access Starter Kit
Quick Start Guide

Ubiquiti UA-G3-SK-Gate Unifi Gate Access Starter Kit - Specifications

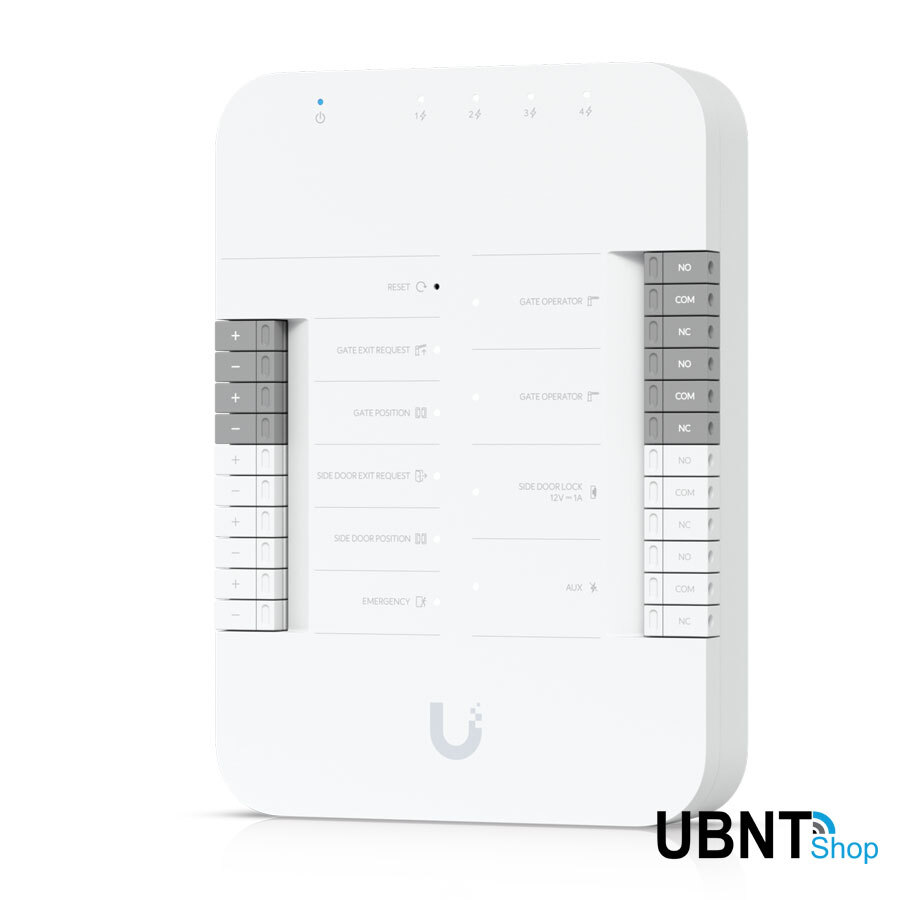

GATE HUB

Mechanical

Dimensions

175 x 126 x 26 mm (6.9 x 5 x 1")

Weight

460 g (1 lb)

Enclosure material

Polycarbonate

Mounting

Din-rail (Included)

Hardware

Networking interface

(5) 10/100/1000 Base-T

Power method

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Max. power consumption

Without PoE output: 22W
With PoE output: 50W

PoE input

50V DC, 1A

PoE output

PoE passthrough, (4) PoE, 50V DC, Max. 28W

LEDs

White/blue (Learn more)

Button

(1) Factory-reset

Digital input

Gate exit request, gate position, side door exit request, side door position, emergency

Dry output relay

(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A

Output relay

Side door lock: 12V DC, up to 1A

Recommend max. cable length

	18 AWG UACC-Cable-DoorLockRelay length	20 AWG length	22 AWG length	24 AWG length
UA-Lock-Electric (400mA)	100 m (328 ft)	66 m (217 ft)	42 m (138 ft)	25 m (82 ft)
UA-Lock-Magnetic-270kg (800mA)	46 m (151 ft)	30 m (98 ft)	20 m (66 ft)	12 m (29 ft)
UA-Lock-Magnetic-540kg (500mA)	80 m (262 ft)	51 m (167 ft)	32 m (105 ft)	20 m (66 ft)
Other locks (1A)	36 m (118 ft)	24 m (79 ft)	15 m (49 ft)	9 m (30 ft)

PoE cabling requirements

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.

Operating environment

Indoor use only with device itself
Outdoor use with waterproof junction box

Ambient operating temperature

-30 to 60° C (-22 to 104° F)

Ambient operating humidity

5 to 90% noncondensing

Software information

The software version of a product can be checked at https://unifi.ui.com

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements

CAN/ULC-60839-11-1 Grade

Grade assignment: I

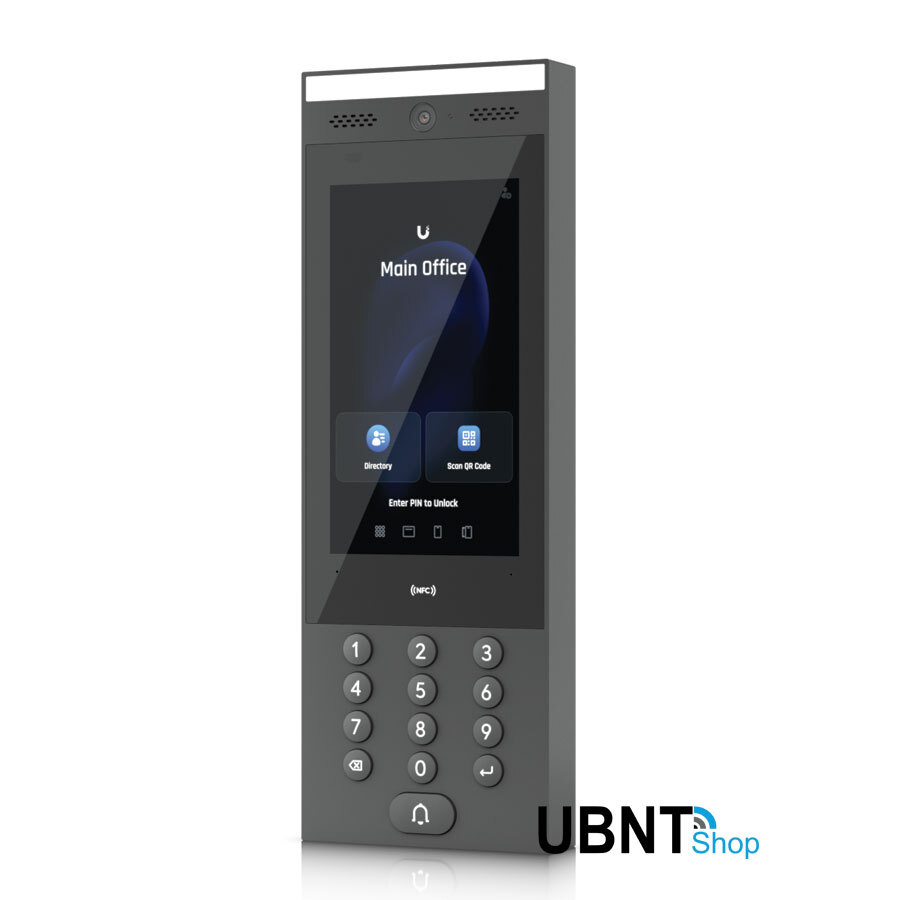

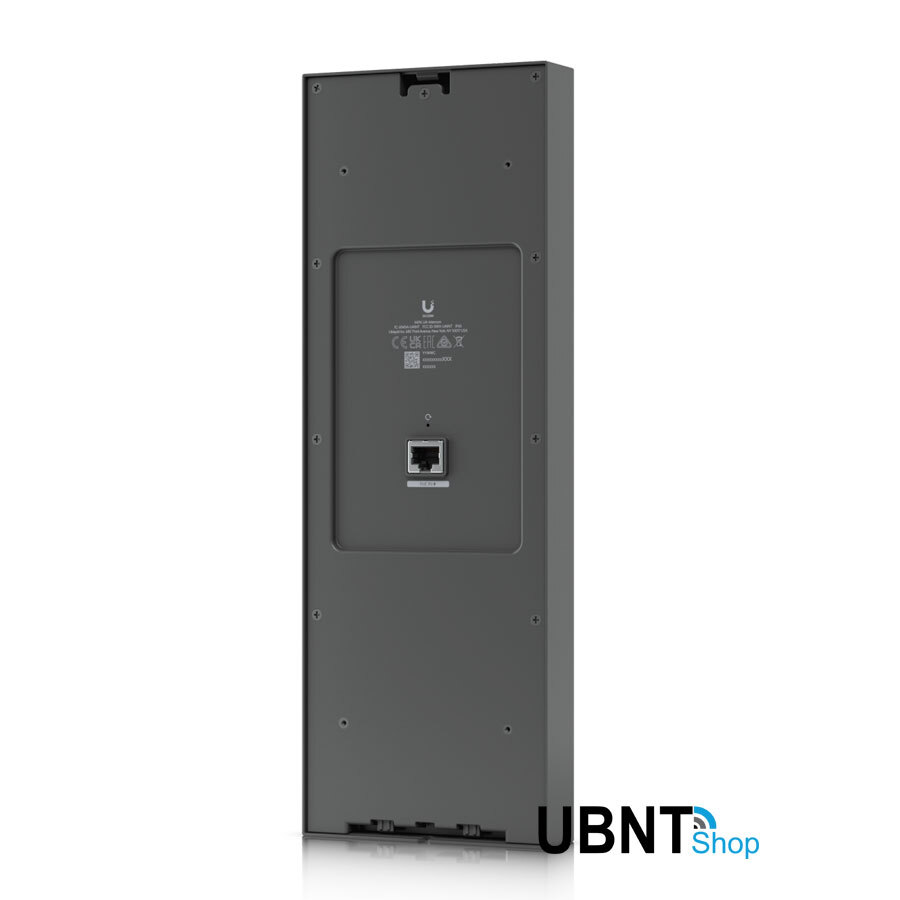

G3 INTERCOM

Overview

Dimensions

324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")

Integrated Camera

Yes

NFC Card & Keyfob Access

Yes

PIN Access

Yes

Apple/Google Wallet

Yes

Mobile Unlock

Yes

Two-Way Intercom & Doorbell Access

Yes

NDAA Compliant

Yes

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weatherproofing

IP65

Mechanical

Weight

Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)

Enclosure Material

Aluminum alloy, UV-stabilized polycarbonate, glass

Mount Material

Powder-coated stainless steel

Mounting

Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)

Hardware

Indoor and Outdoor Use

Yes

Ambient Operating Temperature

Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)

Ambient Operating Humidity

5 to 90% noncondensing

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

13W

Supported Voltage Range

48V DC

Sensors

Proximity sensor ALS sensor

Display

177 mm (7") diagonal

Touch Screen Technology

Capacitive multi-touch

Display Luminance

Max. 1000 nits (Typical)

Screen Orientation

Portrait

Resolution

1024 x 600 px

Microphone

Yes

Speaker

Yes

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18'')

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

LEDs

Amber Learn More

Buttons

(1) Factory-reset

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3-Intercom, V01

Software

Management Application

Access

Software Information

The software version can be checked at https://unifi.ui.com

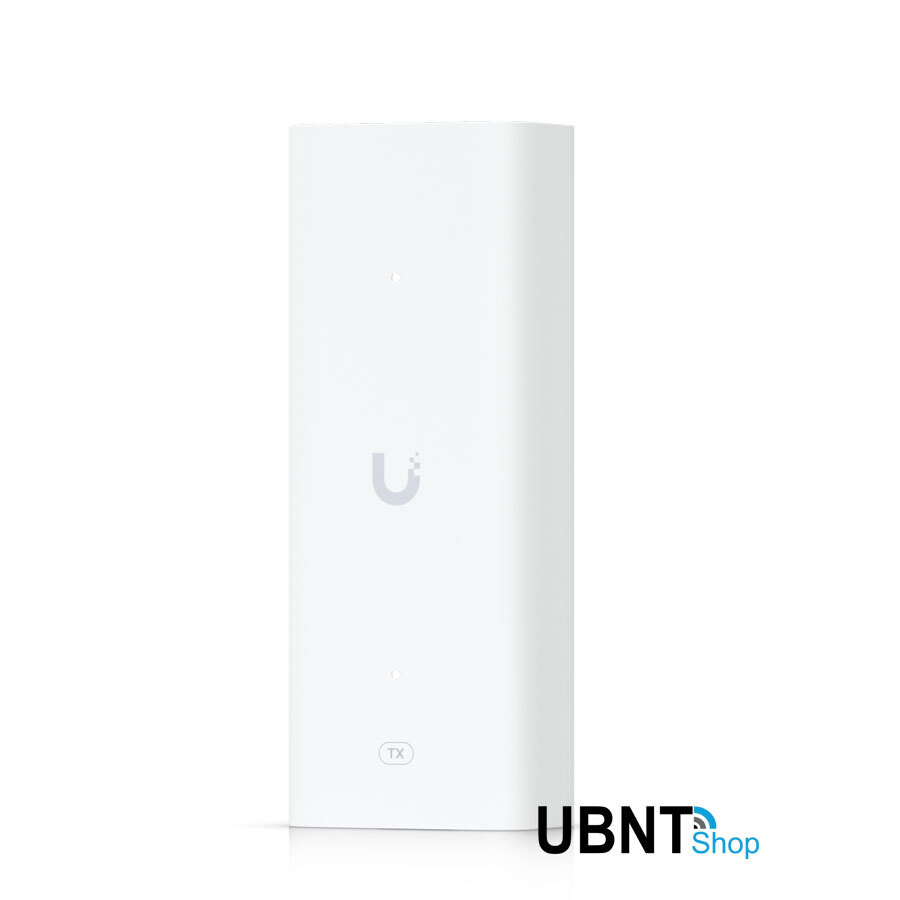

RETROFIT EXTENDER

Mechanical

Dimensions

PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1")
Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")

Weight

PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Adapter: 140 g (4.9 oz)

Enclosure material

Polycarbonate

Mounting material

Polycarbonate

Coaxial connector

BNC female

Hardware

Networking interface

(1) 10/100 MbE
(1) Homeplug AV

Power method

PoE++

PoE input

(1) PoE++, 50V DC, 1.2A

PoE output

(1) PoE+, 48V DC, 0.6A

Max. power consumption

3W (Without PoE output)

ESD/EMP protection

Air: ±8kV, contact: ±4kV

Recommend max. cable length

	UTP 24AWG 0.18ohm/meter		RG-6, 0.14ohm/meter
Cable length	Bandwidth (Mbps)	Max output (W)	Bandwidth (Mbps)	Max output (W)
50 m	85	25	85	25
100 m	85	13	85	20
150 m	85	9	85	13
200 m	85	6	85	9
250 m	80	4	85	7
300 m	75	3	85	6
350 m	70	0	85	4
400 m	65	0	82	3
450 m	60	0	80	0
500 m	55	0	75	0
550 m	50	0	70	0
600 m	—	—	65	0
650 m	—	—	60	0
700 m	—	—	55	0
750 m	—	—	50	0

LED

White

Ambient operating temperature

-10 to 40° C (14 to 104° F)

Ambient operating humidity

5 to 90% noncondensing

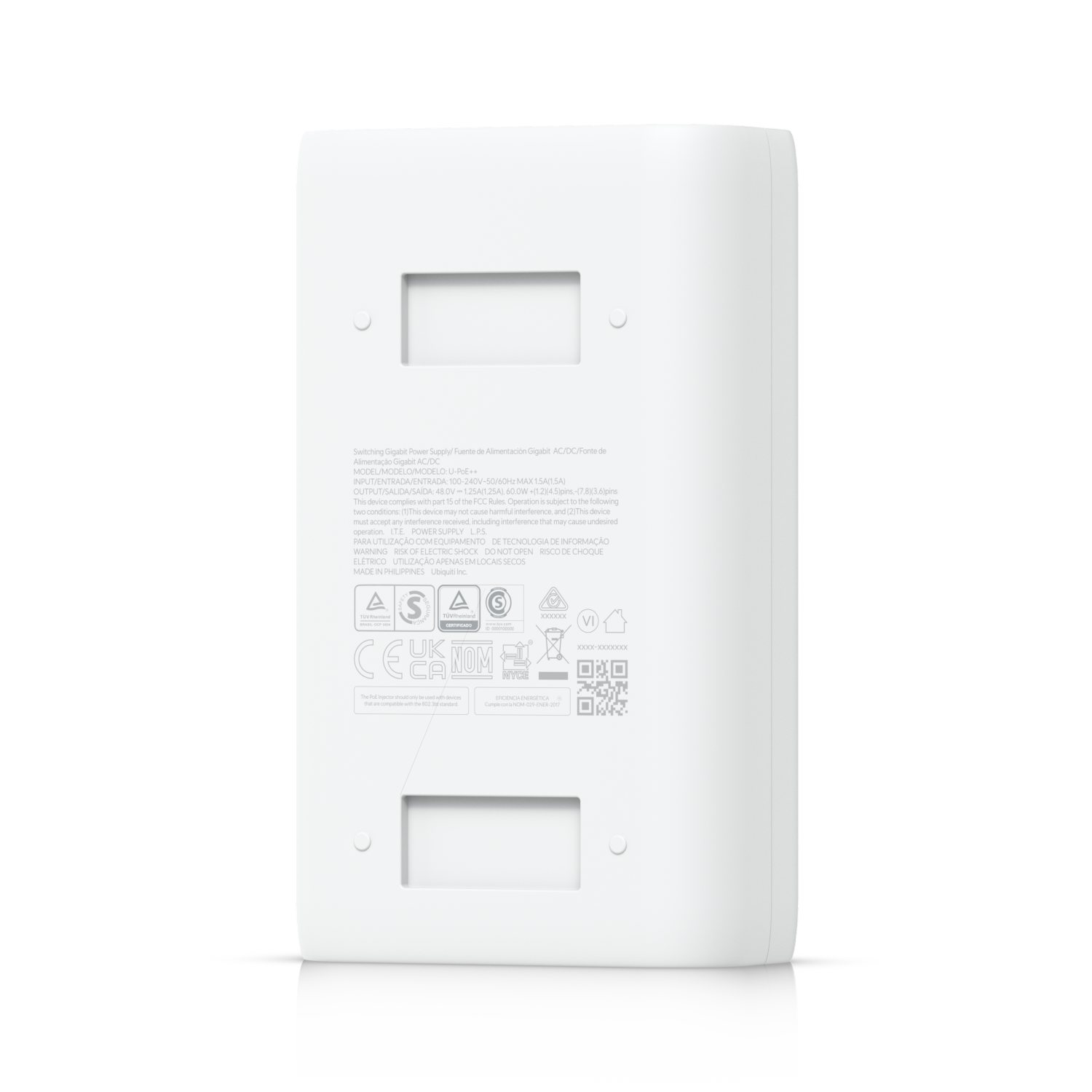

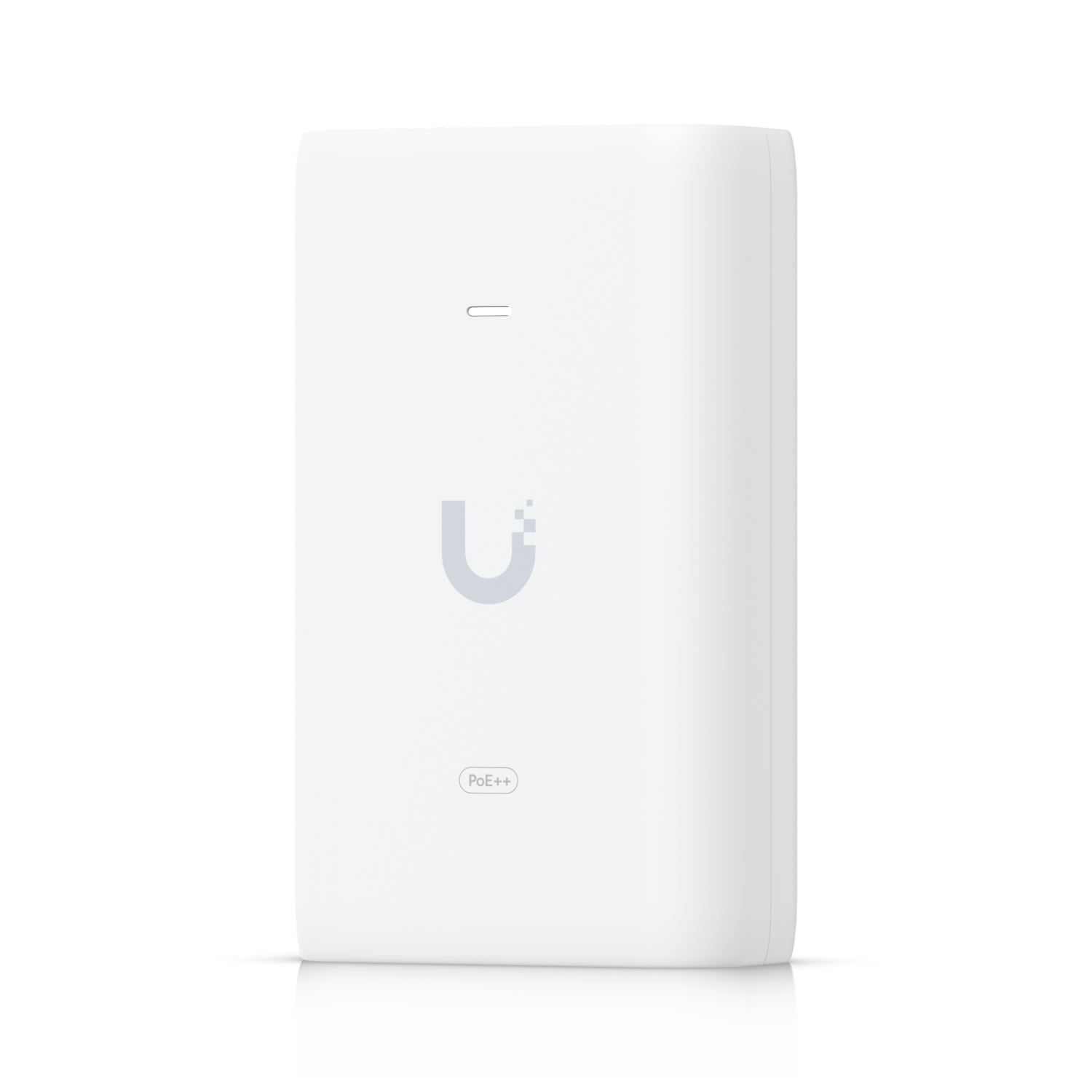

POE++ ADAPTER

Model

U-PoE++

Dimensions

106 x 63 x 34 mm (4.2 x 2.5 x 1.3")

Weight

210 g (7.4 oz)

Output Voltage

48V DC @ 1.25A

Gigabit LAN Port

✓

Rated Voltage

100—240V AC @ 50/60Hz

Input Current

1.3A @ 120V AC 0.75A @ 230V AC

Inrush Current

<100A peak @ 120V AC <200A peak @ 230V AC

Efficiency

85+%

Output Ripple

1% max.

Switching Frequency

65 kHz

Line Regulation

≤ 1%

Load Regulation

≤ 3%

4-pair Powering

Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

AC Connector

IEC-320 C6

Data In / PoE

RJ45 shielded socket

Surge Protection

Difference and common mode

Clamping Protection

11V data, 60V power

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Shunt Capacitance

<5 pF data

Response Time

<1 ns

Power Method

Universal AC input, 100—240V AC, 50/60 Hz

Power Supply

AC/DC

Supported Voltage Range

100—240V AC

Max. PoE+ Wattage per Port by PSE

60W

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

NDAA Compliant

✓

SKU	UA-G3-SK-GATE
Model #	UA-G3-SK-Gate
Brand	Ubiquiti
Shipping Weight	2.8000kg
Shipping Width	0.120m
Shipping Height	0.030m
Shipping Length	0.340m
Shipping Cubic	0.001224000m3
Unit Of Measure	ea
