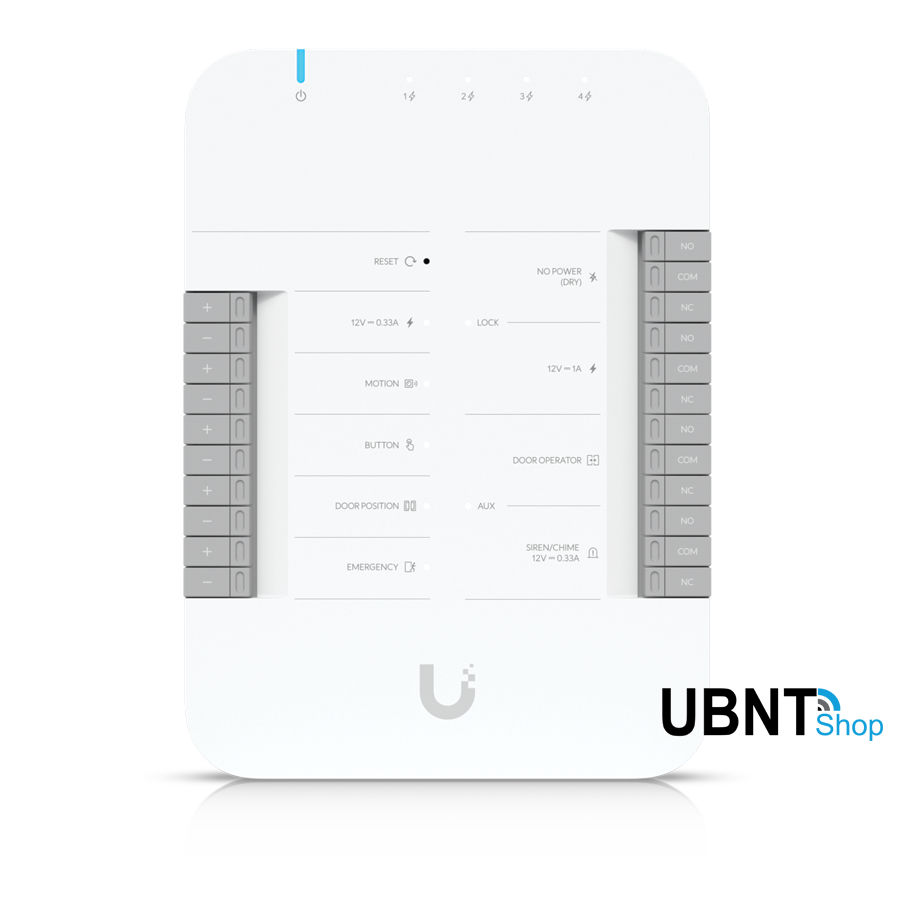

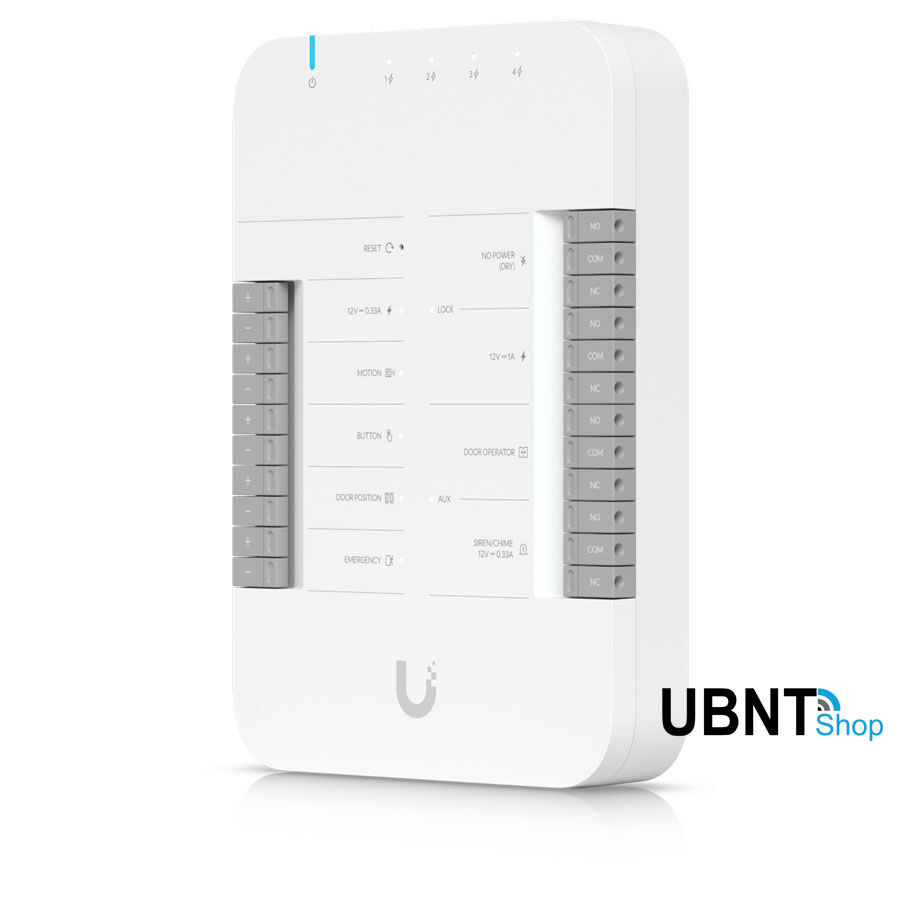

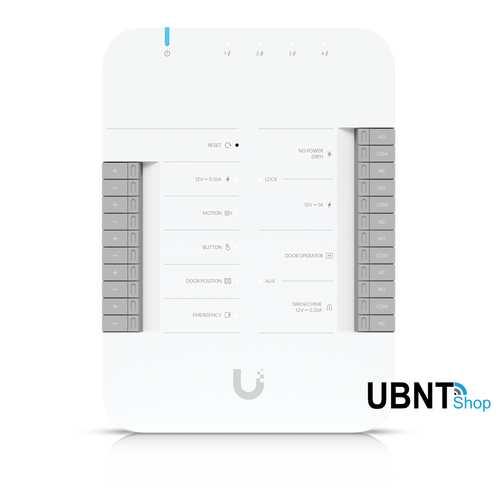

The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers.



The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface.

UA-Hub-Door Features:

  • Powered by 802.3bt (PoE++) switch

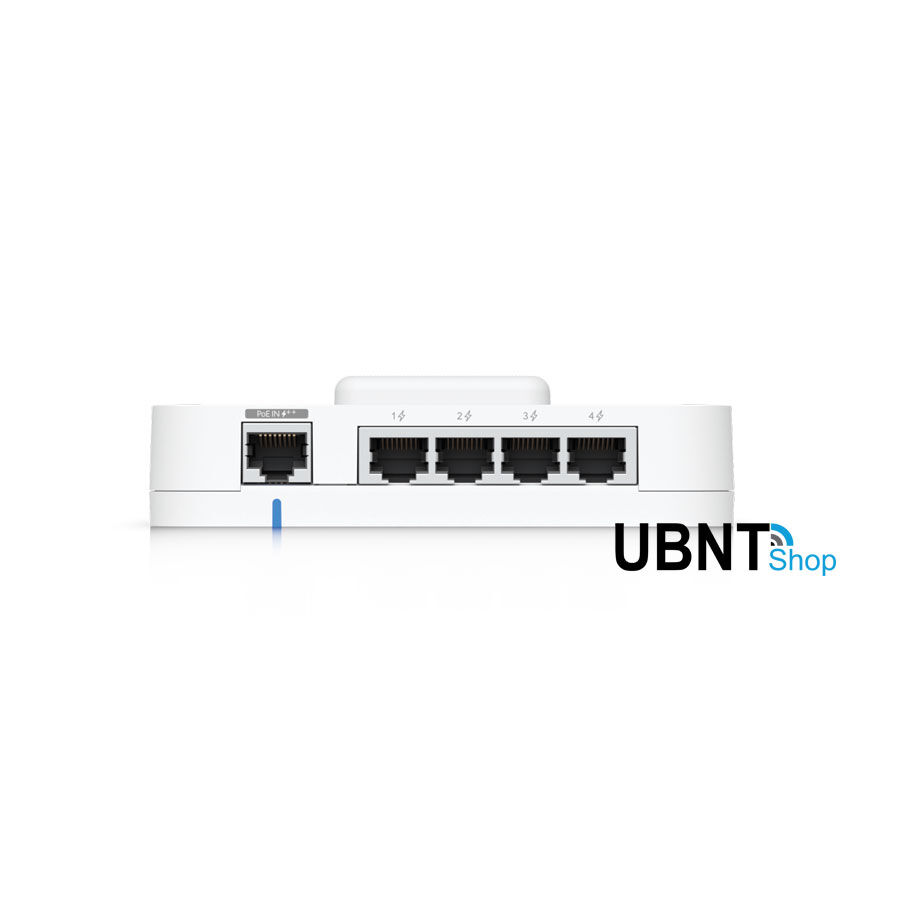

  • Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera

  • 12V powered and dry relays compatible with most locks

  • Four inputs for motion sensors, request-to-exit devices and door position switch

  • Managed with UniFi Access Application in UDM-Pro

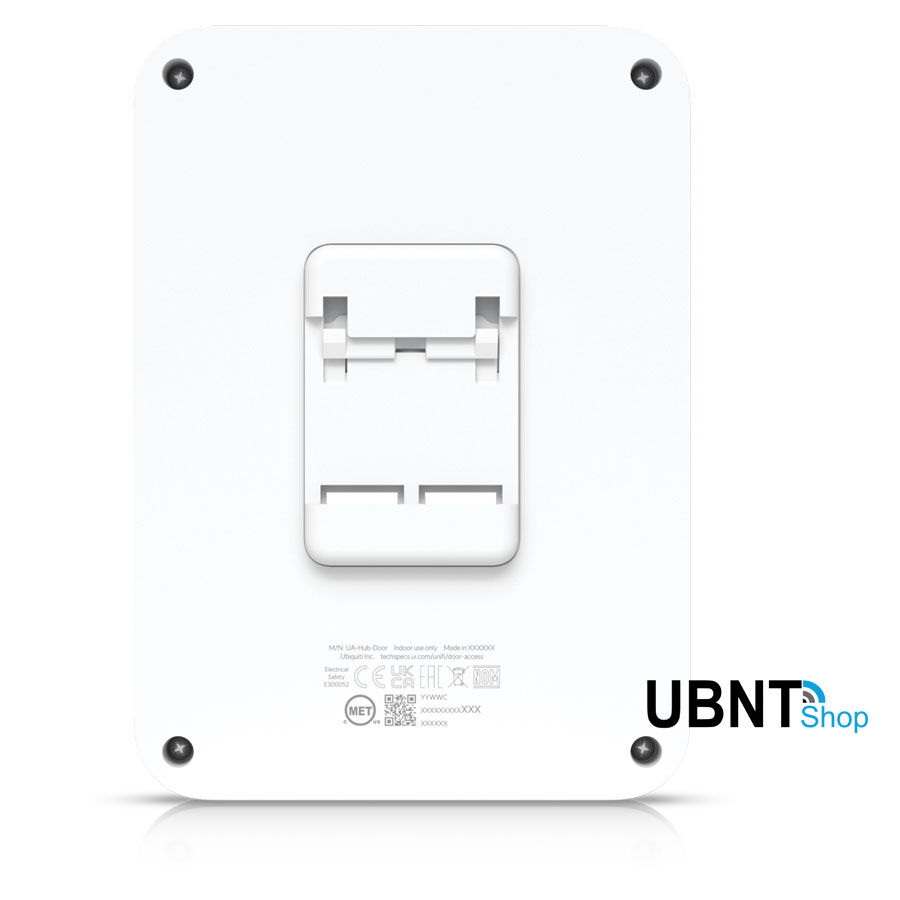

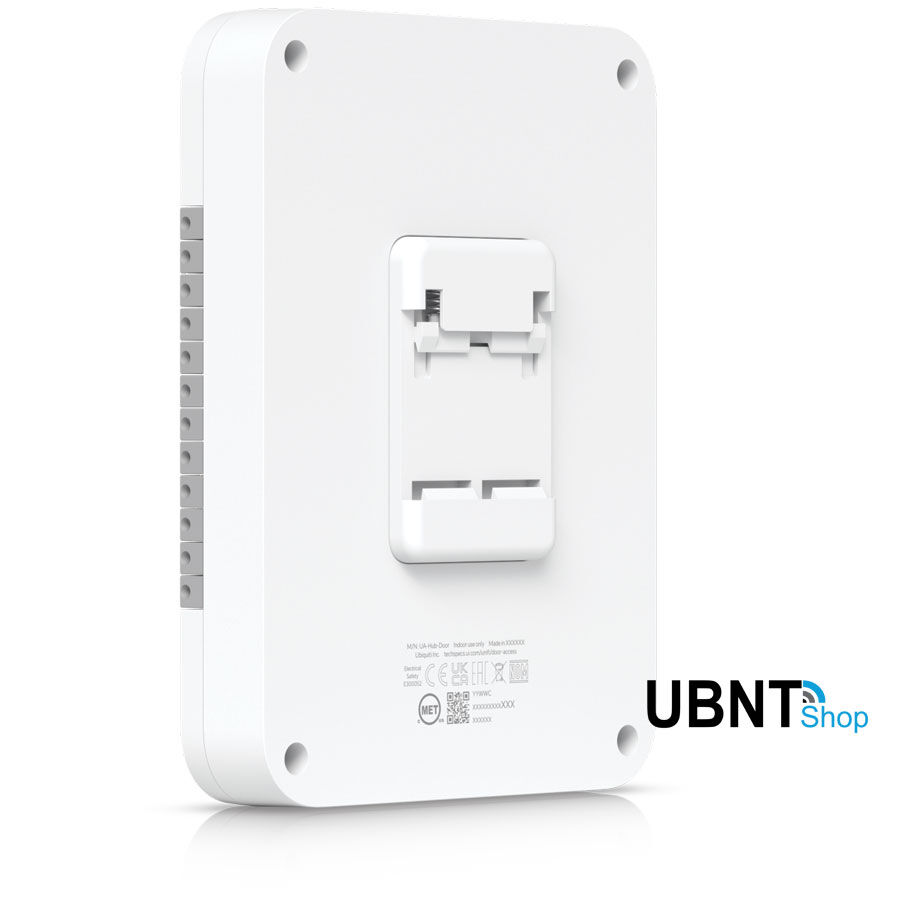

  • DIN-rail mounting

(UA-HUB-DOOR)

Access Hub Door

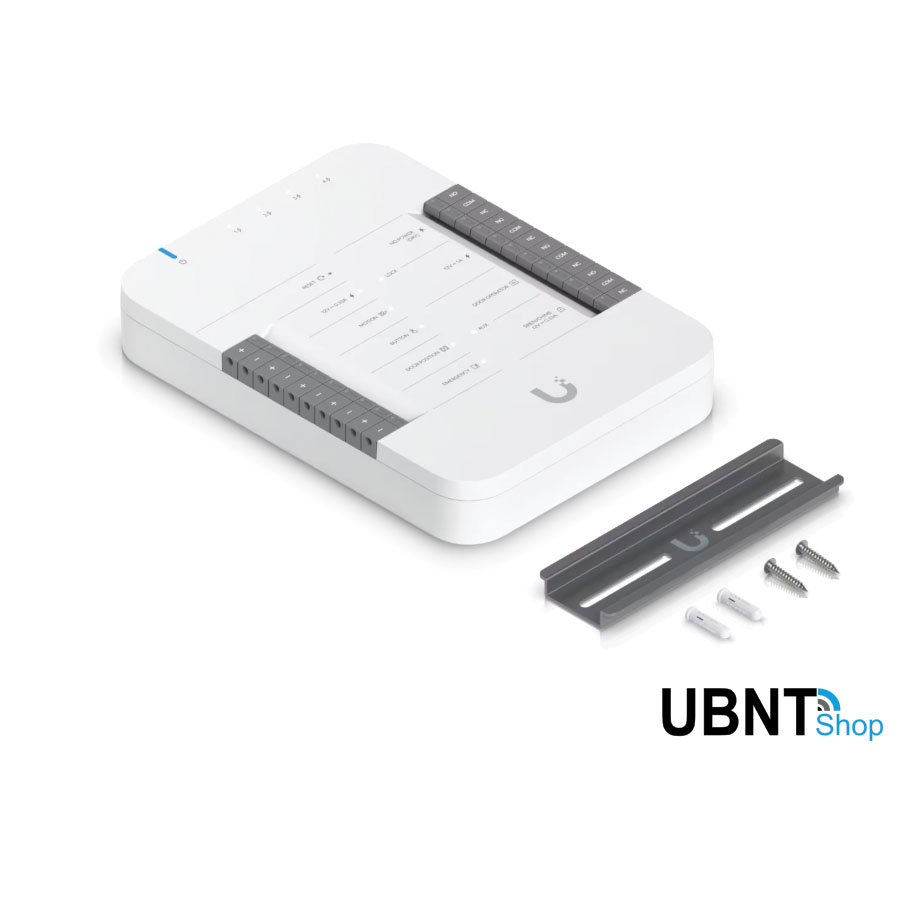

Pack Includes:



Access Hub Door - Specifications

Mechanical
Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Weight 363 g (12.8 oz)
Enclosure material Polycarbonate
Mounting material Polycarbonate
Hardware
Networking interface (5) 10/100/1000 Base-T
Power method PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. power consumption Without PoE output: 30W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output PoE passthrough, (4) PoE, 50V DC, total 20W
LEDs White/blue (Learn more)
Button (1) Factory-reset
Digital input Request to exit/request to enter/remote release/door position sensor
Dry output relay Lock: 30V DC, 1A
Aux: 30V DC, 1A
Powered output relay Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A
Recommend max. cable length
  18 AWG
UACC-Cable-DoorLockRelay length		 20
AWG length		 22
AWG length		 24
AWG length
UA-Lock-Electric
(400mA)		 100 m
(328 ft)		 66 m
(217 ft)		 42 m
(138 ft)		 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)		 46 m
(151 ft)		 30 m
(98 ft)		 20 m
(66 ft)		 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)		 80 m
(262 ft)		 51 m
(167 ft)		 32 m
(105 ft)		 20 m
(66 ft)
Other locks
(1A)		 36 m
(118 ft)		 24 m
(79 ft)		 15 m
(49 ft)		 9 m
(30 ft)
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment Indoor use only
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
UL 294 level Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade Grade assignment: 1



Shipping Specifications

SKU UA-HUB-DOOR
Model # UA-Hub-Door
Barcode # 810084690598
Brand Ubiquiti
Shipping Weight 0.4000kg
Shipping Width 0.180m
Shipping Height 0.092m
Shipping Length 0.210m
Shipping Cubic 0.003478000m3
Unit Of Measure ea
