STARBEAM Starlink Gen2 DC/DC Power Converter
Power a Gen2 Actuated Starlink dish from 12V or 24V with the Powertec Starlink Gen2 DC/DC Converter. Perfect for off-grid use in vehicles, caravans, homes, and solar.
Powering your dish from DC, instead of AC with an inverter, could save up to 15% in power consumption. When you are off grid using batteries, this can be a significant saving.

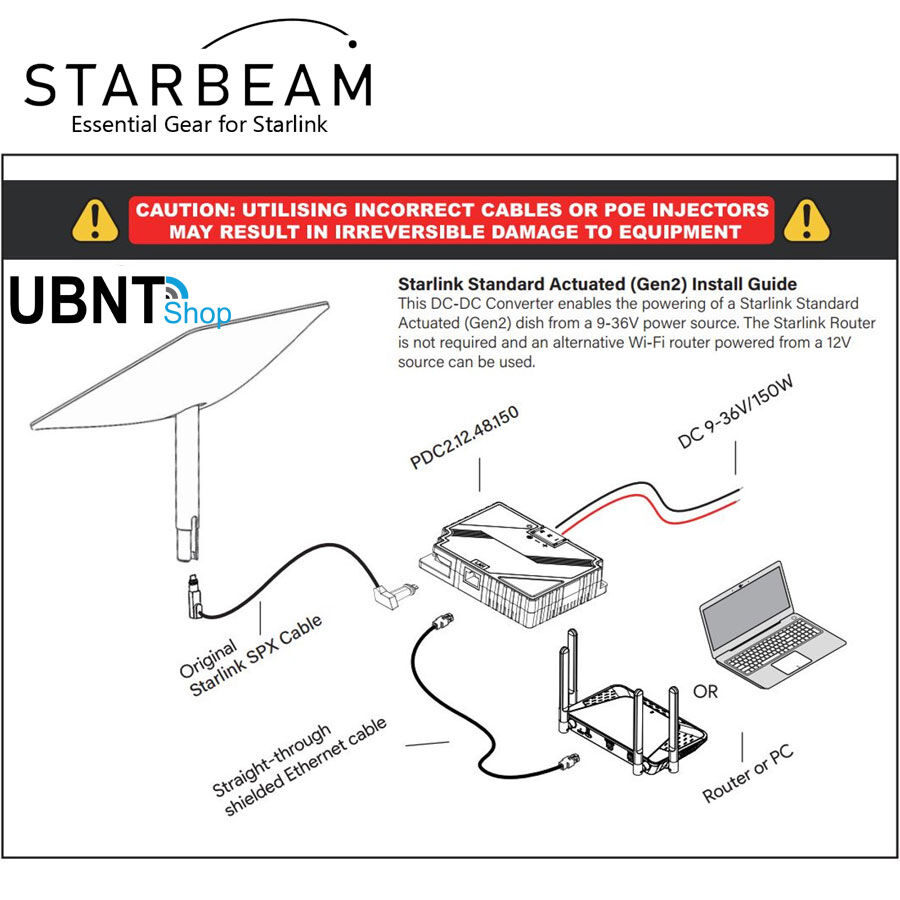

Connection to the Starlink dish is plug and play, and the existing Starlink router can be replaced with a 12V WiFi router. The existing Starlink Gen2 SPX network cable is used to power the dish, without the need to cut and terminate the cable.
Note: Does not support the Gen2 High Performance dish.
Features
- Designed for off grid caravans, motorhomes, homes, vehicles and remote sites
- Enables a Starlink Gen2 Actuated dish to be powered from 9-36V DC
- Plug and play installation
- Compact in size
- 150W power output

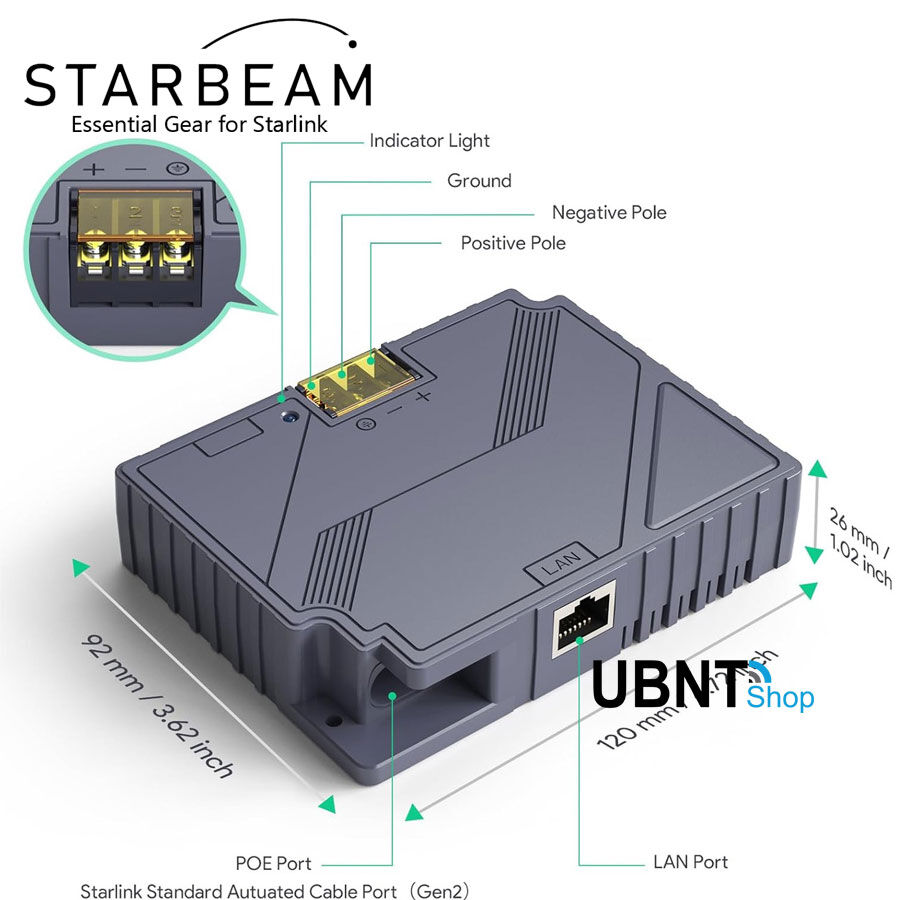

- 10/100/1000 LAN Port for connecting to router or computer
- Starlink SPX Port for connecting to dish
- Australian RCM Approved
(SAT-SB-00511)
STARBEAM Starlink Gen2 DC/DC Power Converter
STARBEAM Starlink Gen2 DC/DC Power Converter
| General Information | |
|---|---|
| Manufacturer: | STARBEAM |
| Manufacturer Part Number: | PDC2.12.48.150 |
| Barcode: | 9337692005466 |
| Suits: | Gen 2 |
| Packaging Details | |
| Weight: | 0.21 KGS |
| Width: | 10.00 (cm) |
| Height: | 4.00 (cm) |
| Depth: | 14.00 (cm) |
| Specification | Details |
|---|---|
| Interface | SPX x1, LAN x1, Power |
| Pin Configuration | +V: 1,2,3,6; -V: 4,5,7,8 |
| Network Speed | 10/100/1000Mbps (Gigabit Ethernet) |
| Input | DC 9-36V/15A |
| Input/Output | DC 56V/3A Max |
| Surge Protection | ± 8KV (Differential), Class A |
| ESD Protection | ± 8KV (Contact), ± 15KV (Air), Class A |
| Operating Temperature | -20~+55℃ |
| Operating Humidity | 10% - 90% (Non-condensing) |
| Storage Temperature | -40 to +70 °C |
| Power | 150W Max |
Shipping Specificatons
| SKU | SAT-SB-00511 |
| Model # | PDC2.12.48.150 |
| Barcode # | 9337692005466 |
| Brand | Powertec Starlink Accessories |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.040m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000560000m3 |
| Unit Of Measure | ea |
