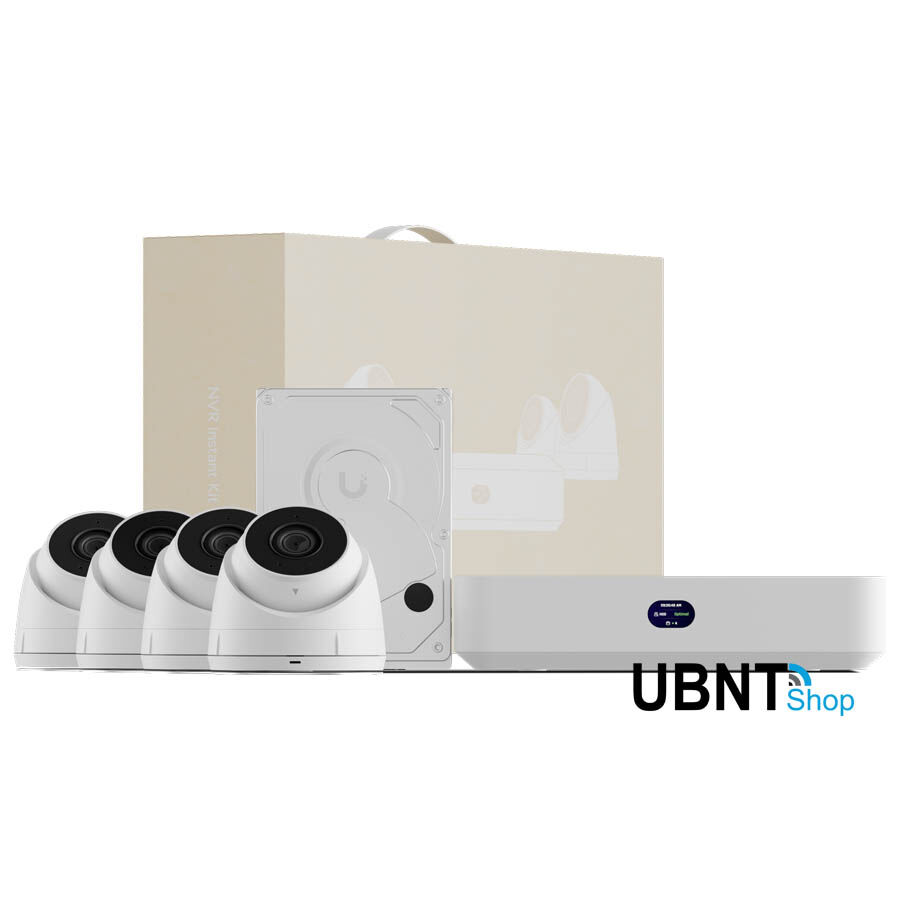

Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit

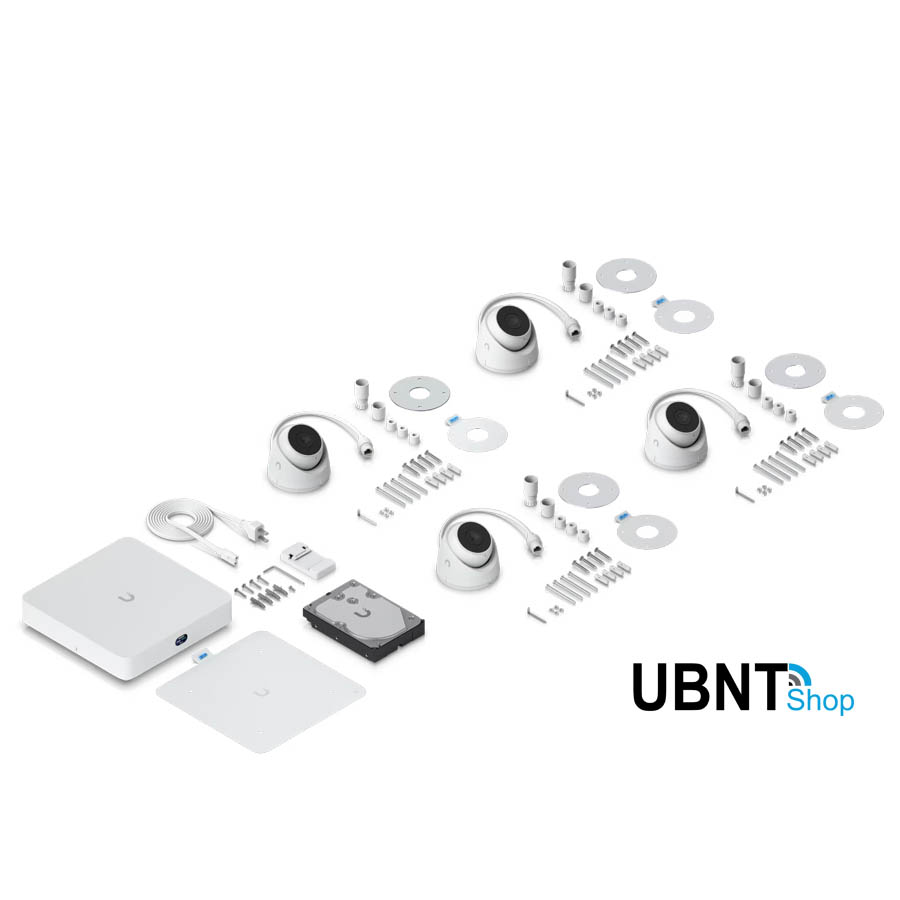

Pack Includes:

Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit- Specifications:

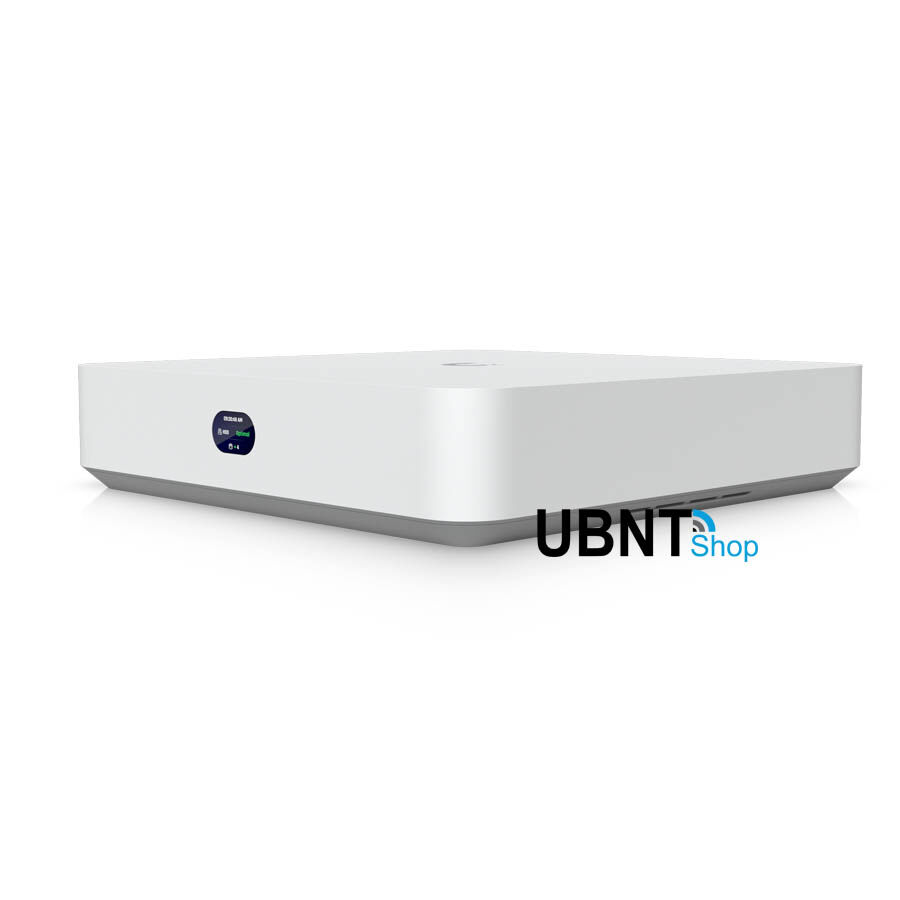

Network Video Recorder Instant

Dimensions

220 x 220 x 47 mm (8.7 x 8.7 x 1.9")

UniFi Application Suite

Protect

Yes

Access

Yes

Managed Cameras

(15) HD (8) 2K (6) 4K

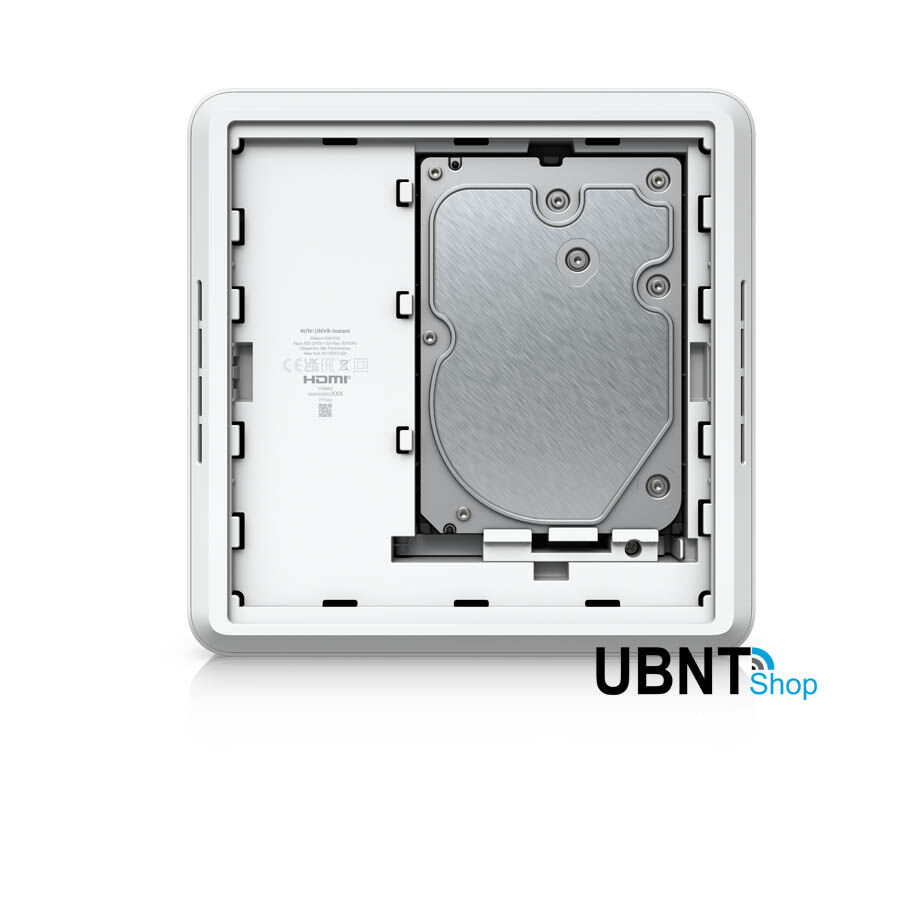

Storage Capacity

(1) 3.5" drive bay

Data Protection

Yes

Vantage Point

Yes

Networking Interface

(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)

Form Factor

Compact Desktop

Mounting

Wall, Din rail mount (Included)

Door Access Support

Yes

Hard Drive Capacity

(1) 3.5" HDD support

Max. Power Budget for Drives

11W

Max. Power Consumption

9W

Power Method

Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply

AC/DC, Internal, 60W

PoE Budget

40W

Max. PoE Wattage per Port by PSE

PoE

15.4W

Voltage Range PoE Mode

44–57V

Processor

Quad-core ARM® Cortex®-A55 at 1.7 GHz

Memory

4 GB

Management

Ethernet Bluetooth

Display

1.14" screen

Weight

1.04 kg (2.3 lb)

Enclosure Materials

Polycarbonate

Mount Material

Polycarbonate

LEDs

Ethernet

Yes

PoE

Yes

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

FCC, IC, CE, Electrical Safety, UL

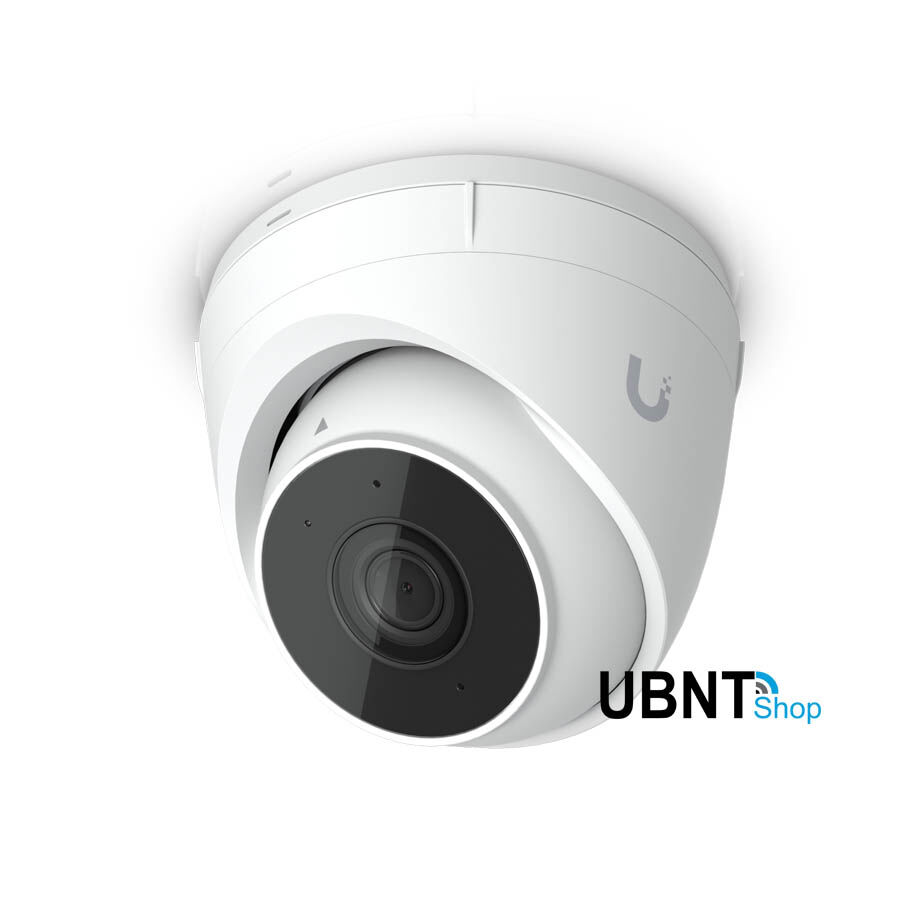

G5 Turret Ultra

Dimensions

Ø90 x 71.2 mm (Ø3.5 x 2.8")

IR Night Vision

30 m (98 ft)

Smart Detections (People, Vehicles, Animals)

Yes

Resolution

2K

Field of View

H: 102.4°, V: 54.9°, D: 120.6°

Audio

Microphone

Weatherproofing

IP66

Tamper Resistance

IK04

Mounting

Wall, ceiling mount (Included) Junction box, arm mount (Optional)

Networking Interface

10/100 MbE RJ45 port

Video

Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Max. Frame Rate

30 FPS

Resolution

4MP 2688 x 1512 (16:9)

Optics

Sensor

1/2.4" CMOS

Lens

Fixed focal length

Night Mode

Built-in IR LED illumination and IR cut filter

Max. Power Consumption

4W

Supported Voltage Range

37—57V DC

Power Method

PoE

Processor

Dual-core Arm® Cortex®-A7 based chip

Weight

330 g (11.6 oz)

Enclosure Material

Aluminum alloy, UV-stabilized polycarbonate

Mount Material

Polycarbonate

Button

(1) Factory-reset

Cable

Cable Connector Type

RJ45

Cable Diameter

5 mm (0.2")

Cable Length

30 cm (1 ft)

Jacket Material

Polycarbonate

Jacket Enclosure Dimensions

Ø20 x 70.6 mm (0.8 x 2.8")

Jacket Enclosure Material

Thermoplastic elastomer, polycarbonate, silicone rubber

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

0 to 90% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC

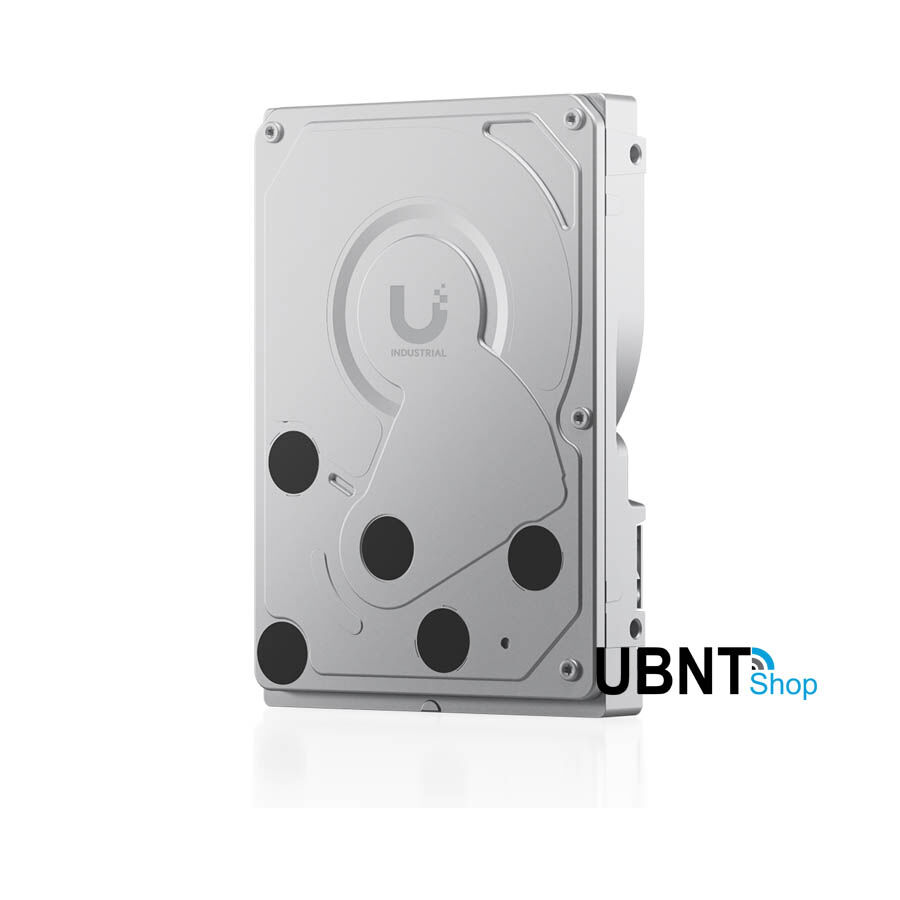

HDD

Dimensions

147 x 101.6 x 26.1 mm (5.75 x 4 x 1")

Hard Disk Form Factor

3.5-inch

Weight

0.45 kg (0.99 lb)

Storage Capacity

1 TB

Power Method

5V/12V input

Management Interface

SATA 6 Gb/s

Rotation Speed

5400 RPM

Workload Rating

180 TB/year

Mean Time Between Failure (MTBF)

1,000,000 h

Ambient Operating Temperature

0 to 65° C (32 to 149° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

Yes

Certifications

FCC, CE, UL, TUV, RCM, KC, BSMI

Ubiquiti UNVR-Instant-Kit UniFi Protect Network Video Recorder Instant Kit- Documents
