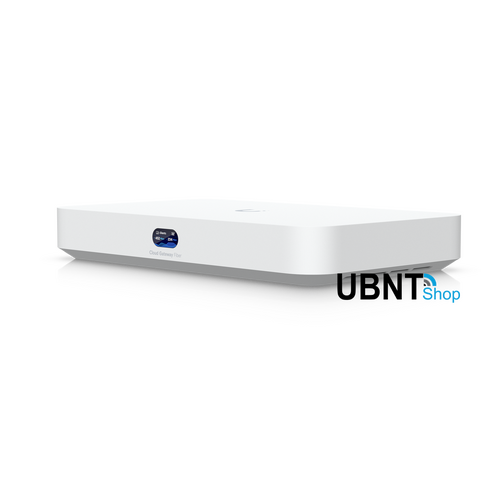

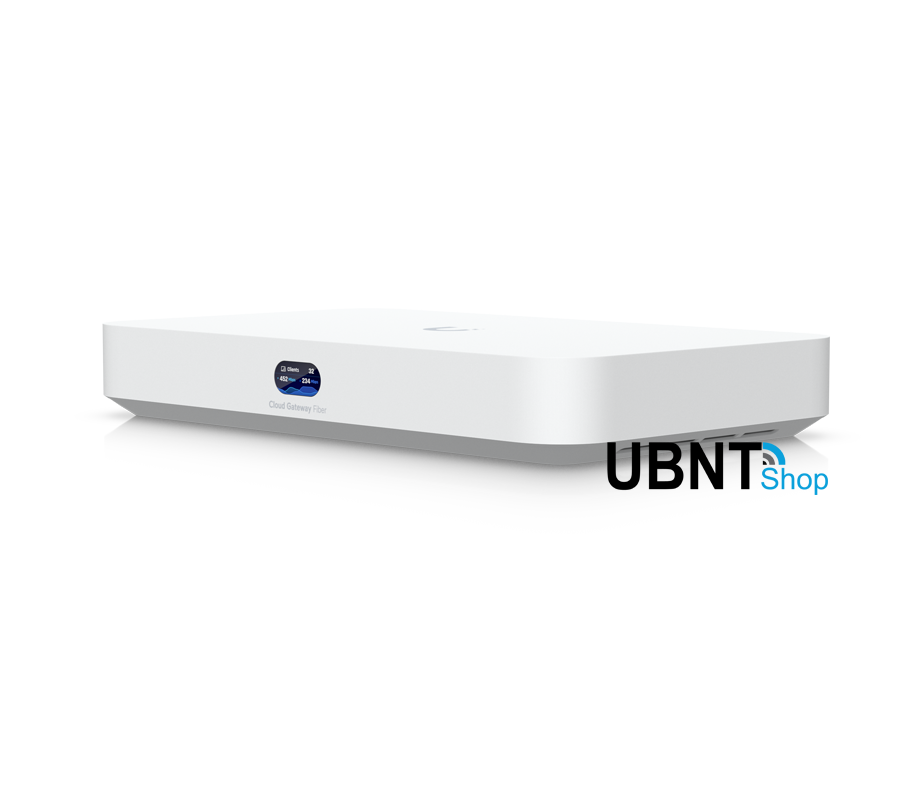

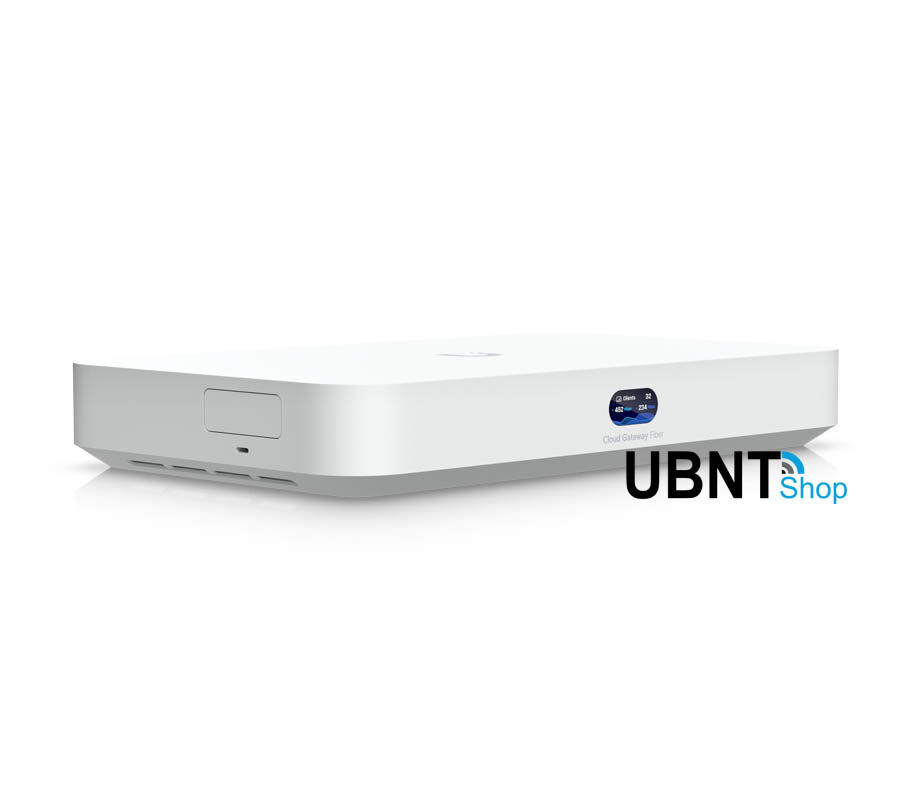

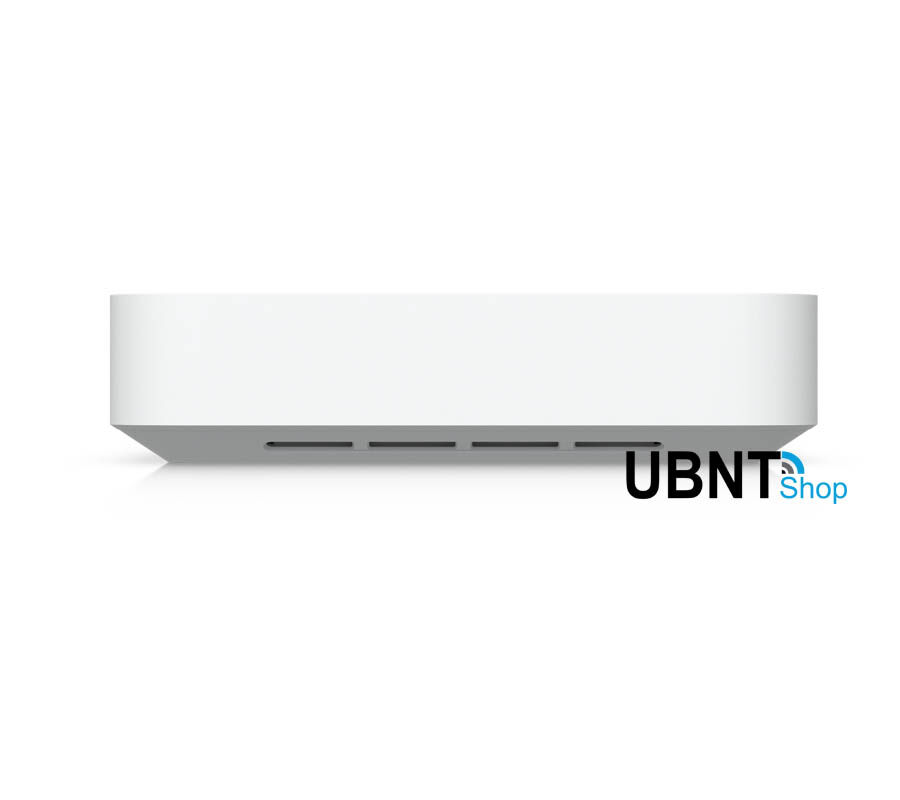

Cloud Gateway Fiber

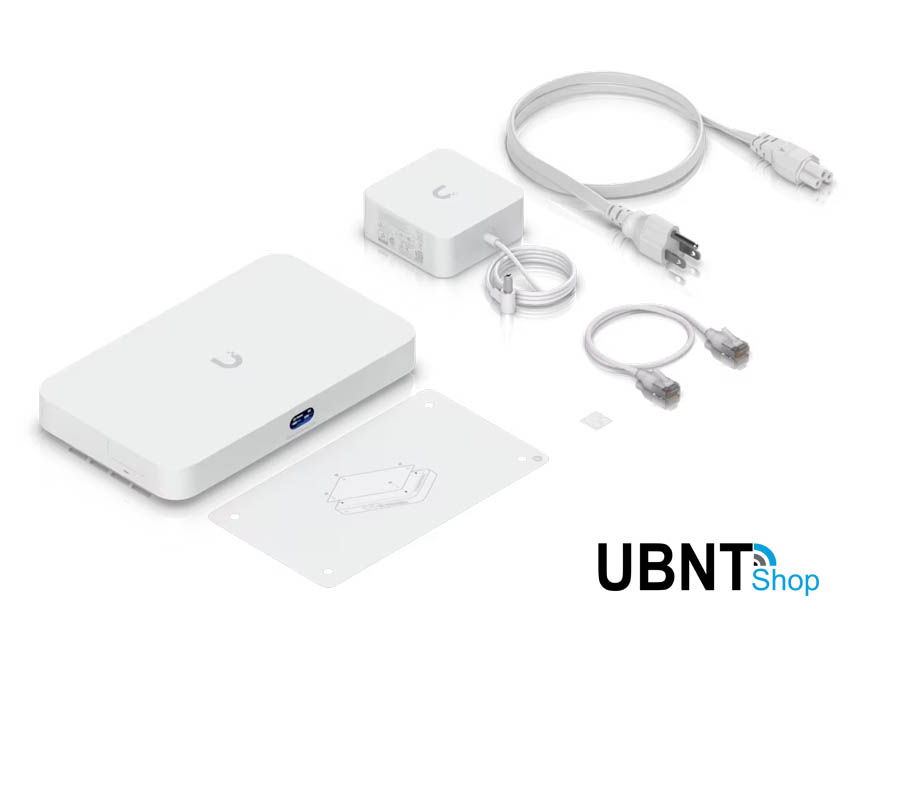

Pack Includes:



Cloud Gateway Fiber- Specifications:

Overview

Dimensions

212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")

UniFi Application Suite

Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes

Managed UniFi Devices

50+

Managed Cameras

HD: 15
2K: 8
4K: 5

Simultaneous Users Connected

500+

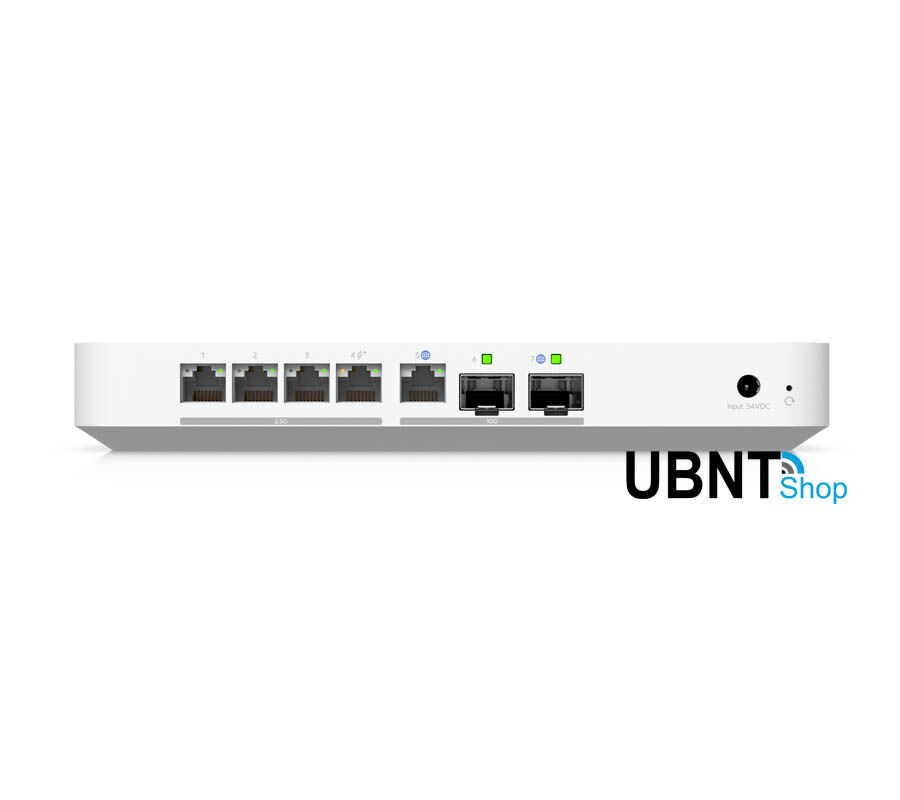

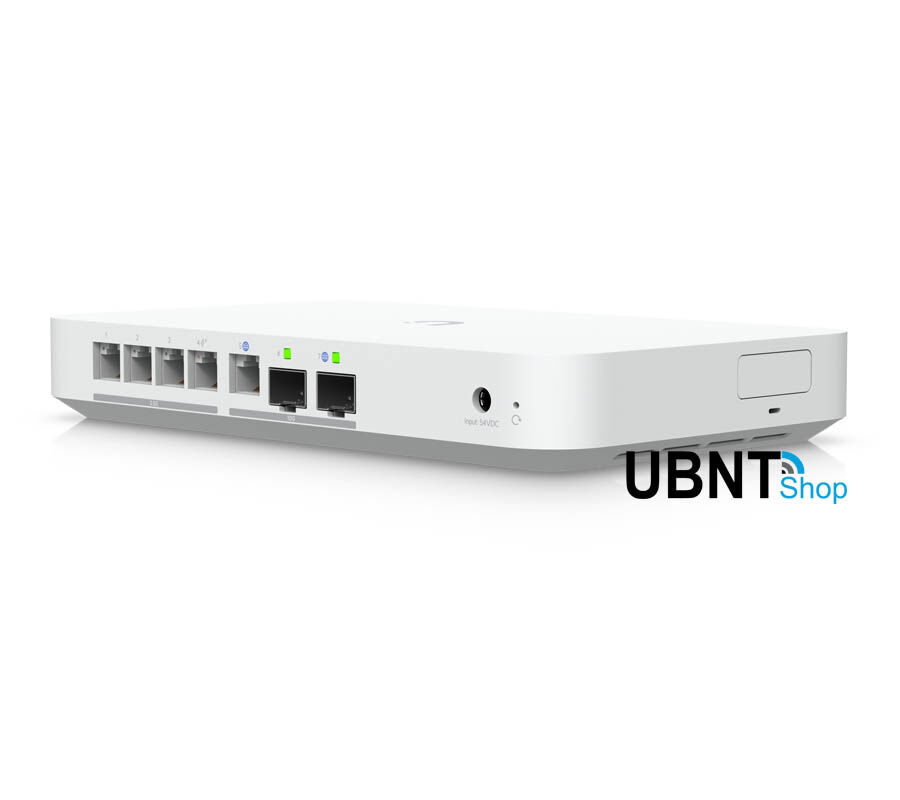

Default WAN Ports

(1) 10G SFP+
(1) 10 GbE RJ45

LAN Ports

(1) 10G SFP+
(4) 2.5 GbE RJ45

IDS/IPS Throughput

5 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic: Yes
IPsec: Yes
OpenVPN: Yes

VPN Server

Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes

VPN Client

OpenVPN: Yes
WireGuard: Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF: Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

4,000

Hardware

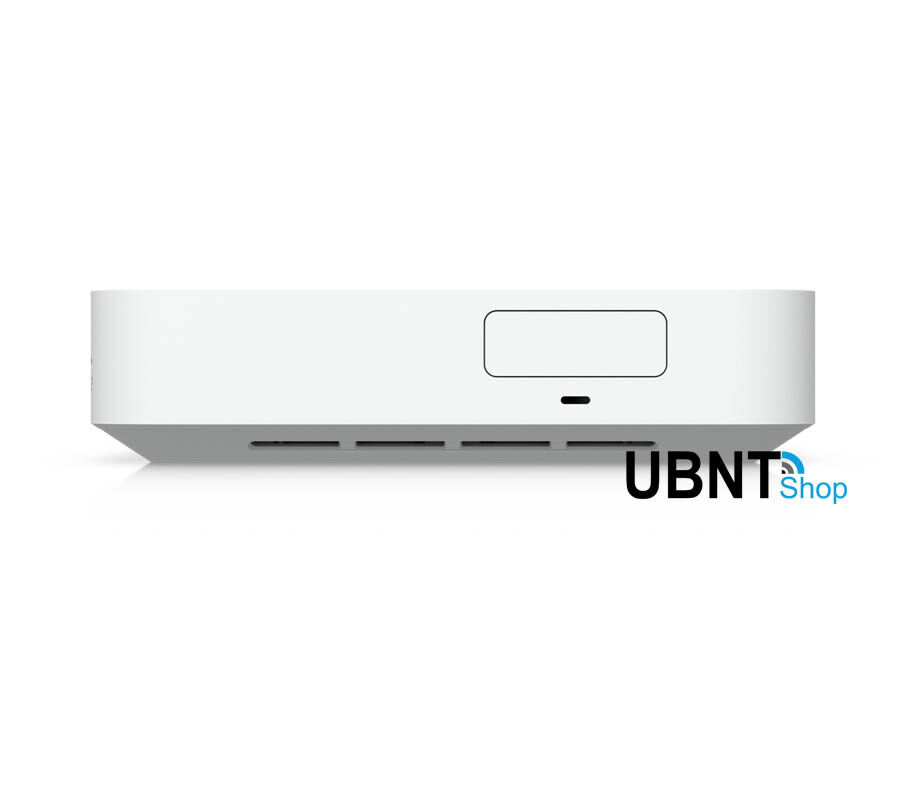

NVR Storage

NVMe SSD not included
*Third-party SSD installation requires tray accessory.

PoE Budget

30W

Max. PoE Wattage per Port by PSE

PoE+: 30W

Voltage Range PoE Mode

50-57V

Max. Power Consumption

29.4W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

54V DC/1.1A (Adapter included)

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory

3 GB

Weight

Without SSD: 675 g (1.5 lb)

Enclosure Material

Polycarbonate

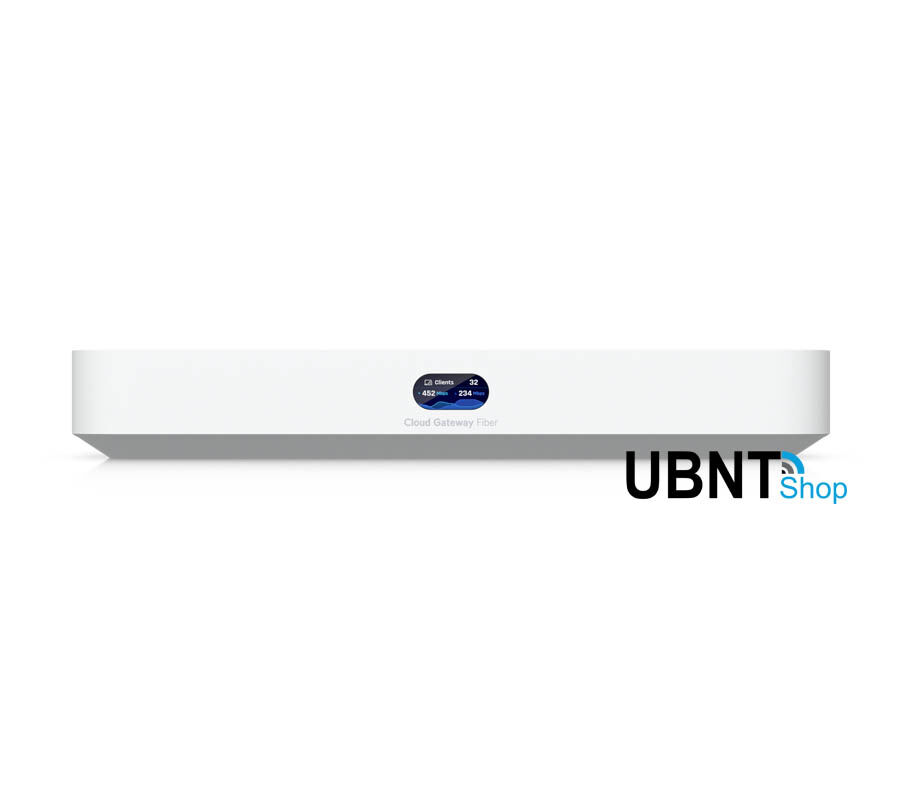

LCM Display

0.96" status display

Management

Ethernet, Bluetooth

LEDs

Ethernet: Yes
SFP+: Yes

ESD/EMP Protection

Air: ±8kV, Contact: ±4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% non-condensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset
