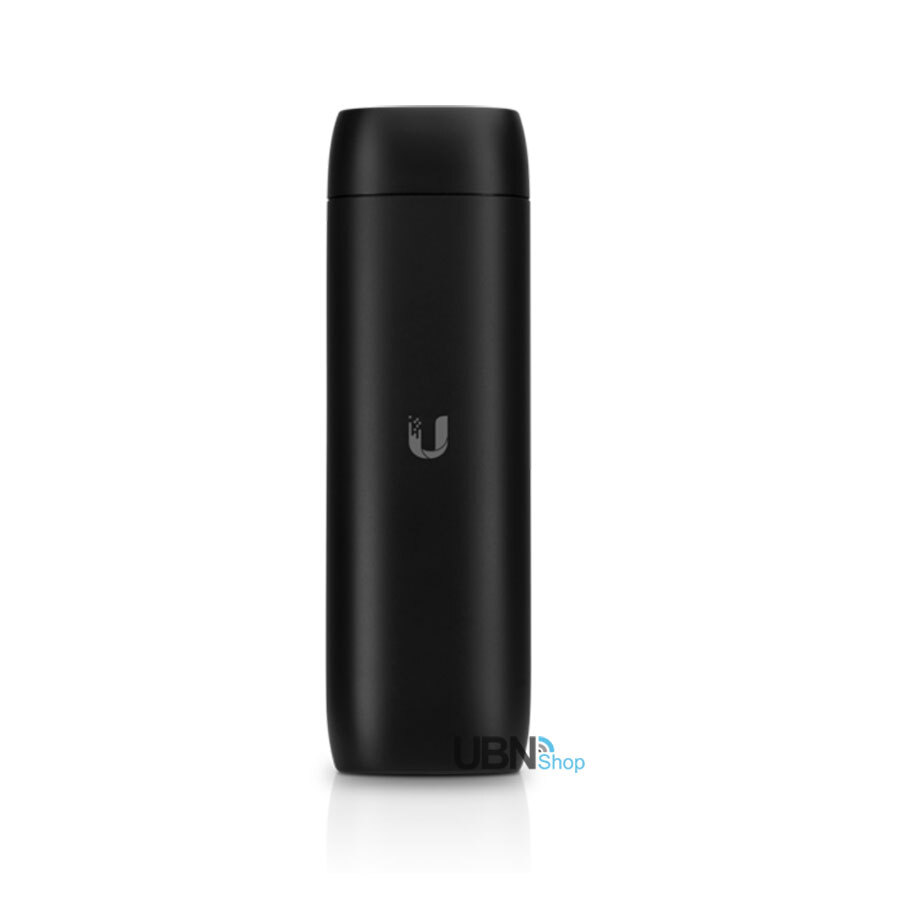

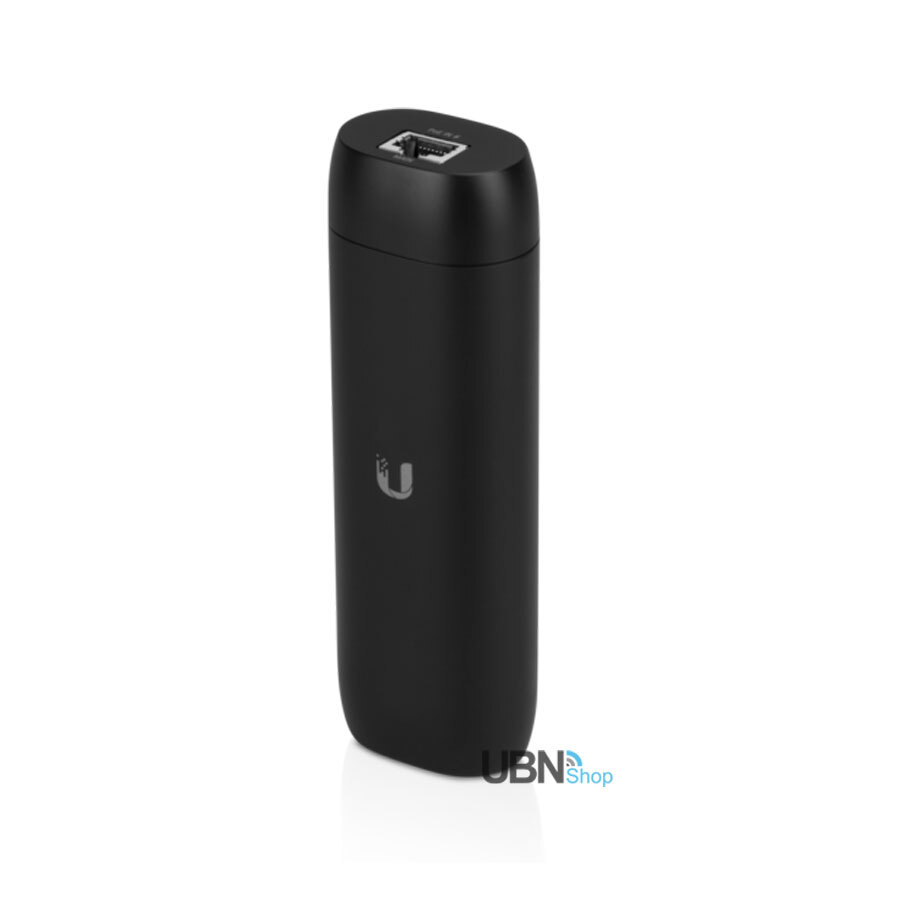

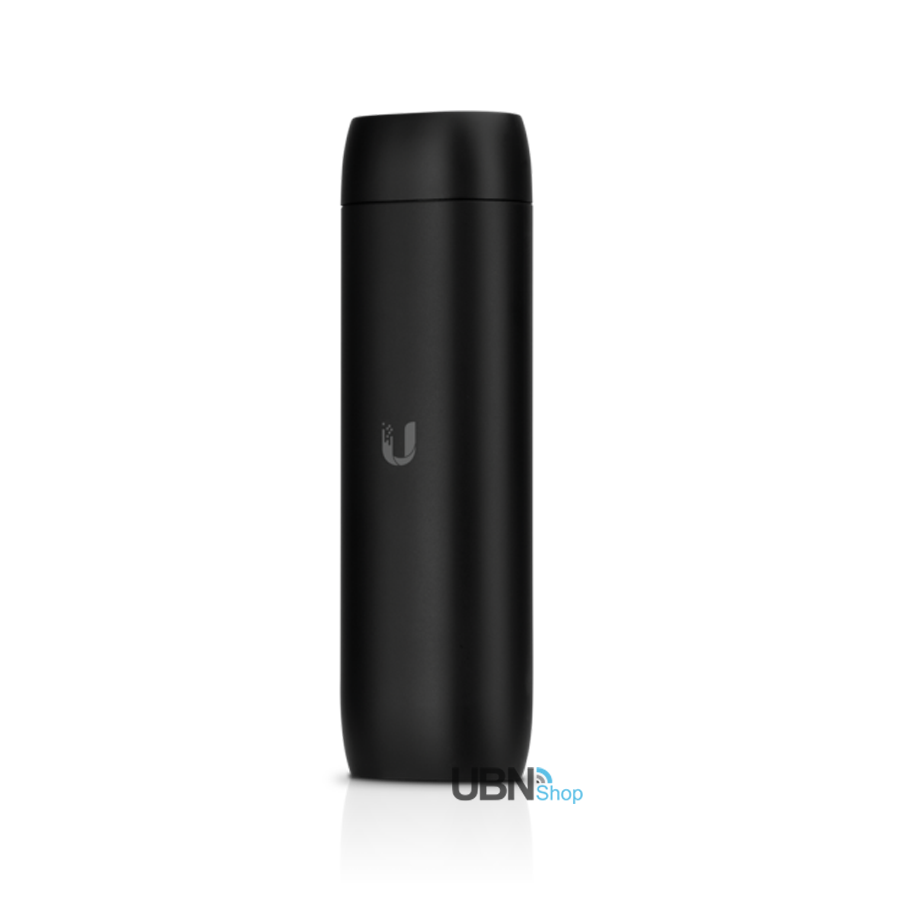

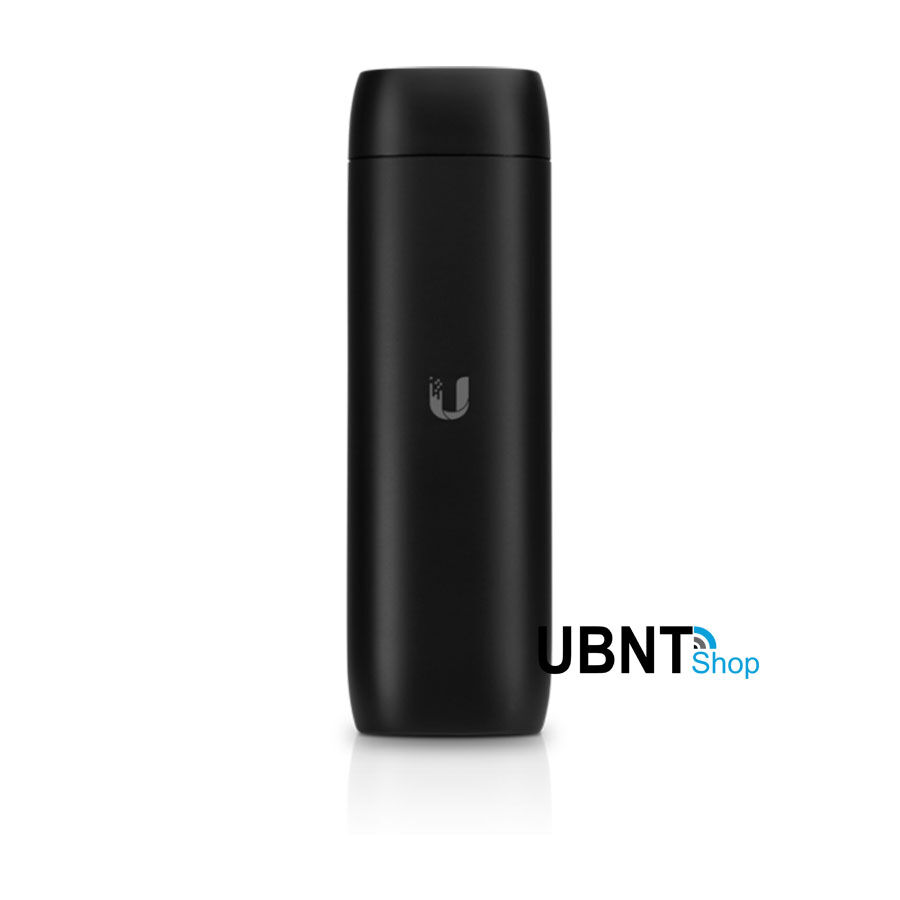

UniFi Protect ViewPort PoE

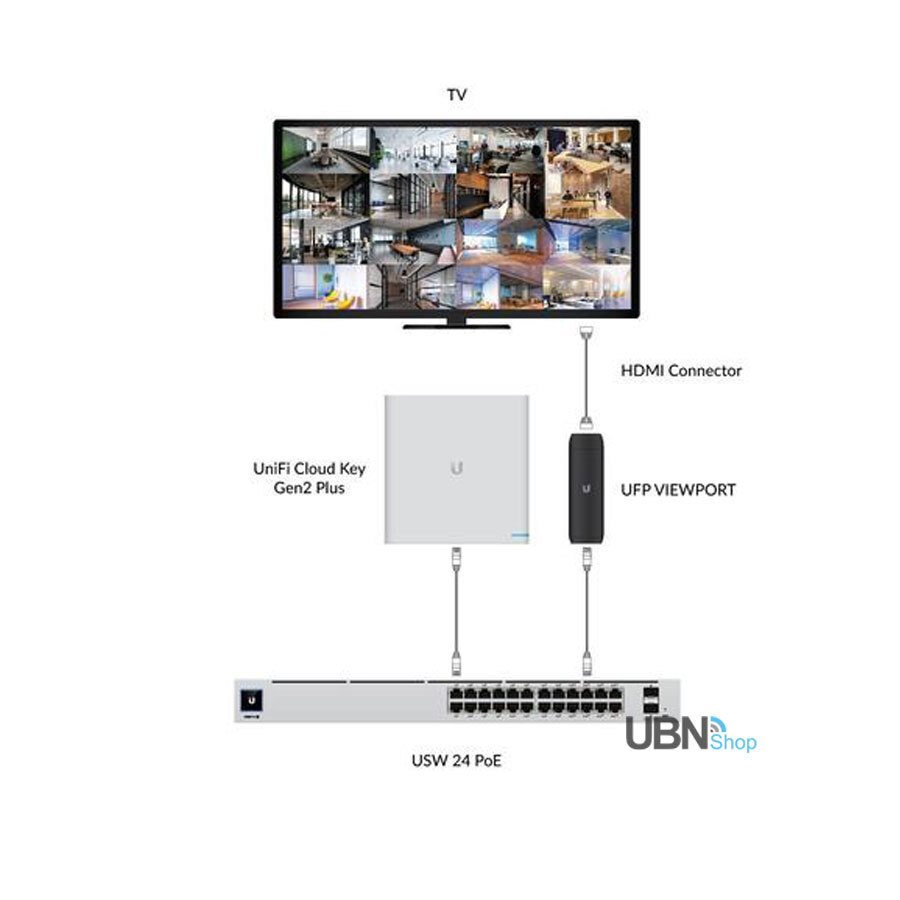

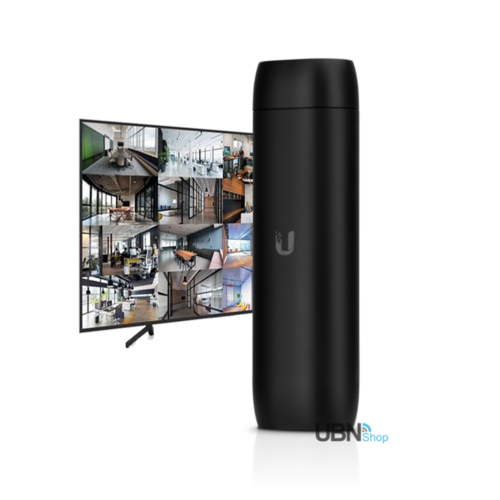

The UniFi® Protect ViewPort allows you to view your UniFi Protect camera feeds on a n HDMI display. It uses Power over Ethernet and connects to the local network hosting your cameras and connects via HDMI to a display. The UniFi Protect ViewPort offer s 4K video output at 30 frames per second. Protect systems can be viewed in custom high-density camera matrix configurations.



Features:

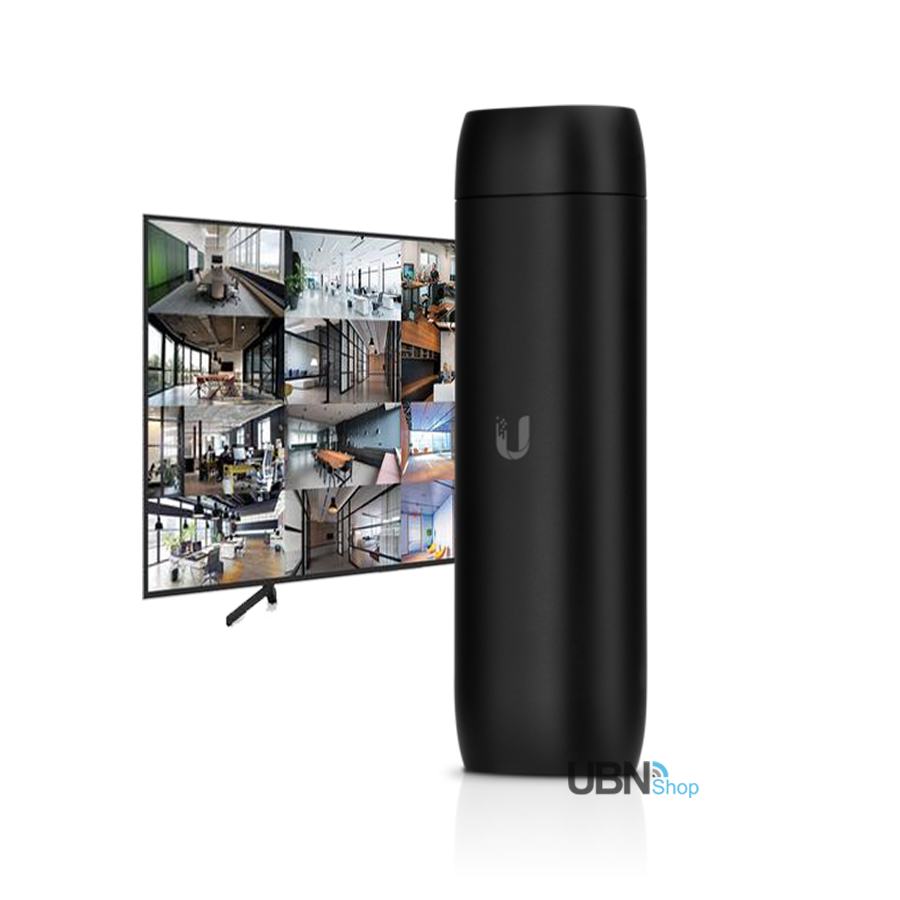

View Unifi Protect cameras on an HDMI display

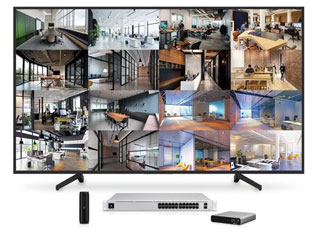

Display up to 16 IP cameras simultaneously
Easy setup with UniFi Protect System
Powered by Power over Ethernet up to 1 Gbps
HDMI video output up to 4K @ 30 fps



(UFP-VIEWPORT)

UniFi Protect ViewPort PoE

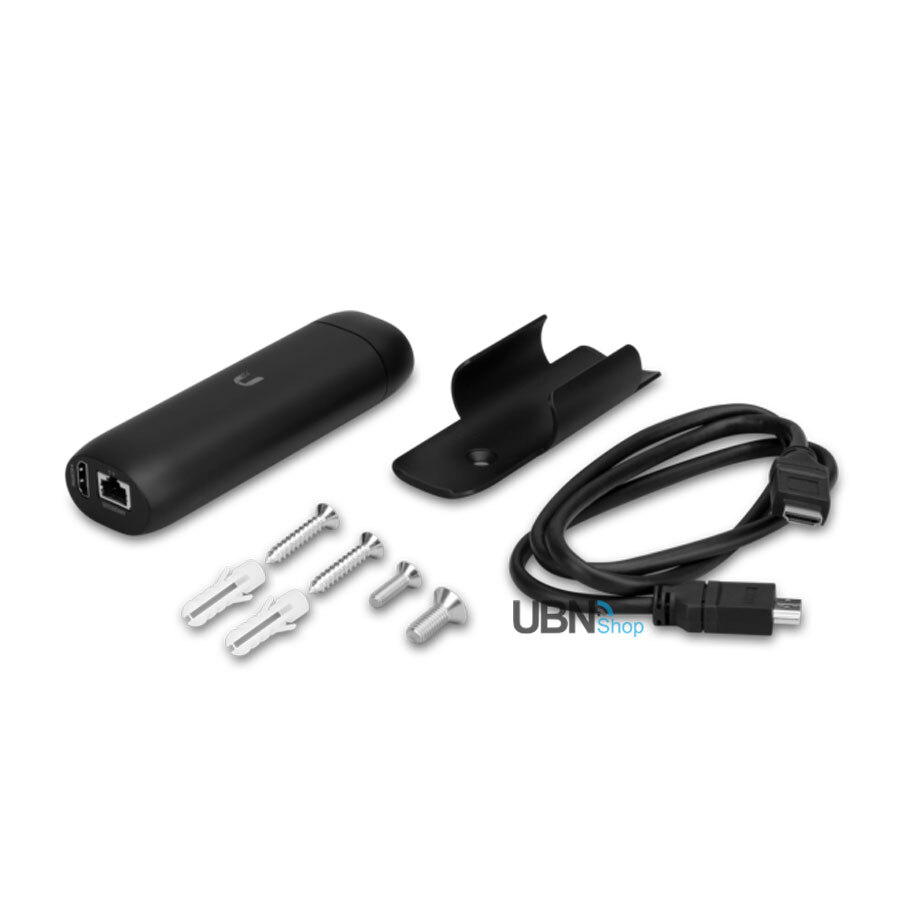

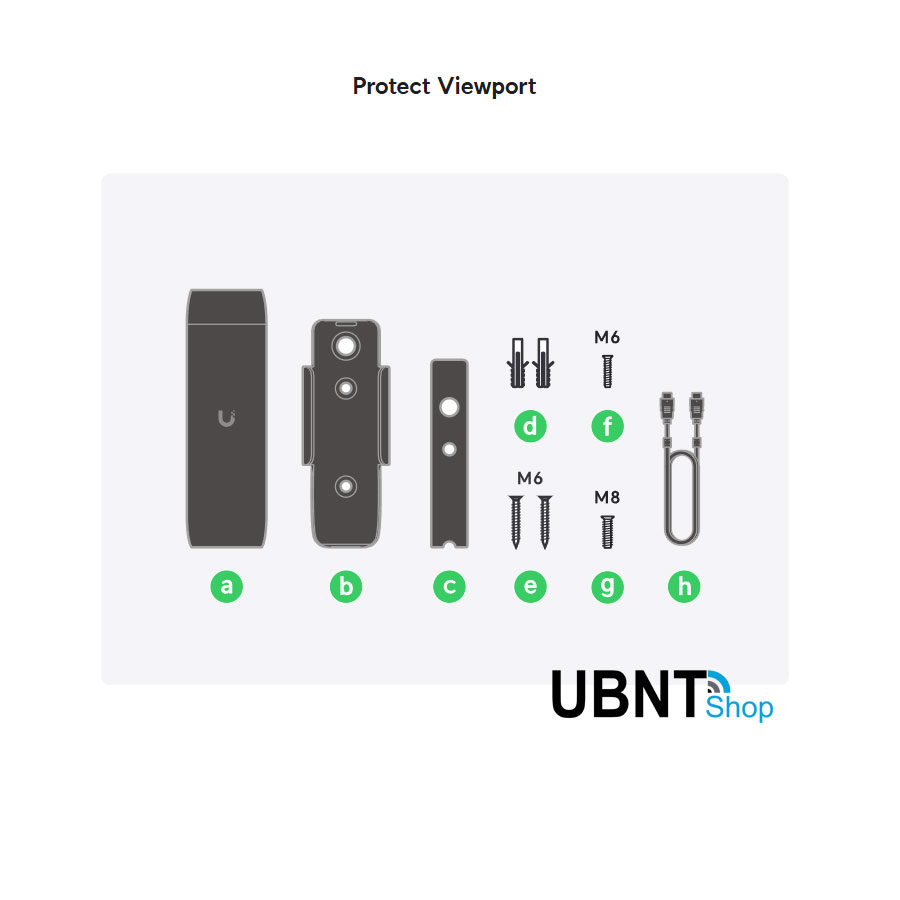

Pack Includes:

  • 1 x UniFi Protect ViewPort PoE
  • 2 x Wall Anchors
  • 1 x Mounting Bracket
  • 2 x Wall Mounting Screws
  • 2 x Machine Screws
  • 1 x Quick Start Guide

UniFi Protect ViewPort PoE- Specifications:

Mechanical
Dimensions 157 x 52 x 37 mm (6.18 x 2.05 x 1.46")
Weight Without Mount: 230 g (8.11 oz)
With TV Mount: 252 g (8.89 oz)
Enclosure Material Polycarbonate
Mount Material Polycarbonate
Hardware
Processor The Qualcomm ® QCS605 SoC
Memory Information 4GB Low Power DDR4X
ManagementInterface UniFi Protect

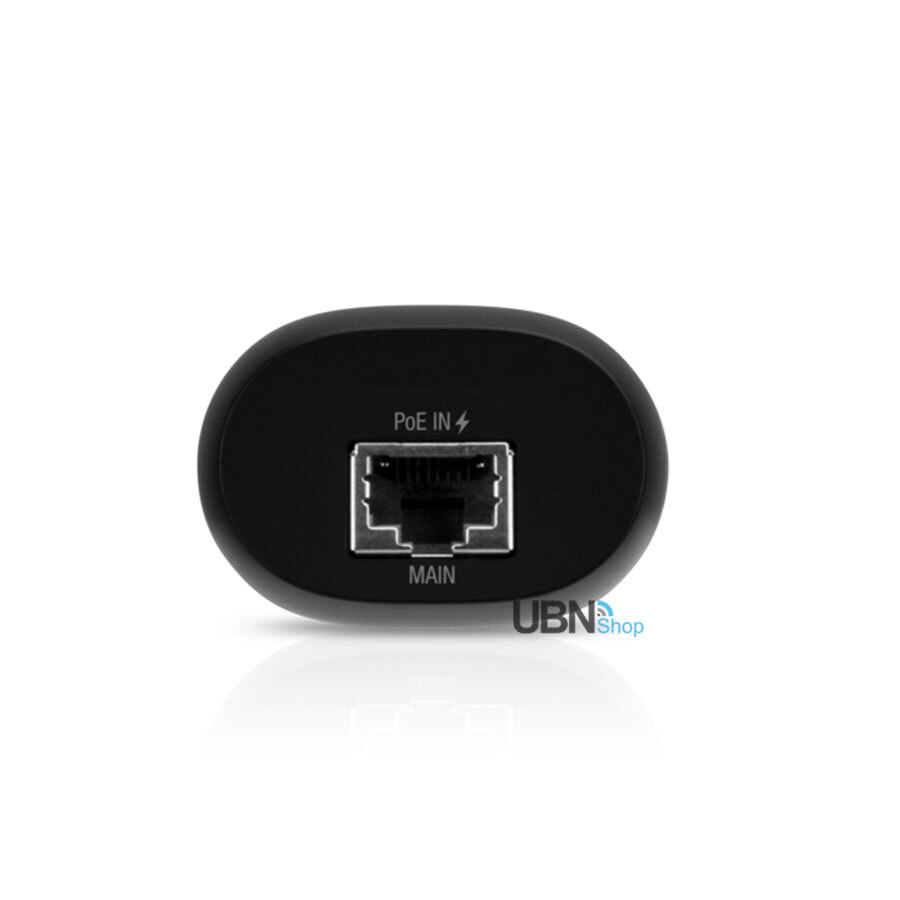

Networking Interface 10/100/1000 Mbps RJ45 Ethernet Port
Max. Power Consumption 9.5W
Power Method 802.3af PoE
Power Supply 802.3af PoE
ESD/EMP Protection Air: ± 8kV, Contact: ± 4kV
Operating Temperature 0 to 40° C (32 to 104° F)
Operating Humidity 20 to 80% Noncondensing

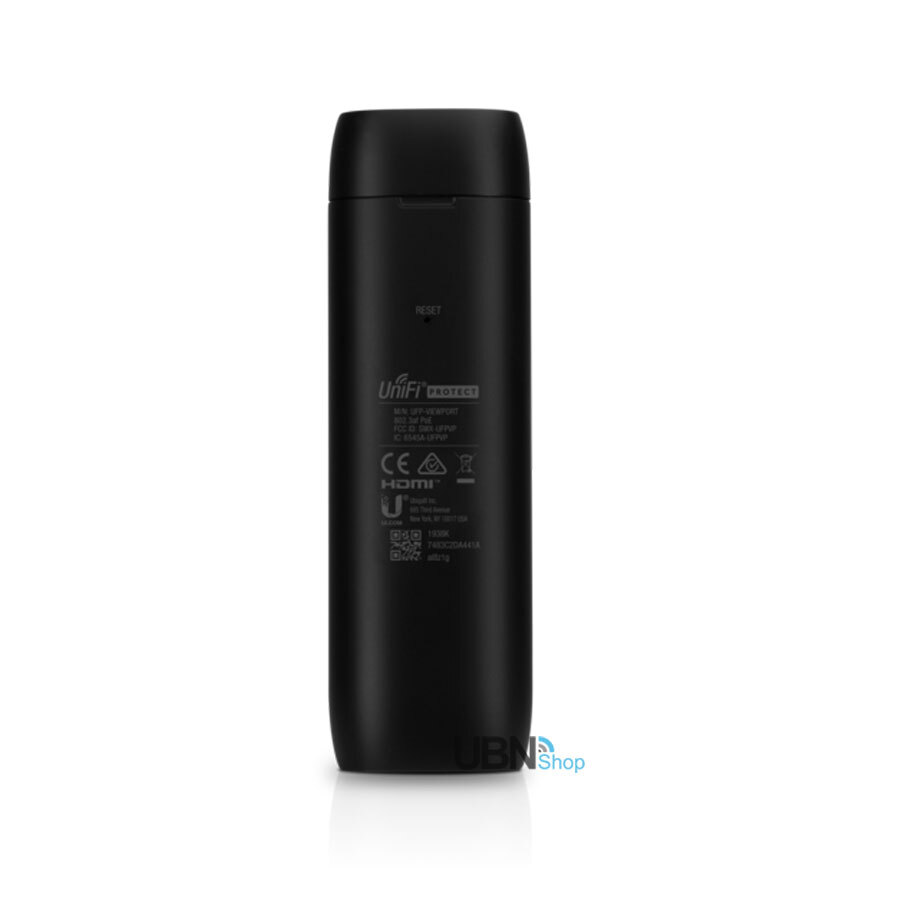

Button Factory Reset
Bluetooth 5.0
Antennas Bluetooth
Antenna Gain 2 dB
Certications FCC, IC, CE

Shipping Specifications

Shipping Specifications

SKU UFP-VIEWPORT
Model # UFP-Viewport
Brand UniFi-Protect
Barcode # 8.18E+11
Brand Ubiquiti
Shipping Weight 0.3000kg
Shipping Width 0.065m
Shipping Height 0.045m
Shipping Length 0.180m
Shipping Cubic 0.000526000m3
Unit Of Measure ea
