The UXG-Enterprise is a high-performance, standalone gateway designed to provide a robust security and routing foundation for medium-to-large-scale networks.
Next-Generation Power. Enterprise-Scale Control.
The UXG-Enterprise is a high-performance, standalone gateway designed to provide a robust security and routing foundation for medium-to-large-scale networks. Experience 10G connectivity and deep packet inspection without the bottleneck.
Performance Without Compromise
Built for high-traffic environments, the UXG-Enterprise delivers the throughput required for modern fiber-backed businesses.
| Feature | Specification |
| Max Throughput | 28 Gbps+ Routing Capability |
| IDS/IPS Throughput | 9.3 Gbps (with all security features enabled) |
| Networking | •(2) 25G SFP28,*** (2) 10G SFP+***, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN) |
| Redundancy | Dual-WAN support & UniFi SmartPower Redundant PSU |
Key Enterprise Features
25G Networking

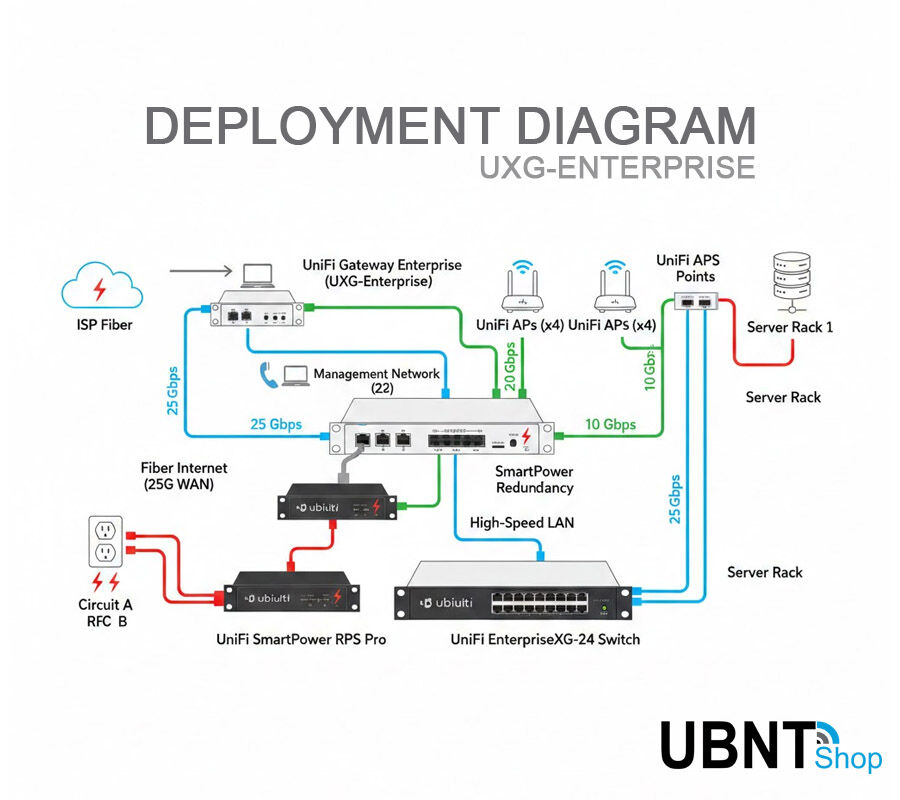

Future-proof your infrastructure. With SFP28 ports, you can leverage high-speed uplinks to your core switches (like the USW-EnterpriseXG-24) and handle massive internal data transfers with zero latency.
Advanced Security Suite
-
Signature-based IDS/IPS: Real-time protection against known threats and exploits.
-
Deep Packet Inspection (DPI): Granular visibility into network traffic and application usage.
-
Identity-driven Firewall: Create complex rules based on users and groups, not just IP addresses.
Mission-Critical Reliability
Never lose connectivity. The UXG-Enterprise features a 1.3" LCM color touchscreen for instant status monitoring and supports the UniFi SmartPower RPS for power failover protection.
The Standalone Advantage
Unlike the Dream Machine Pro/Special Edition, the UXG-Enterprise is a dedicated gateway. It focuses 100% of its processing power on routing and security, allowing you to manage it via an external UniFi Network Application or a Cloud Key.
Admin Note: Perfect for organizations that prefer to host their controller in the cloud or on a dedicated Linux server.
FEATURES
-
Form Factor: 1U Rackmount
-
Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
-
Memory: 4 GB DDR4
-
Management: Ethernet In-Band, Bluetooth 4.1
-
Power: Universal AC Input (100—240V AC) + USP-RPS DC Input
Ready to upgrade your backbone?
Unifi Gateway Max Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.
(UXG-ENTERPRISE)
What's In The Box
-
UniFi Gateway Enterprise (UXG-Enterprise)
-

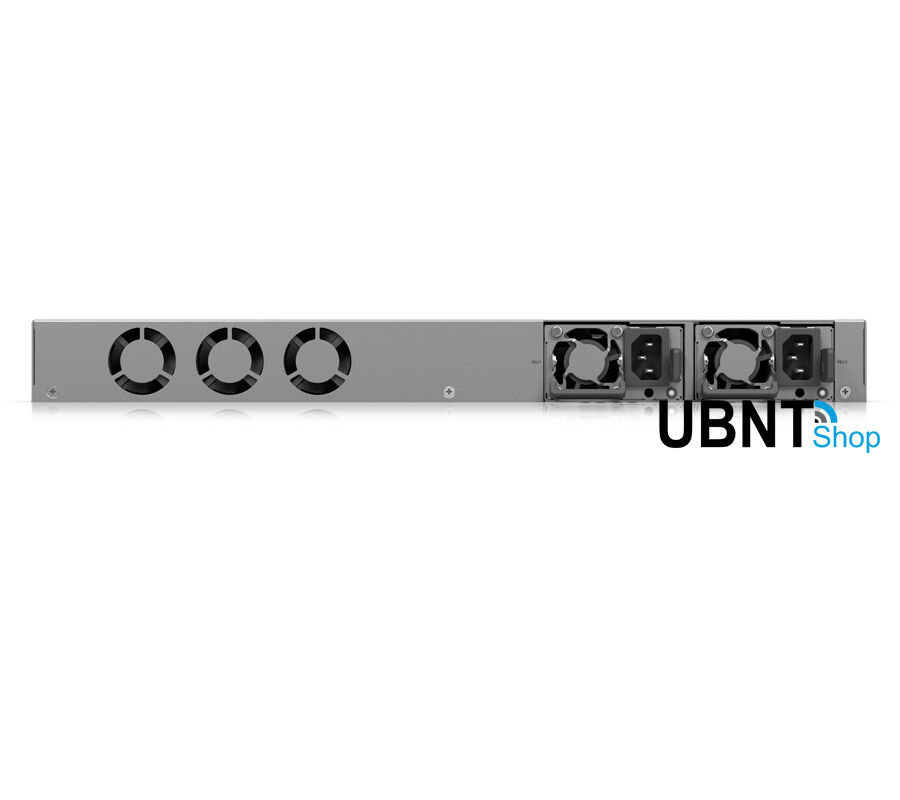

(2) 150W AC/DC CRPS Power Supply Modules (Pre-installed)
-
Rack-mount kit (Brackets and screws)
-
Rubber feet (For desktop placement)
-
Power Cord
UXG-ENTERPRISE Unifi Gateway - Specifications
Physical & Performance
| Feature | Details |
| Operating Temp | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Certifications | CE, FCC, IC, NDAA Compliant |
| App Requirement | UniFi Network Version 8.3.32 and later |
Port Layout & Connectivity
| Port Type | Count | Supported Speeds |
| 25G SFP28 | 2 | 25G / 10G / 1G |
| 10G SFP+ | 2 | 10G / 1G |
| 2.5 GbE RJ45 | 2 | 2.5G / 1G / 100M / 10M |
| Max WAN Ports | 5 | Customizable via interface remapping |
| Default WAN Ports | — | (1) 25G SFP28 and (1) 2.5 GbE RJ45 |
Capacity & Sessions
| Metric | Capacity |
| Concurrent Sessions | 1 Million |
| SSL/TLS Sessions | 10,000 (Concurrent) |
| New Sessions / Sec | 71,000 |
Advanced Security & Networking
| Category | Features Included (✓) |
| Security | Stateful Firewall, L7 App-Aware, SSL Inspection, DPI, IDS/IPS (95k+ signatures), Ad Blocking, Content Filtering |
| VPN Support | Site Magic SD-WAN, Teleport, WireGuard, OpenVPN, IPsec, L2TP |
| Multi-WAN Load Balancing, LACP Aggregation, OSPF/BGP, mDNS, Advanced NAT (SNAT/DNAT), IGMP Proxy | |
| VPN Throughput | 1.2 Gbps (WireGuard/Teleport/Identity), 580 Mbps (IPsec) |
Environmental & Compliance
| Feature | Details |
| Operating Temp | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Certifications | CE, FCC, IC, NDAA Compliant |
| App Requirement | UniFi Network Version 8.3.32 and later |
| SKU | UXG-ENTERPRISE |
| Model # | UXG-ENTERPRISE |
| Barcode # | 810084695388 |
| Brand | Ubiquiti |
| Shipping Weight | 0.5200kg |
| Shipping Width | 0.127m |
| Shipping Height | 0.030m |
| Shipping Length | 0.141m |
| Shipping Cubic | 0.000537000m3 |
| Unit Of Measure | ea |
