Ubiquiti Cloud Gateway Max



Ubiquiti Cloud Gateway Max - Specifications



Dimensions

141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

UniFi Application Suite

Network

✓

Protect

✓

Access

✓

Talk

✓

Connect

✓

Managed UniFi Devices

30+

Managed Cameras

(15) HD (8) 2K (5) 4K

Simultaneous Users Connected

300+

Max. WAN Port Count

4

Default WAN Ports

(1) 2.5 GbE RJ45

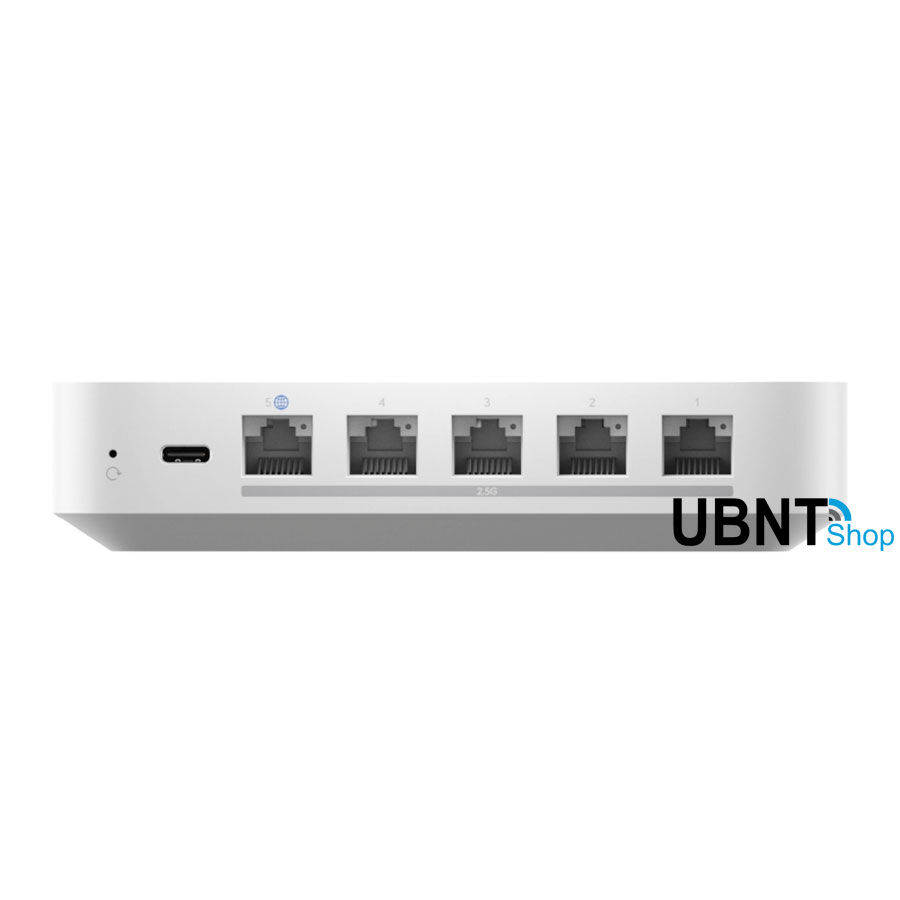

Port Layout

2.5 GbE RJ45

5 (2.5G/1G/100M/10M)

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

✓

VPN & SD-WAN

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic

✓

IPsec

✓

OpenVPN

✓

VPN Server

Identity Endpoint One-Click VPN

✓

Teleport Zero-Configuration VPN

✓

WireGuard

✓

OpenVPN

✓

L2TP

✓

VPN Client

OpenVPN

✓

WireGuard

✓

Networking

Multi-WAN Load Balancing

✓

Dynamic Routing

OSPF

✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

2,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

Hardware

NVR Storage

Selectable NVMe SSD up to 2 TB

Max. Power Consumption

16.1W

Power Method

USB type C (5V DC/5A)

Power Supply

USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range

100—240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet Bluetooth

LEDs

Ethernet

✓

Button

(1) Factory-reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC, Anatel, SRRC

Software

Application Requirements

Mobile App

UniFi iOS™ and Android™: Version 10.17.2 and later
