Cudy WR300 N300 WiFi Router



A WiFi router with four Fast Ethernet ports allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.

  •  300 Mbps Wi-Fi 1
  •  4× Fast Ethernet Ports
  •  Covers 90 m² (950 ft²) 2
  •  Router/AP/RE/WISP/Client/Mesh Modes
  •  VPN Client of WireGuard, PPTP, L2TP
  •  Cudy App
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.

(CU-WR300)

Cudy WR300 N300 WiFi Router

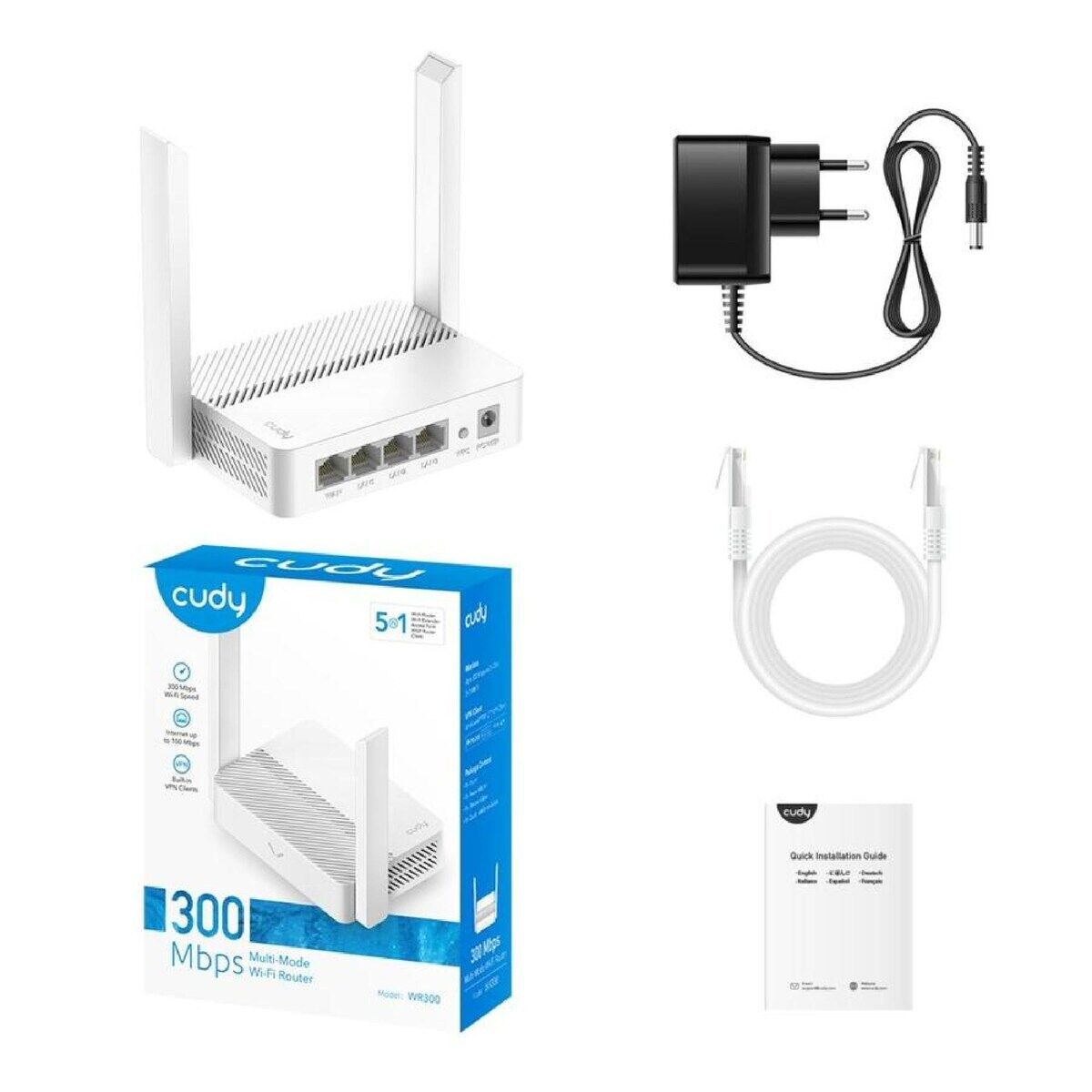

Pack Includes:

1 * WR300

1 * Power Adapter

1 * Ethernet Cable

1 * Installation Guide

Cudy WR300 N300 WiFi Router- Specifications:

Model Version WR300 1.0
CPU CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
  DDR/RAM 64 MB (512 Mbit) DDR2
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 2× Fixed
  FEM or PA/LNA 2.4 GHz: 2× Internal
  Range Performance Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
  Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')

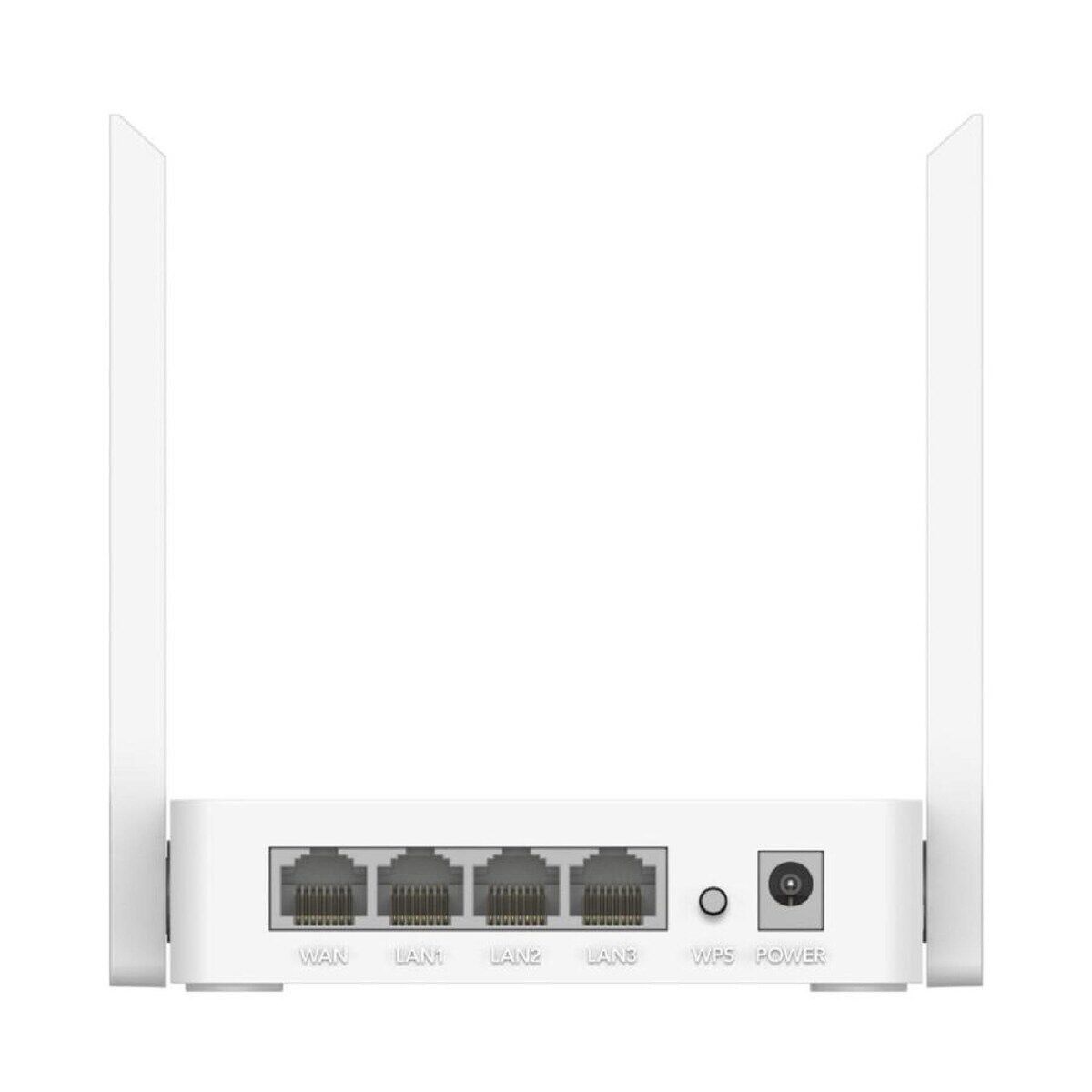

Interfaces 10/100 Mbps RJ45 Ports 4
  Ethernet Notes 1× WAN port, the rest are LAN ports
  LED System
  Physical Buttons
  • WPS Button
  • Reset Button
  Power Input DC Jack
Power Power Methods DC
  DC Input 5V 1A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 5V 1A DC
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
  Dimension 118×80×27.5 mm
4.65×3.15×1.08 inches
  Product Weight 120 g (4.23 oz.)
Package Content
  • WR300
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight EU: 336 g (11.85 oz.)
  Retail Package Dimension 176×140.5×56 mm
6.93×5.53×2.2 inches
  Units per Carton 40
  Carton Dimension 60×30×37.5 cm
23.62×11.81×14.76 inches
  Carton Gross Weight EU: 14.4 kg (31.75 lbs)
  Carton Net Weight EU: 13.4 kg (29.54 lbs)
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.

Shipping Specifications

SKU CU-WR300
Model # WR300
Brand CUDY
Shipping Weight 0.3360kg
Shipping Width 0.176m
Shipping Height 0.560m
Shipping Length 0.141m
Shipping Cubic 0.013896960m3
Unit Of Measure ea
