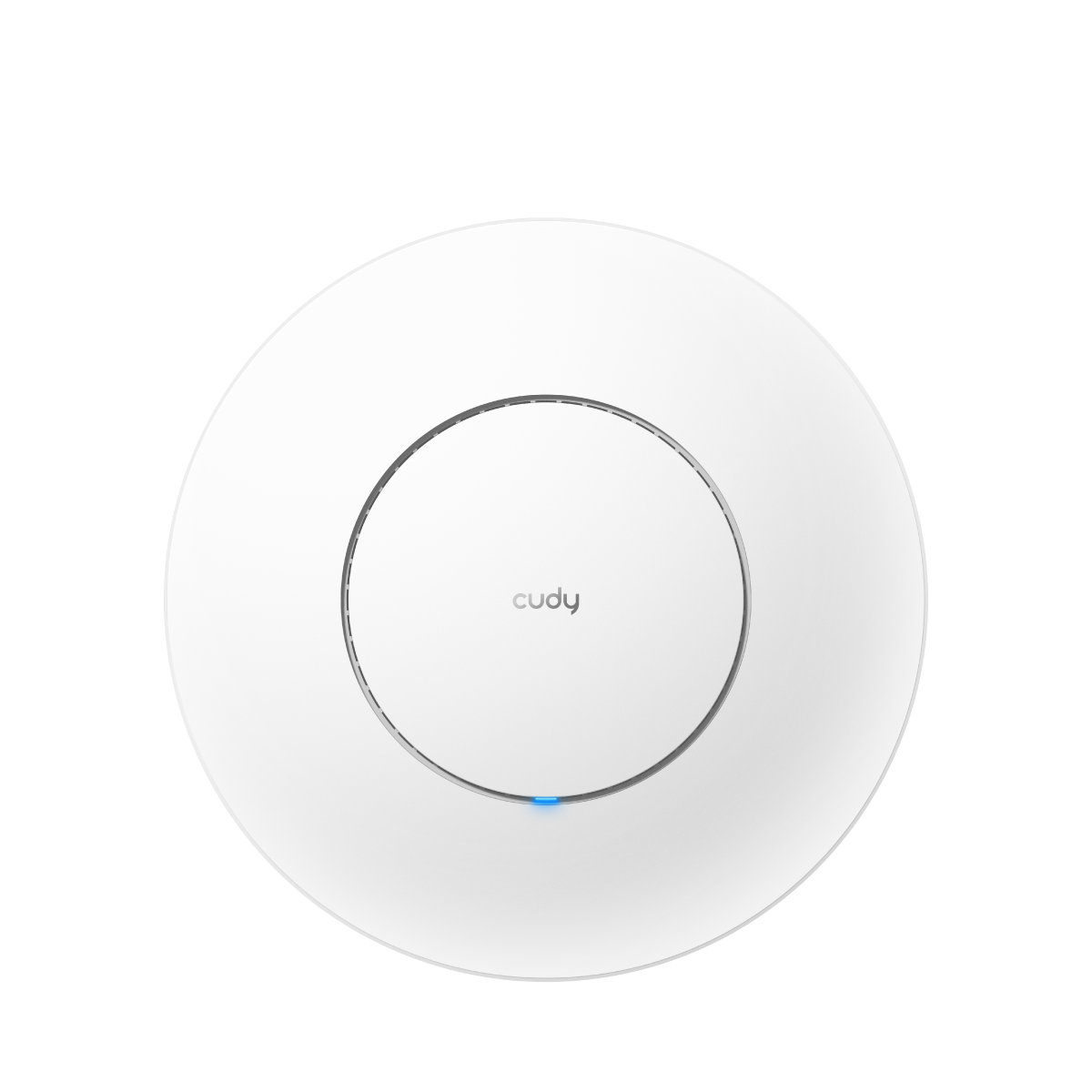

Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter
CU-AP1300_P
$131.28
In Stock
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:
Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter
A wall/ceiling-mounted WiFi AP designed for offices and classrooms.
- 4-Stream Dual-Band Wi-Fi 5
- 867 Mbps + 300 Mbps Wi-Fi 1
- 1× Shielded GbE PoE In
- 802.3at/af, Passive PoE, DC
- 100 Connected Devices 2
- Covers 100m² (1,100 ft²) 3
(CU-AP1300_P)
Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter
Pack Includes:
1 * AP1300
1 * Power Adapter
1 * Mounting Kit
1 * Ethernet Cable
1 * Installation Guide
Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter- Specifications:
| Model Version | AP1300 1.0 | |
|---|---|---|
| CPU | CPU Details | 880 MHz Dual-Core CPU |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Internal | |
| FEM or PA/LNA |
|
|
| Beamforming | True | |
| Range Performance | Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
|
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
|
| Interfaces | Gigabit RJ45 Ports | 1 |
| Ethernet Notes | Accepts PoE powering | |
| LED | System | |
| Physical Buttons | Reset Button | |
| Power Input |
|
|
| Power | Power Methods |
|
| DC Input | 12V 1A | |
| Passive PoE Input | 24 ~ 57V | |
| Power Adapter | AP1300 | DC Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC AP1300_P | PoE Adapter in the box: Input: 100 ~ 240 V, 50/60 Hz AC Output: 48V Passive PoE |
|
| Max Power Consumption (W) | Max (PoE): 11 W Max (DC): 7.5 W |
|
| Idle Power Consumption (W) | 4.008 W | |
| Reliability | Advanced | Hardware Watchdog |
| EMC | ESD: Contact: 4kV; Air: 8kV | |
| Environment | Operating Temperature: -10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | Φ231.9×57.1 mm Φ9.13×2.25 inches |
|
| Product Weight | 400 g (14.11 oz.) | |
| Package Content |
|
|
| Ordering Information | Retail Package Weight |
|
| Retail Package Dimension | 283×238×68 mm 11.14×9.37×2.68 inches |
|
| Units per Carton | 20 | |
| Carton Net Weight |
|
|
| Carton Gross Weight |
|
|
| Carton Dimension | 58×37.5×49.5 cm 22.83×14.76×19.49 inches |
|
- Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
- Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.
- The wireless coverage claim serves as a reference only. Coverage performance will vary due to environmental factors including building layout, obstacles, traffic volume and density, and device location. For optimal coverage, please place the device in a central location within the area requiring Wi-Fi.
Shipping Specifications | |
| SKU | CU-AP1300_P |
| Model # | AP1300_P |
| Brand | CUDY |
| Shipping Weight | 0.4300kg |
| Shipping Width | 0.283m |
| Shipping Height | 0.068m |
| Shipping Length | 0.238m |
| Shipping Cubic | 0.004580072m3 |
| Unit Of Measure | ea |
Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter- Documents
Installation Guide Cudy AC1200_P WiFi Gigabit Access Point with PoE Adapter
