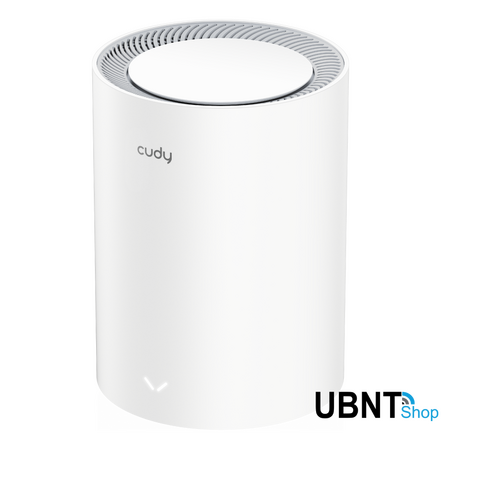

Cudy M3000 AX3000 Wi-Fi 6 Mesh 2.5G Solution (1-Pack)



AX3000 2.5G Mesh Wi-Fi 6 System White M3000 2.0

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

  •  1.3 GHz Dual-Core CPU
  •  4-Stream Dual-Band Wi-Fi 6
  •  2402 Mbps + 574 Mbps Wi-Fi 1
  •  200 Connected Devices 2
  •  Fast Roaming
  •  Cudy Mesh, VPN Server and Client
  •  Multi-Band Simultaneous Backhaul
  •  Cudy App, Cloud Control

(CU-M3000)

Cudy M3000 AX3000 Wi-Fi 6 Mesh 2.5G Solution (1-Pack)

Pack Includes:

1 * CU-M3000

1 X CU-M3000 Quick Start Guide

Cudy M3000 AX3000 Wi-Fi 6 Mesh 2.5G Solution (1-Pack)- Specifications:

Model Version M3000 2.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
  DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
  2.4 GHz Wi-Fi Speed 574 Mbps
  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
  Wi-Fi Antennas 5× Internal
  FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
  Beamforming True
  Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
  Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
  Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

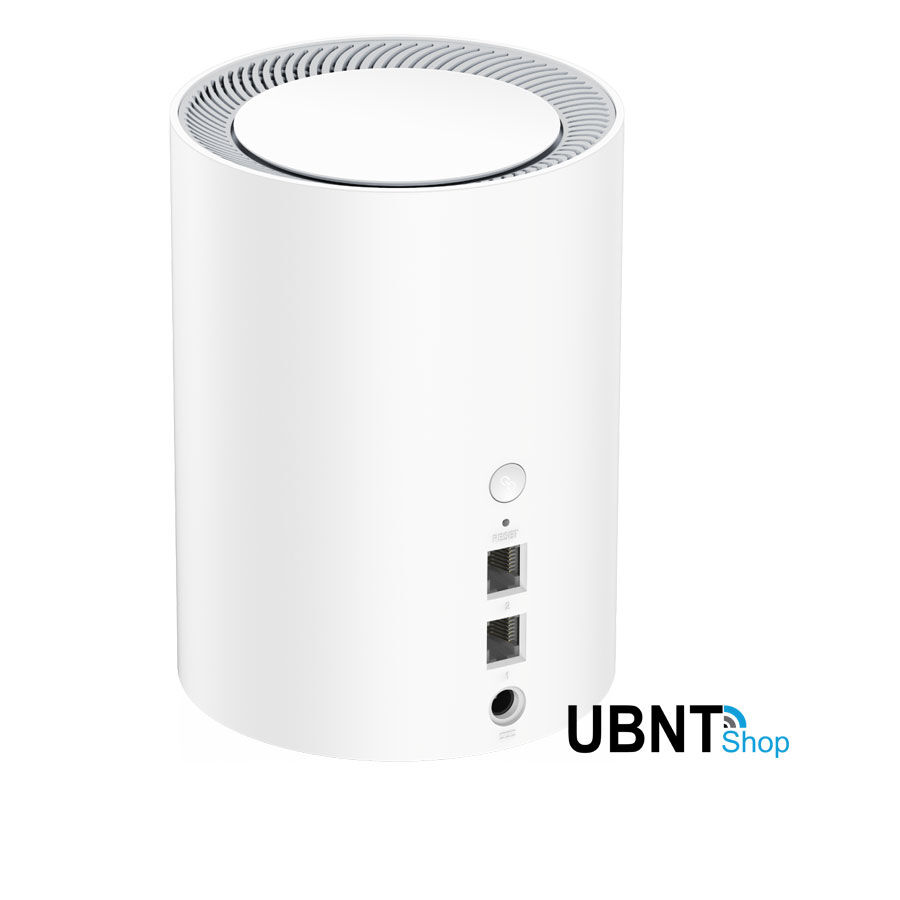

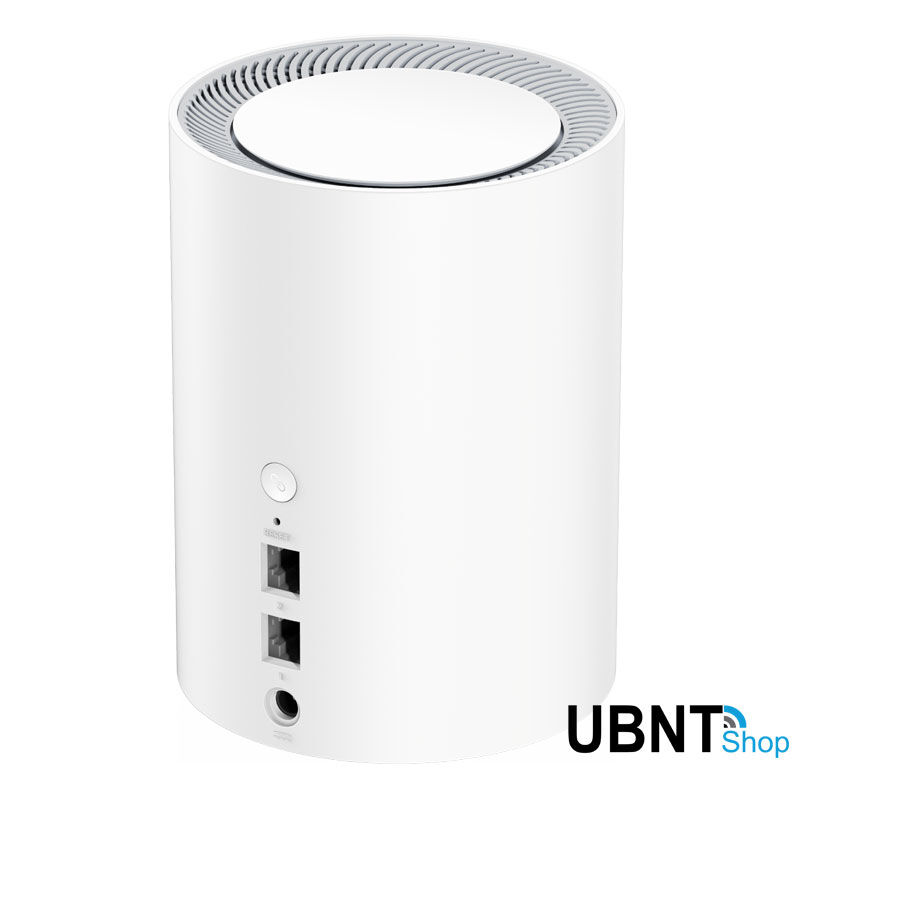

Interfaces 2.5G RJ45 Ports 1
  Gigabit RJ45 Ports 1
  Ethernet Notes The 2.5G port is the WAN port, the Gigabit port is LAN port
  LED
  • System
  • Speed/Link/ACT of Ethernet Port
  Physical Buttons
  • WPS Button
  • Reset Button
  Power Input DC Jack
Power Power Methods DC
  DC Input 12V 1A
  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
  Max Power Consumption (W) 11.5W
  Idle Power Consumption (W) 4.2W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
  Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
  Product Weight 360 g (12.7 oz.)

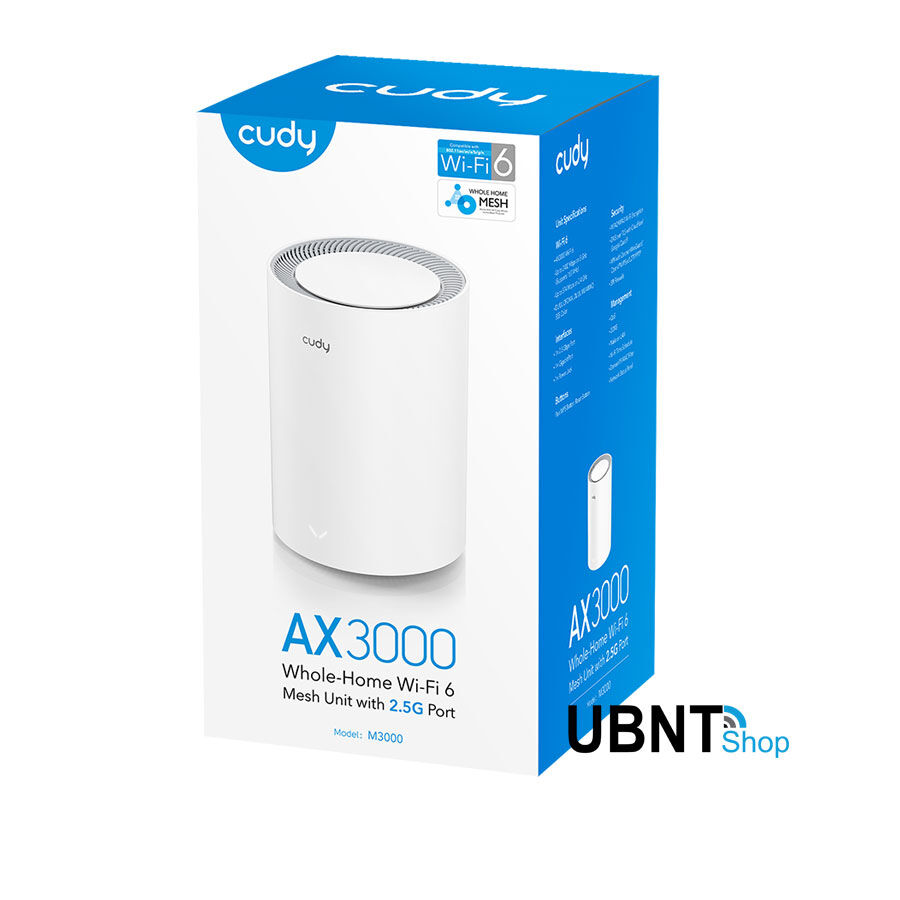

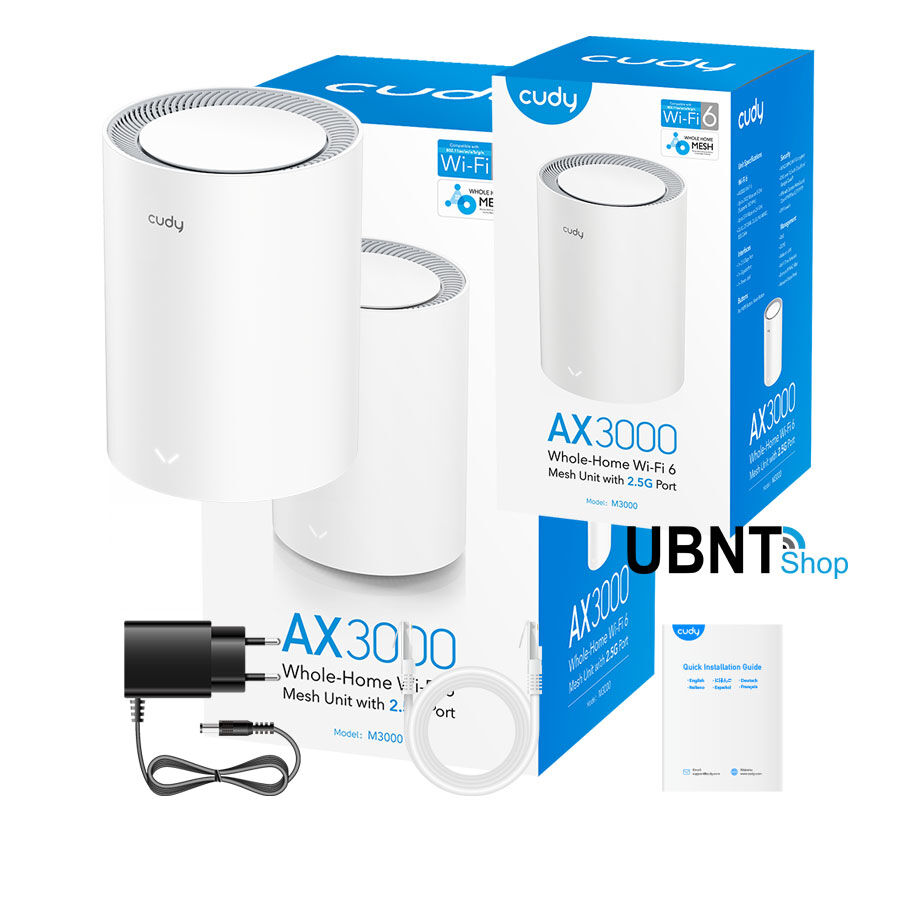

Package Content
  • M3000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • 1-Pack | EU / US: 680 g (23.99 oz.)
  • 2-Pack | EU / US: 1370 g (48.33 oz.)
  • 3-Pack | EU / US: 1827 g (64.45 oz.)
  Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
  Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
  Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
  Carton Gross Weight
  • 1-Pack | EU / US: 12.2 kg (26.9 lbs)
  • 2-Pack | EU / US: 12.3 kg (27.12 lbs)
  • 3-Pack | EU / US: 8.2 kg (18.08 lbs)
  Carton Net Weight
  • 1-Pack | EU / US: 10.9 kg (24.03 lbs)
  • 2-Pack | EU / US: 11.0 kg (24.25 lbs)
  • 3-Pack | EU / US: 7.3 kg (16.09 lbs)
  1. Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors including building layout, obstacles, and client location.
  2. Actual performance for multiple devices may be affected by the types of applications used, the total available bandwidth, and the capabilities of your devices. Connecting older Wi-Fi devices (legacy standards) may reduce overall efficiency. Using efficiency features requires compatible client devices that also support those features. Find more information about supported efficiency features in the software section of the Specs spreadsheet.

Shipping Specifications

SKU CU-M3000
Model # M3000
Brand CUDY
Shipping Weight 0.6800kg
Shipping Width 0.145m
Shipping Height 0.265m
Shipping Length 0.130m
Shipping Cubic 0.004995250m3
Unit Of Measure ea
