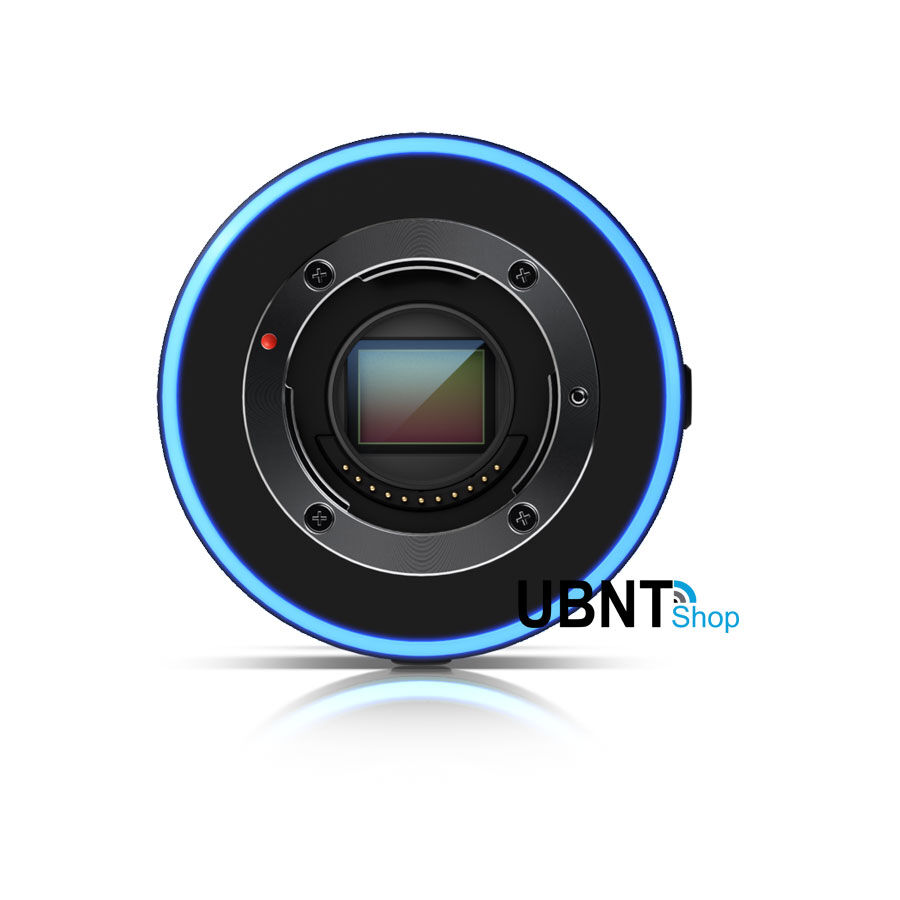

UVC-AI-DSLR

UVC-AI-DSLR - Specifications

Dimensions

Without mount: Ø80 x 89 mm (Ø3.1 x 3.5") With mount: Ø80 x 153 mm (Ø3.1 x 6") M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3") Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7")

Face Recognition

✓

License Plate Recognition

✓

Smart Detections (People, Vehicles, Animals)

✓

Resolution

4K

Field of View

M. Zuiko Digital ED 17 mm PRO: H: 52°, V: 39°, D: 65° M. Zuiko Digital ED 45 mm PRO: H: 21.6°, V: 16.2°, D: 27°

Audio

Two-way audio

Weatherproofing

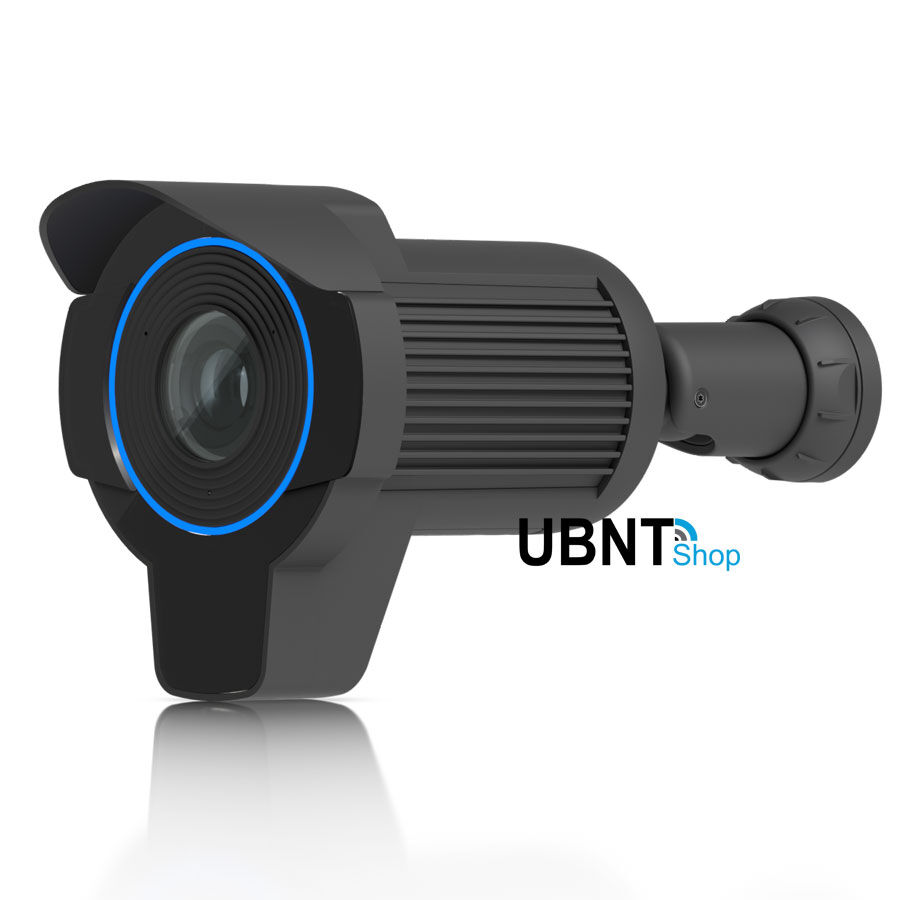

IPX5 (With the outdoor case)

Mounting

Wall, pole mount (Included) Tripot mount (Optional)

Performance

Networking Interface

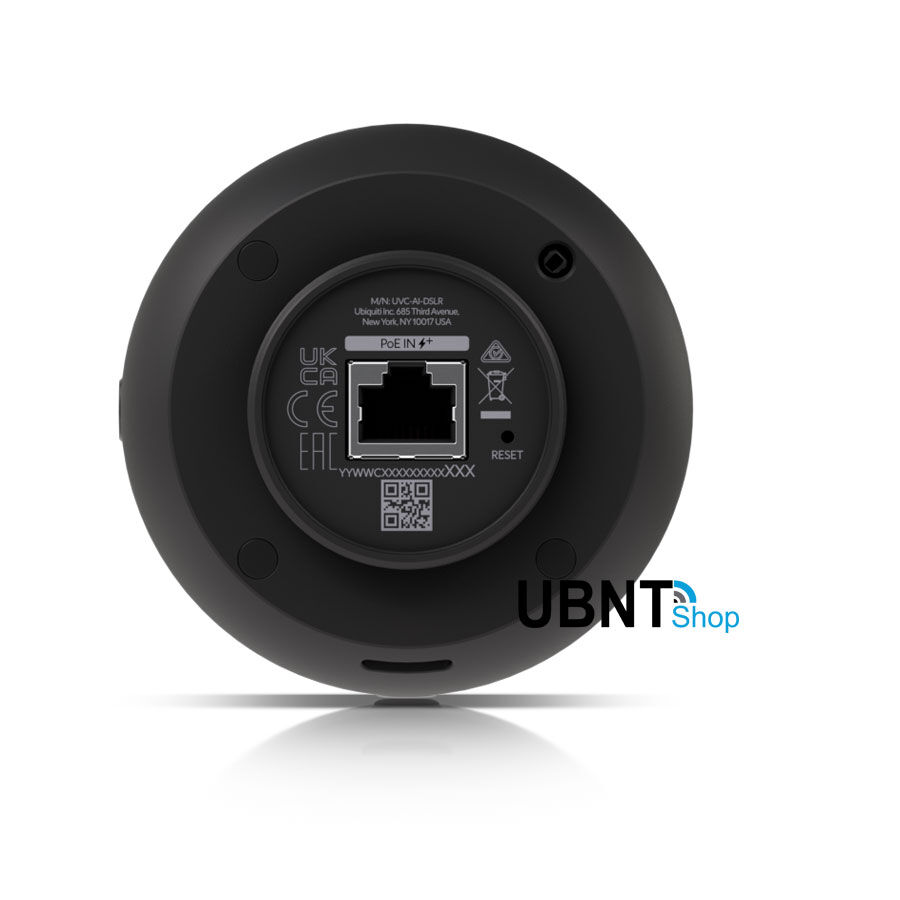

GbE RJ45 port

Video

Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay

Max. Frame Rate

30 FPS

Resolution

8MP 3840 x 2160 (16:9)

Optics

Sensor

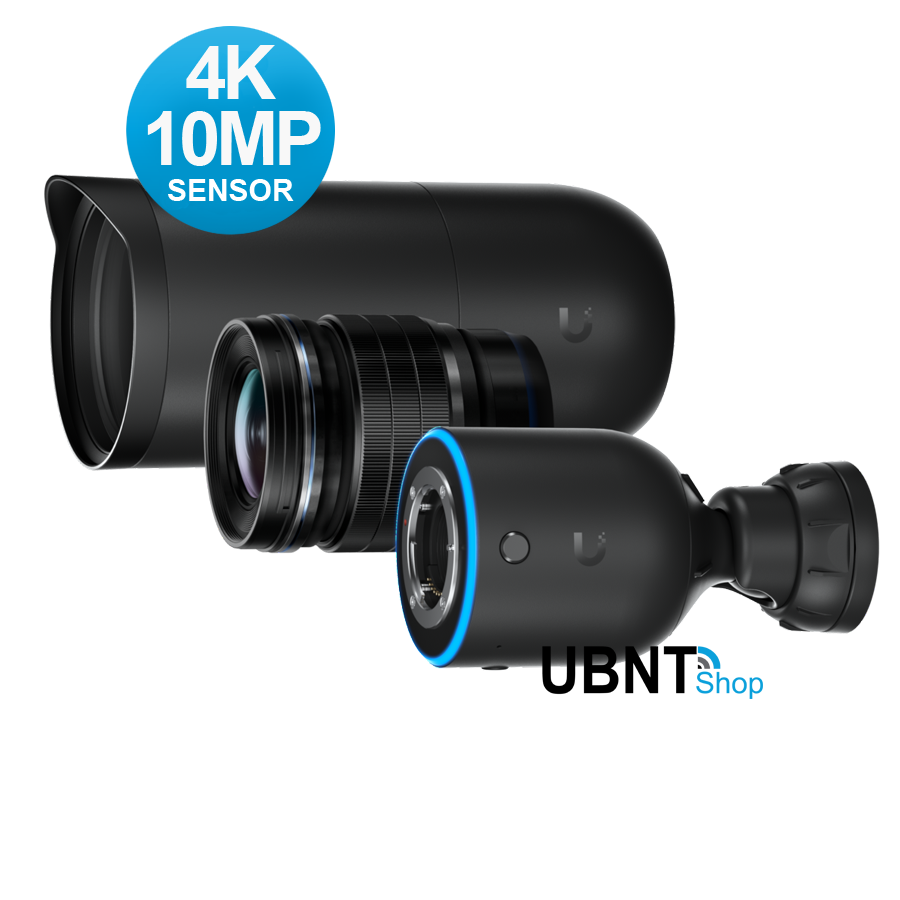

4/3" 10MP CMOS

Lens

M. Zuiko Digital ED 17 mm ƒ/1.2 PRO M. Zuiko Digital ED 45 mm ƒ/1.2 PRO

Hardware

Max. Power Consumption

17.77W (With lens working)

Supported Voltage Range

37—57V DC

Power Method

PoE+

Processor

Quad-core Arm® Cortex®-A53 based chip

Pole Mount Diameter

1.5–2" (38–50 mm)

Weight

Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb)

Enclosure Material

Aluminum alloy

Mount Material

Wall mount: aluminum alloy Pole mount: aluminum alloy

Button

(1) Factory-reset (1) Lens release rey

Ambient Operating Temperature

-20 to 40° C (-4 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC
