RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor
Five Gigabit Ethernet Router with 4xPoE-out ports, SFP cage and outdoor enclosure

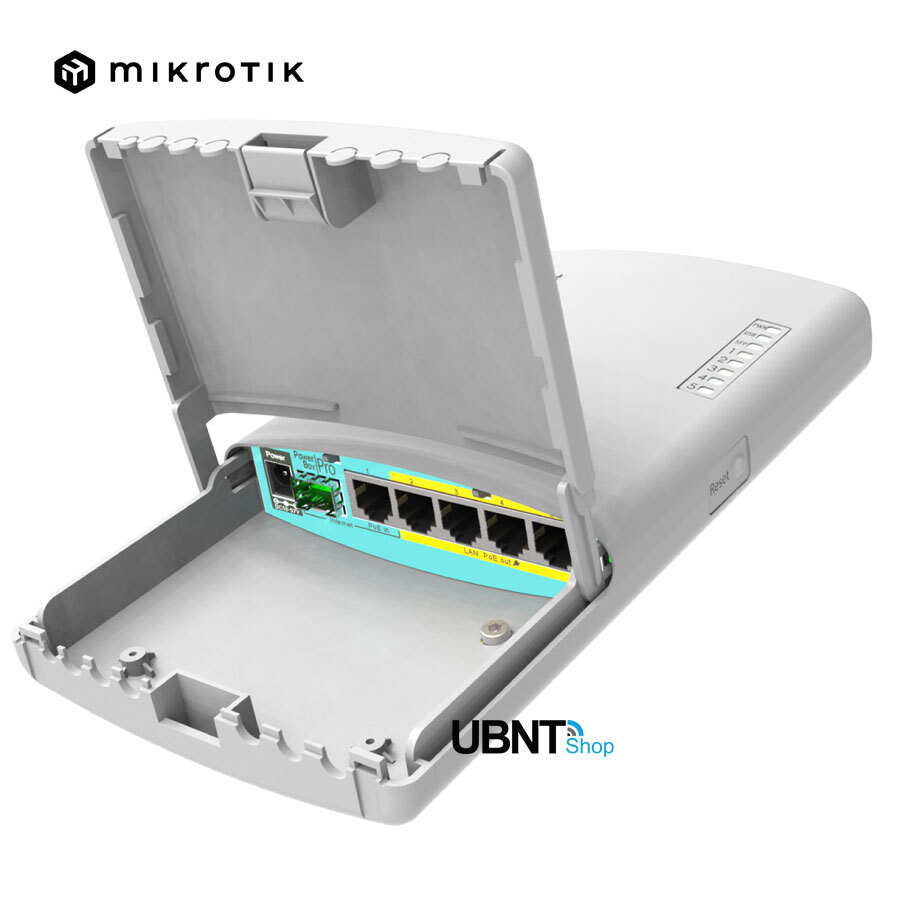

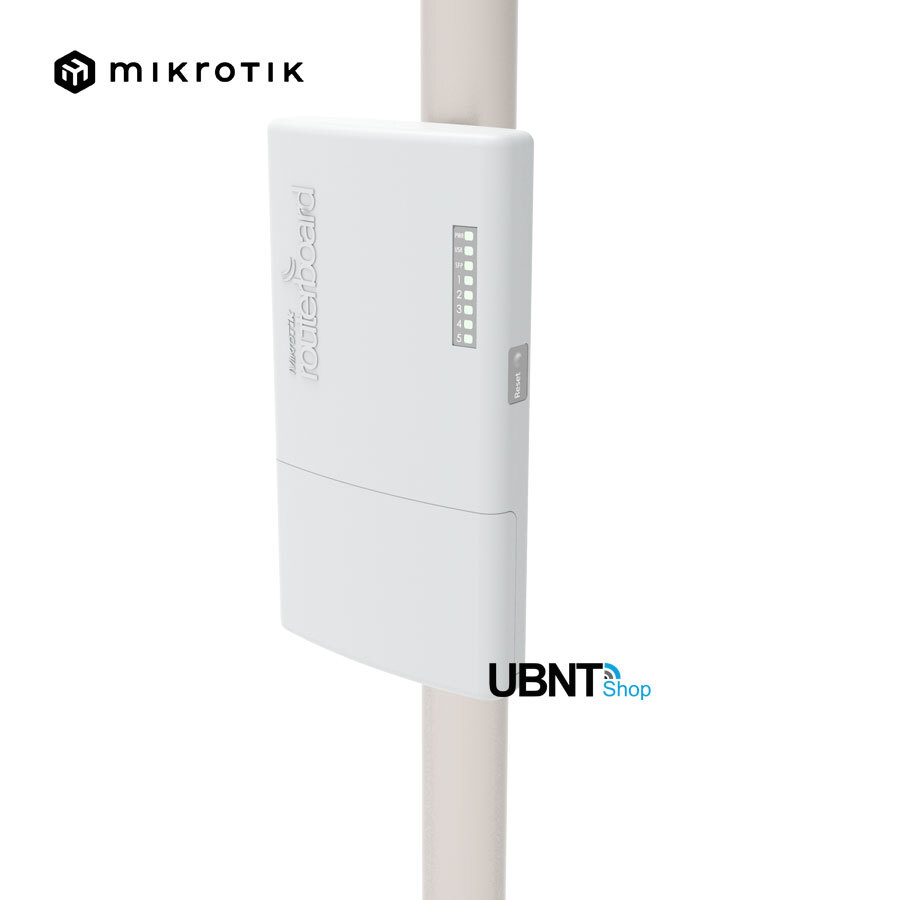

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a weatherproof outdoor case, you can mount it on a tower, or in other outdoor locations.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about. It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
(RB960PGS-PB)
RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor
Pack Includes:
- 1 x RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor
- 1 x 24V 2.5A power adapter
- 1 x DIN mount (K-27)
- 1 x IEC cord
- 1 x Gigabit PoE injector
- 1 x Metal ring
RB960PGS-PB MikroTik PowerBox Pro Gigabit 800MHz 128MB 5xLAN Outdoor - Specifications
Specifications
| Details | |
|---|---|
| Product code | RB960PGS-PB |
| Architecture | MIPSBE |
| CPU | QCA9557 |
| CPU core count | 1 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | QCA8337 |
| Dimensions | 125 x 52 x 225 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 54 W |
| Max power consumption without attachments | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2-Ether5 |
| PoE out | 802.3af/at |
| Max out per port output (input 18-30 V) | 1 A |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 2 A |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 5 |
Fiber
| Details | |
|---|---|
| SFP ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
Shipping Specifications
| SKU | RB960PGS-PB |
| Model # | RB960PGS-PB |
| Barcode # | 4.75E+12 |
| Brand | Mikrotik |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.127m |
| Shipping Length | 0.225m |
| Shipping Cubic | 0.001486000m3 |
| Unit Of Measure | ea |
