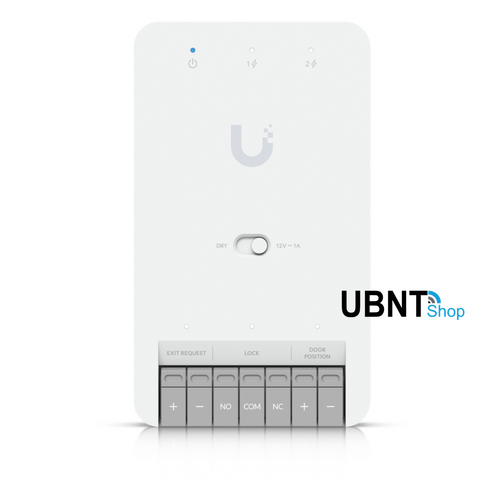

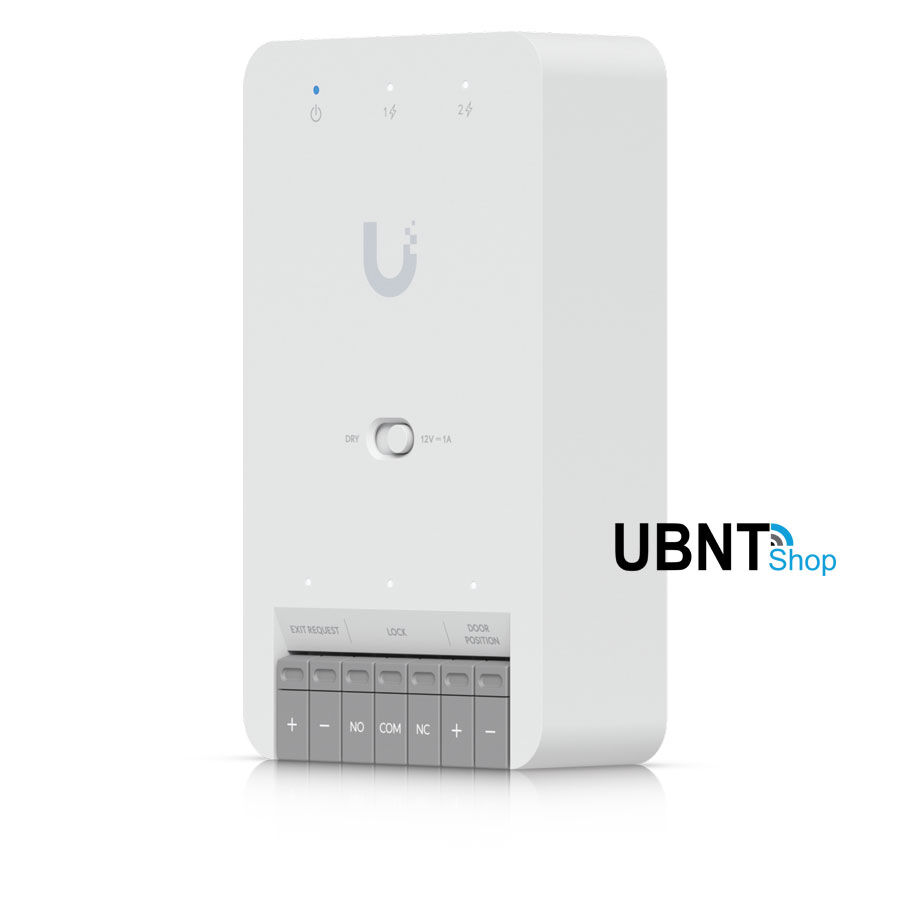

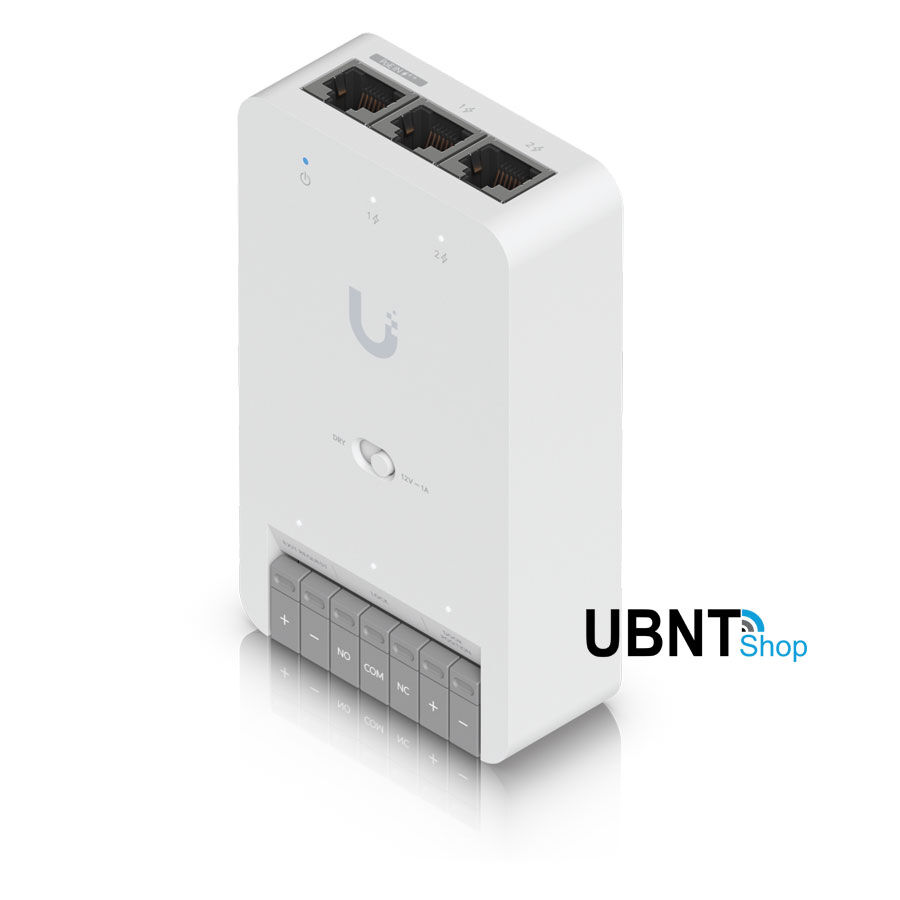

Ubiquiti UA-Hub-Door-Mini UniFi Access Mini Hub Single Door



The UniFi Access Hub Mini is a Compact Access Control Hub for a single door.

(1) Lock terminal (12V and Dry switchable)

(2) Additional inputs (sensor and button)

Connect and power via PoE++

Connect up to two UniFi Access Readers or Protect Cameras



(UA-HUB-DOOR-MINI)

UA-Hub-UA-Hub-Door-Mini UniFi AccessDoor-Mini UniFi Access



Pack Includes:

1 x UA HUB FOOR MINI

1 X WALL MOUNT BRACKET

2 X PLASTIC WALL PLUGS

2 X M4 SCREWS

UA-Hub-UA-Hub-Door-Mini UniFi AccessDoor-Mini UniFi Access - Specifications



Mechanical
Dimensions 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Weight 190 g (6.7 oz)
Enclosure material Polycarbonate, metal
Hardware
Networking interface (3) GbE RJ45 ports
Power method PoE++
Max. power consumption Without PoE output: 19W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output (2) PoE ports, total 31W
Button (1) Factory-reset
(1) Dry/Wet switch
Digital input Request to exit/door position sensor
Output relay Dry: 30V DC, 1A
Wet: 12V DC, 1A
Recommend max. cable length
  18 AWG
UACC-Cable-DoorLockRelay length		 20
AWG length		 22
AWG length		 24
AWG length
UA-Lock-Electric
(400mA)		 100 m
(328 ft)		 66 m
(217 ft)		 42 m
(138 ft)		 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)		 46 m
(151 ft)		 30 m
(98 ft)		 20 m
(66 ft)		 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)		 80 m
(262 ft)		 51 m
(167 ft)		 32 m
(105 ft)		 20 m
(66 ft)
Other locks
(1A)		 36 m
(118 ft)		 24 m
(79 ft)		 15 m
(49 ft)		 9 m
(30 ft)
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment Indoor use only
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
Certifications CE, FCC, IC
Document number, and issue date and/or revision level UA-Hub-Door-Mini, V01
Software
Management application UniFi Access: Version 2.5.2 and later
LEDs
PoE in System status
PoE out Wire status/activity
Input/output relay Wire status/activity





Mechanical
Dimensions 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Weight 190 g (6.7 oz)
Enclosure material Polycarbonate, metal
Hardware
Networking interface (3) GbE RJ45 ports
Power method PoE++
Max. power consumption Without PoE output: 19W
With PoE output: 50W
PoE input 50V DC, 1A
PoE output (2) PoE ports, total 31W
Button (1) Factory-reset
(1) Dry/Wet switch
Digital input Request to exit/door position sensor
Output relay Dry: 30V DC, 1A
Wet: 12V DC, 1A
Recommend max. cable length
  18 AWG
UACC-Cable-DoorLockRelay length		 20
AWG length		 22
AWG length		 24
AWG length
UA-Lock-Electric
(400mA)		 100 m
(328 ft)		 66 m
(217 ft)		 42 m
(138 ft)		 25 m
(82 ft)
UA-Lock-Magnetic-270kg
(800mA)		 46 m
(151 ft)		 30 m
(98 ft)		 20 m
(66 ft)		 12 m
(29 ft)
UA-Lock-Magnetic-540kg
(500mA)		 80 m
(262 ft)		 51 m
(167 ft)		 32 m
(105 ft)		 20 m
(66 ft)
Other locks
(1A)		 36 m
(118 ft)		 24 m
(79 ft)		 15 m
(49 ft)		 9 m
(30 ft)
PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment Indoor use only
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 90% noncondensing
Software information The software version of a product can be checked at https://unifi.ui.com
Certifications CE, FCC, IC
Document number, and issue date and/or revision level UA-Hub-Door-Mini, V01
Software
Management application UniFi Access: Version 2.5.2 and later
LEDs
PoE in System status
PoE out Wire status/activity
Input/output relay Wire status/activity


Shipping Specifications

SKU UA-HUB-DOOR-MINI
Model # UA-Hub-Door-Mini
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 0.2000kg
Shipping Width 0.070m
Shipping Height 0.030m
Shipping Length 0.120m
Shipping Cubic 0.000252000m3
Unit Of Measure ea
