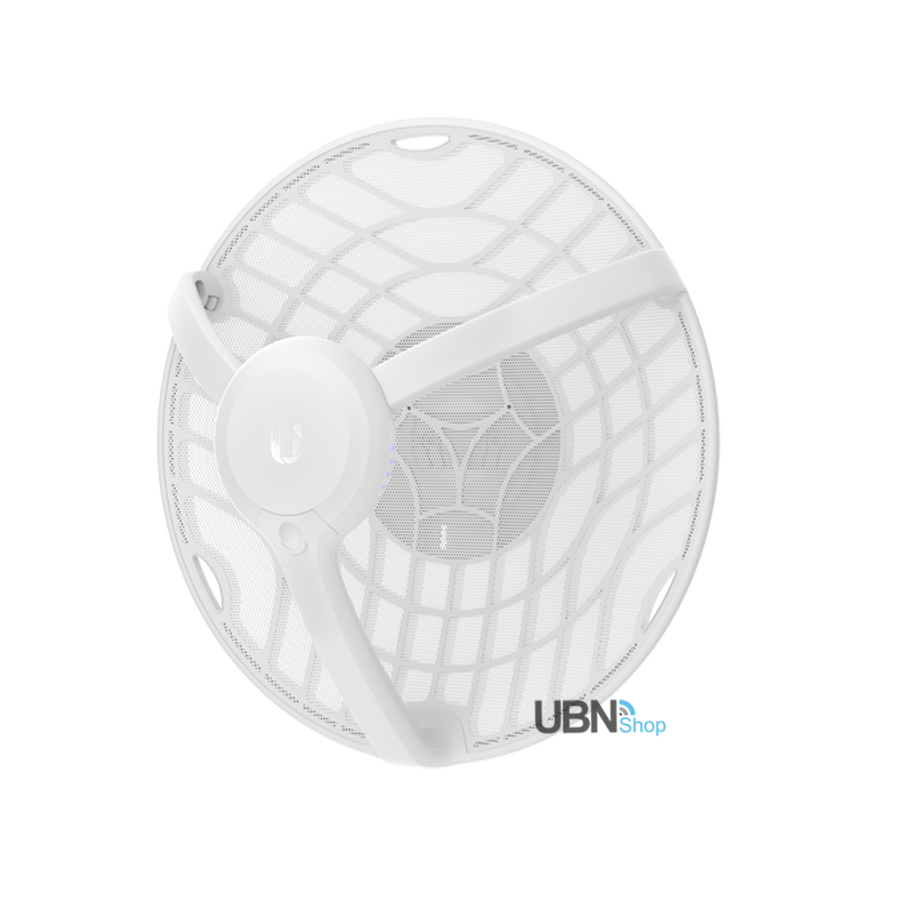

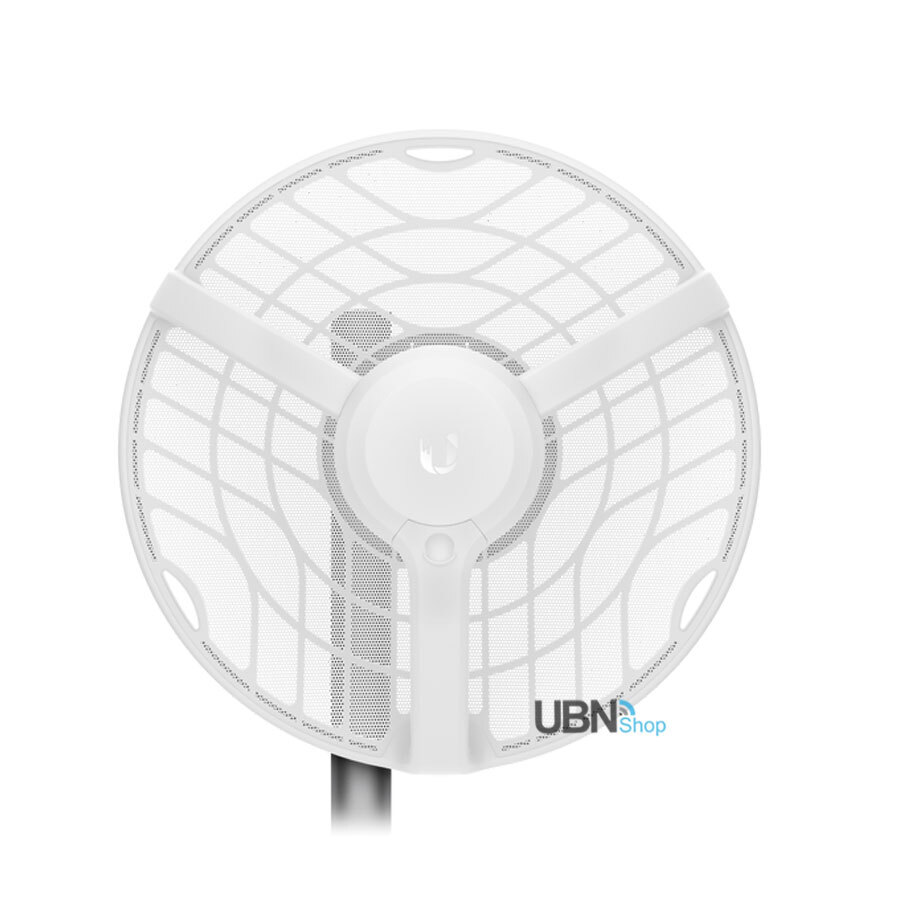

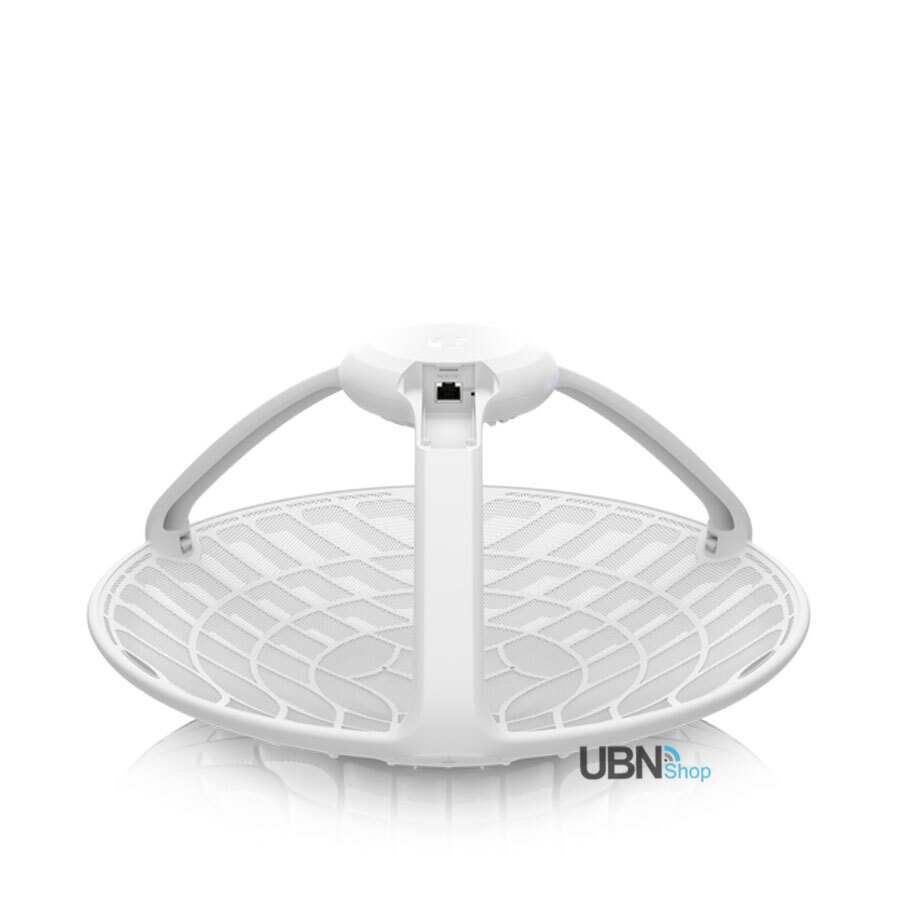

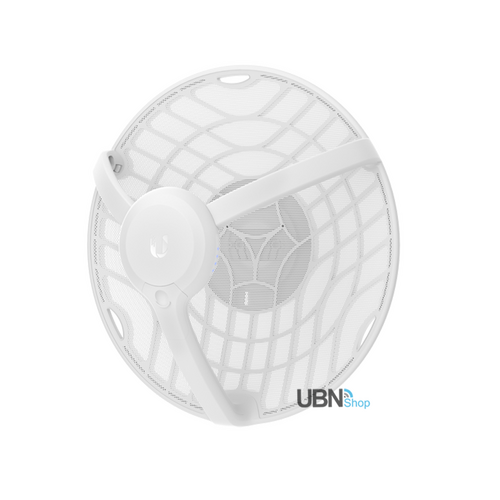

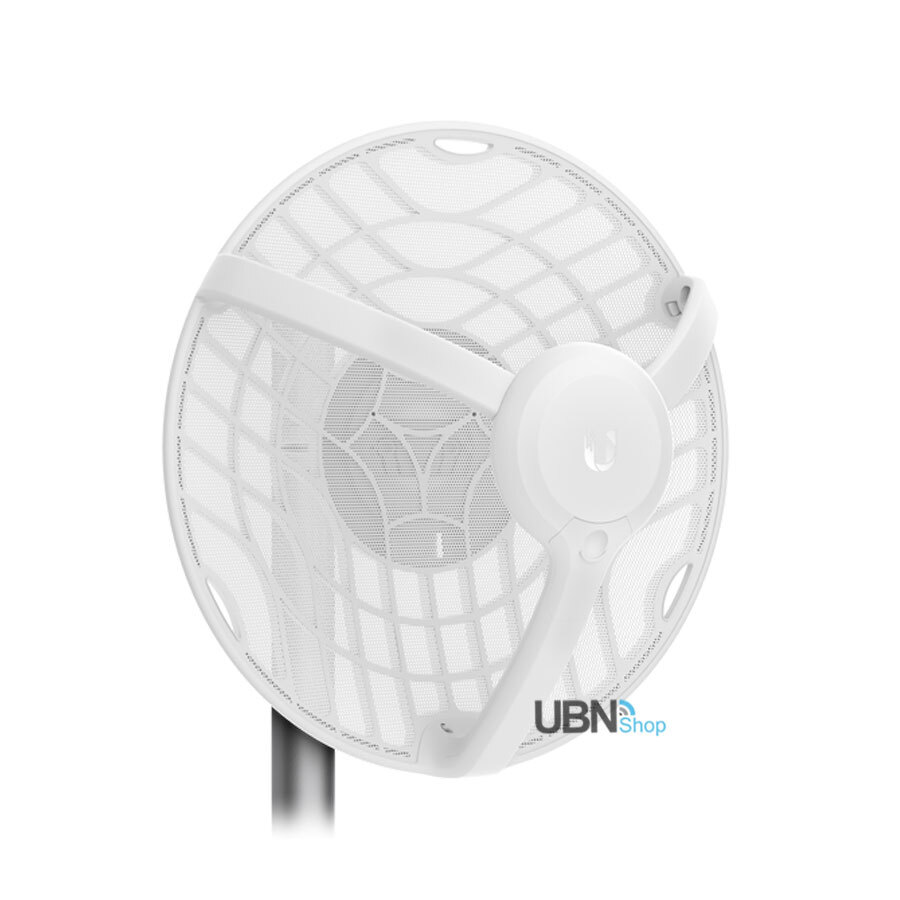

airMAX GigaBeam Long-Range 60 GHz Radio



Featuring a high-gain dish antenna, the GigaBeam LR is an airMAX 60 GHz radio designed for low-interference and high-throughput connectivity of up to 1+ Gbps in long-range deployments of up to 2 km.

The GigaBeam LR includes a 5 GHz radio for 60GHz link failover. Easy setup can be done via UISP app.

Features:

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • Long-range performance
  • 2.4 GHz management radio
  • Full bandwidth support: 2.16 GHz



(GBE-LR)

Ubiquiti GBE 60/5GHz airMAX ac GigaBeam  1+Gbps Long Range

Pack Includes:

  • 1 x GBE-LR
  • 1 x main Arm
  • 2 x Stabiliser Arms

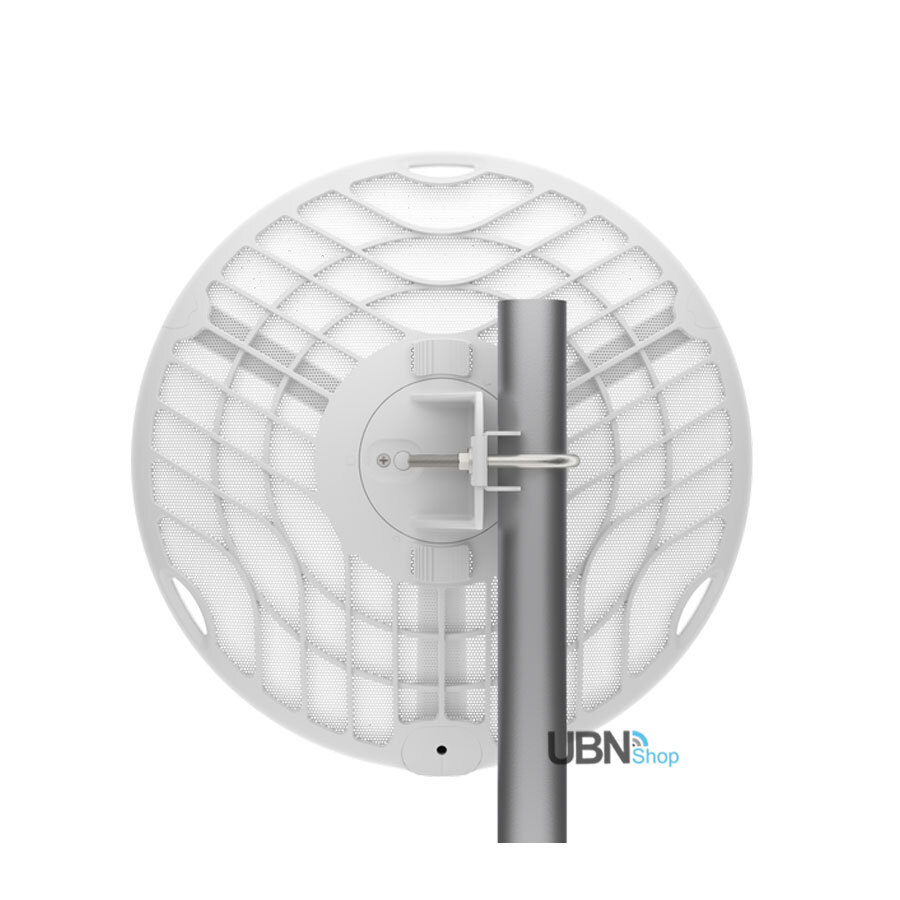

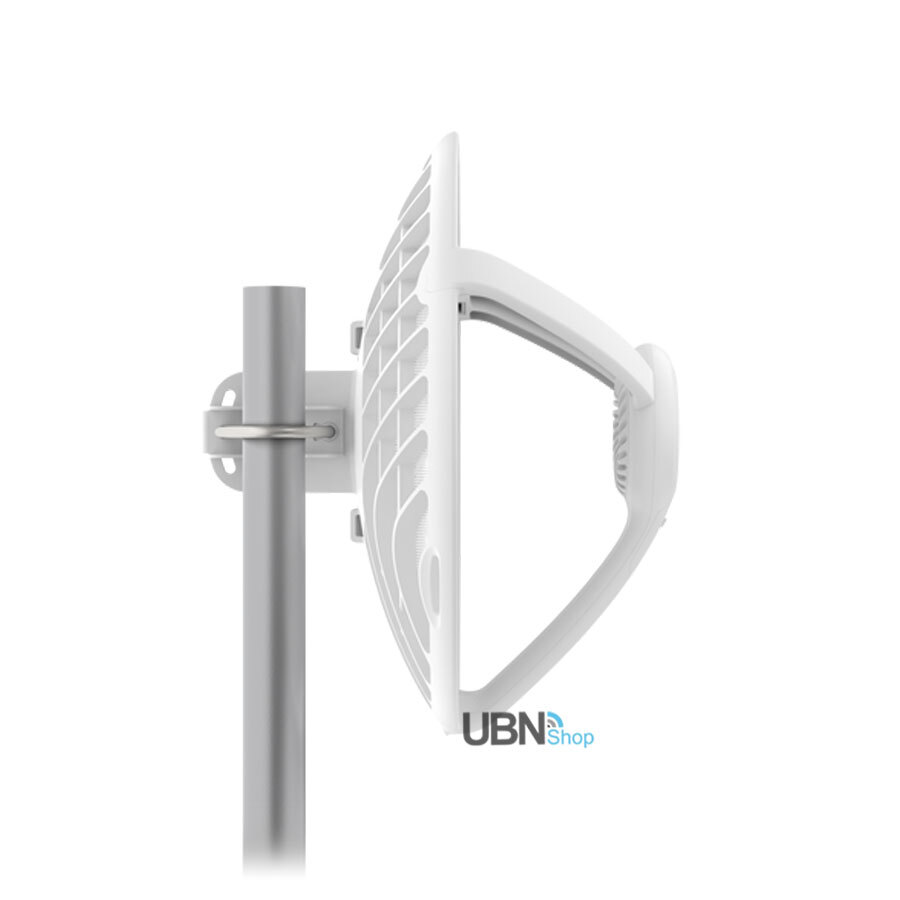

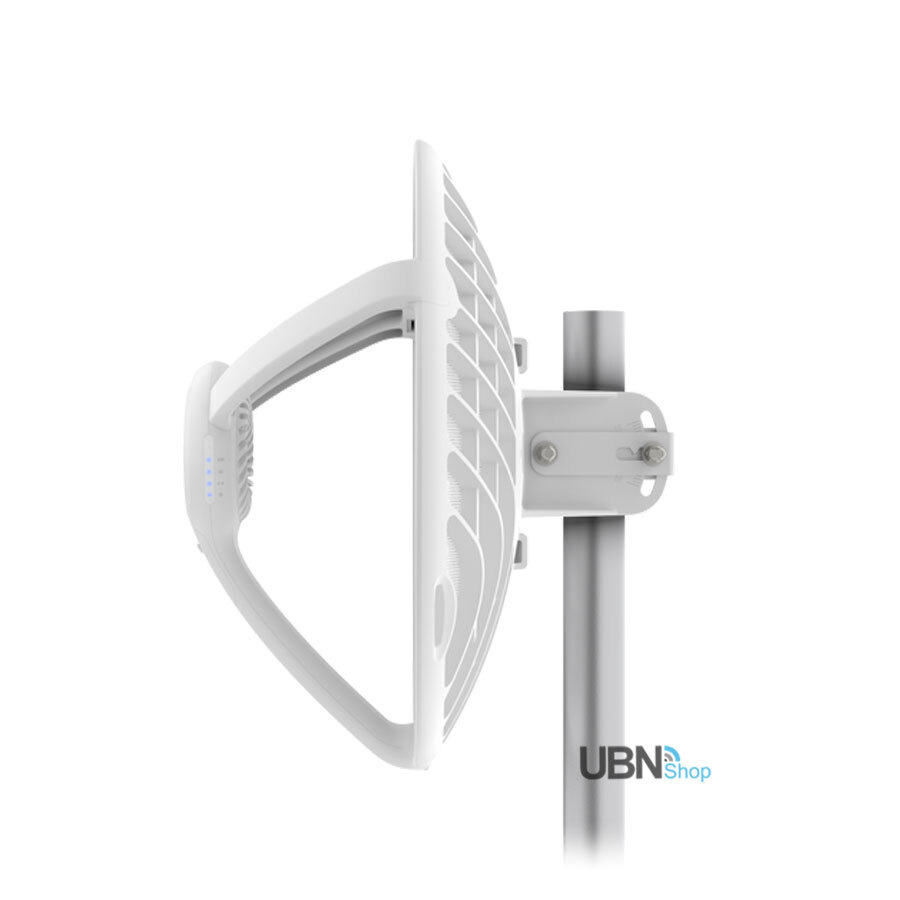

  • 1 x Mounting Bracket
  • 1 x Screw
  • U Clamp
  • 2 x Flat Washers
  • 2 x Flange Nuts
  • Gigabit PoE (24V, 0.5A) with Mounting Bracket
  • 1 x Power Cord
  • Quick Start Guide

Ubiquiti GBE 60/5GHz airMAX ac GigaBeam 1+Gbps Long Range - Specifications


Mechanical
Dimensions

Ø415 x 303 mm (Ø16.34 x 11.93")
Weight

Without Mount: 1.3 kg (2.87 lb)

With Mount: 1.8 kg (3.97 lb)
Enclosure Characteristics

Aluminum / UV Stabilized Polycarbonate
Hardware
Processor

Quad-Core ARM Cortex A7
Memory

256 MB DDR3
Networking Interface

10/100/1000 Mbps Ethernet RJ45
RF Connections

Internal
Max. Power Consumption

11W
Power Method

Passive PoE (Pairs 4, 5+; 7, 8-)
Power Supply

24VDC, 0.5A Gigabit PoE Adapter
Supported Voltage Range

22 to 26VDC
ESD/EMP Protection

Air/Contact: ± 24kV
Operating Temperature

-40 to 60° C (-40 to 140° F)
Operating Humidity

5 - 95% Noncondensing
Certifications

FCC, IC, CE
LEDs
Power

Flashing White: Bootup in Progress

White: System Ready, Ubiquiti® Internet Service Provider (UISP™) Not Configured, Not Connected

Flashing Blue: System Ready, UISP Configured, but Cannot Connect

Blue: System Ready, UISP Configured and Connected
Ethernet

Flashing Blue: Ethernet Traffic Detected
5G

Blue: Active Connection
60G

Blue: Active Connection
Software
OS

airOS®
Operating Modes

PtP
Ubiquiti Specific Features

Integrated 60 GHz and 5 GHz Radios, Discovery Protocol
Security

WPA2 AES Only
Dashboard

Yes
Wireless Settings

Yes
Network Settings

Yes
System

Yes
Services

UISP, Ping Watchdog, Web Server, SSH Server, NTP Client, System Log, Device Discovery
Tools

Antenna Alignment Tool, Discovery Utility, Traceroute, Speed Test
Minimum Software Requirements

Any Modern Web Browser
RF
Operating Frequency*
US/CA U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz
57,000 - 66,000 MHz
Worldwide 5150 - 5875 MHz
57,000 - 66,000 MHz



* Depends on regulatory region.
Max. Conducted TX Power

25 dBm (5 GHz)
Channel Bandwidth
60 GHz 2160 MHz
5 GHz 20/40/80 MHz
Management Radio
US/CA 2412 - 2462 MHz
Worldwide 2412 - 2472 MHz
Antenna Gain
60 GHz 38 dBi
5 GHz 11 dBi
Radio Sensitivity airMAX AC
5 GHz TX Specifications
Data Rate Avg Power
(dBm)		 Tolerance
(dB)
1x BPSK (1⁄2) 25 ±2
2x QPSK (1⁄2) 25 ±2
2x QPSK (3⁄4) 25 ±2
4x 16QAM (1⁄2) 25 ±2
4x 16QAM (3⁄4) 25 ±2
6x 64QAM (2⁄3) 24 ±2
6x 64QAM (3⁄4) 22 ±2
6x 64QAM (5⁄6) 22 ±2
8x 256QAM (3⁄4) 21 ±2
8x 256QAM (5⁄6) 21 ±2
5 GHz RX Specifications
Data Rate Avg Power
(dBm)		 Tolerance
(dB)
1x BPSK (1⁄2) -95 ±2
2x QPSK (1⁄2) -95 ±2
2x QPSK (3⁄4) -93 ±2
4x 16QAM (1⁄2) -90 ±2
4x 16QAM (3⁄4) -86 ±2
6x 64QAM (2⁄3) -83 ±2
6x 64QAM (3⁄4) -77 ±2
6x 64QAM (5⁄6) -74 ±2
8x 256QAM (3⁄4) -69 ±2
8x 256QAM (5⁄6) -66 ±2

Shipping Specifications

SKU GBE-LR
Model # GBE-LR
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 1.9000kg
Shipping Width 0.303m
Shipping Height 0.200m
Shipping Length 0.415m
Shipping Cubic 0.025149000m3
Unit Of Measure ea
