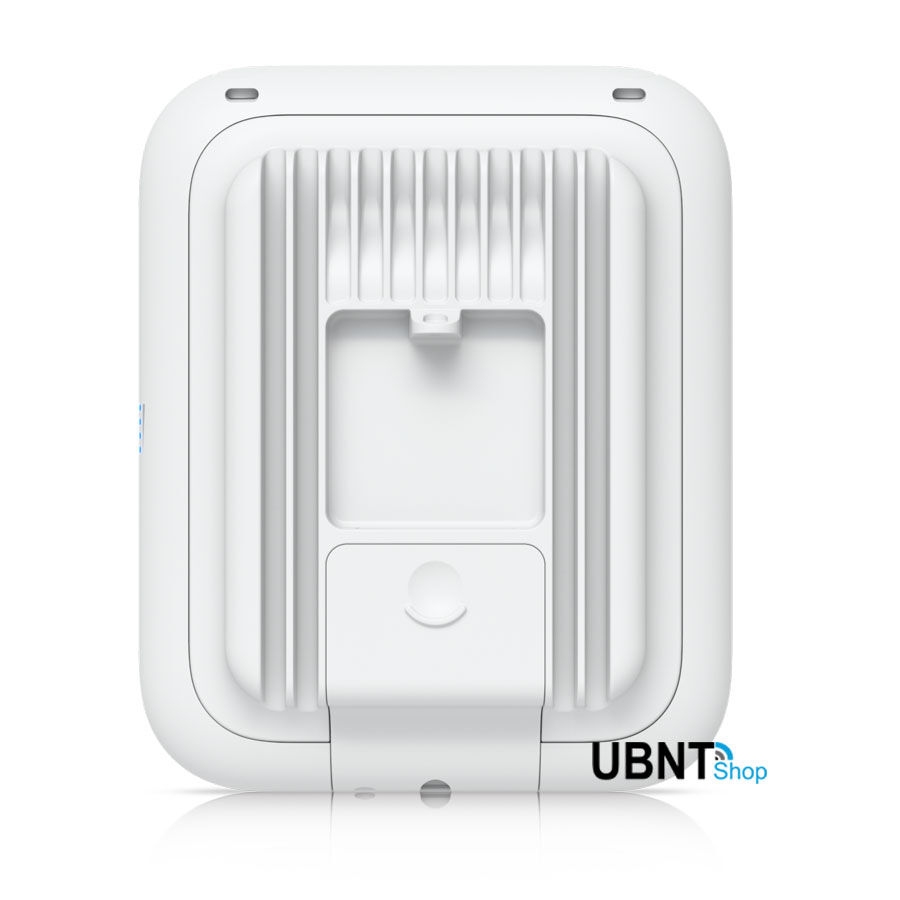

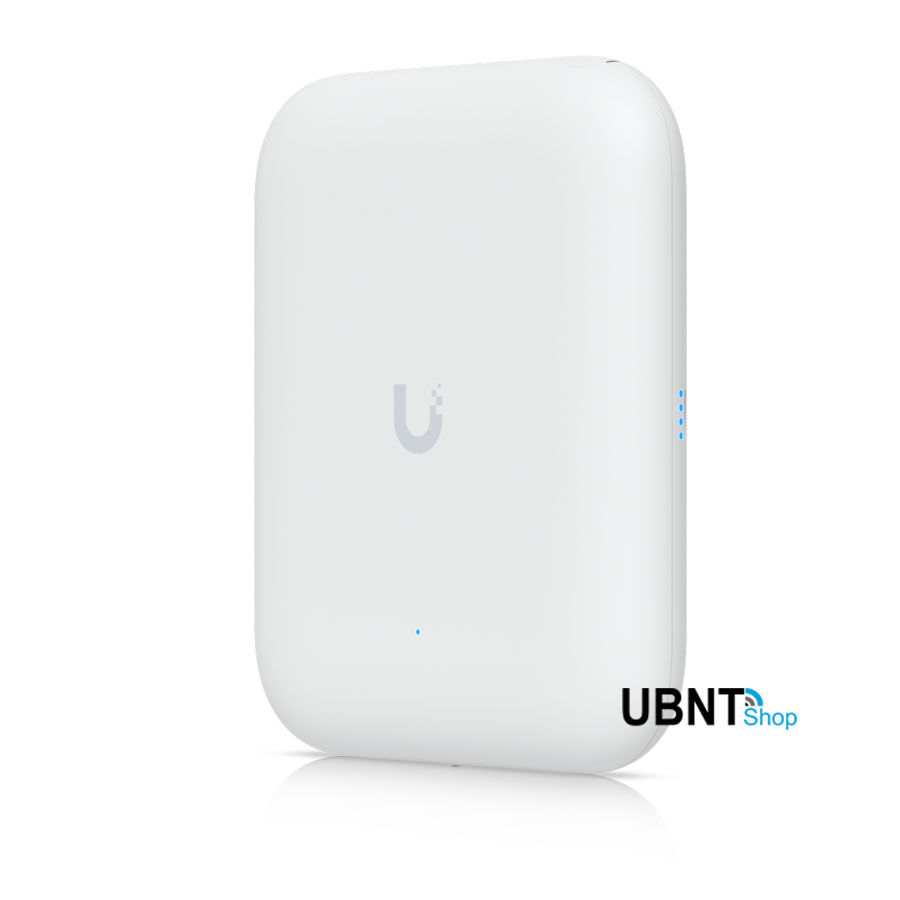

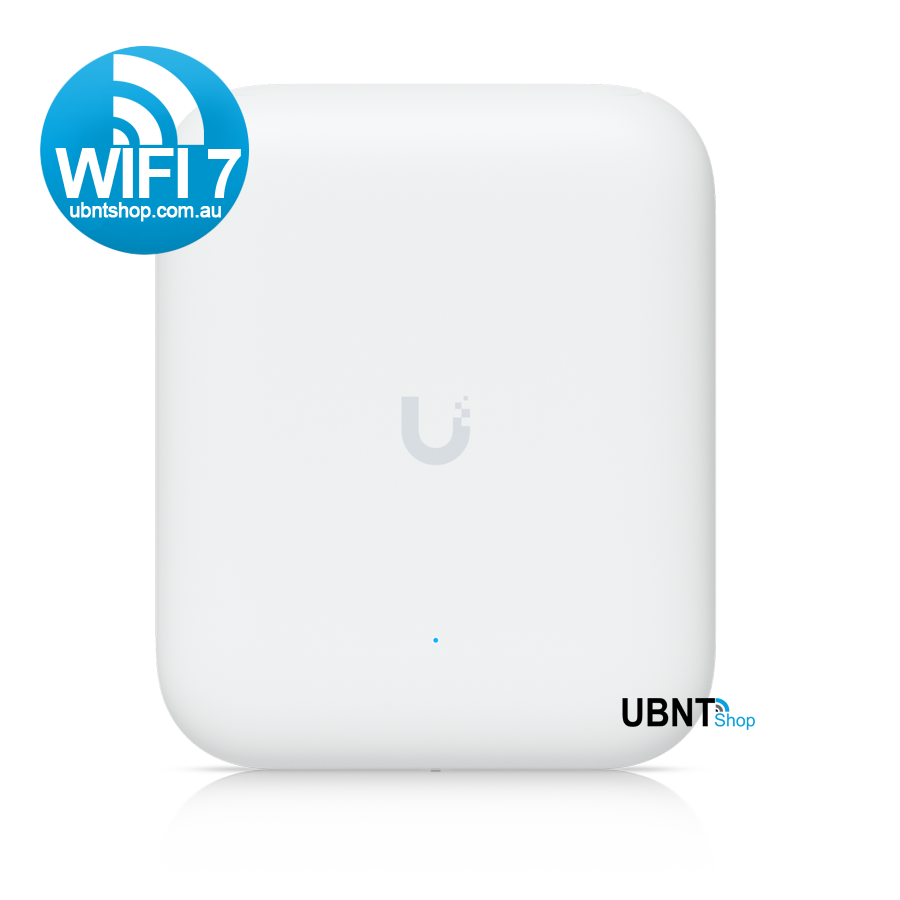

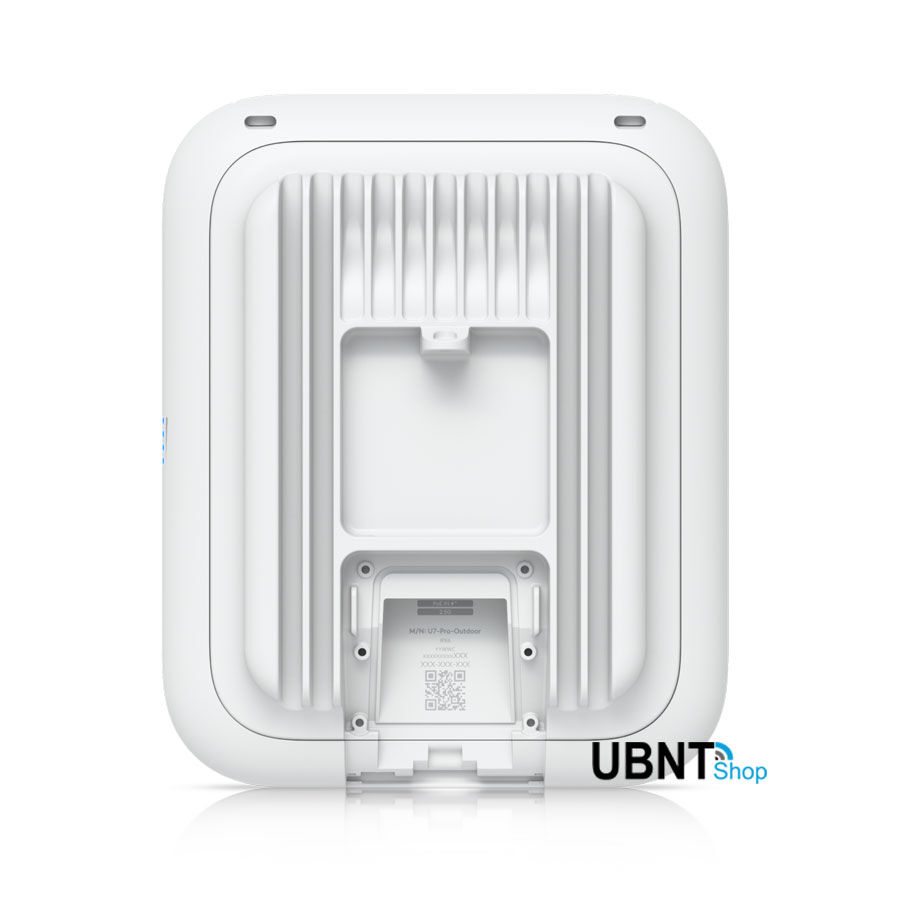

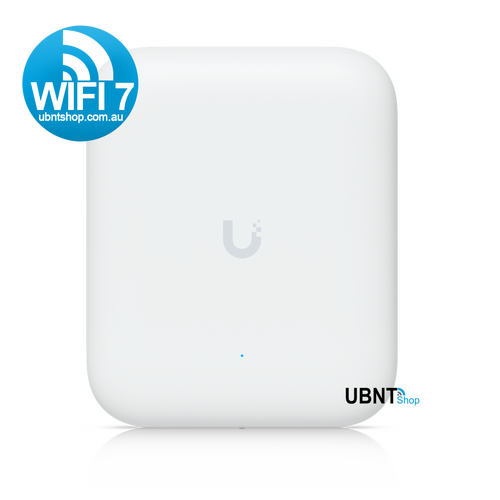

UniFi Wi-Fi 7 U7-PRO-Outdoor Ubiquiti Unifi Wireless Access Point With Omni Antenna Kit
U7-PRO-OUTDOOR
ALTERNATE PRODUCT:
U7-OUTDOOR-UniFi U7 Outdoor WiFi Mesh Access Point, 465 m² Coverage, 200+ Devices, PoE+ Power, 2.5 GbE Uplink.In Stock: YES
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:
UniFi Wi-Fi 7 U7-PRO-Outdoor Ubiquiti Unifi Wireless Access Point With Omni Antenna Kit
U7 Pro Outdoor
All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.
6-Spatial Stream WiFi 7 with 6 GHz Support
Up to 465 m² (5,000 ft²) Directional Coverage
Up to 300+ Connected Devices
Integrated Directional Super Antenna
Included External Omni Antennas
2.5 GbE PoE+ UplinkNote: 6 GHz operation is supported in Australia. Minimum version: Network: 7.5.172, AP: 6.6.26. Long-range 6 GHz performance with AFC available in FCC/IC region only.
UniFi 7 for All Environments
The U7-Pro-Outdoor is a high-performance WiFi 7 access point designed for rugged outdoor environments, featuring an IP67-rated enclosure that ensures protection against dust, water and harsh weather conditions. Supporting the latest WiFi 7 standard enables higher throughput, lower latency, and improved efficiency.
Focused Coverage
The U7-Pro-Outdoor includes a built-in directional super antenna, delivering focused signal transmission to extend coverage precisely where needed.
Versatile Installation

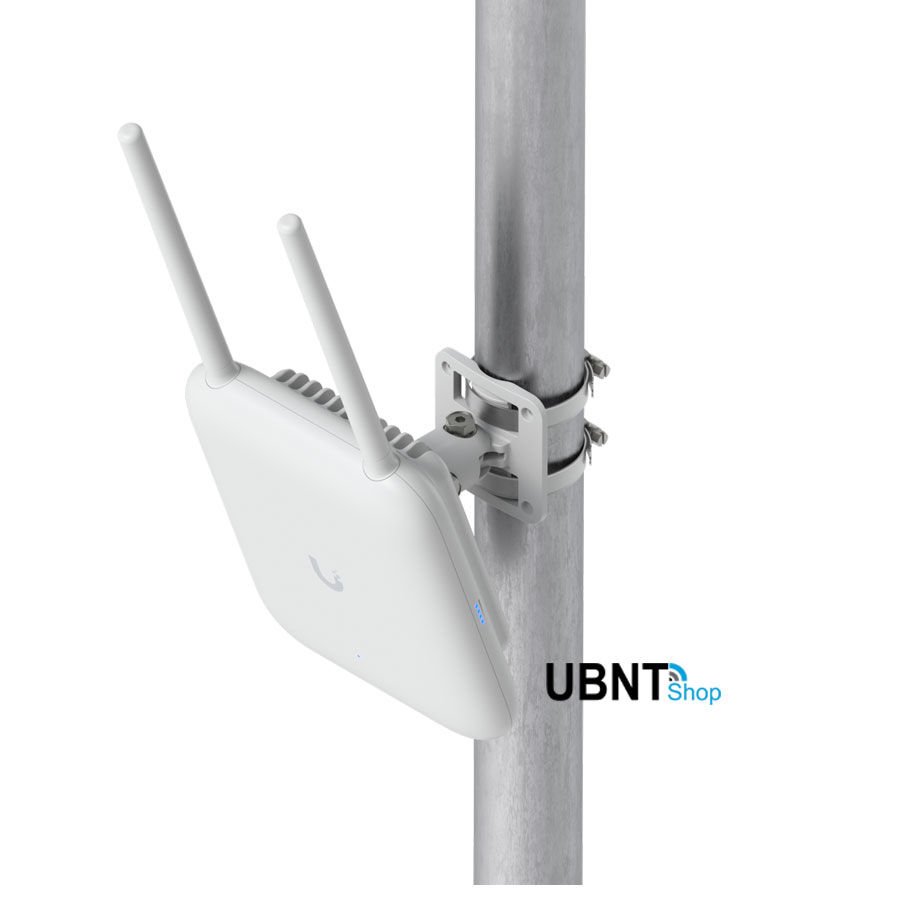

Featuring an articulation mounting bracket, the U7-Pro-Outdoor allows for flexible and precise positioning during installation.
High-Capacity Performance with 6 Spatial Streams
With support for 6 spatial streams, the U7-Pro-Outdoor delivers high-throughput performance, accommodating numerous simultaneous connections.
Deployment
(U7-PRO-OUTDOOR)
UniFi Wi-Fi 7 PRO OUTDOOR Access Point
*PoE NOT Included (Sold Separately)
UniFi Wi-Fi 7 PRO OUTDOOR Access Point - Specifications
| Mechanical | |
|---|---|
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (0.3 lb) |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy |
| Mount material | UV-stabilized polycarbonate |

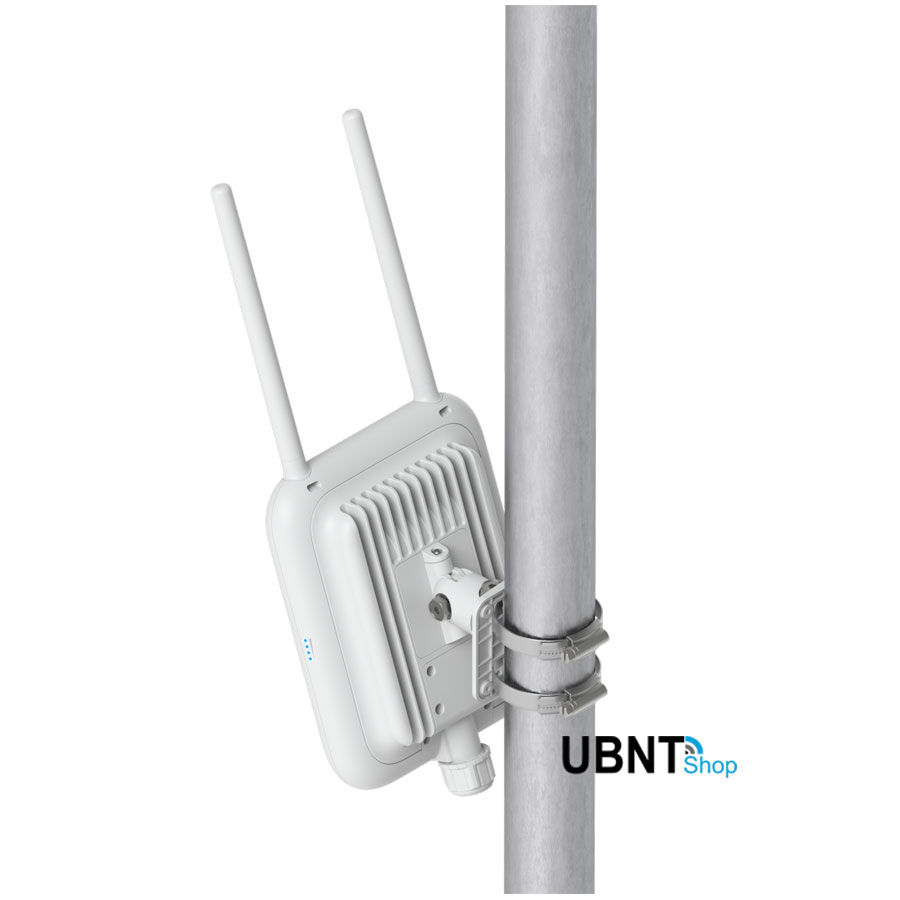

| Pole mount diameter | 25–63.5 mm (1–2.5") on pipe outer diameter |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |
| Weatherproofing | IPX6 IP67 with cable-gland door kit (Included) |
| Hardware | |

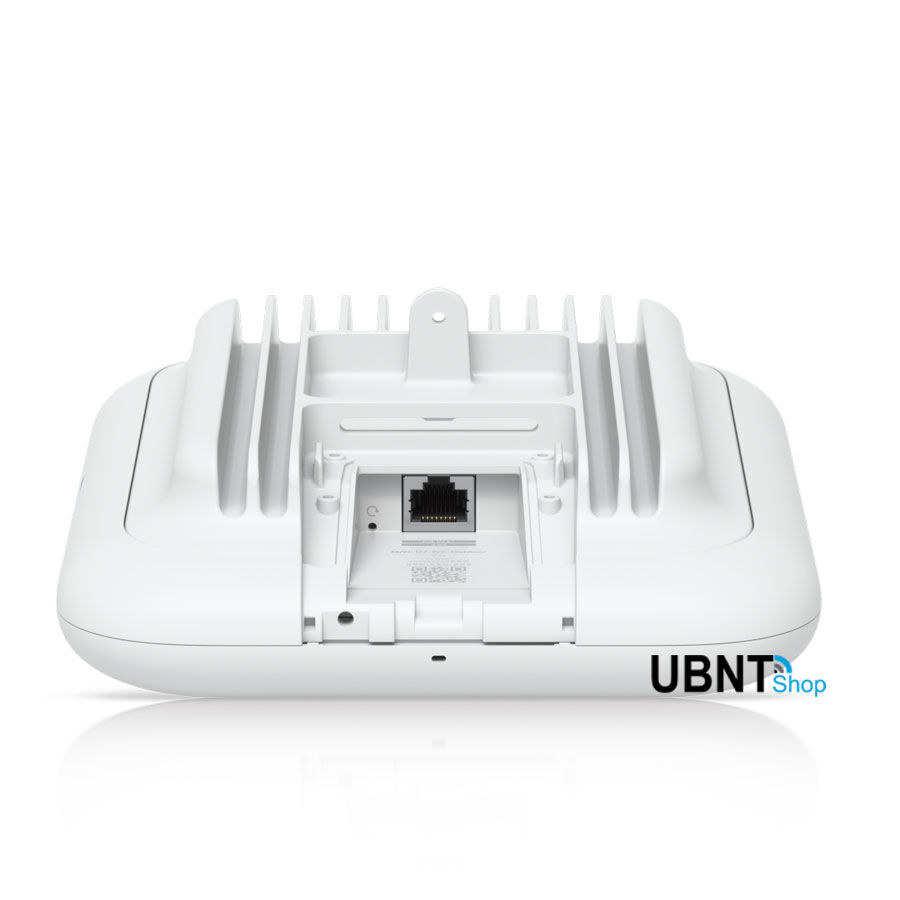

| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 21W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
23 dBm 26 dBm 26 dBm* *With 6 GHz Extended Range mode. Available in FCC/IC region only. |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
Directional internal: 8 dBi / External omni: 6 dBi Directional internal: 11 dBi / External omni: 8 dBi Directional internal: 10 dBi / External omni: – |
| Antenna beamwidth 2.4 GHz 5 GHz 6 GHz |
90° 90° 90° |

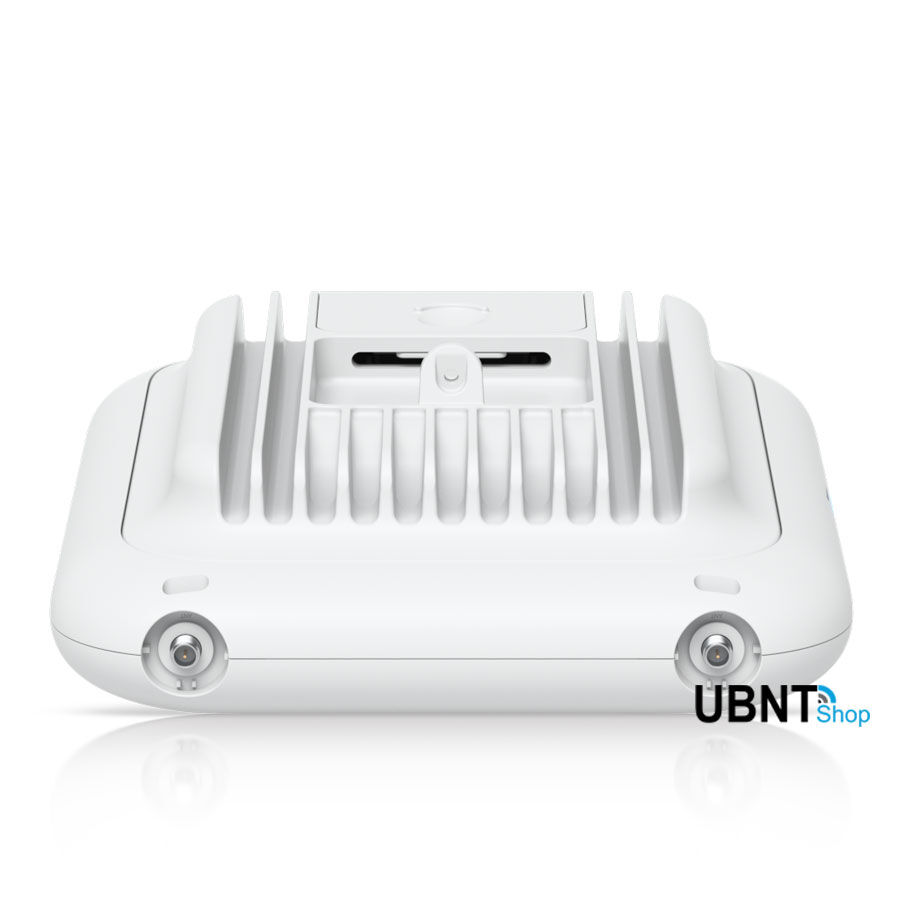

| Antennas | (1) Directional internal antenna (2) RP-SMA connectors for external antenna |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue |
| Button | Factory reset |
| Mounting | Wall, ceiling, pole (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| SKU | U7-PRO-OUTDOOR |
| Model # | U7-Pro-Outdoor |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.130m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.004641000m3 |
| Unit Of Measure | ea |
