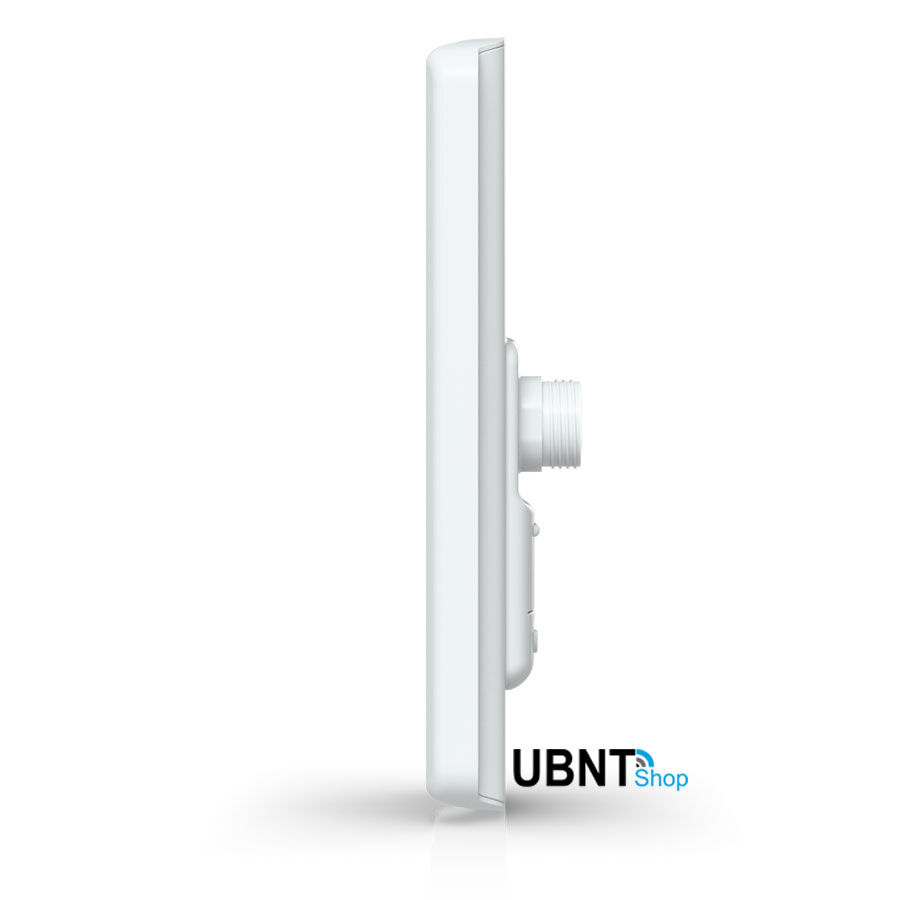

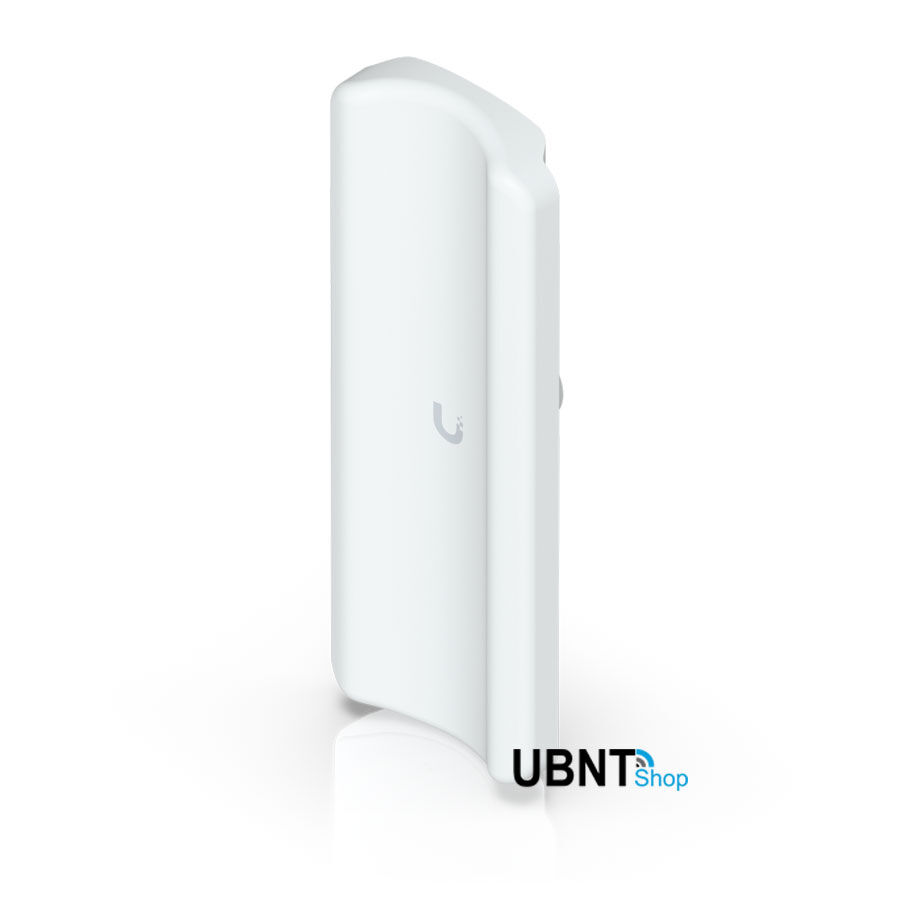

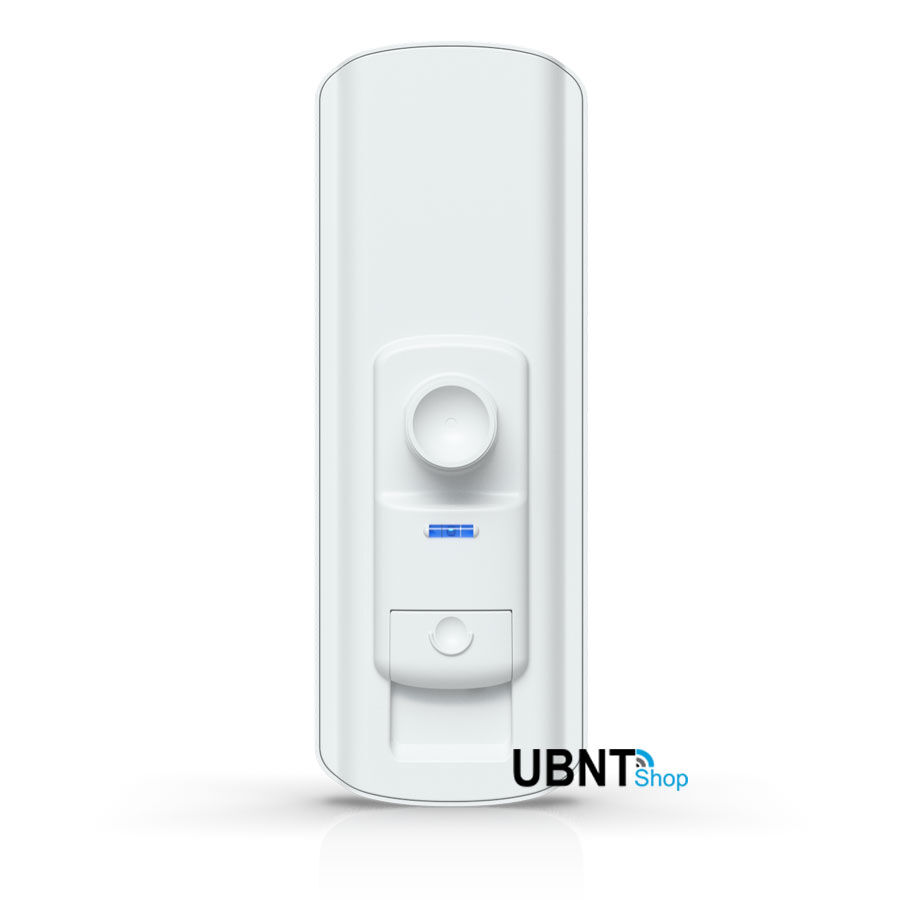

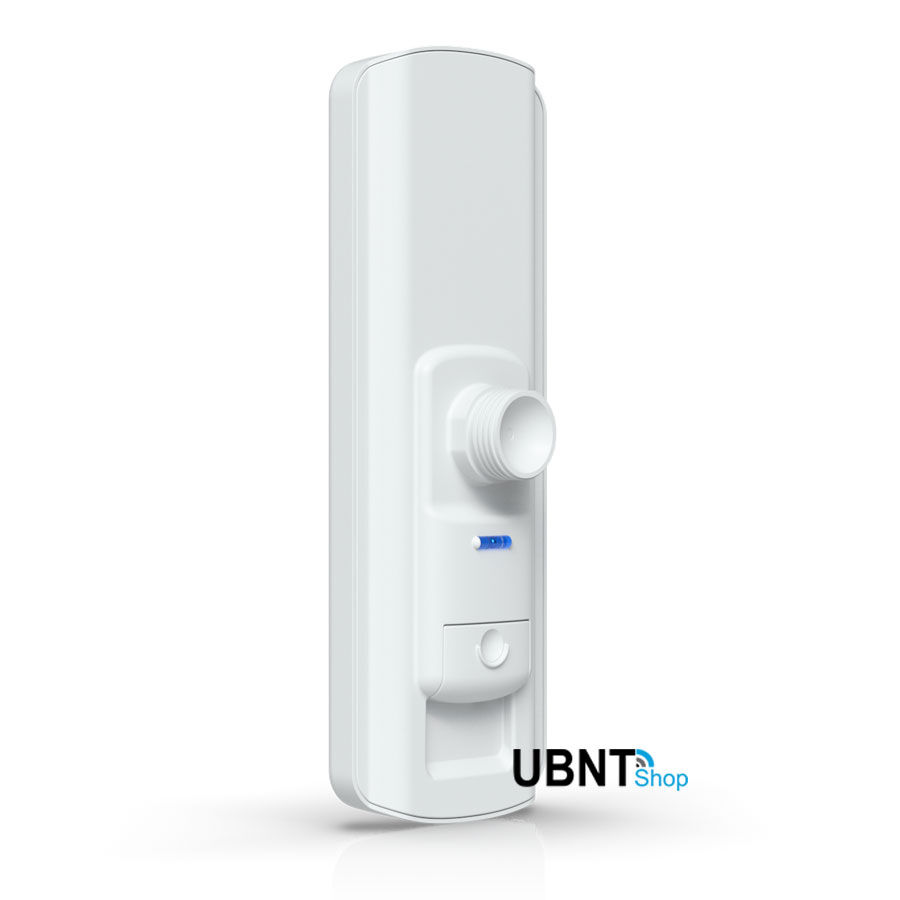

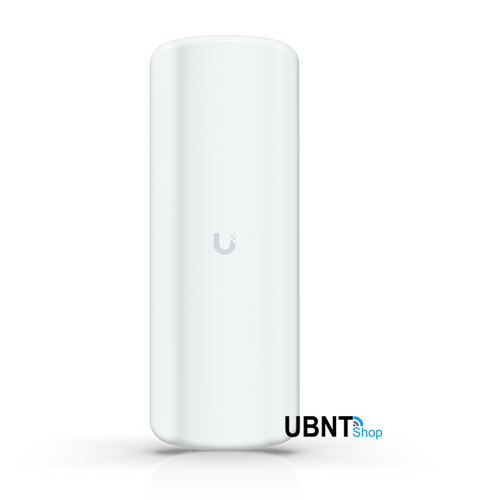

Ubiquiti UDB-Pro-Sector Unifi Device Bridge Pro Sector



Ubiquiti Unifi 5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Enables Point-to-Multi-Point (PtMP connectivity) with 40+ UDB-Pro clients

90° sector coverage

Powered using PoE

Pole mounting

Weatherproof (outdoor exposed)



(UDB-Pro-Sector)





Mechanical
Dimensions 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”)
Weight Without mount: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)
Enclosure material UV-resistant polycarbonate
Mount material UV-stabilized polycarbonate, stainless steel
Pole mount diameter 0.9—2.4" (24—60 mm) on pipe outer diameter
Wind loading 128.2 N at 200 km/h (28.8 lbf at 125 mph)
Weatherproofing IPX6
Hardware

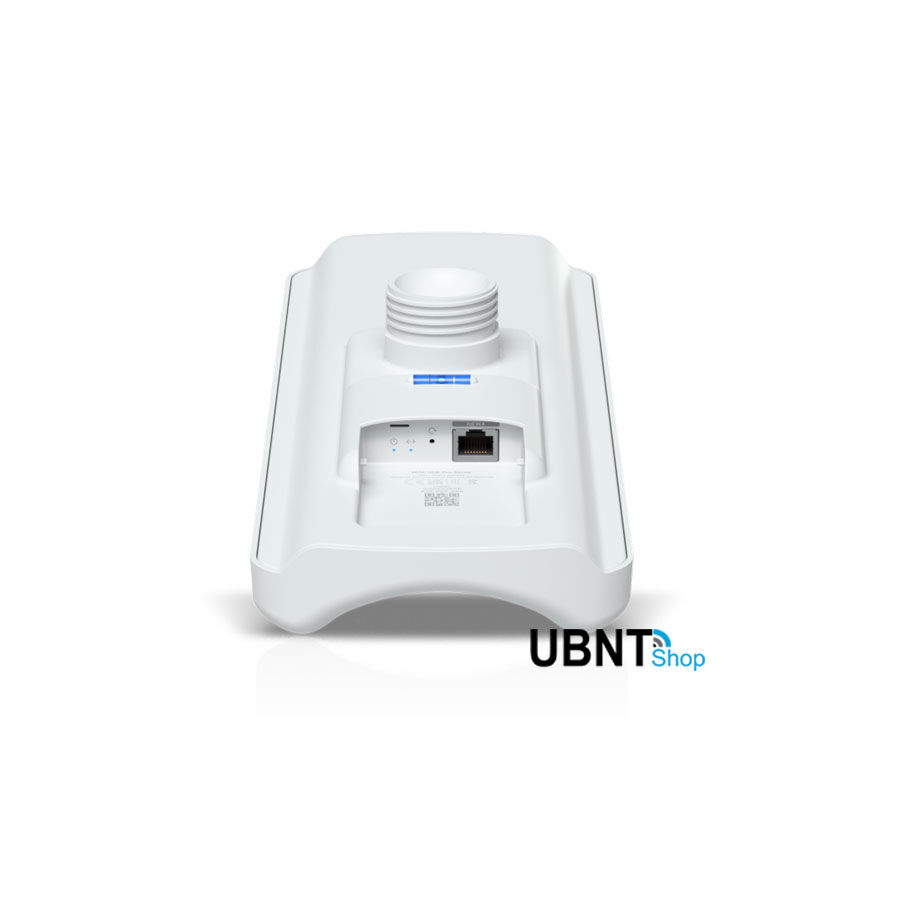

Networking interface (1) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
Supported volatage range 42.5–57V DC
Max. power consumption 6W
Max. TX power
2.4 GHz
5 GHz
6 GHz
–
25 dBm
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
–
400 Mbps (BW40)
–
MIMO
2.4 GHz
5 GHz
6 GHz
–
2 x 2
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
–
17 dBi
–
Antenna Internal
Range 5+ km
LEDs Power, Ethernet
Button Factory reset

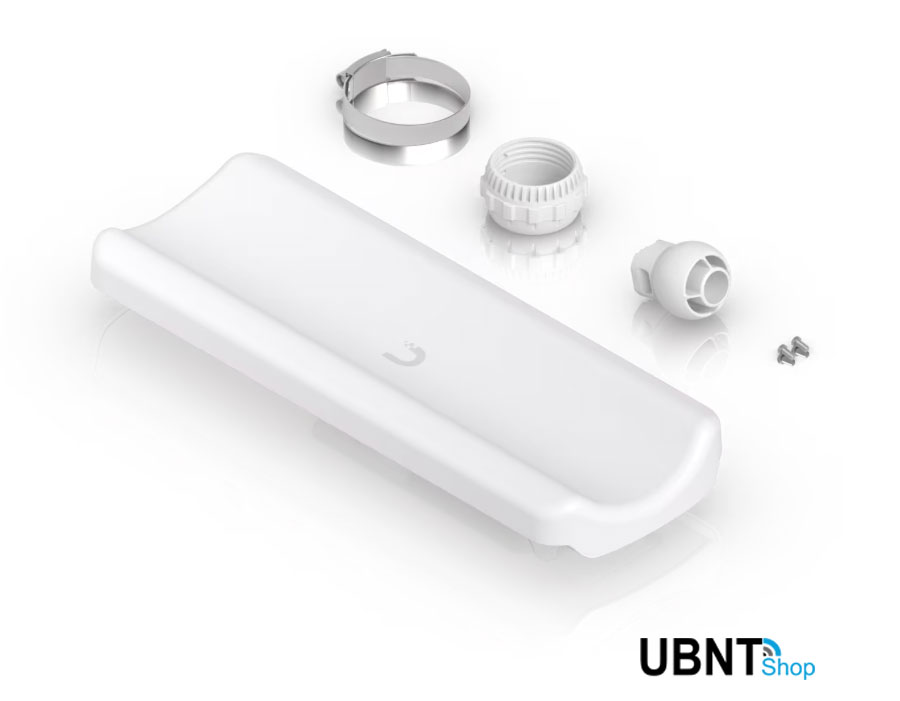

Mounting Pole (Included)
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/n/ac
Wireless security WPA2 AES (Always On)
Supported clients count 50+
Operating frequency*
US/CA




Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20/40 MHz
Max. conducted TX power 25 dBm (Combined)
Modulation BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚)
SKU UDB-Pro-Sector
Model # UDB-Pro-Sector
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 1.0600kg
Shipping Width 0.122m
Shipping Height 0.266m
Shipping Length 0.266m
Shipping Cubic 0.008632232m3
Unit Of Measure ea
