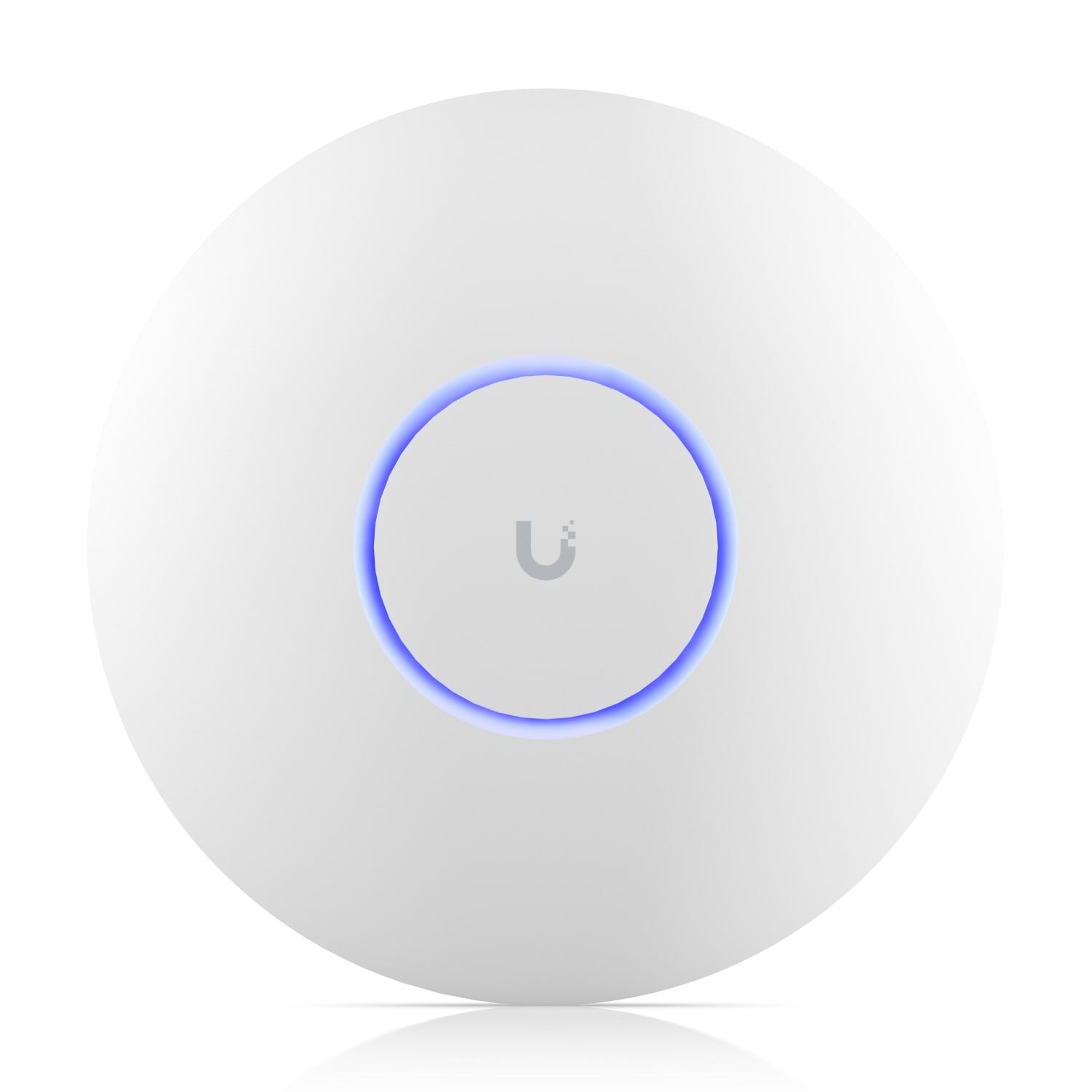

Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments
U7-PRO-MAX
ALTERNATE PRODUCT:
U7-PRO-UniFi Wi-Fi 7 PRO AP 2x2 Mimo Wi-Fi 7, Tri-Radio 2.4GHz,5GHz & 6GHz PoE+ 2.5 GbE UplinkIn Stock: YES
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:
Ubiquiti U7-Pro-Max, Ceiling-mounted WiFi 7 AP, 8 Spatial Streams,6 GHz Support,2.5 GbE Uplink, 500+ Devices,For Large-scale Environments;
Ubiquiti U7-Pro-Max SKU: U7-Pro-Max Description: Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments. Tech Specs: Click Here Installation Guide: Click Here
Features:
- WiFi 7 with 6 GHz support
- 8 spatial streams
- Real-time spectral analysis for enhanced channel selection*
- 160 m² (1,750 ft²) coverage
- 500+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Requires UniFi Network 8.2.93 and later.
*PoE NOT Included (Sold Separately)
(U7-PRO-MAX)
*PoE NOT Included (Sold Separately)
| Mechanical | |
|---|---|
| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| Weight | 750 g (1.7 lb) |
| Enclosure material | Polycarbonate, aluminum |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) |
| Hardware | |
| Networking interface | (1) 1/2.5/5/10 GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE+ |
| Power supply | UniFi PoE switch |
| Supported voltage range | 42.5—57V DC |
| Max. power consumption | 22W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz |
23 dBm 26 dBm 24 dBm |
| MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Max. data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
| Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 5 dBi 6 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 40° C (-22 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 300+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| SKU | U7-PRO-MAX |
| Model # | U7-Pro-Max |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 1.3200kg |
| Shipping Width | 0.248m |
| Shipping Height | 0.960m |
| Shipping Length | 0.248m |
| Shipping Cubic | 0.059043840m3 |
| Unit Of Measure | ea |
