Unifi U7-Pro-XG Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.



FEATURES:

WiFi 7 with 6 GHz support

6 spatial streams

140 m² (1,500 ft²) coverage

300+ connected devices

Powered using PoE+

10 GbE uplink

Available in White or Black

*PoE NOT Included (Sold Separately)



(U7-PRO-XG)

Ubiquiti U7-Pro-XG UniFi AP WiFi7 10GbE Indoor - No POE Injector



*PoE NOT Included (Sold Separately)

Ubiquiti U7-Pro-XG UniFi AP WiFi7 10GbE Indoor - No POE Injector



Mechanical
Dimensions Ø206 x 32.5 mm (Ø8.1 x 1.3")
Weight 750 g (1.7 lb)
Enclosure material Polycarbonate, aluminum
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware

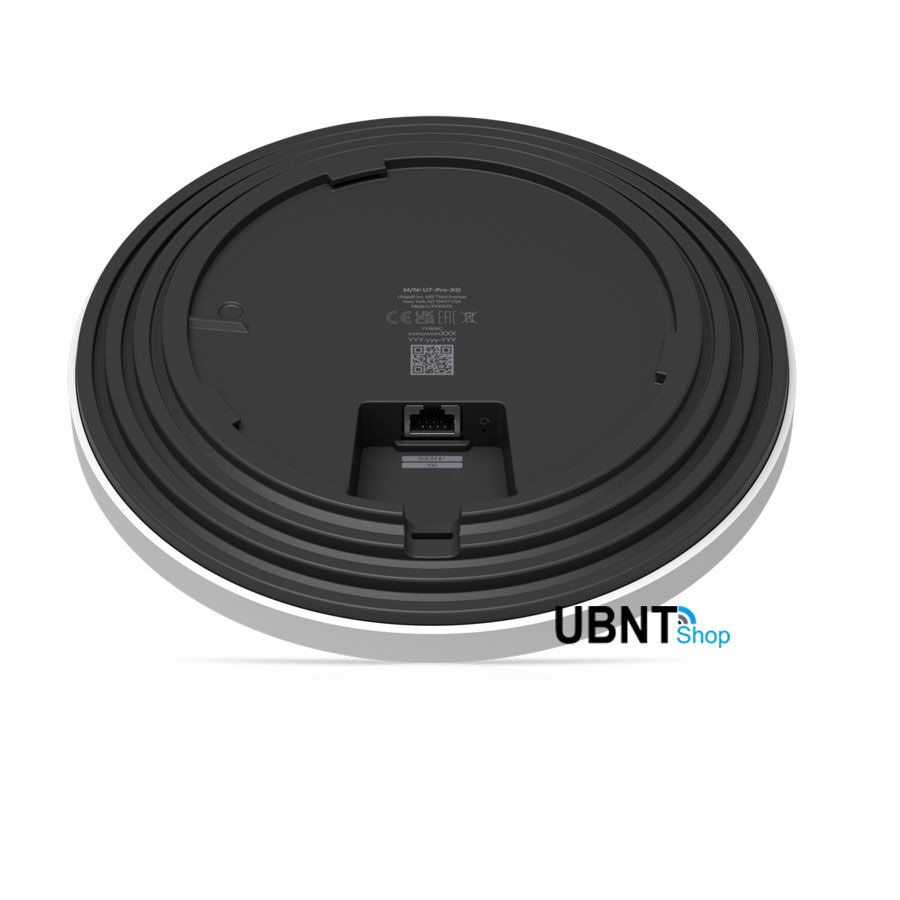

Networking interface (1) 1/2.5/5/10 GbE RJ45 port
Management interface Ethernet
Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 22W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
26 dBm
24 dBm
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz
688 Mbps (BW40)
4.3 Gbps (BW240)
5.7 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz
4 dBi
5 dBi
6 dBi
LEDs White/blue
Button Factory reset

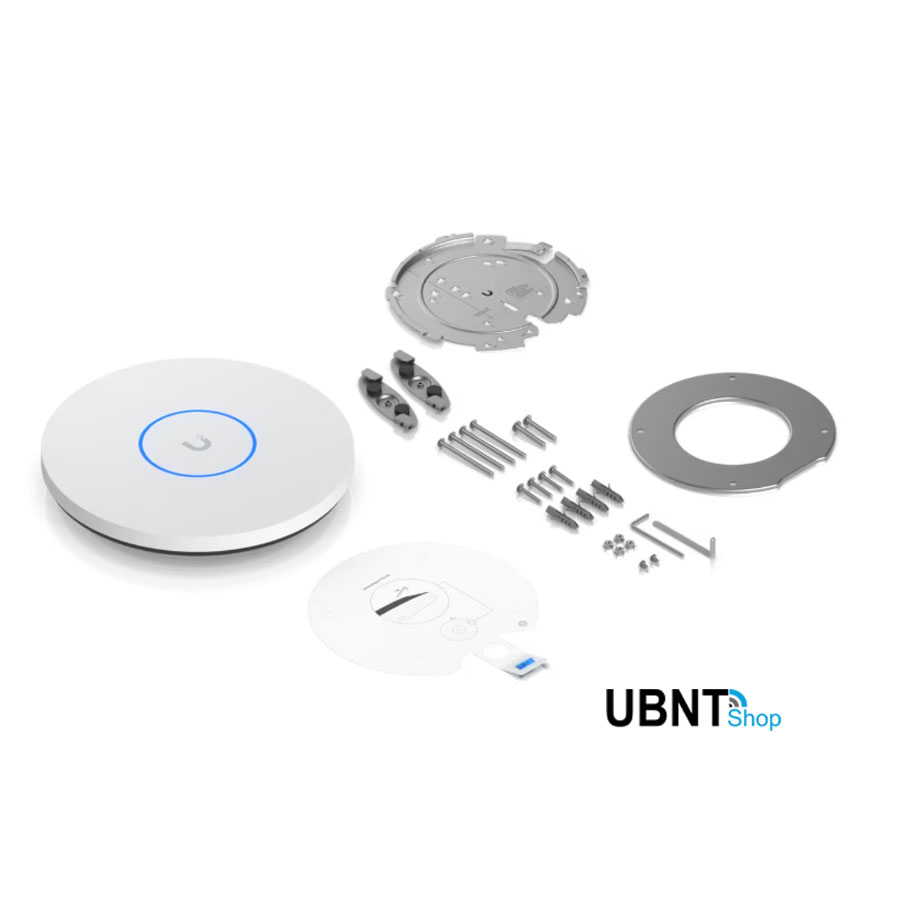

Mounting Wall, ceiling (Included)
Ambient operating temperature -30 to 40° C (-22 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
SKU U7-PRO-XG
Model # U7-Pro-XG
Brand Ubiquiti
Shipping Weight 1.3200kg
Shipping Width 0.248m
Shipping Height 0.960m
Shipping Length 0.248m
Shipping Cubic 0.059043840m3
Unit Of Measure ea
