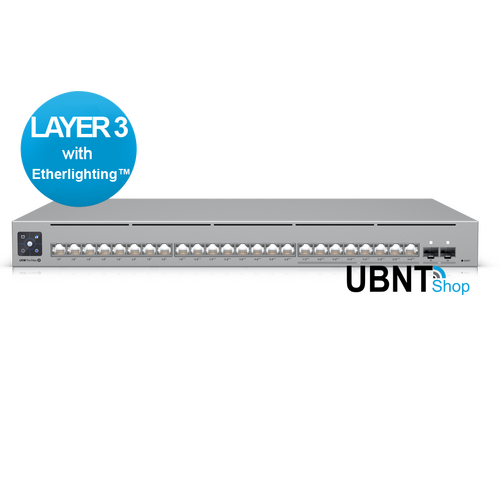

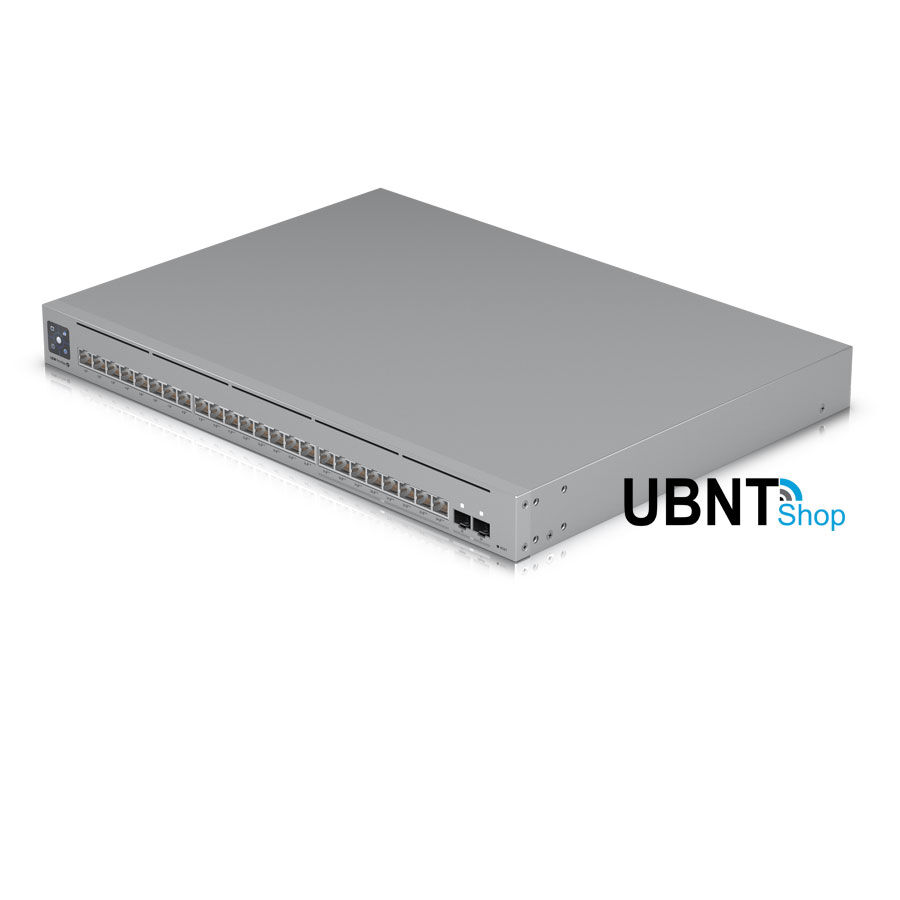

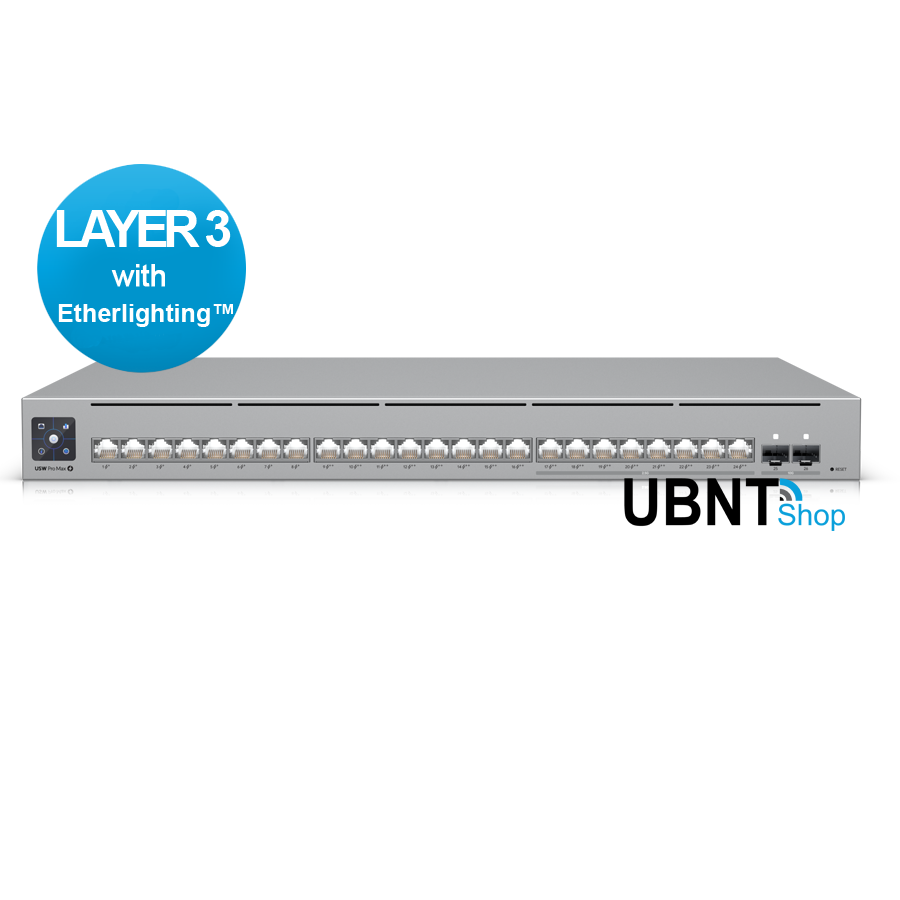

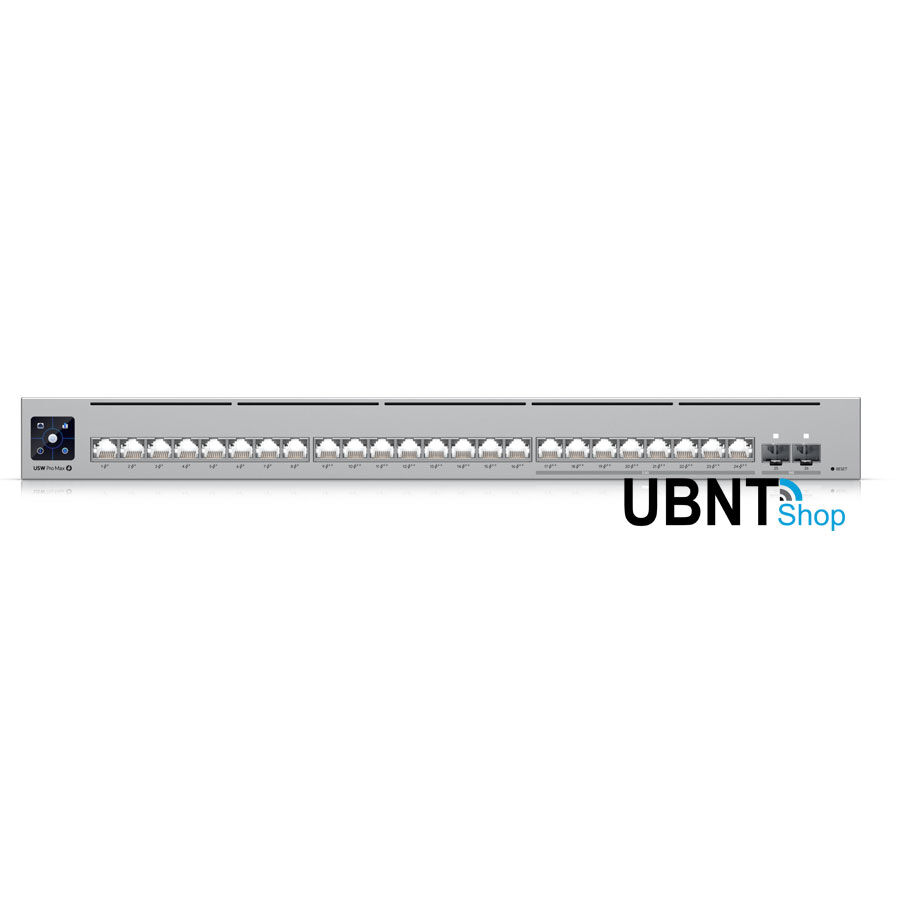

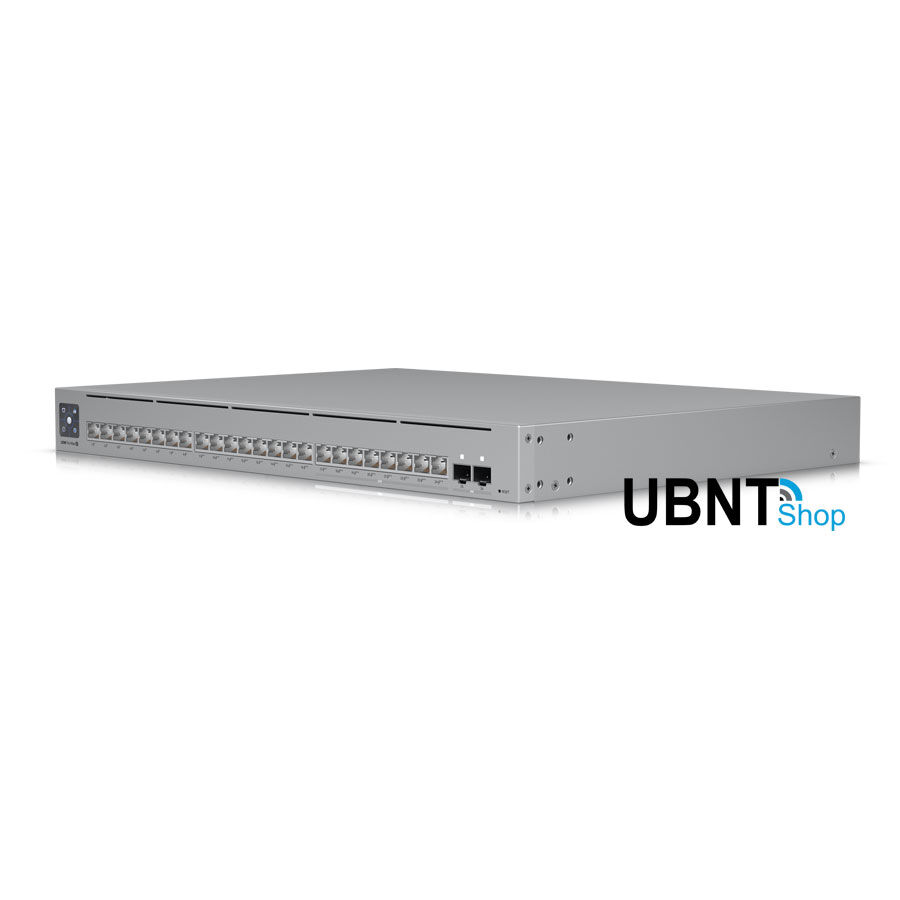

UniFi Network Switch, 24-Port, POE 400W, (8) 2.5GbEPoE++, (16) GbE Ports - (8) PoE+, (8) PoE++, (2)10G SFP+, Layer3



A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.

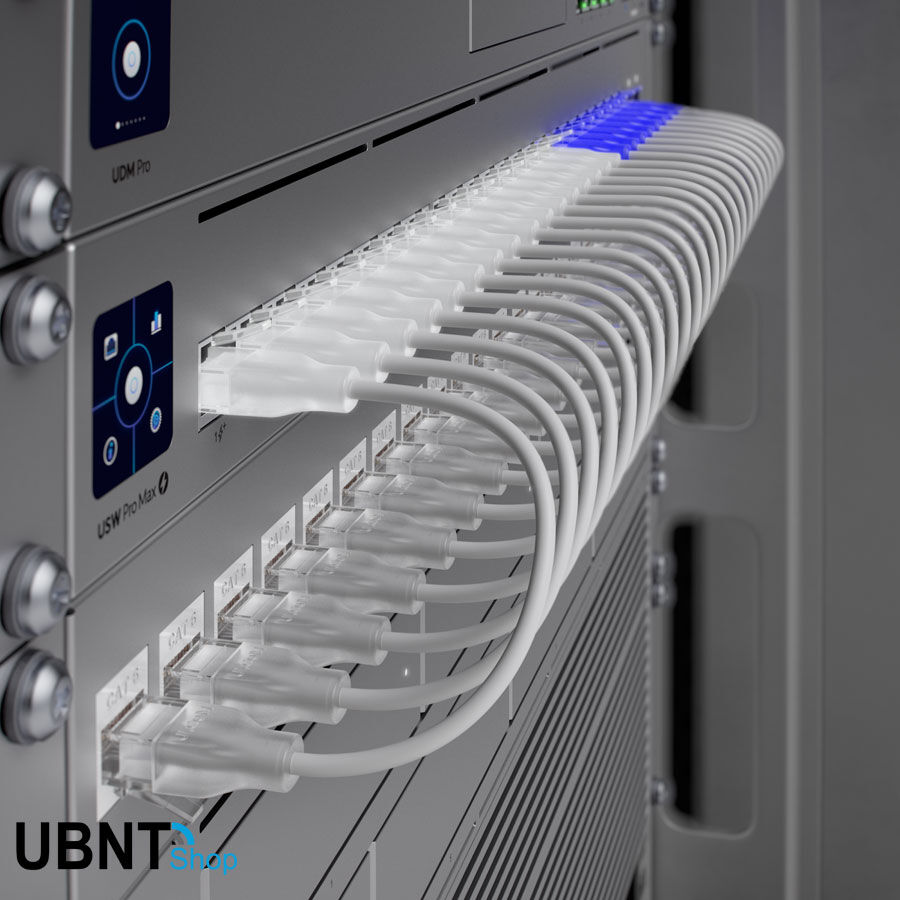

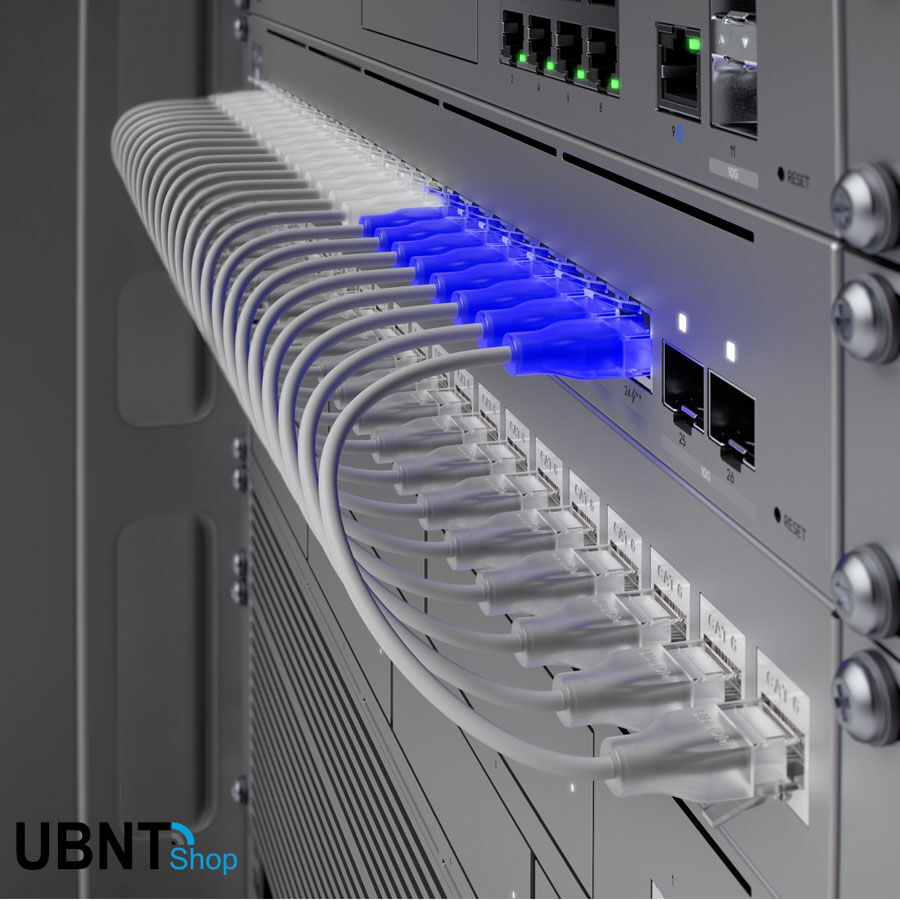

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*

(8) 2.5 GbE PoE++ ports

(16) GbE ports including (8) PoE+ and (8) PoE++

(2) 10G SFP+ ports

DC power backup ready

400W total PoE availability

(USW-PRO-MAX-24-POE)

USW-PRO-MAX-24-POE

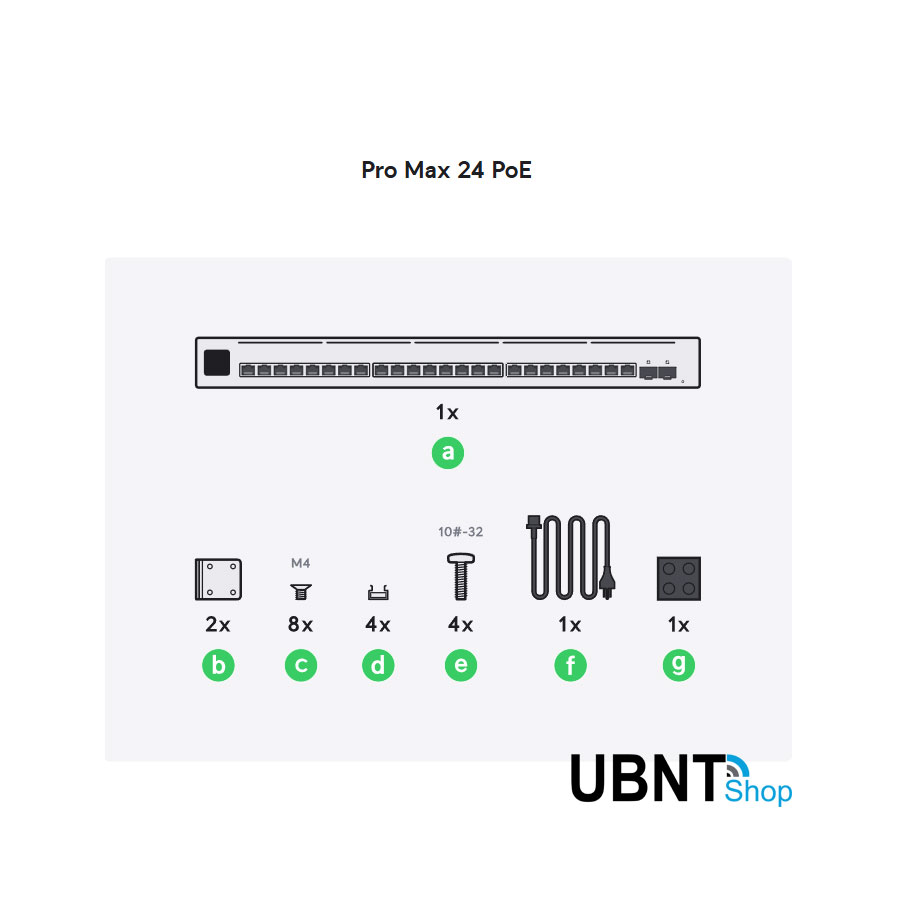

Pack Includes

USW-PRO-MAX-24-POE - Specifications



Mechanical
Dimensions 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.2 kg (9.3 lb)
With mounting brackets: 4.3 kg (9.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput 56 Gbps
Switching capacity 112 Gbps
Power method Universal input, 100—240V AC, 50/60 Hz

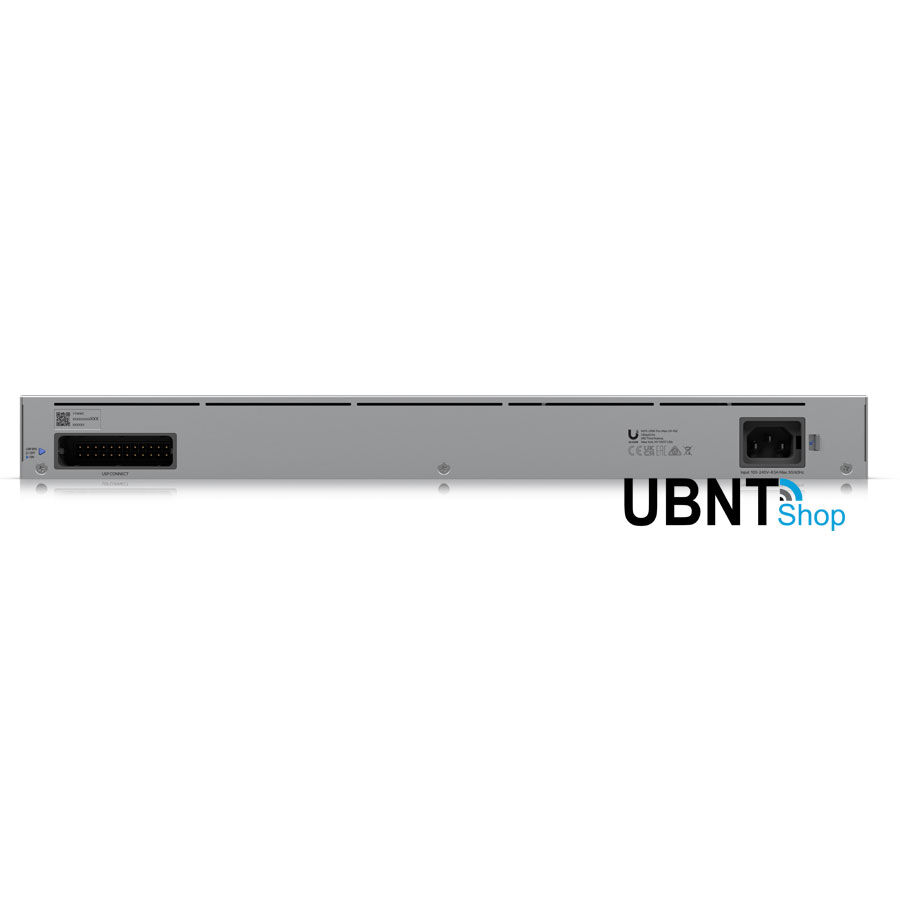

USP RPS DC input
Power supply AC/DC, internal, 50W
Supported voltage range 100—240V AC
Max. power consumption 50W
LCM display (1) 1.3" touchscreen
Button Factory reset
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC

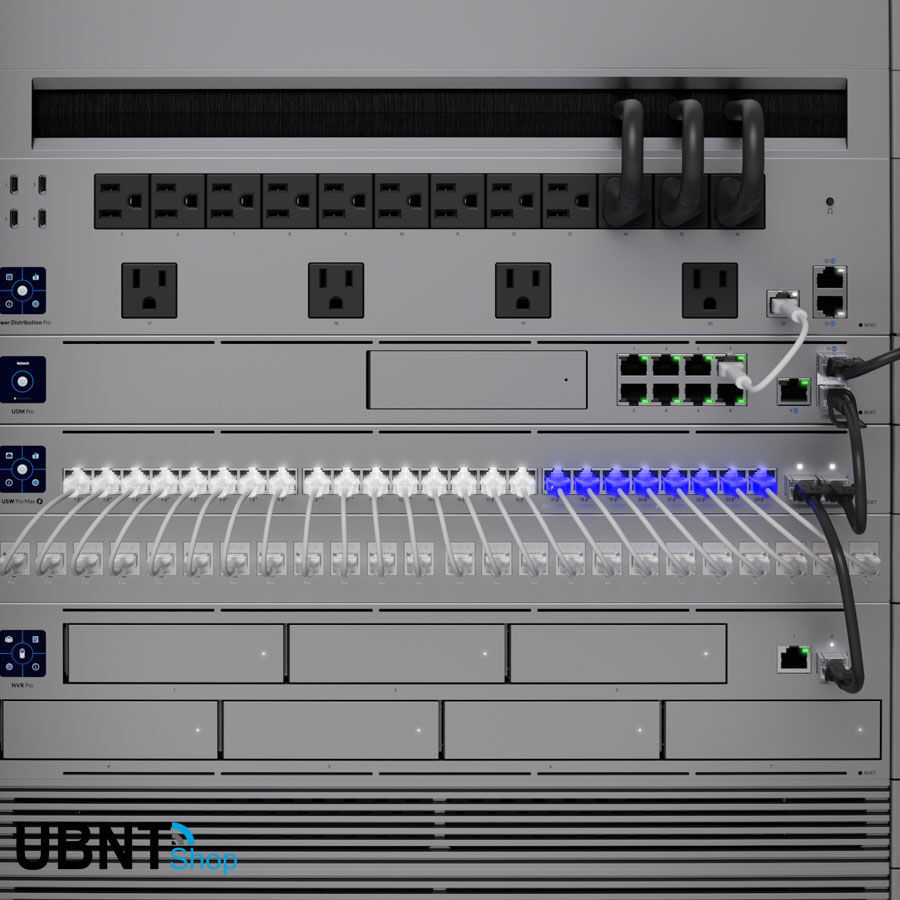

Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
LEDs
System Status
RPS Status
SKU USW-PRO-MAX-24-POE
Model # USW-Pro-Max-24-PoE
Barcode # 8.10E+11
Brand Ubiquiti
Shipping Weight 5.2000kg
Shipping Width 0.325m
Shipping Height 0.047m
Shipping Length 0.442m
Shipping Cubic 0.006751550m3
Unit Of Measure ea
