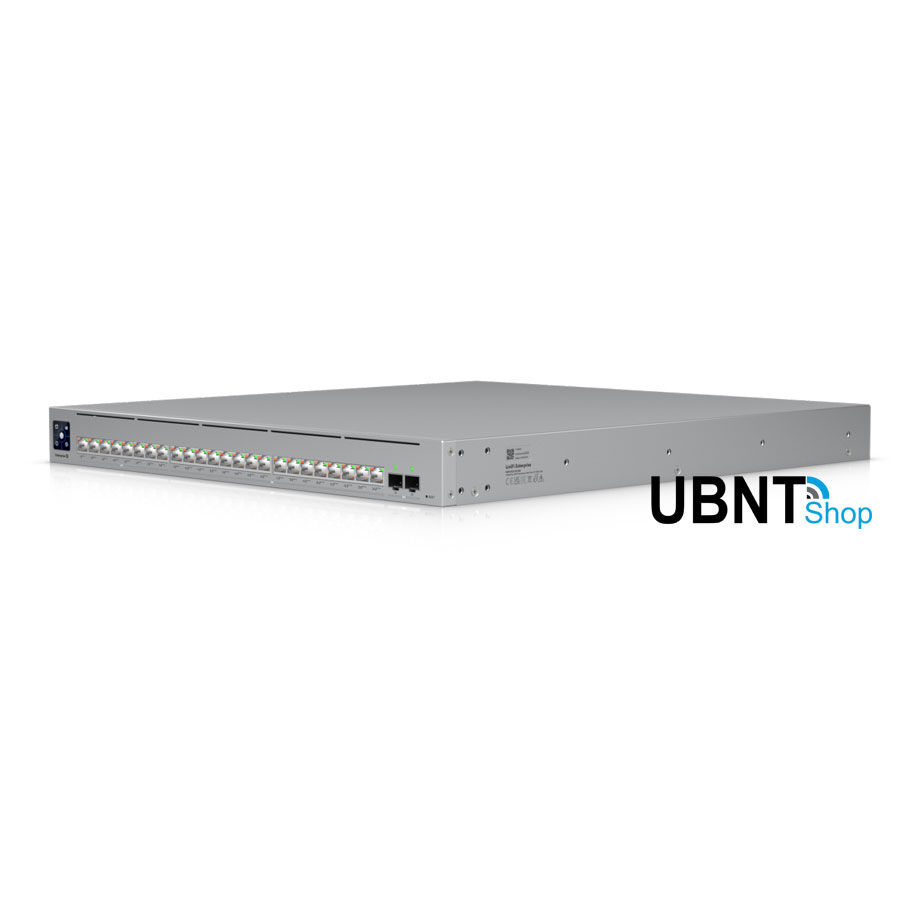

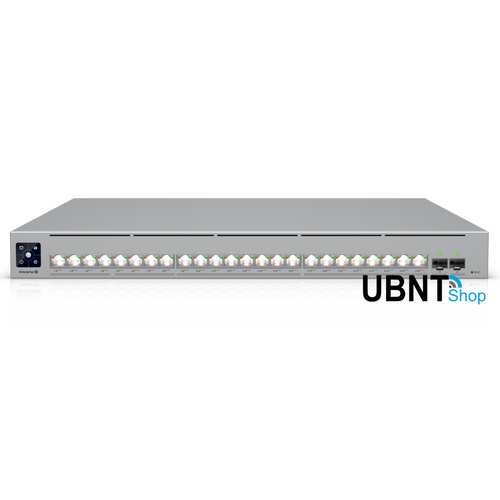

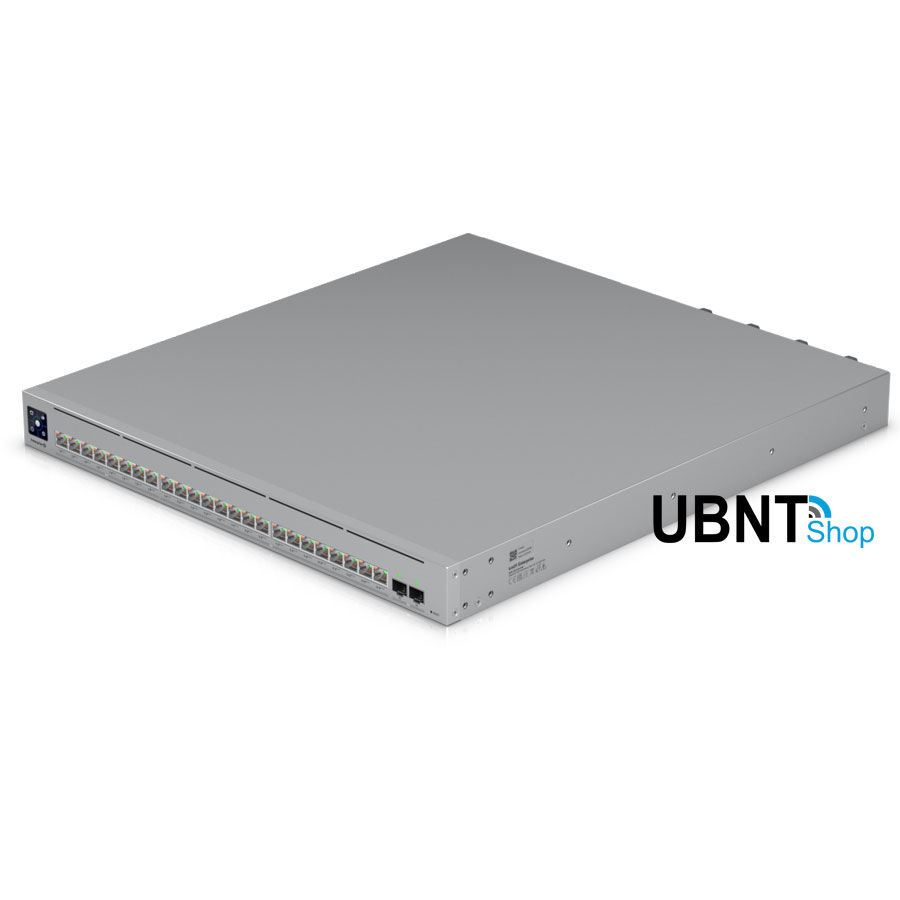

ECS-24-PoE (1050W) Ubiquiti Enterprise Campus 24 PoE Switch



Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Features:

•(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
•(2) 25G SFP28 ports
•Up to 1,050W PoE availability*
•(2) included hot-swappable power modules
•(4) included hot-swappable fan modules with one backup

*Recommend being paired with Enterprise Campus Aggregation.



(ECS-24-POE)

Ubiquiti UniFI Enterprise Campus Switch 24 Port Poe Switch (1050W)

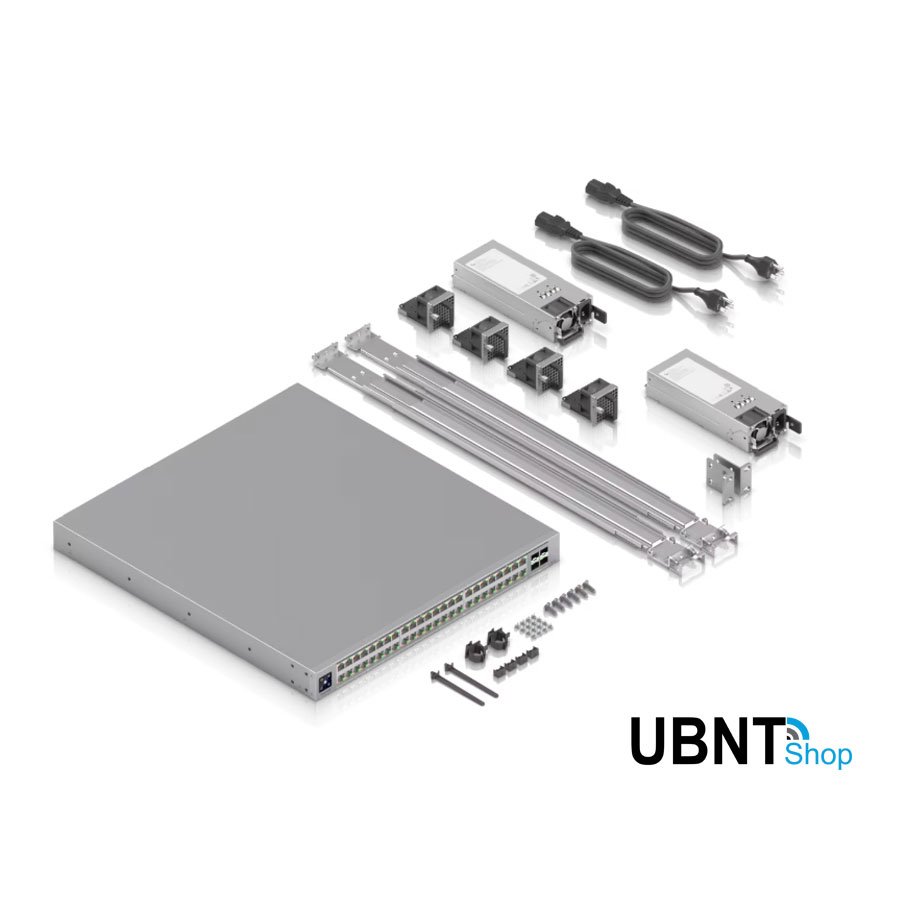

Package Includes

Ubiquiti UniFI Enterprise Campus Switch 24 Port Poe Switch (1050W) - Specifications

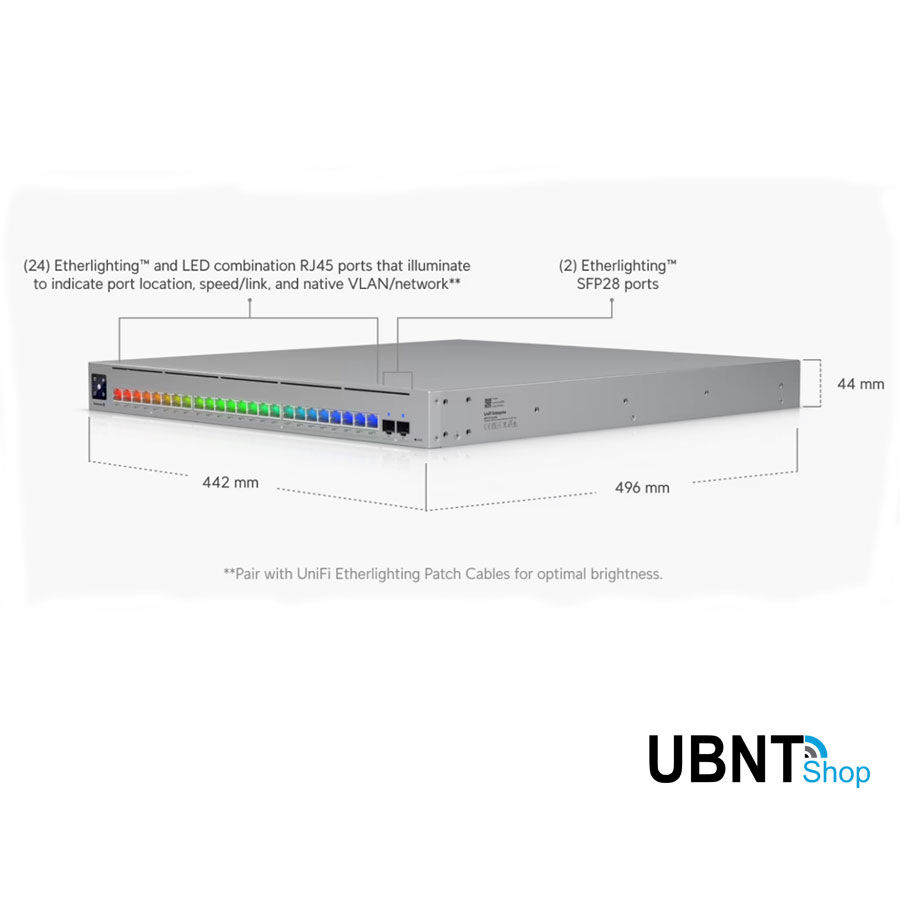

Dimensions
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

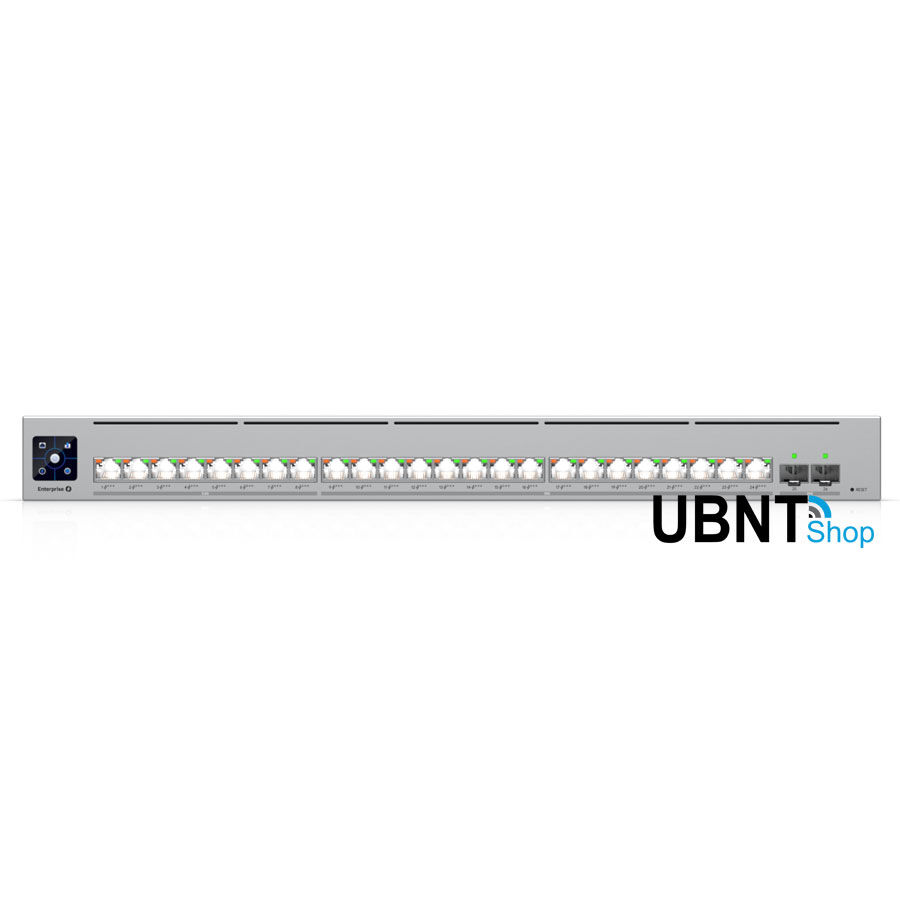

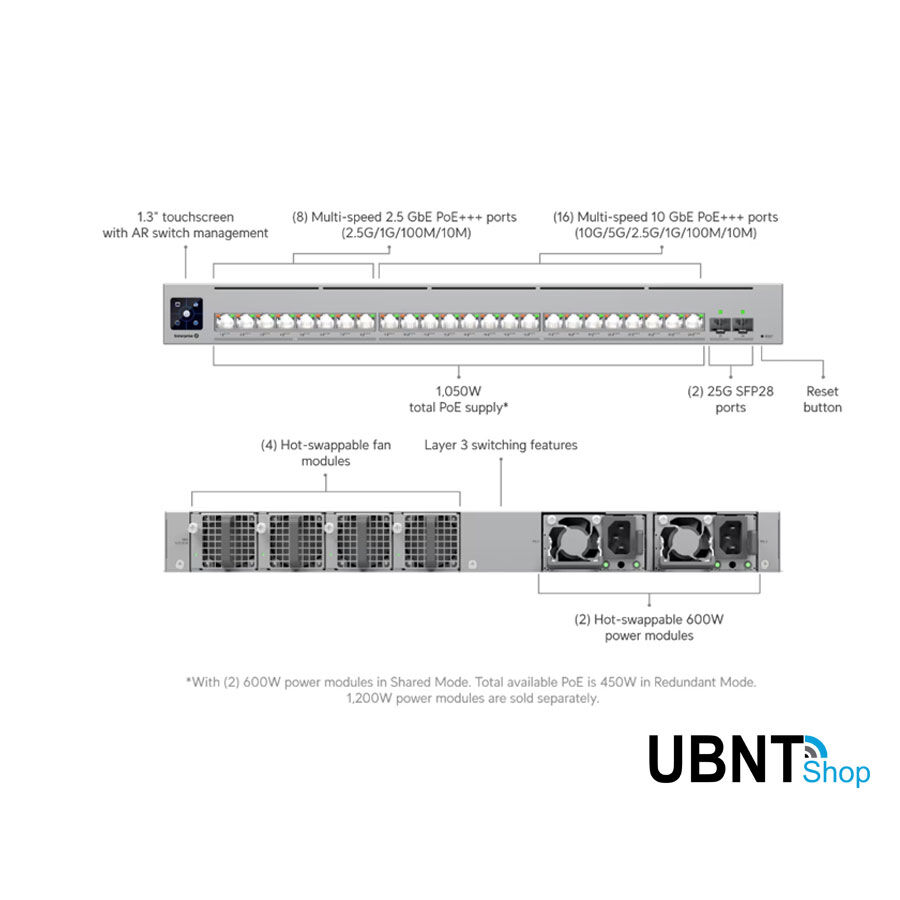

Port Layout



2.5 GbE RJ45
8 (All PoE+++) (2.5G/1G/100M/10M)



10 GbE RJ45
16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)



25G SFP28
2 (25G/10G/1G)
Max. PoE Output
Up to PoE+++

Total PoE Availability
100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules

Redundancy

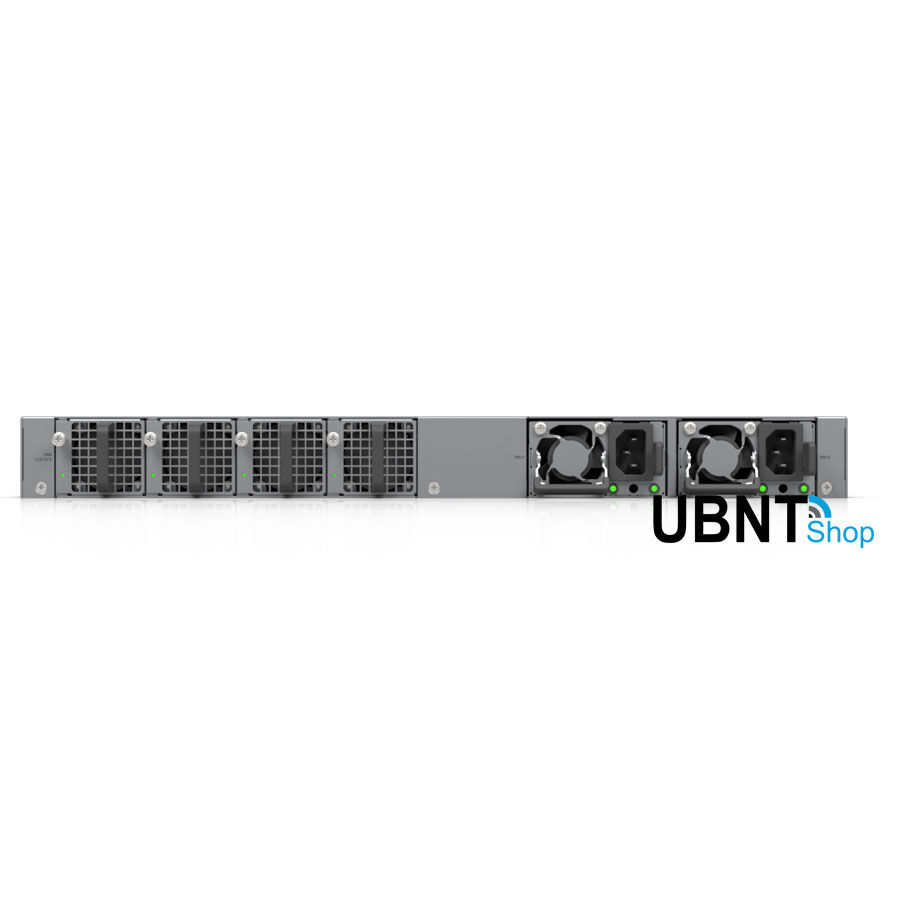

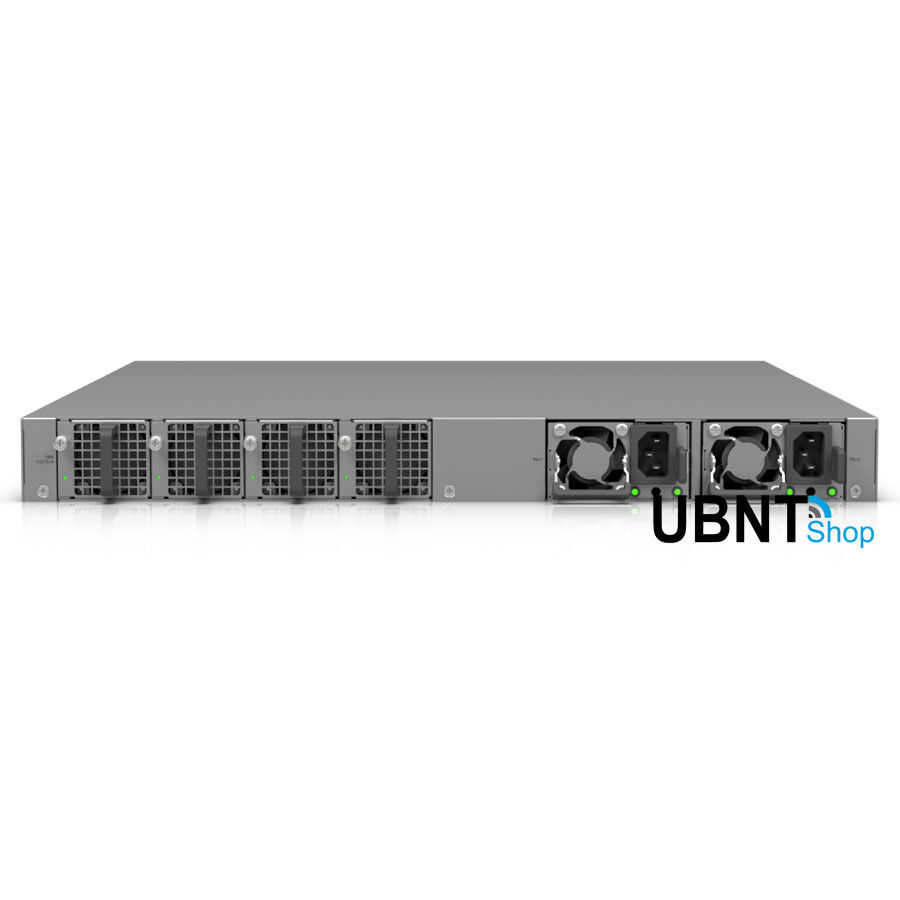

(2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Layer 3
✓
Form Factor
Rack Mount (1U, Full-Depth)

Etherlighting™
✓

Switching Capacity
460 Gbps
Total Non-Blocking Throughput
230 Gbps
Forwarding Rate
342 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size



ARP Entries
128,000


IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists



IPv4
256


MAC
256

DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓

LACP Port Aggregation
✓
STP & RSTP
✓
QoS (DSCP)
✓
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓

PoE Ports



PoE+++
24
Max. PoE Wattage per Port by PSE



PoE
15.4W


PoE+
30W


PoE++
60W


PoE+++
90W
Max. Power Consumption
150W (Excluding PoE Output) 2400W (Including PoE Output)
Power Method
(2) Universal input, 100—240V AC, 50/60 Hz, 50/60 Hz
Power Input Method
(2) AC input, Hot-swappable power modules
Power Supply
(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Weight
Without mounting brackets: 9.46 kg (20.9 lb) With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material
SGCC steel

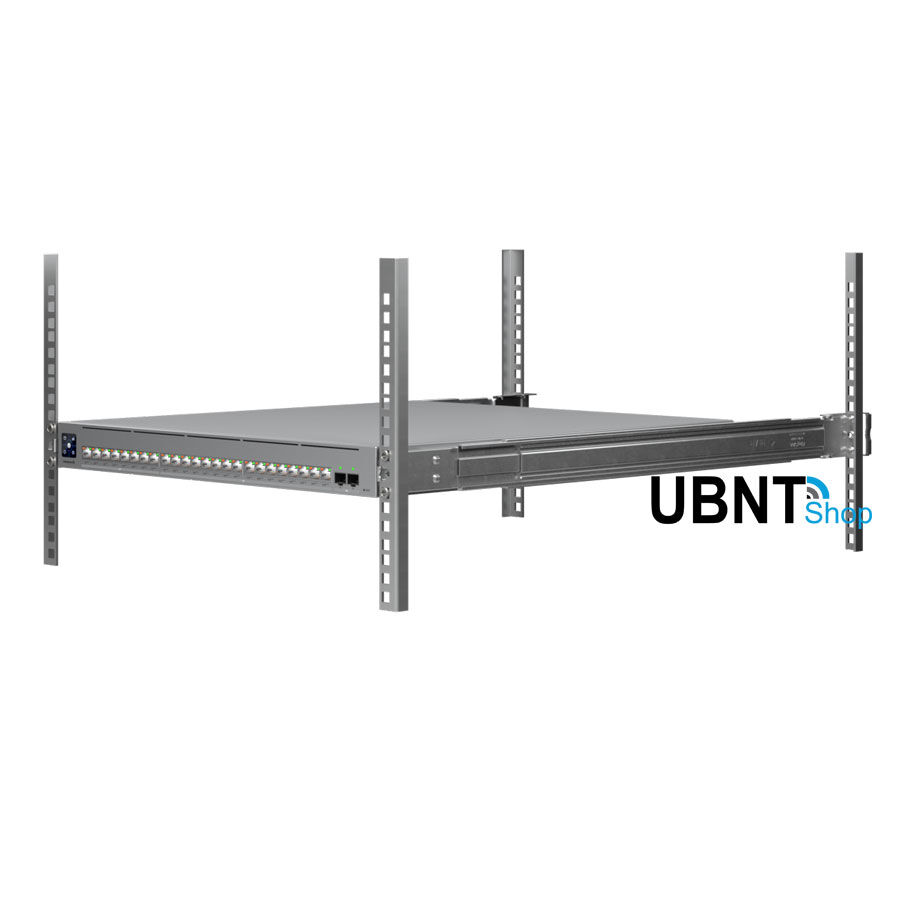

Supported Rack Depth
482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display
1.3" touchscreen
Fan Method
(4) hot-swappable fan modules

ESD/EMP Protection
Air: ± 30kV, contact: ± 30kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™



Ethernet
✓


SFP28
✓
LEDs



Ethernet
✓


System
✓
NDAA Compliant
✓
Certifications
CE, FCC, IC

Application Requirements



UniFi Network
Version 9.0.114 and later
SKU ECS-24-POE
Model # ECS-24-PoE
Barcode # 810084699096
Brand Ubiquiti
Shipping Weight 9.5000kg
Shipping Width 0.325m
Shipping Height 0.044m
Shipping Length 0.442m
Shipping Cubic 0.006321000m3
Unit Of Measure ea
