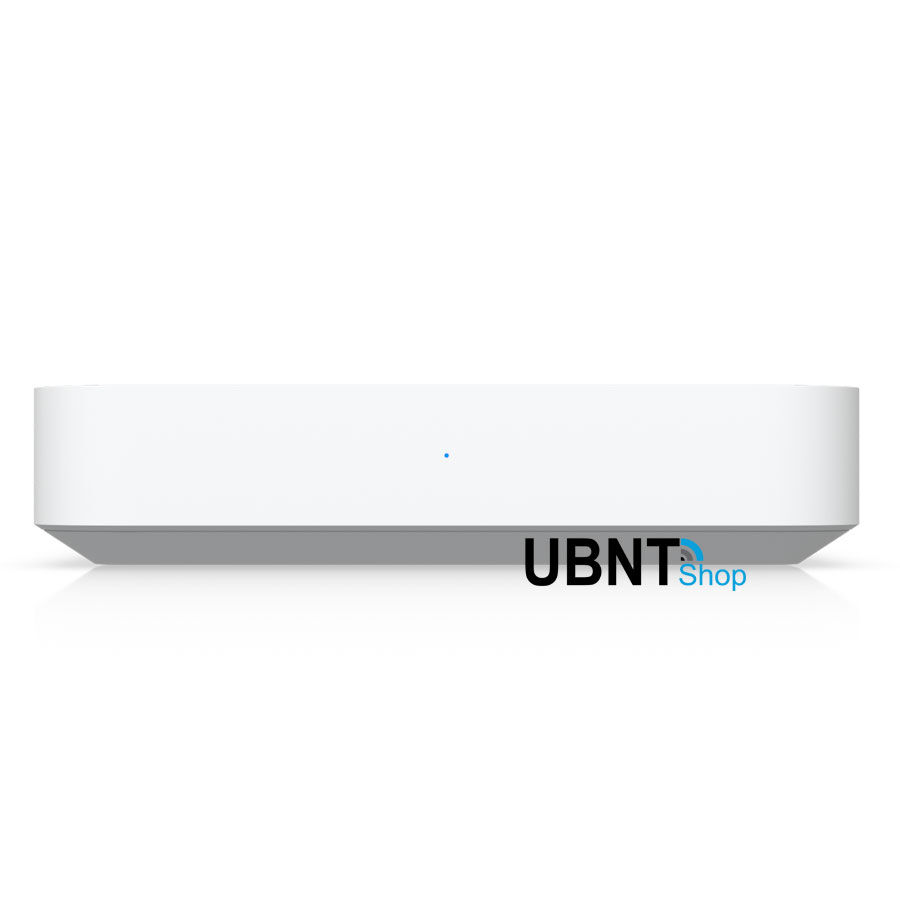

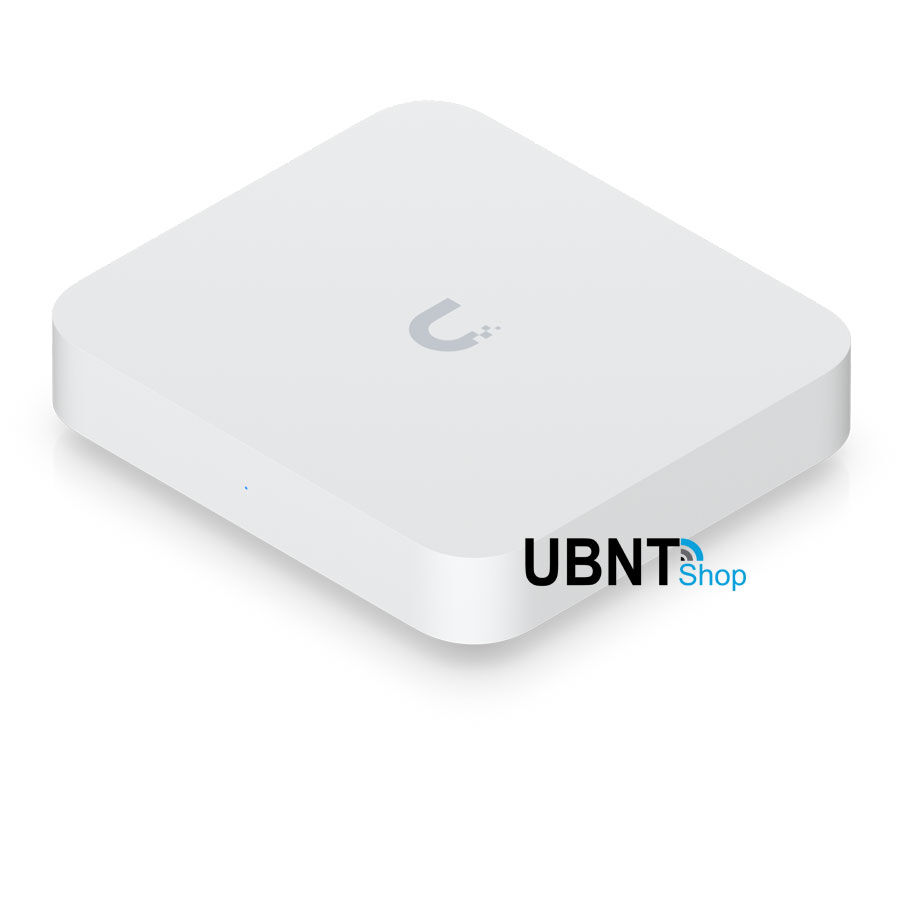

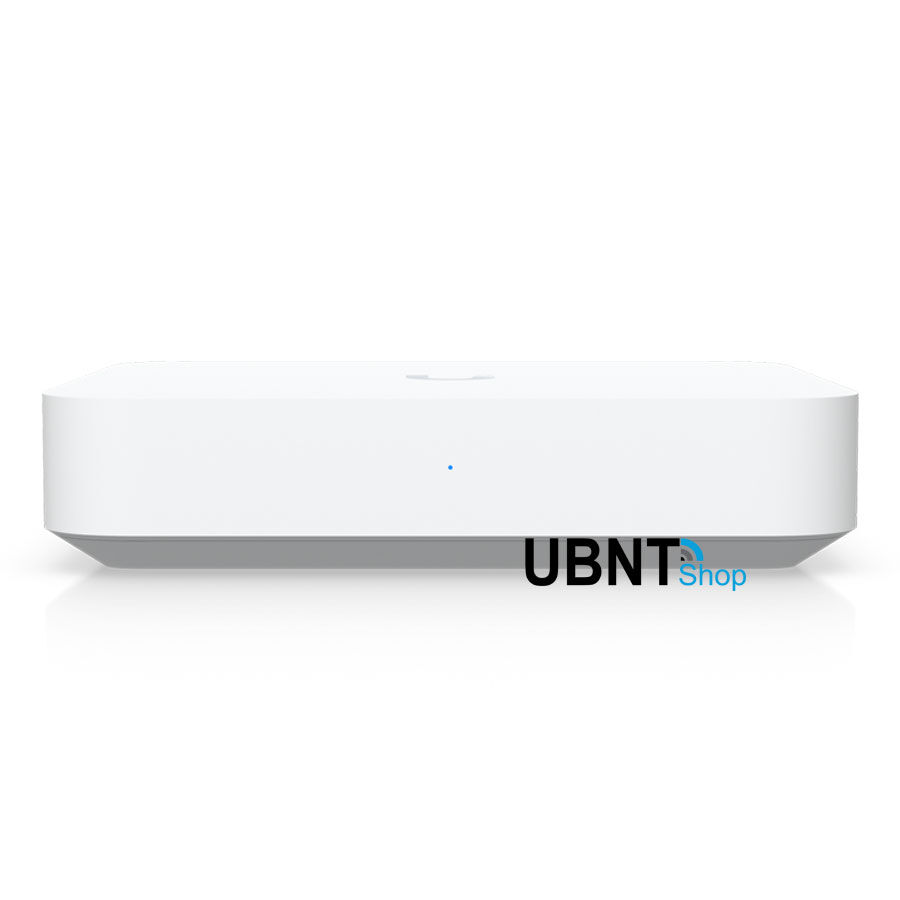

UXG-Max Unifi Gateway Max Compact Multi WAN 2.5 x GbE WAN, 4 x 2.5GbE LAN





Unifi Gateway Max  Compact, multi-WAN UniFi gateway with full 2.5 GbE support for high-performance networking at small-to-medium sites.

FEATURES

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server

Up to 1.5 Gbps routing with IDS/IPS

(1) 2.5 GbE WAN port

(4) 2.5 GbE LAN ports, including (1) remappable to WAN

USB-C powered (adapter included)





(UXG-Max)

UXG-Max Unifi Gateway Max Compact Multi WAN 2.5 x GbE WAN, 4 x 2.5GbE LAN

UXG-Max Unifi Gateway Max Compact Multi WAN 2.5 x GbE WAN, 4 x 2.5GbE LAN - Specifications

Mechanical
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 520 g (1.1 lb)
Enclosure material Polycarbonate
Resistance IK04
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory information 2 GB DDR4
Management interface Ethernet
Bluetooth

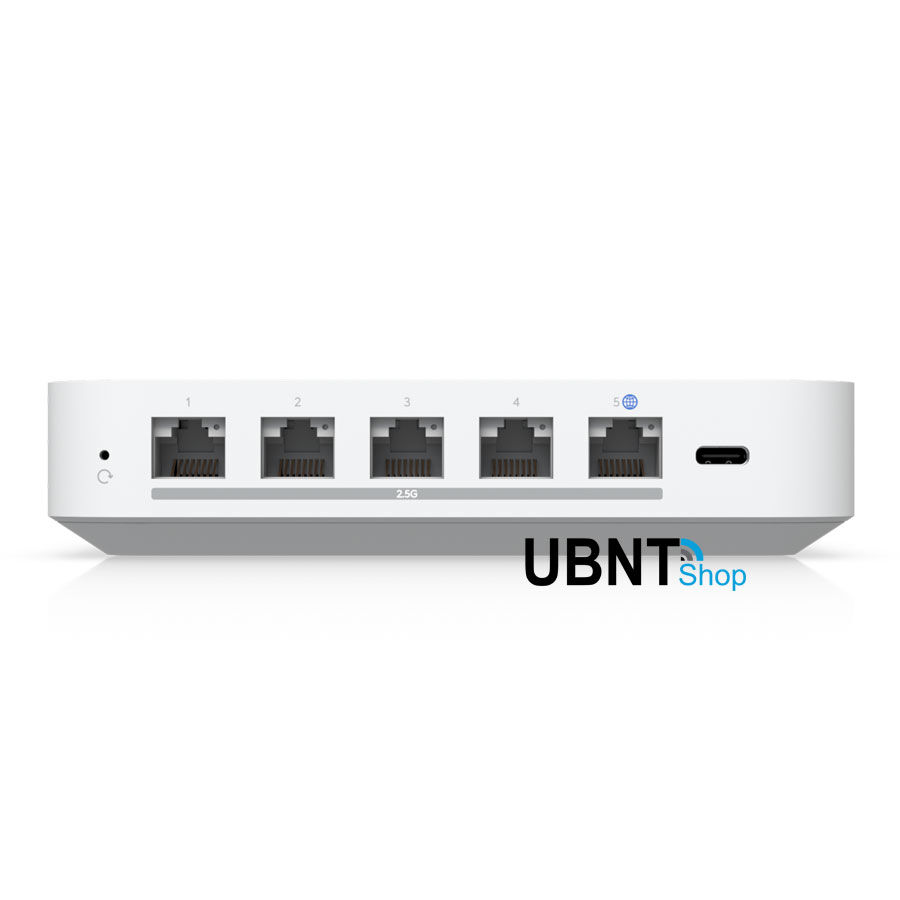

Networking interface LAN:
(4) 2.5 GbE RJ45 ports

WAN:
(1) 2.5 GbE RJ45 port
IDS/IPS throughput 1.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power method USB type C (5V/3A)
Supported voltage range 100–240V
Max. power consumption 9.6W
LED Ethernet
White: link/activity
Button (1) Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support

*When paired with a CloudKey or Official UniFi Hosting.
**When paired with a CloudKey.
Application Requirements
UniFi Network Version 8.1.113 and later
SKU UXG-Max
Model # UXG-MAX
Barcode # 810084695210
Brand Ubiquiti
Shipping Weight 0.5200kg
Shipping Width 0.127m
Shipping Height 0.030m
Shipping Length 0.141m
Shipping Cubic 0.000537210m3
Unit Of Measure ea
