UniFi Wi-Fi 6 Enterprise Sleek, Wall-mounted WiFi 6E Access Point, Integrated Four-port Switch
U6-Enterprise-IW
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:

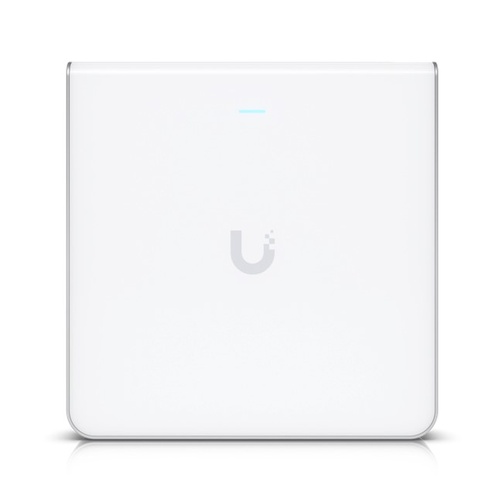

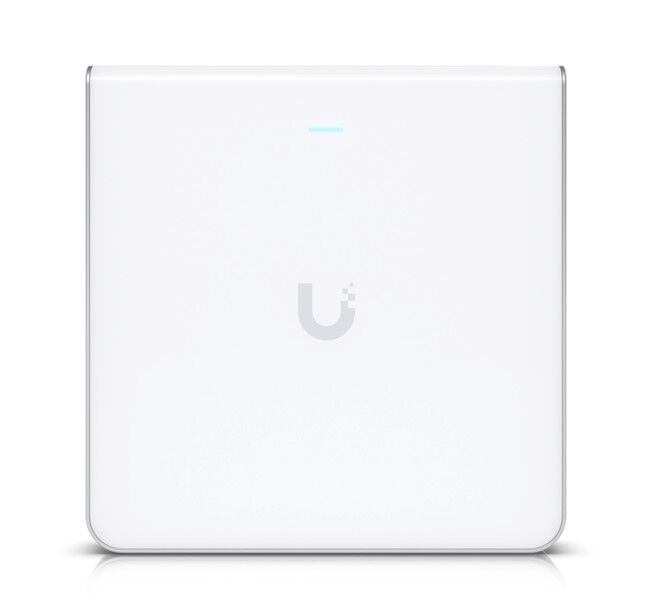

Ubiquiti UniFi Wi-Fi 6 Enterprise Sleek, Wall-mounted WiFi 6E Access Point, Integrated Four-port Switch
Ubiquiti U6 Enterprise In-Wall U6-Enterprise-IW Description:Sleek, wall-mounted WiFi 6E access point with an integrated four-port switch designed for high-density office networks. Tech Specs: Click Here Installation Guide: Click Here.
Features:
- 115 m² (1,250 ft²) coverage
- 600+ connected devices
- WiFi 6E (4x4 MIMO)
- Powered using PoE+/PoE++*
- (4) GbE ports with (1) PoE output
- 2.5GbE uplink
(U6-ENTERPRISE-IW)
Overview

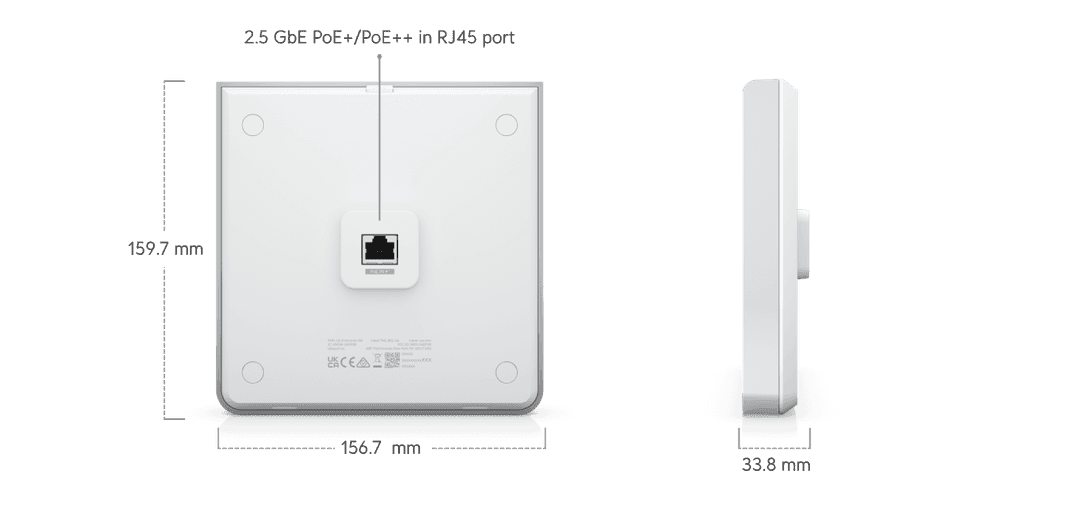

Dimensions
159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")
WiFi Standard
WiFi 6E
Spatial Streams
10
Coverage Area
115 m² (1,250 ft²)
Max. Client Count
600+
Uplink
2.5 GbE
Mounting
Wall (Mount Included)
Power Method
PoE+ PoE++ (Required for PoE output)
Performance
MIMO
6 GHz
4 x 4 (DL/UL MU-MIMO)
5 GHz
4 x 4 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz
4.8 Gbps (BW160)
5 GHz
4.8 Gbps (BW160)
2.4 GHz
573.5 Mbps (BW40)
Antenna Gain
6 GHz
5.8 dBi
5 GHz
5.8 dBi
2.4 GHz
4 dBi
Max. TX Power
6 GHz
26 dBm
5 GHz
26 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ax (WiFi 6/6E)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Hardware
Max. Power Consumption
21W (Excluding PoE output)
Supported Voltage Range
44—57V DC
Networking Interface
(1) Data in: 1/2.5 GbE RJ45 port (4) Data out: GbE RJ45 ports
Weight
884 g (1.9 lb)
Management
Ethernet Bluetooth
Built-In Switch
(4) GbE ports with (1) PoE output
Enclosure Material
Polycarbonate, aluminum
Mount Material
Aluminum
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
Certifications
CE, FCC, IC
NDAA Compliant
✓
Operating Frequency
US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8 : 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 6.0.45 and later
| SKU | U6-ENTERPRISE-IW |
| Model # | U6-Enterprise-IW |
| Barcode # | 8.10E+11 |
| Brand | Ubiquiti |
| Shipping Weight | 0.4600kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.032m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000045000m3 |
| Unit Of Measure | ea |
UniFi In‑Wall U6 Enterprise In Wall Access Point - Documents
Datasheet U6 Enterprise In WallBe The First To Review This Product!
