Ubiquiti UniFi Wi-Fi 7 Long-Range 5 Spatial Streams, Extended Signal Range | U7-LR
U7-LR
Shipping: Calculated at Checkout
Volume Discounts: Applied at Checkout SAVE!
SAME DAY SHIPPING FOR ORDERS BEFORE 2PM WEEKDAYS*
SAME DAY DELIVERY (SDD) AVAILABLE FOR LOCALLY STOCKED ITEMS IN BELOW LOCATIONS ORDERED BEFORE 10AM WEEKDAYS*
Get It Delivered Today in:
Ubiquiti U7 Long-Range, Compact, Ceiling-mount WiFi 7 AP, 5 Spatial Streams, Extended Signal Range, Cover Up to160m², 300+ Devices, Uplink 2.5GbE
Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Features:
WiFi 7
5 spatial streams
160 m² (1,750 ft²) coverage
300+ connected devices
Powered using PoE
2.5 GbE uplink
(U7-LR)

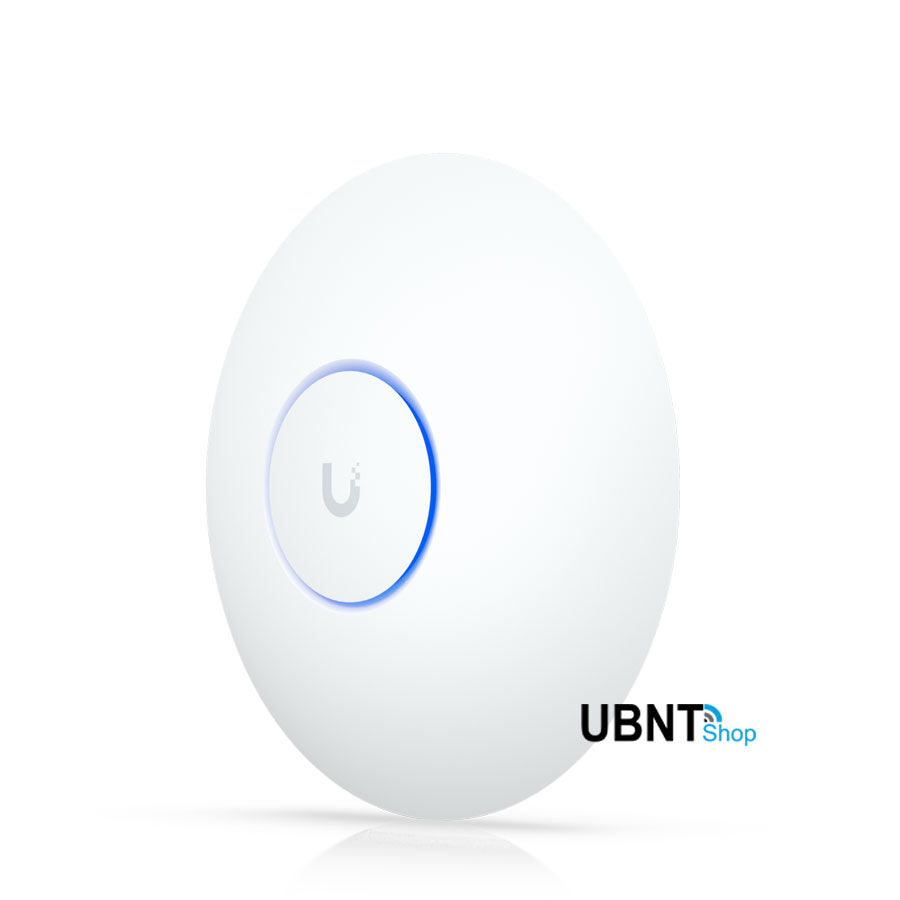

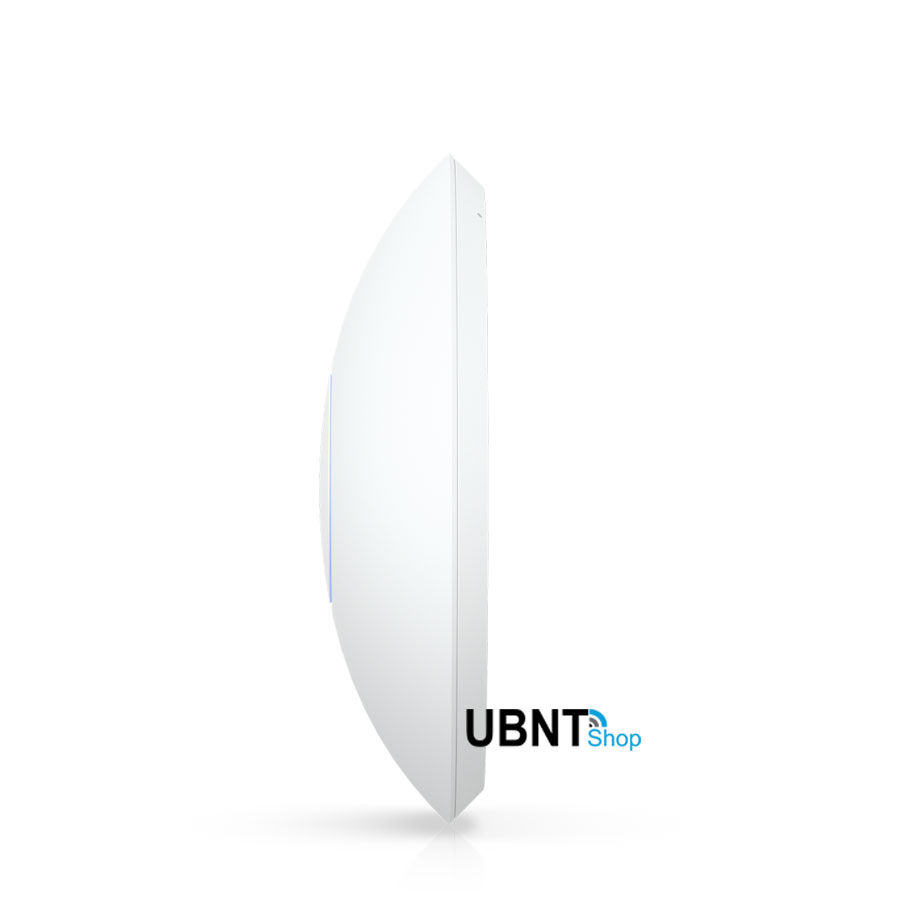

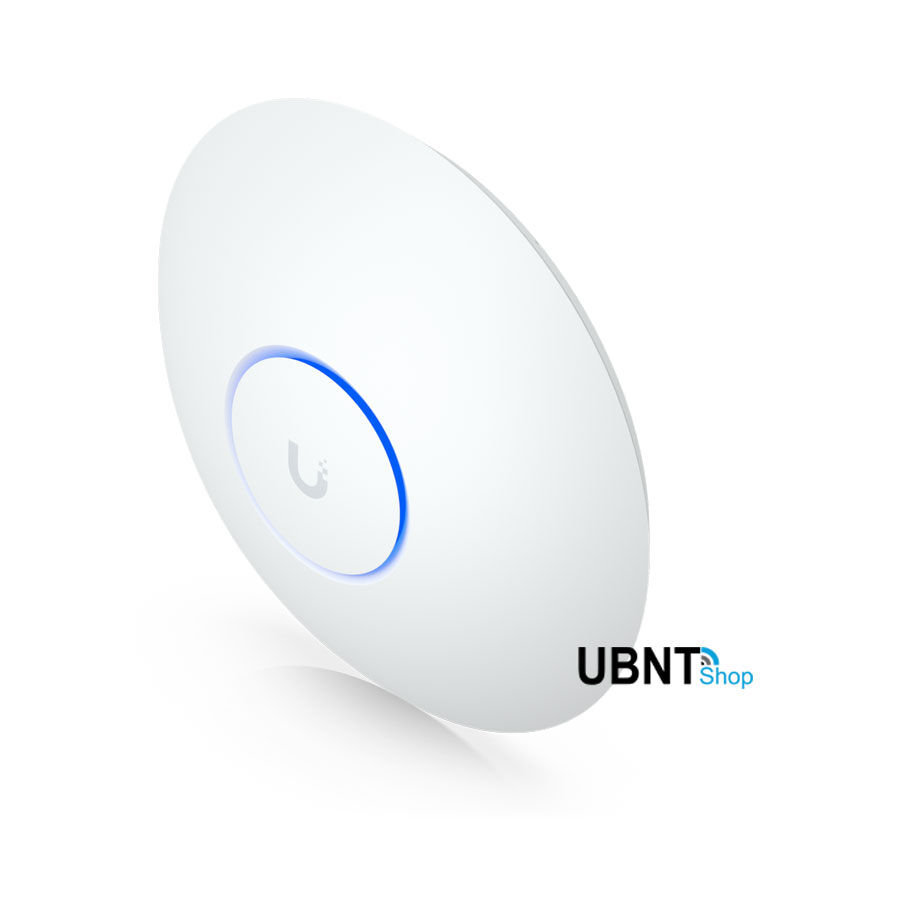

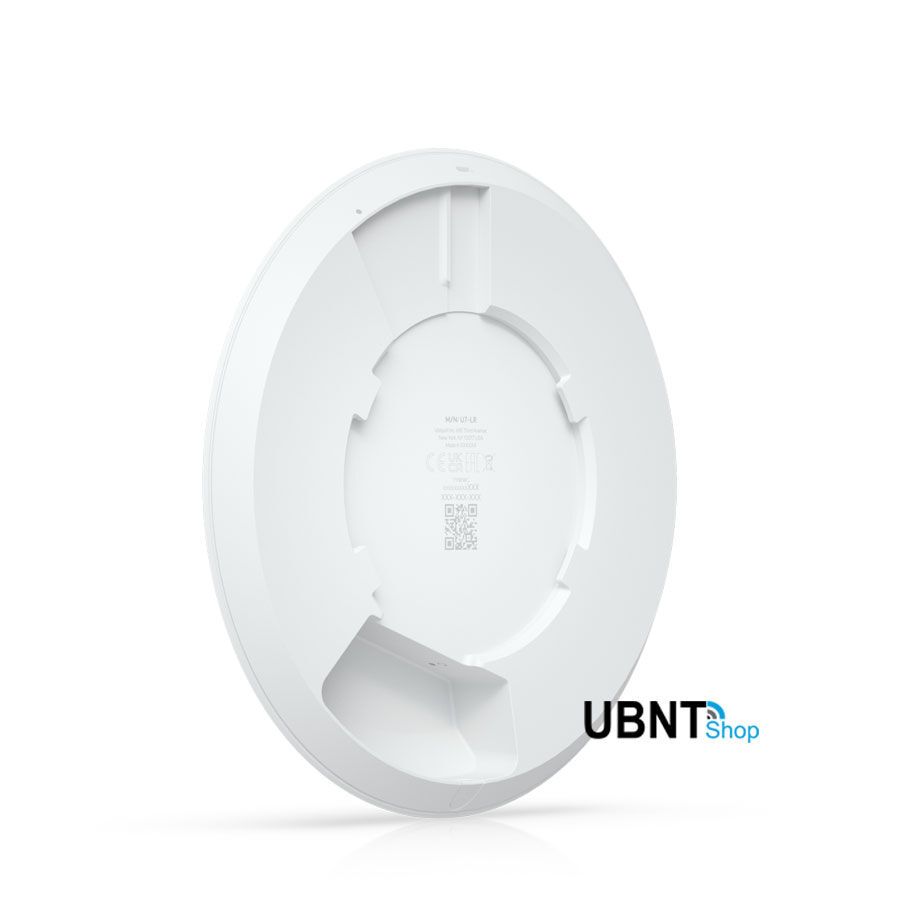

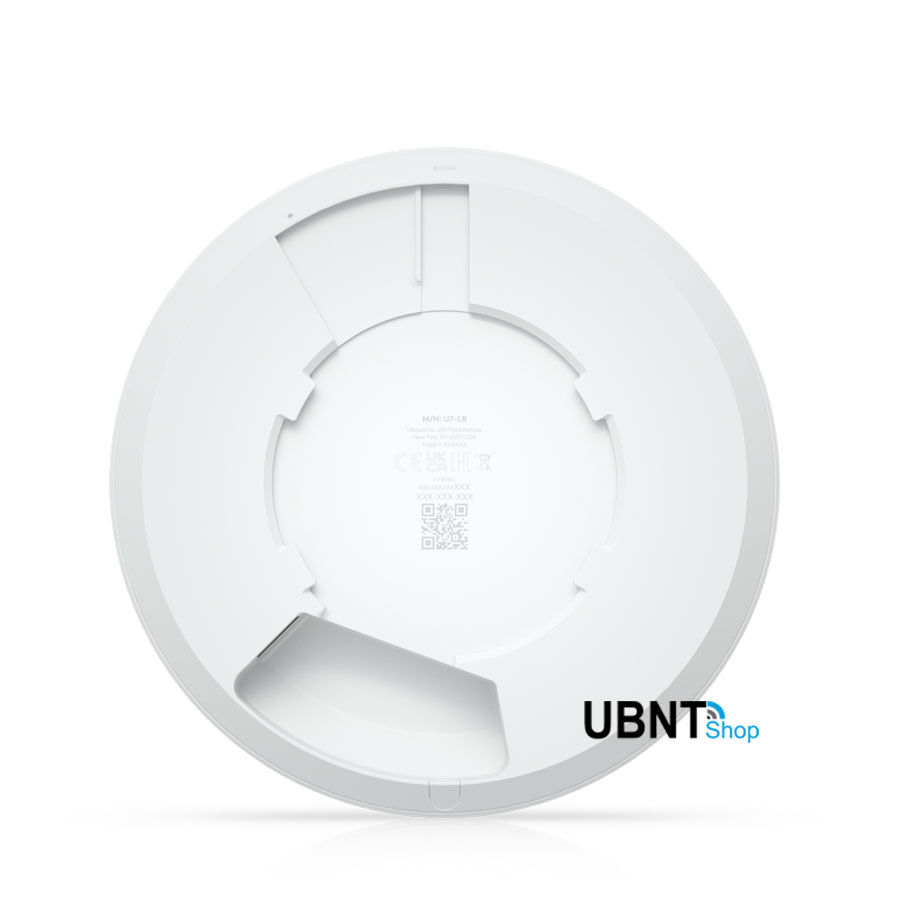

U7 Long-Range Wireless Access Point
U7 Long-Range Wireless Access Point - Specifications
Dimensions
Ø175.7 x 43 mm (Ø6.9 x 1.7")
WiFi Standard
WiFi 7
Spatial Streams
5
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
300+
Uplink
2.5 GbE
Mounting
Ceiling, Wall (Plastic Mounting Plate included)
Power Method
PoE
MIMO
5 GHz
3 x 3 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz
4.3 Gbps (BW160)
2.4 GHz
688 Mbps (BW40)
Antenna Gain
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power
5 GHz
27 dBm
2.4 GHz
26 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓
Max. Power Consumption
14W
Includes PoE Adapter
—
Supported Voltage Range
42.5—57V DC
Networking Interface
(1) 2.5 GbE RJ45 port
Weight
448 g (15.8 oz)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate, galvanized steel (SGCC)
LEDs
System
White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
Application Requirements
UniFi Network
Version 9.1.120 and later
Mobile App
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
| SKU | U7-LR |
| Model # | U7-LR |
| Barcode # | 810177161929 |
| Brand | Ubiquiti |
| Shipping Weight | 0.7200kg |
| Shipping Width | 0.210m |
| Shipping Height | 0.092m |
| Shipping Length | 0.210m |
| Shipping Cubic | 0.004057000m3 |
| Unit Of Measure | ea |
U7 Long-Range Wireless Access Point - Documents
Installation Guide U7 LR Access PointBe The First To Review This Product!
